PostPosted: Tue May 08, 2012 11:10 pm    Post subject: Truckfridge TF65 Install with pics - long Reply with quote

Figured I would put this in its own thread so its easy to find, and for posterity. Hell, it might even help somebody Laughing Ive really wanted to install a 12V fridge for a long time and since I actually got a tax refund this year I started gathering parts. I also installed an aux system. I wont go into my 12V system too much but will say that Im using a Yandia with 3way switch, Blue Sea fuse block, 101Ah aux, Xantrex TC10, and mostly wired with marine wire.

After weighing my choices I settled on the Truckfridge TF65 because I like cold beer... lots of cold beer Wink I will say that I dont think you could go any wider than this unit and keep the stock door adjacent to it.

Howesight definitely gave me inspiration and has great photos of the fridge itself here:
http://www.thesamba.com/vw/forum/viewtopic.php?t=3...;start=180

Removing the cabinet is straightforward. Disassembly is pretty easy but be careful as these boards are thin and antiques. I used a combination of a mallet and a spreader clamp and had no issues getting the pieces apart. They are dadoed, glued, and stapled together. In my case it all came apart just with a few hits of the mallet after I got it started with the spreader clamp. Looks like this:
Image may have been reduced in size. Click image to view fullscreen.

Then you need to cut approx 3/8" off each side of the adjacent panel. Having now done it I can say cheat it towards the back of the van say maybe 1/8" so cut 1/2" off the left of the face and 1/4" off the right. Youll see why in a minute. I reconstructed mine like the factory with dado cuts. I also made the panel adjacent to the fridge cover the whole divider instead of just half so that the edge was clean. Heres a pic to give you an idea:
Image may have been reduced in size. Click image to view fullscreen.

*Edit:I also remember that people had asked in other threads about the best way to cut laminate. There are special blades made just for laminate and I have some, but they are kinda spendy. For this, and most laminate/finish jobs, I just use a 10" Diablo 40T thin kerf blade (Its what was in my table saw at the time anyway). It works almost as well and is more versatile without the $. Best of all you don't need to worry about scoring the cut. If possible, make sure to cut face down. For the jig saw you can use either a ground taper or milled wavy blade with a thin profile if the radius is tight. With the jig saw you need to cut face down to avoid the need to score the cut.

You will need to enlarge the cutout in the panel on the wall of the van. You will also need to seal the hole from the old fridge vent. Then you can relocate the outlet or eliminate it. I moved mine like the picture shows and the stock wires would have reached. You can keep your city water connection but youll have to swap it with the electric. I did but the water line isn't installed in this pic. The wiring in this pic is still preliminary so dont judge Wink
Image may have been reduced in size. Click image to view fullscreen.

I used aluminum angle for the fridge supports and removed the mounting flanges just like Howesight. Once installed you will find that the propane line no longer lines up with the hole and you will need to enlarge the existing opening. You will also need to cut an opening in the divider panel. This would be easiest/cleanest if done before assembly but I didnt catch it till I had it assembled Embarassed You can get the bracket on the face of the cabinet panel to work without modification by loosening the bolt and then wiggling it together. Its tight but it does work. I reworked my propane tank at the same time and the extra length of the new valve can work in this setup with a little bending of the existing stove line. New floor cutout looks like this:
Image may have been reduced in size. Click image to view fullscreen.

So I then went to reinstall my drawer and found that I was rubbing the sink drain. Again, I should have caught this but Rolling Eyes If you cheat the cuts like I mentioned above it should not be a problem. Just be conscious of the width between the two drawer slides as well a making them parallel. I shaved my drain as well as shimmed the drawer over and it works better than original since I used melamine on the contact surfaces of the drawer slides as shims. See how tight the clearance is:
Image may have been reduced in size. Click image to view fullscreen.

I used my old fridge door to make an access for storage below the fridge. There is plenty of airflow on the topside by the condenser/fan setup as per mfg specs. This was somewhat tedious. I like the stockish look of it but thats just me Laughing Finished:
Image may have been reduced in size. Click image to view fullscreen.

For those that want to see what the profile is like:
Image may have been reduced in size. Click image to view fullscreen.

There has been discussion as to the Truckfidges being a little noisy. Since everyone has a different opinion as to what constitutes noisy take this with a grain of salt. I found the fridge out of the box to be decent but not as quiet as Id like so I worked on it Twisted Evil First I loosened the screws on the compressor as they were mashed into the rubber dampeners with no give at all. Then I installed rubber dampeners under the mounting bracket for the condenser since the fan is hard mounted to it.
Image may have been reduced in size. Click image to view fullscreen.

This made an improvement but the fan itself was still a little loud. You wouldnt hear it while driving of course but with 1/3 duty cycle Id rather not have the wife tell me about it every 3 minutes while we try to sleep Laughing So l looked up the fan since its just a standard 92mm computer fan. The stock one is rated at 25.5 dBA and 37 CFM. Hmmm... I found a 92mm fan that is rated at 15 dBA and 42 CFM for $10. I installed that and its much quieter now... and I dont think a little more air flow will hurt either Wink Just link the positive wire to the speed control wire and youre all set.
Image may have been reduced in size. Click image to view fullscreen.

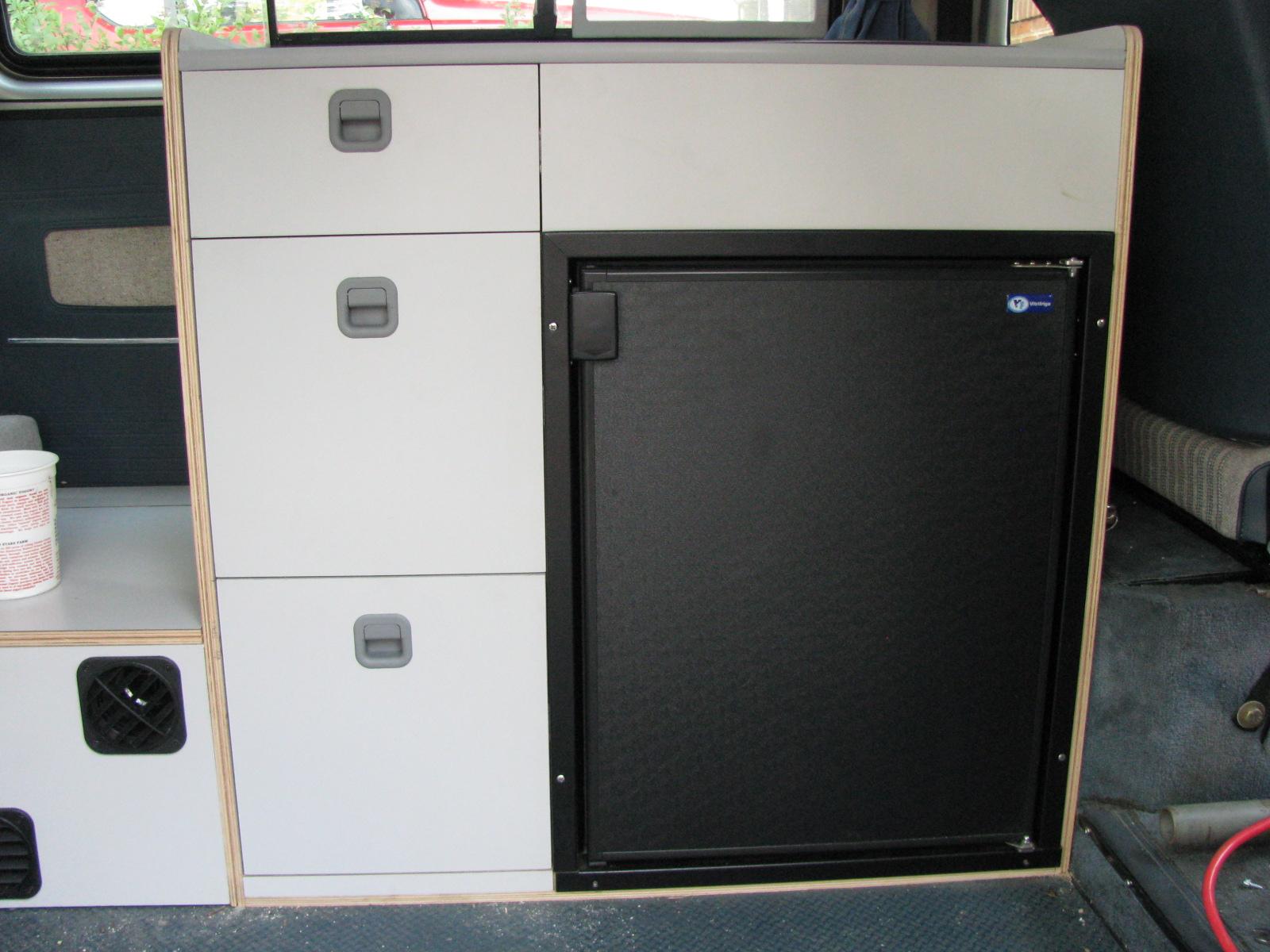

Finished just in time for Syncro Solstice 2012 cause I told my little girl she could have ice cream in the desert this time Laughing Cheers!

_________________
85 Westy w/ 2.2L Subaru
91 Westy w/ 2.5L Subaru - sold


Last edited by idahoskier on Mon Aug 14, 2017 11:55 pm; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pinealservo
Samba Member


Joined: March 08, 2010
Posts: 155
Location: Lehi, UT
pinealservo is offline

PostPosted: Wed May 09, 2012 1:20 am    Post subject: Reply with quote

Nice write-up! I just finished installing mine, although I haven't yet worked out the cover for the under-fridge storage. I am considering using the fridge door as a secondary access to the side closet, so I don't want to chop it down like you did. I have some hinges and a cabinet door catch to make a fold down door, but getting the dimensions and hinge mounting right to make it function well and look good is taking some thought.

I have also been prepping for Syncro Solstice, since we had a bunch of food spoil last year. My other big projects were a new sink faucet and pump and de-rusting and painting the propane tank. I also put a 12v outlet and 1/8" stereo jack right under where our TV mounts so we don't trip over the wires all the time, and I replaced my rusty gas tank and fuel pump so I don't break down on a trail drive again!
Back to top
View user's profile Send private message Classifieds Feedback
morymob
Samba Member


Joined: November 09, 2007
Posts: 4683
Location: east-tn
morymob is offline

PostPosted: Wed May 09, 2012 5:55 am    Post subject: Reply with quote

Don't know how shipping is nowdays but used to the compressors either had 'shipping screws' that clamped it down or like u found the rubber mounts and had to removed/loosed before use.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wontfalia
Samba Member


Joined: October 22, 2008
Posts: 105
Location: London KY
wontfalia is offline

PostPosted: Wed May 09, 2012 8:29 am    Post subject: Reply with quote

Good Job!

Show us some pics of it full of beer!
_________________
Don't break the law when you're breaking the law
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 9077
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sat Sep 15, 2012 1:12 pm    Post subject: Reply with quote

This is just what I was looking for!

I was just trying to envision this job.

I have a table saw, router, have done some woodworking, but it's not my forte. To help me see whats' required, is this basically it in a nutshell (POV looking at cabinet, installed):

- remove, disassemble cabinet as required
- move divider 1" to RH (+ 1/8" wiggle?)
- cut 1" off LH of undersink cabinet face panel
- cut 1" from LH drawer slider block
- LP lines remain at stock floor holes but notch cabinet floor,
bend lines with "S" to position ~ 1-3/8" to RH.

Drawer stays as-is?

Given that you modded your TF, do you think there's any need for a vent fan? Thinking about rear heat and fridge part longevity.

For the relatively few extra semolians on the DC only TF65, this mod seems highly worthwhile.

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
an86carrera
Samba Member


Joined: May 09, 2007
Posts: 293
Location: Bradenton, FL
an86carrera is offline

PostPosted: Sat Sep 15, 2012 2:06 pm    Post subject: Reply with quote

wontfalia wrote:
Good Job!

Show us some pics of it full of beer!


Here is my TF65 with 24 cans of beer 2 cans of soda and 1 1.5 liter bottle of wine. There is room on the side where the wine is for one more 1.5 liter of wine and a shorter bottle of the same diameter in the back. top self is empty as you can see. and, there is the freezer above. Love all the room in it plus the new, still unfinished drawer below.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Len
Current Vehicles
'84 Westy '95 2.2 Subaru
'08 Dodge 2500 diesel
'75 914
Back to top
View user's profile Send private message Gallery Classifieds Feedback
idahoskier
Samba Member


Joined: March 30, 2009
Posts: 152
Location: Donnelly, ID
idahoskier is offline

PostPosted: Sat Sep 15, 2012 2:15 pm    Post subject: Reply with quote

Drawer stays as is but be careful of alignment and clearance to the guides and the sink drain. DC is a great option but I'm using a Xantrex 10a charger that's hardwired to the aux panel from the electric hookup. This has been perfect for my needs so far. The fridge and my other devices don't draw that many amps so I always leave camp fully topped off if there is a hookup available. No need for a vent fan since the factory fan is in the right spot to use the existing vent in the cabinets. You could create an exhaust fan using the old fridge vent if you camp in warmer climates and have it triggered by the fridge or set up for manual operation. Pretty sure I've seen this mod in Sambaland somewhere. With a summer of use now I'm really stoked on this fridge for size and function.
Colin
_________________
85 Westy w/ 2.2L Subaru
91 Westy w/ 2.5L Subaru - sold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 9077
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sat Sep 15, 2012 2:44 pm    Post subject: Reply with quote

an86carrera: though my liver doesn't agree, you're speaking my language! Good to see how much space there is.

idahoskier: Cool, good tips. Yes. Was thinking same: permanent charger. But as you infer, I should determine my total amp needs and then some. I use very little power when camping though. Like I'll play my Eton portable before my head unit.

I was surprised at how easy it was to get the cabinet out.

The common term I've seen for the vent fan is "city water" fan. I installed one on my '81. Pulls a lot of hot air out from behind fridge. I will likely delete the city water hookup. We'll see. Options.

Thanks again for the post and pics. Really helpful. With any luck I won't have to bust out my "adding file". Wink

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 9077
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sat Sep 15, 2012 2:47 pm    Post subject: Reply with quote

idahoskier wrote:
Drawer stays as is but be careful of alignment and clearance to the guides and the sink drain.
Colin


Colin; I was too quick to post.

Since the drawer doesn't move toward front of van, re: alignment to sink drain, is it b/c an poor up/down angle of the slider block will cause drawer to hit drain?

Thanks

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SpeedoJosh
Samba Member


Joined: June 05, 2012
Posts: 143
Location: NC
SpeedoJosh is offline

PostPosted: Sat Sep 15, 2012 3:07 pm    Post subject: Reply with quote

Is the interference with the sink only due to the 65, or would the 49 also run into that problem?

I just picked up a 49, and am looking at installing it. So pretty much, take out old fridge. Cut out bard behind old fridge for new fridge room. Block off old vent. Move the water hook-up. Install brackets, then plug in? Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
an86carrera
Samba Member


Joined: May 09, 2007
Posts: 293
Location: Bradenton, FL
an86carrera is offline

PostPosted: Sat Sep 15, 2012 3:16 pm    Post subject: Reply with quote

Quote:
Then you need to cut approx 3/8" off each side of the adjacent panel. Having now done it I can say cheat it towards the back of the van say maybe 1/8" so cut 1/2" off the left of the face and 1/4" off the right. Youll see why in a minute. I reconstructed mine like the factory with dado cuts. I also made the panel adjacent to the fridge cover the whole divider instead of just half so that the edge was clean. Heres a pic to give you an idea:


3/4" is enough and leaves an 1/8" clearance for fridge. And I used the 'cheat' above which worked perfect.
_________________
Len
Current Vehicles
'84 Westy '95 2.2 Subaru
'08 Dodge 2500 diesel
'75 914
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 9077
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sat Sep 15, 2012 3:31 pm    Post subject: Reply with quote

Thanks an86carrera. And I see your thread here:

http://www.thesamba.com/vw/forum/viewtopic.php?t=520375&highlight=fridge

Yah I wasn't uber clear on that idahoskier quote but will reread til it sinks in. Cabinets on the bench. So will stare at that for a while. I'm sure it's not rocket surgery. Wink

Sorry for the minor hijack!

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BillM
Samba Member


Joined: June 18, 2004
Posts: 1381
Location: Westerly,RI
BillM is offline

PostPosted: Sat Sep 15, 2012 3:31 pm    Post subject: Reply with quote

SpeedoJosh wrote:
Is the interference with the sink only due to the 65, or would the 49 also run into that problem?

I just picked up a 49, and am looking at installing it. So pretty much, take out old fridge. Cut out bard behind old fridge for new fridge room. Block off old vent. Move the water hook-up. Install brackets, then plug in? Laughing



That's it to install the TF 49. I love my TF49 but wish I
had sprung for the next size up. Cutting the cabinets
scared the crap out of me though. I have terrible wood
working skills and didn't want to destroy my Westy
cabinet. I envey those that pulled it off.
_________________
Bill M
87 Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
idahoskier
Samba Member


Joined: March 30, 2009
Posts: 152
Location: Donnelly, ID
idahoskier is offline

PostPosted: Sat Sep 15, 2012 4:12 pm    Post subject: Reply with quote

Neil,
You need a total of 3/4" cut off the front panel. Take 1/2" off the left side and 1/4" off the right (as you look at it in the van) so that you are only shifting the drawer 1/4" towards the front of the van. Too much more and the drawer may rub as it is allowed to wiggle a little anyways by virtue of the rail system used. Hope that helps.
Colin
_________________
85 Westy w/ 2.2L Subaru
91 Westy w/ 2.5L Subaru - sold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SpeedoJosh
Samba Member


Joined: June 05, 2012
Posts: 143
Location: NC
SpeedoJosh is offline

PostPosted: Sat Sep 15, 2012 5:24 pm    Post subject: Reply with quote

BillM wrote:
SpeedoJosh wrote:
Is the interference with the sink only due to the 65, or would the 49 also run into that problem?

I just picked up a 49, and am looking at installing it. So pretty much, take out old fridge. Cut out bard behind old fridge for new fridge room. Block off old vent. Move the water hook-up. Install brackets, then plug in? Laughing



That's it to install the TF 49. I love my TF49 but wish I
had sprung for the next size up. Cutting the cabinets
scared the crap out of me though. I have terrible wood
working skills and didn't want to destroy my Westy
cabinet. I envey those that pulled it off.


Thanks Bill. Yea, I'm nervous enough as is with the 49. Not scared to do mechanical stuff at all, just nervous with interior projects without having pics. Writing instructions are everywhere, but I'm a visual learner when it comes to this stuff.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 9077
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sat Sep 15, 2012 8:09 pm    Post subject: Reply with quote

BillM wrote:



Cutting the cabinets
scared the crap out of me though. I have terrible wood
working skills and didn't want to destroy my Westy
cabinet. .....


Stay tuned..... "buzzzzzzz..... ≠≠[email protected]#%@≠≠ "

Wink


idahoskier wrote:
Neil,
You need a total of 3/4" cut off the front panel. Take 1/2" off the left side and 1/4" off the right (as you look at it in the van) so that you are only shifting the drawer 1/4" towards the front of the van. Too much more and the drawer may rub as it is allowed to wiggle a little anyways by virtue of the rail system used. Hope that helps.
Colin


That totally helps.

Got it apart, albeit with some cracking, Rolling Eyes but it's all doable and I get what you mean.

Thanks again,

Neil.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2138
Location: South central Oregon
westyventures is offline

PostPosted: Sat Sep 15, 2012 10:08 pm    Post subject: Reply with quote

SpeedoJosh wrote:

I just picked up a 49, and am looking at installing it. So pretty much, take out old fridge. Cut out bard behind old fridge for new fridge room. Block off old vent. Move the water hook-up. Install brackets, then plug in? Laughing


Trim the wallboard behind the fridge a couple inches at the top, yes. If re-using the cabinet fascia, trim about 1/8"+ off the inside edge on both sides, and square the top radius corners. Also, you'll need a new way to reattach the right side of the fascia as the old fridge held this in place before. I use 3/4" aluminum angle. The water connection is fine with the TF49, but move the electrical box. Support platform for the fridge feet.
_________________
Karl Mullendore
www.westyventures.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2138
Location: South central Oregon
westyventures is offline

PostPosted: Sat Sep 15, 2012 10:16 pm    Post subject: Reply with quote

Or, save time and just build what you really want, that's what I decided...

Image may have been reduced in size. Click image to view fullscreen.


Cool
_________________
Karl Mullendore
www.westyventures.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
BillM
Samba Member


Joined: June 18, 2004
Posts: 1381
Location: Westerly,RI
BillM is offline

PostPosted: Sun Sep 16, 2012 6:32 am    Post subject: Reply with quote

Nice cabinet Karl. Is there a sink or stove on the top? I
personally never use either and would rather have the
extra room. Are you using a full width rear seat?
_________________
Bill M
87 Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2138
Location: South central Oregon
westyventures is offline

PostPosted: Sun Sep 16, 2012 7:40 am    Post subject: Reply with quote

BillM wrote:
Nice cabinet Karl. Is there a sink or stove on the top? I
personally never use either and would rather have the
extra room. Are you using a full width rear seat?


I use both all the time - so upgraded to a SMEV unit with larger sink with hot/cold tap, single burner with piezo ignition and flame sensing. More photos on my FaceWaste page. Full-width Multivan rear seat.
_________________
Karl Mullendore
www.westyventures.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
