PostPosted: Tue May 15, 2012 1:18 pm    Post subject: Installing GAB-FAB Weber Windows for Carb Access Reply with quote

I just finished installing the GAB-FAB Weber Windows (http://www.thesamba.com/vw/classifieds/detail.php?id=989492) this weekend. We actually have Kadrons that will soon be replaced with Dellortos, but what the hay!

First a couple of notes. I deviated from the recommended installation method. Like any change from a proven system/process, this cost extra time and effort, probably more than doubling how long it took to do the installation. What’s the change? The package included Aircraft “AD” structural rivets. Where these inadequate for the task? No, most likely not. I decided to mount the frames with high strength 8x32 hardware instead. The reason is that my 17 year old has taken on a personal challenge to leave no body panel unmolested. He has almost achieved this goal with the exception of the rear bumper/apron/deck lid. I wanted to make sure that there was enough structural strength that if (when) he bumps this end of the car, it will be less likely to buckle the side walls. I will be following up with brazing in the window frames when we pull the engine later this summer. For “Normal” duty, I’d stick with the provided hardware.

Next, we removed the fenders for the installation. It is possible to do the job with the fenders on if you have a right angle drill for the rear most mounting holes. If you have the fenders on, you will need to squeeze some of the rivets from inside the engine compartment (and have the engine out to get to them) or use a gun and bucking bar.

The photo’s move from one side of the car to the other because my photographer was busy mowing the lawn and was not always available as I worked one side in sequence .

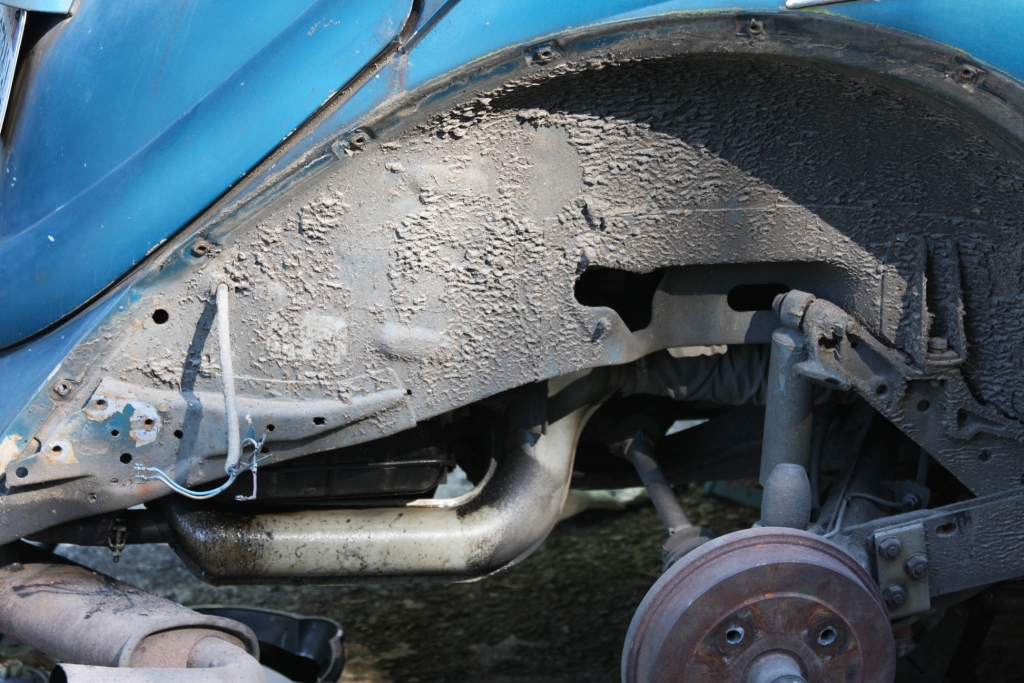

Anyway, the first photo shows the fender removed to reveal the target of our assault.
Image may have been reduced in size. Click image to view fullscreen.



Here we’re cleaning it up and discover some tape and fiberglass “patches”.
Image may have been reduced in size. Click image to view fullscreen.



The frames for the windows are curved to fit the body and fit comfortably in one position fore and aft. You have some positional flexibility vertically. Feel underneath the edge and locate the “ceiling” above the cylinder heads to make sure your layout clears it. Note the contours stamped in the body at the lower right corner of the frame and at the middle left mounting hole.
Image may have been reduced in size. Click image to view fullscreen.



Once you decided where you want it located, mark it. Mark it close to the frame on the outside, and make the marks about ¼” small on the inside to leave a flange. You will later bend this over against the inside of the frame.
Image may have been reduced in size. Click image to view fullscreen.

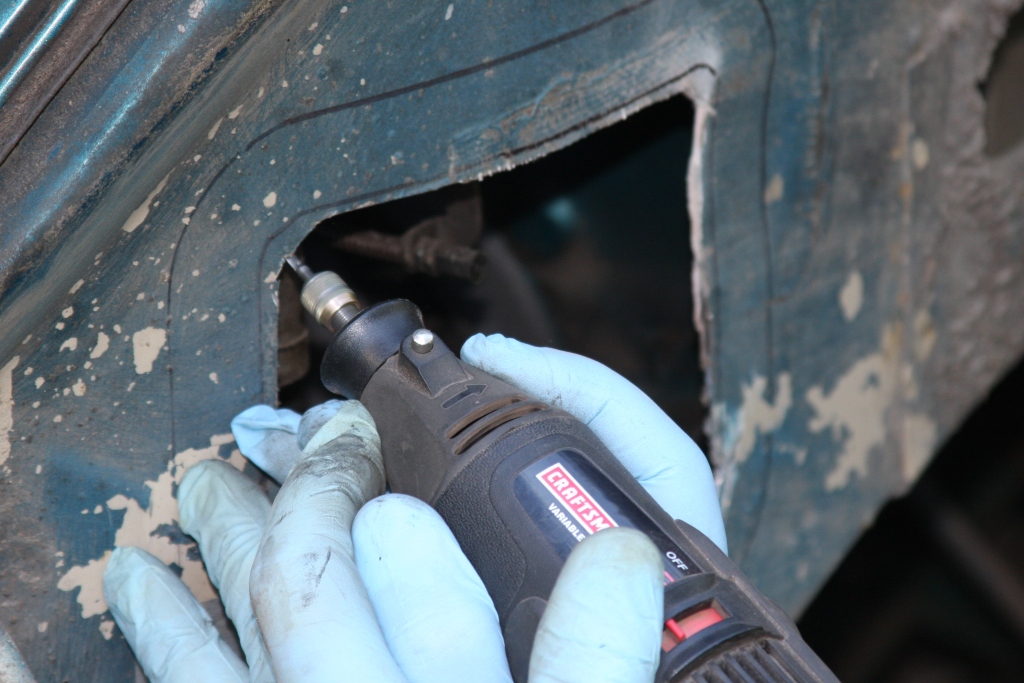

I used a Dremel with a “heavy duty” cutoff disk to make the opening. WEAR SAFETY GLASSES TO DO THIS !!! You will be throwing steel filings, cutoff wheel debris and pieces of the wheel that shatters when you twist it in the slot or catch it on the edge. I tried a fiberglass reinforced disk and it wouldn’t shatter but it wore down as quickly as the regular cutoff disk did and was LOTS more expensive. Leave the corners uncut. You don’t want to end up with a sharp corner in the cutout because it will tear when you hammer it over later.
Image may have been reduced in size. Click image to view fullscreen.



Cut the corners on a 45 degree angle.
Image may have been reduced in size. Click image to view fullscreen.



With the rough opening cut out flatten the stamped body contours to that the frame will sit flat. Note that the tip corner of the bumper bracket needed to be trimmed out of the way.
Image may have been reduced in size. Click image to view fullscreen.



Using a 1/8” carbide burr to round the corners.
Image may have been reduced in size. Click image to view fullscreen.

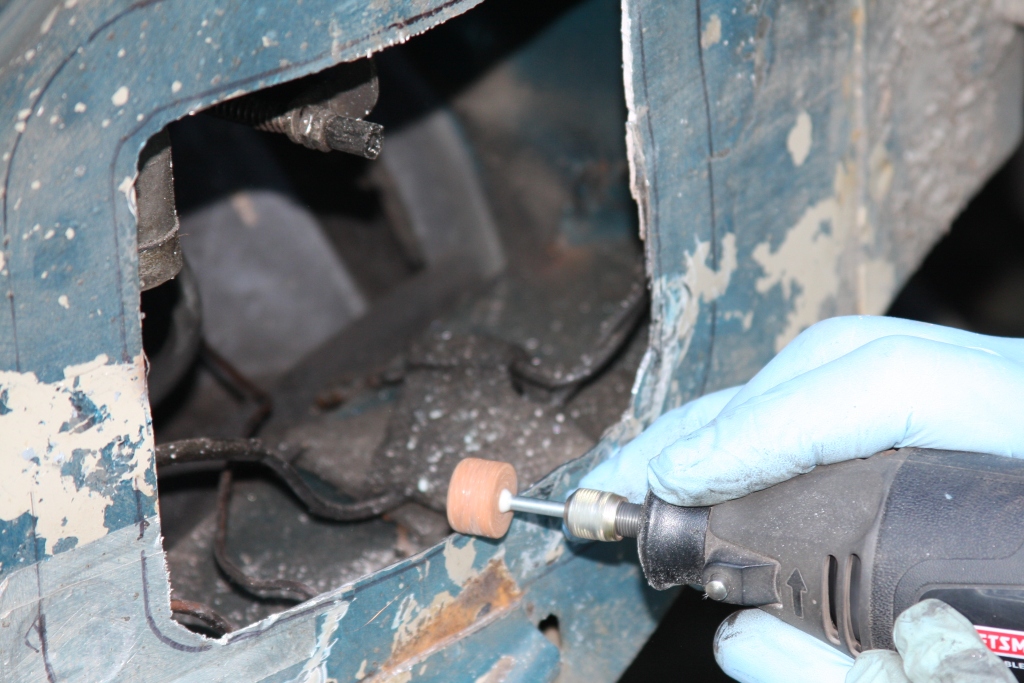

Smoothing/deburring with an aluminum oxide wheel.
Image may have been reduced in size. Click image to view fullscreen.



Smooth any surface irregularities that would keep the window frame from sitting flush against the body. With this the rough opening is complete.
Image may have been reduced in size. Click image to view fullscreen.



Since I elected to use #8 screws instead of the included structural rivets, the mounting holes in the frame needed to be modified. First they were enlarged to 11/64” ( I didn’t have the proper number drill at home). The holes are laser cut and the heat affected zone around them is really hard. Make sure you use a good bit, fast speed and a slow feed.
Image may have been reduced in size. Click image to view fullscreen.

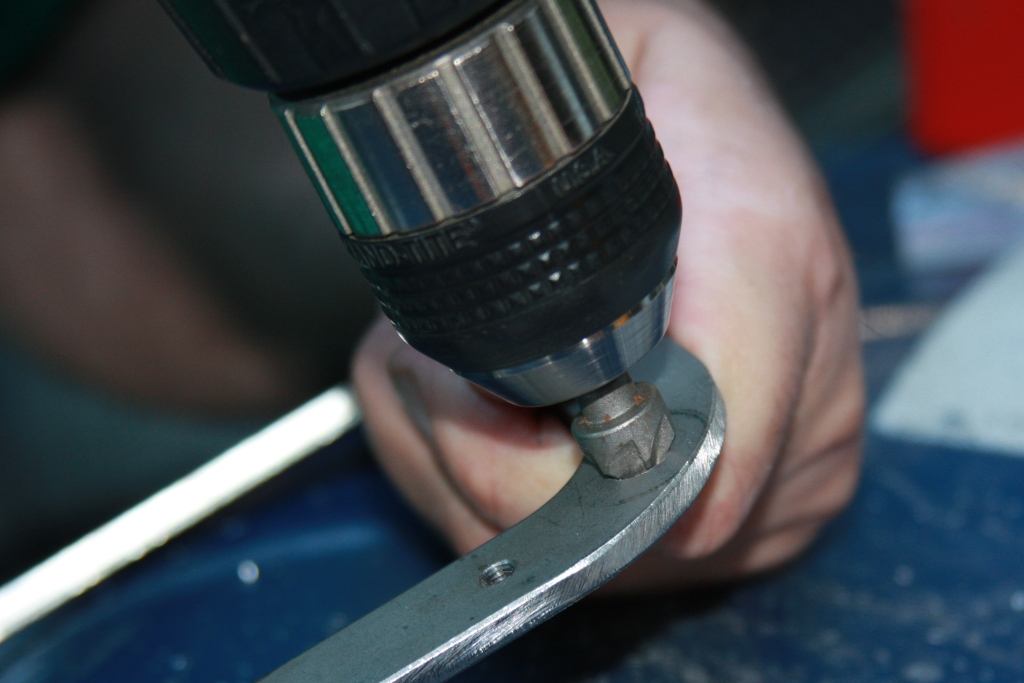

Of course changes compound. The head diameter on the screws is significantly larger than the rivets that the holes were machined for and the countersink angle is different as well. Here we’re re-countersinking. Not shown is that I cheated. This countersink is a cheap piece of crap and didn’t work very well. I cheated and used a “center drill” to get about 85% of the way there, but it was the wrong angle so I finished it up with the pictured countersink. After 16 holes it’s ready for the trash.
Image may have been reduced in size. Click image to view fullscreen.



Here is a picture of the properly countersunk hole with a fastener. The one on the top right corner is done as well. The dimensions of the original holes are visible in the top left corner hole as well as the one on the right side. The included rivets are visible in the bag.
Image may have been reduced in size. Click image to view fullscreen.



To mount the frame to the car, hold the frame centered around the opening. Mark and center punch the location of the top center mounting hole. Drill for either the rivet or screw. I used a #26 drill to be able to tap 8x32 threads. Deburr both sides. If using screws, tap the hole, and screw the frame in just snug. If riveting, cleco the frame in place. Here is where using screws really starts to eat up time. With the 11/64” bit that you used for the clearance hole to center in the bottom center hole of the window frame and drill just enough to make a starting dimple for the #26 bit. DON’T DRILL THROUGH!
Image may have been reduced in size. Click image to view fullscreen.

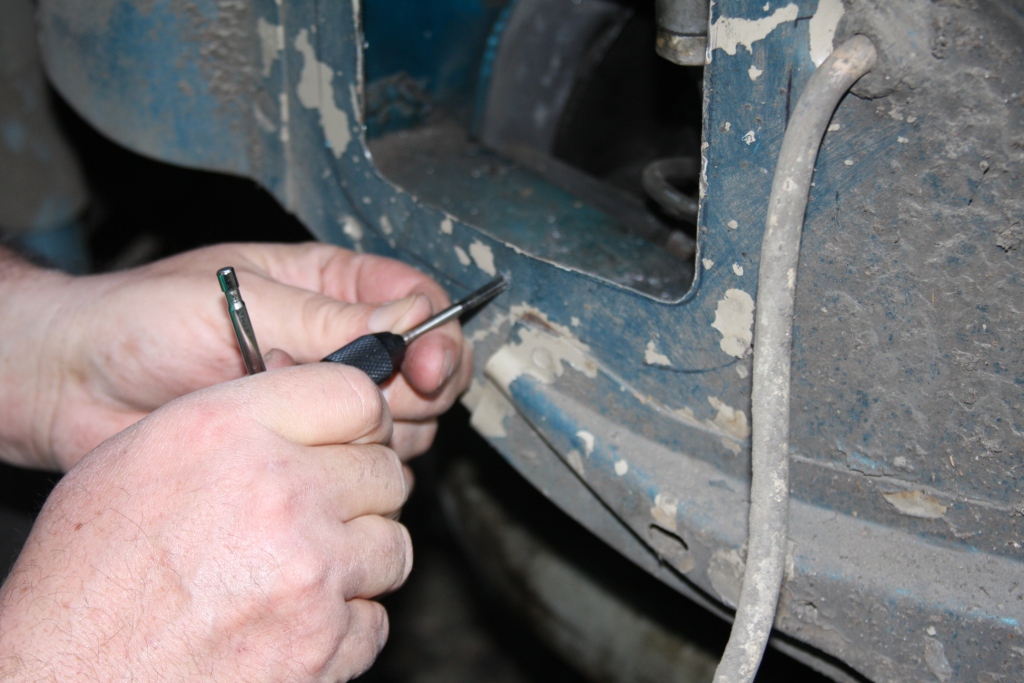

Remove the frame, drill with the #26 bit, deburr and tap.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Put the frame back in with both screws just snug. Use clamp(s) if needed to pull the frame to the body, mark the next hole and repeat the center/remove/drill/deburr/tap. The reason you need to take the frame off is if your hole is off center you will bind the tap and risk breaking it off. If you are using the rivets, you can center drill, cleco, clamp, drill… All with the frame in place.
Image may have been reduced in size. Click image to view fullscreen.



If you’re riveting, once all the holes are drilled, remove the clecos and frame, deburr the holes, cleco back in place and squeeze the rivets. Otherwise, once all the screws are in place, tighten them all up but don’t over tighten, there are only a couple of small threads in the thin sheet metal and it’s easy to strip them out. Put self locking nuts on the back side and tighten them down while holding the screw from turning out. I used 5/16” screws and they were just long enough to have one thread come past the nylon insert in a shear (thin) locknut. This will keep the screw from pulling out and also act like an acorn nut and help avoid catching your hands on the ends of the screws when working inside the engine compartment.

Next, take a tap the exposed flange down against the inside of the window frame.
Image may have been reduced in size. Click image to view fullscreen.



Trim off any excess sheet that sits above the surface of the window. Visible inside the bottom left corner is one of the lock nuts. Screw on the cover and you’re done!
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

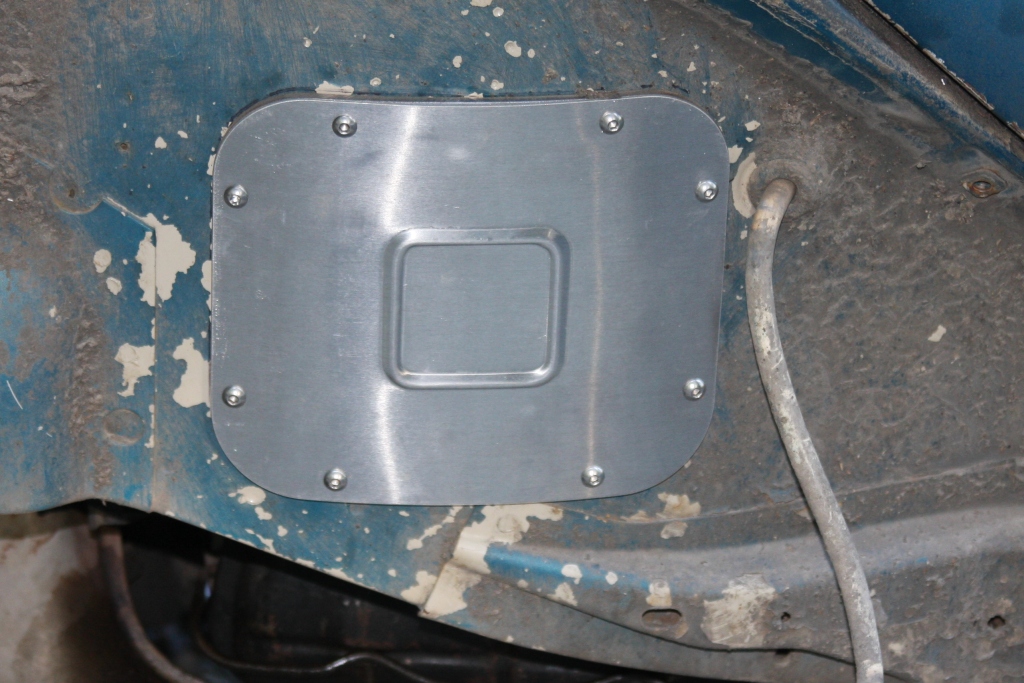

Again, when the engine is next out, I’m going to replace the screws with shorter ones and braze the frames in place. Unless you have special circumstances driving the decision, I’d strongly suggest sticking with mounting the frame with the included rivets. It will save you time, have less in the engine compartment to snag on and be plenty strong.
I believe the GAB-FAB Weber Windows are a quality product, easy to install and fairly priced for what you get. I’d recommend them for anyone running duals in a T1.

Andrew

Back to top
View user's profile Send private message Gallery Classifieds Feedback
wompninja
Samba Member


Joined: July 06, 2008
Posts: 2147
Location: Salt Lake City
wompninja is offline

PostPosted: Tue May 15, 2012 1:58 pm    Post subject: Reply with quote

Great tutorial.
_________________
Pics of my 1970 Satin Black Type 1 build
Back to top
View user's profile Send private message Visit poster's website Twitter Instagram Gallery Classifieds Feedback
Glenn
Mr. 010


Joined: December 25, 2001
Posts: 73903
Location: Sneaking up behind you
Glenn is offline

PostPosted: Tue May 15, 2012 3:54 pm    Post subject: Reply with quote

Thanks for posting, it's been added to the FAQS/Sticky.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Dale M.
Samba Member


Joined: April 12, 2006
Posts: 20076
Location: Just a tiny bit west of Yosemite Valley
Dale M. is offline

PostPosted: Tue May 15, 2012 4:42 pm    Post subject: Reply with quote

think I would have just put in generic fuel tank door.... To much work, to many screws....

Image may have been reduced in size. Click image to view fullscreen.


Dale
_________________
“Fear The Government That Wants To Take Your Guns" - Thomas Jefferson.

"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the2ndcashboy
Samba Member


Joined: March 19, 2007
Posts: 827
Location: Houston
the2ndcashboy is offline

PostPosted: Tue May 15, 2012 5:27 pm    Post subject: Reply with quote

If you didn't want to use the rivets (which probably have a higher shear strength than the body panel anyway) you could have gotten some Hi-lok type fasteners that would have fit the original countersinks in the frame. They come in steel or titanium. No fussing around trying to enlarge countersinks in hardened steel.

If I was going to modify it for added strength in an impact, I would just add a few more rivets. Right now if that area flexes it will bulge/tear the metal at every fastener.
_________________
SRP1 wrote:
You see....... He talks in code and translation requires a priest, geologist, astronomer, biophysicist, and Indiana Jones.
modok wrote:
If anything comes out perfect it just means your measuring tools are substandard.
Back to top
View user's profile Send private message Classifieds Feedback
ap_sand
Samba Member


Joined: November 07, 2008
Posts: 249
Location: Woodinville, WA
ap_sand is offline

PostPosted: Tue May 15, 2012 7:41 pm    Post subject: Reply with quote

Dale: Bigger than a fuel door, but not too big.

the2ndcashboy: It's not hardened steel, just mild. It's that the countersink wasn't make of much better steel! Besides adding more rivets would have required drilling and countersink MORE holes. I want to not have fasteners at all and will braze it soon. Just counting on the boy NOT doing it in until then. The fasteners will be replaced with short ones that don't go past the sheet metal. They will only be there to hold position for brazing, then will remain as corks.

I'm very familiar with Hi-Loks. Have you ever fought with them to get them out (besides their being priced as if they were made of gold)?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the2ndcashboy
Samba Member


Joined: March 19, 2007
Posts: 827
Location: Houston
the2ndcashboy is offline

PostPosted: Wed May 16, 2012 4:02 am    Post subject: Reply with quote

They're not hard at all to get out. Especially if you can get to the backside. Just spin the locknut off. You can actually use standard NAS type nuts on them too if you dont want to fuss with the frangible collars they are designed for. Just size it so it so the nut doesn't hit the "shoulder" when you tighten it down. If you have to drill them just pilot the head with a #40 and then drill the head to the appropriate size to pop it off. You do need good quality drills though, especially if you have the titanium version of the hiloks
_________________
SRP1 wrote:
You see....... He talks in code and translation requires a priest, geologist, astronomer, biophysicist, and Indiana Jones.
modok wrote:
If anything comes out perfect it just means your measuring tools are substandard.
Back to top
View user's profile Send private message Classifieds Feedback
Dale M.
Samba Member


Joined: April 12, 2006
Posts: 20076
Location: Just a tiny bit west of Yosemite Valley
Dale M. is offline

PostPosted: Wed May 16, 2012 7:22 am    Post subject: Reply with quote

ap_sand wrote:
Dale: Bigger than a fuel door, but not too big.



I can get a gas cap through fuel door you can not get a "jet" through a fuel door?

Dale
_________________
“Fear The Government That Wants To Take Your Guns" - Thomas Jefferson.

"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ap_sand
Samba Member


Joined: November 07, 2008
Posts: 249
Location: Woodinville, WA
ap_sand is offline

PostPosted: Wed May 16, 2012 7:38 am    Post subject: Reply with quote

Thanks for the input guys. Guess I'll weld back in some factory NOS panels and redo it right.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the2ndcashboy
Samba Member


Joined: March 19, 2007
Posts: 827
Location: Houston
the2ndcashboy is offline

PostPosted: Wed May 16, 2012 8:02 am    Post subject: Reply with quote

I don't mean to criticize your install, it looks pretty clean. I was just offering some fastener options for other people that might not want to use the rivets. There are also several NAS high-strength screws that use the "426" countersink (which is what it appears those rivets are).

FWIW, you said you're going to be running dells, so those doors aren't as critical for you as they would be with webers. They'll help you remove the carbs if you're running a stock fan shroud with heater ducts though. Probably would help with spark plug removal too.
_________________
SRP1 wrote:
You see....... He talks in code and translation requires a priest, geologist, astronomer, biophysicist, and Indiana Jones.
modok wrote:
If anything comes out perfect it just means your measuring tools are substandard.
Back to top
View user's profile Send private message Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 5121
Location: central rust belt
esde is offline

PostPosted: Wed May 16, 2012 8:06 am    Post subject: Reply with quote

ap_sand wrote:
Thanks for the input guys. Guess I'll weld back in some factory NOS panels and redo it right.


HA! I think it's a pretty cool idea. I've got Kadrons as well at the minute, and a set of Dells waiting to go on, and yes, access to the mixture screws looks tight. But, most of the jets go in through the top anyway, so the panel would mostly be to get #1 and #3 plugs, and mixture screws. Anyway, I think you're over thinking it with the brazing, or strength of rivets. If your car gets rear ended hard enough to bend that spot, how the panel is fastened is probably not going to matter much.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mcmscott
Samba Member


Joined: March 12, 2010
Posts: 4706
Location: sanger ca
mcmscott is offline

PostPosted: Wed May 16, 2012 2:37 pm    Post subject: Reply with quote

Dale M. wrote:
think I would have just put in generic fuel tank door.... To much work, to many screws....

Image may have been reduced in size. Click image to view fullscreen.


Dale


Manny moe and Jack would be proud
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cptn. Calzone
Samba Member


Joined: June 27, 2007
Posts: 1838
Location: S>E>Alabama
Cptn. Calzone is offline

PostPosted: Thu May 17, 2012 3:06 am    Post subject: carb access Reply with quote

Someone needs to fab up a set of these for a bus!! getting to the plugs can be a pita with dual carbs and manifolds. Installing the windows would have to be with the engine removed though cuz the fender trick will not work on the bus
_________________
71 westfalia
67 912 Porsche Quintilla
67 Single Cab aka my work horse
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bashr52
Samba Member


Joined: July 16, 2006
Posts: 5667
Location: On an island in VA
Bashr52 is offline

PostPosted: Thu May 17, 2012 6:07 am    Post subject: Re: carb access Reply with quote

Cptn. Calzone wrote:
Someone needs to fab up a set of these for a bus!! getting to the plugs can be a pita with dual carbs and manifolds. Installing the windows would have to be with the engine removed though cuz the fender trick will not work on the bus


At least on a bus you can remove the engine access panel and get to it from the top........
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cptn. Calzone
Samba Member


Joined: June 27, 2007
Posts: 1838
Location: S>E>Alabama
Cptn. Calzone is offline

PostPosted: Thu May 17, 2012 8:21 pm    Post subject: bus Reply with quote

Access panel for certain years only, although McTuckey fixed me up with a boat hatch which i installed and makes work and LIGHT so much better, I still need some panels which I will make myself. The plugs can be a biatch.
_________________
71 westfalia
67 912 Porsche Quintilla
67 Single Cab aka my work horse
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Zacharysayre
Samba Member


Joined: July 03, 2004
Posts: 589
Location: Scottsdale, Arizona
Zacharysayre is offline

PostPosted: Sun Sep 01, 2013 9:41 pm    Post subject: Reply with quote

I know this is old but I just got the new Hot VW's October 2013 issue and they show an install of these.

looks like another thing to add to my build.
_________________
If it ain't steel, it ain't real
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jason56
Samba Member


Joined: May 15, 2013
Posts: 13
Location: Saskatoon
Jason56 is offline

PostPosted: Tue Apr 08, 2014 3:35 pm    Post subject: Thanks Reply with quote

Thanks to the people that take the time to create how to threads like this one. It's a great help to those of us learning how to do these types of projects on our own. While I have a great classic vw shop in town there is a lot of pride in completing this type of thing myself. Simple as it may be.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4905
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Tue Dec 09, 2014 10:58 am    Post subject: Reply with quote

Tip: Instead of using a small Dremel cutoff wheel, use a 1/4"-5/16" drillbit to drill a hole near the corner of the inner radius where you are cutting away metal, then use a jigsaw with a metal bit to cut through this starting hole along the line of metal panel you are removing.

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vvdubman
Samba Member


Joined: March 01, 2003
Posts: 75
Location: Sicily
vvdubman is offline

PostPosted: Thu Dec 03, 2015 1:04 am    Post subject: Re: Installing GAB-FAB Weber Windows for Carb Access Reply with quote

Are there any out there with quick access latches?
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger Facebook Gallery Classifieds Feedback
jl_1303
Samba Member


Joined: July 01, 2006
Posts: 569

jl_1303 is offline

PostPosted: Thu Dec 03, 2015 5:55 pm    Post subject: Re: Installing GAB-FAB Weber Windows for Carb Access Reply with quote

My car is a '74 Super Beetle.

It has ribs like this:

Image may have been reduced in size. Click image to view fullscreen.


I wonder if anyone has tried fitting the carb window to this.
Back to top
