PostPosted: Tue Jun 12, 2012 5:07 pm    Post subject: Kyle TX, 63 Ragtop project Reply with quote

I just got this 63 a few weeks ago. I picked it up in Big spring TX. so far so good, seems pretty straight to me. I've got some rust questions but I'll save those for later.

Here are a few pics. I've got a 12v conversion question at the end.

Image may have been reduced in size. Click image to view fullscreen.

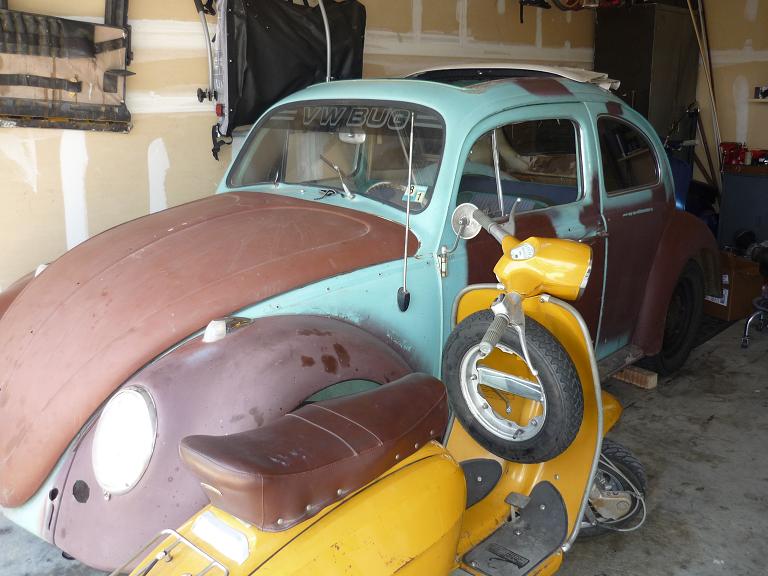

In the garage.
Image may have been reduced in size. Click image to view fullscreen.

Engine - some 6v some 12v
Image may have been reduced in size. Click image to view fullscreen.

No more tint.
Image may have been reduced in size. Click image to view fullscreen.

Top removed. Is that Turkis I believe?

Now my question. I've read a lot about 12v conversions, but I want to make sure.

I have:
12v choke
12v regulator
12v generator
12v coil
12v wiper armature
12v bulbs
6v starter

Looking at diagrams of what I have and what I think I need to go to:

63 wiring diagram (6V)

6v battery, the Black+ wire goes from the battery --> starter --> v-reg --> front of car.

67 diagram (12V)

12v battery black+ wire 1 --> starter
12v battery Red+ wire 2 --> v-reg B+ --> front of car.

So the only real change is the + wire that goes to the starter on 6v now goes straight to B+ on the 12v v-reg. I also have to add a ground (brown) between the generator and v-reg. Otherwise DF to DF, D+ to D+ and the blue (warning) wire goes to the v-reg.

Thanks for the help, hopefully this makes sense.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 2164
Location: Texas
sportin-wood is offline

PostPosted: Tue Jun 12, 2012 8:57 pm    Post subject: Reply with quote

Looks like a cool project! Any particular reason you're converting it to 12V? Maybe a big sound system? Because I'd keep it 6V. I think if you're going to use a 12V starter, you'll need to change the flywheel too which involves grinding the bell housing a little to make it fit. But a lot of people use a 6V starter on a 12V conversion as long as you don't ride it for long crankings and burn it out... Post pics as you go. Good luck!
_________________
.
1966 Bug project
1973 Thing project
.
"Relax, all right? My old man is a television repairman. He's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mykidsbug
Samba Member


Joined: April 07, 2011
Posts: 473
Location: SoSo Cal LA
mykidsbug is offline

PostPosted: Wed Jun 13, 2012 6:15 am    Post subject: Reply with quote

good looking ride, good luck!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Wed Jun 13, 2012 6:20 am    Post subject: Reply with quote

No particular reason, just thought the lights would be brighter, stereo (nothing crazy), etc... I'll keep the 6v starter until it dies.

I plugged everything in last night. The electrical gremlins are busy creatures. I turned the ignition to start and the wipers came on. There is an extra on off switch between my headlight and wiper controls. For some reason this was plugged into my wiper motor after coming from ignition. It was also plugged into the 12v flasher relay. No idea for that, but it was late and I had to stop there.

The car has been in storage since 1990.

I think I have the back of the car wired right, now I get start sorting out the stuff in the front.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nax
Samba Member


Joined: March 26, 2007
Posts: 258
Location: Valencia (Spain)
nax is offline

PostPosted: Wed Jun 13, 2012 6:52 am    Post subject: Reply with quote

great project!..and nice lambretta!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jzjames
Samba Member


Joined: September 27, 2007
Posts: 1921
Location: Windy Point, WA
jzjames is offline

PostPosted: Wed Jun 13, 2012 7:01 am    Post subject: Reply with quote

Id suggest wiping off that red primer, see what ya got.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
63RAGTP
Samba Member


Joined: February 15, 2010
Posts: 112
Location: Daphne Al
63RAGTP is offline

PostPosted: Wed Jun 13, 2012 7:37 am    Post subject: Reply with quote

That brings back some memories....... I just finished my 63 euro ragtop. it was the L380 color. Went back with the same color. I did a complete body off restoration, wiring, trans, engine, everything was replaced. So if you have any questions let me know, I have probably done it.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


started with this.......
Image may have been reduced in size. Click image to view fullscreen.


Take your time with the wiring, dont get in a hurry. if you are planning on going 12 volt an you have pulled the engine, I would at least grind out the bell housing on the trans to accept the 12 v flywheel. Easier to do it now than later, just my opion.

Have any questions just ask.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Wed Jun 13, 2012 7:54 am    Post subject: Reply with quote

Nice work on the two tone!

I'll be pulling the engine and transmission in the near future, just to clean them at a minimum. Right now I'm trying to figure out what works and what doesn't. Figure electronics, brakes, fuel tank cleaning, then engine/transmission.

Three of the fenders have been replaced, so I know they don't match colorwise. The doors have some rust at the bottoms, but I am going to try and see whats under the primer. after that, I'll probably re-primer it one color until I can put the money together to really paint it and restore the pan. Possible adjustable beam in there somewhere.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Wed Jun 13, 2012 8:25 pm    Post subject: Reply with quote

Electrical progress!

I changed the positions of some wires and cleaned a few connections. I also picked up a 12v backing plate for my generator and a 12v fan without the holes. Right now, the generator is just sitting on the stand. I'll be putting the fan together and installing that next.

So far, I've got headlights hi & lo, rear turn signals, rear running lights, most dash lights, and the red/green warning lights.

No front turn signals or driving lights, no fuel gauge light, no brake lights, and no starter. I'm thinking of disassembling the ignition switch.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Smile Good times
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Tue Jun 19, 2012 8:32 pm    Post subject: Update Reply with quote

So I'm looking at the brakes. Might as well try the hard stuff first.

Rear axle nut!
Image may have been reduced in size. Click image to view fullscreen.

Yes, I read all the posts, no i didn't listen. Broken breaker bar, broken 1/2" socket wrench, bent cheater pipe.....correct tools ordered and hopefully on the way.

Since I had the rear tires off, I removed the dead starter. Is there an easy way of determining the flywheel size without removing the engine? The engine is not original to the car.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
algernon72
Samba Member


Joined: October 24, 2009
Posts: 114
Location: Tampa Florida USA
algernon72 is offline

PostPosted: Tue Jun 19, 2012 8:40 pm    Post subject: Reply with quote

The torque meistrer the way to go. It is amazing how much easier those nuts come off with it. Oh and PB blaster that stuff is great. Put it on let it set, whack it a couple times, put more. Blaster on it .whack it a couple more times,.it will come right off
_________________
Sat for 14 yrs, in garage. Now its time to bring it back. Front suspension, steering, bearings, and brakes, carpet, headliner seats Done! Turn around in the garage. CVs, bearings, disk breaks, Turn around again, fuel tank, and brake fluid container. Drained and filled transaxle,, set valves, new fuel pump and it started! Yahoo!! Two cups of rust blew out the muffler.HA! Pertronix SVDA and a Rebuilt 34-3 from Tim I'm on the road!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thedeatons
Samba Member


Joined: December 19, 2002
Posts: 215

thedeatons is offline

PostPosted: Wed Jun 20, 2012 7:04 am    Post subject: Reply with quote

Do you have at least a 30 gallon air compressor and an impact wrench?


After having one for 7 years (plus many other air tools) I cannot imagine going back to manual anything... Things go much faster, with less worry, and less fatigue on your body.



James
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Thu Jun 21, 2012 1:13 pm    Post subject: Reply with quote

I don't have a compressor, but it is on my list. My brother has a 20-30 gallon one I can borrow, but right now, my garage is a bit full.

.....patiently waiting for the torque buddy/meister/whatever.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
billzer06
Samba Member


Joined: March 17, 2008
Posts: 177
Location: West Texas
billzer06 is offline

PostPosted: Thu Jun 21, 2012 10:05 pm    Post subject: Reply with quote

hey, where do you live? I'm in Midland, and have a 59 ragtop I'm working on. I've seen that one for sale for a while. PM me if you want
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Fri Jun 22, 2012 7:23 pm    Post subject: Reply with quote

I hauled it from Big Spring back to the near Austin area.

scored this today. 12v rebuilt bosch starter $20 and a bugpack dual quiet pack setup with the header for $100. I can't use the exhaust...yet (1200)
Image may have been reduced in size. Click image to view fullscreen.

Now I need a fly wheel.

With a 12v flywheel, what clutch parts do I need to keep from the current 1200cc setup and 63 transmission? Also, what is best used to grind it for clearance of the larger flywheel?

I'm planning on building a 1776 eventually. Which cases are to be avoided for a rebuild, which are the best?

Thanks in advance.

Doug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pitbug
Samba Member


Joined: May 10, 2010
Posts: 549
Location: San Angelo, Tejas
pitbug is offline

PostPosted: Wed Jun 27, 2012 1:30 pm    Post subject: Reply with quote

Nice score, I tried to trade for that, but he didn't want my 54 International.. Sad We just finished wifey's 62 ragtop... (which we got in Austin Cool )
_________________
71' Bus "Sunshine"
68 Eriba Puck!! Wink
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Facebook Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Wed Jun 27, 2012 7:32 pm    Post subject: Reply with quote

Thanks, I saw the pic of your 62 earlier, but now its not there. The red was nice.

Tonight I took the front brakes apart and I've got new stuff on the way.
Image may have been reduced in size. Click image to view fullscreen.


Should there be a locking tab of some kind between the two nuts?

Image may have been reduced in size. Click image to view fullscreen.

Drivers side left hand thread, very dirty.
Image may have been reduced in size. Click image to view fullscreen.

passenger side, dirty also.
Image may have been reduced in size. Click image to view fullscreen.

driver side spindle, looks good I think, just lots of crud.
Image may have been reduced in size. Click image to view fullscreen.

Passenger side spindle.

Now to clean up the parts and see if the hubs are useable.
Image may have been reduced in size. Click image to view fullscreen.

This is the passenger side, it has some deep grooves.

Can't wait to drive this car!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pitbug
Samba Member


Joined: May 10, 2010
Posts: 549
Location: San Angelo, Tejas
pitbug is offline

PostPosted: Wed Jun 27, 2012 7:45 pm    Post subject: Reply with quote

Not sure what happened Confused jsut go slow and do it right and she'll get there Very Happy
Image may have been reduced in size. Click image to view fullscreen.

_________________
71' Bus "Sunshine"
68 Eriba Puck!! Wink
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Facebook Gallery Classifieds Feedback
flyboat
Samba Member


Joined: April 21, 2010
Posts: 2752
Location: Bath NC
flyboat is offline

PostPosted: Wed Jun 27, 2012 8:13 pm    Post subject: Reply with quote

6 volt starter will last a long time and turn the engine over really quick with 12 volts. mine lasted for years.
_________________
79 super Vert
62 Ragtop Bug
66 tintop Westy
Porsche 914
09 Z06 Vette track car
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dschup
Samba Member


Joined: July 17, 2008
Posts: 299
Location: Kyle, TX
dschup is offline

PostPosted: Thu Jun 28, 2012 2:09 pm    Post subject: Reply with quote

The 6v starter was/is toast. I took it apart, the rust alone was keeping it from moving. Now it moves, but still doesn't work. At least I can say I know how it comes apart and goes together.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
