Found a weird dual spring early cylinderhead

[ngobet]

Hi everyone,

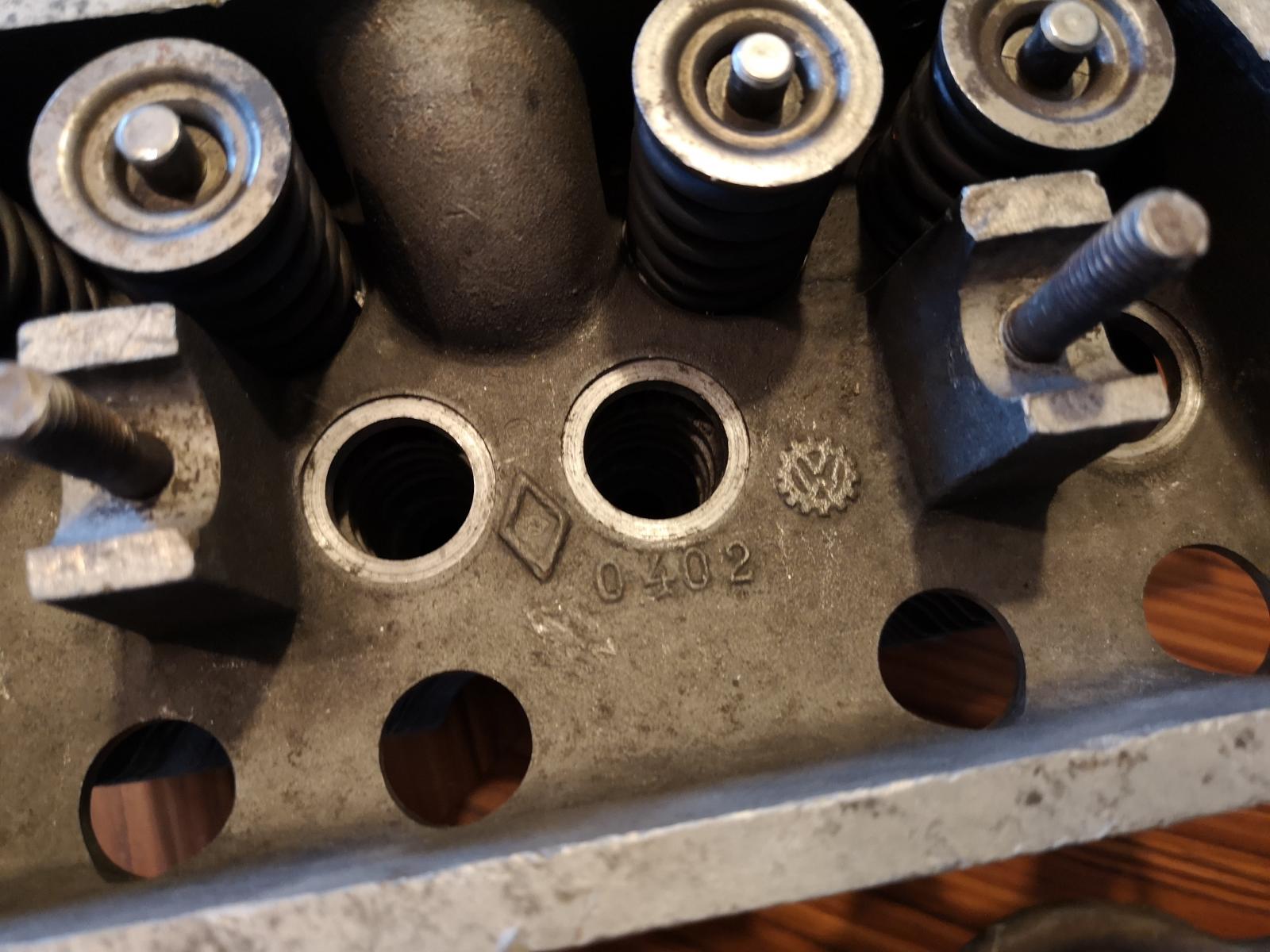

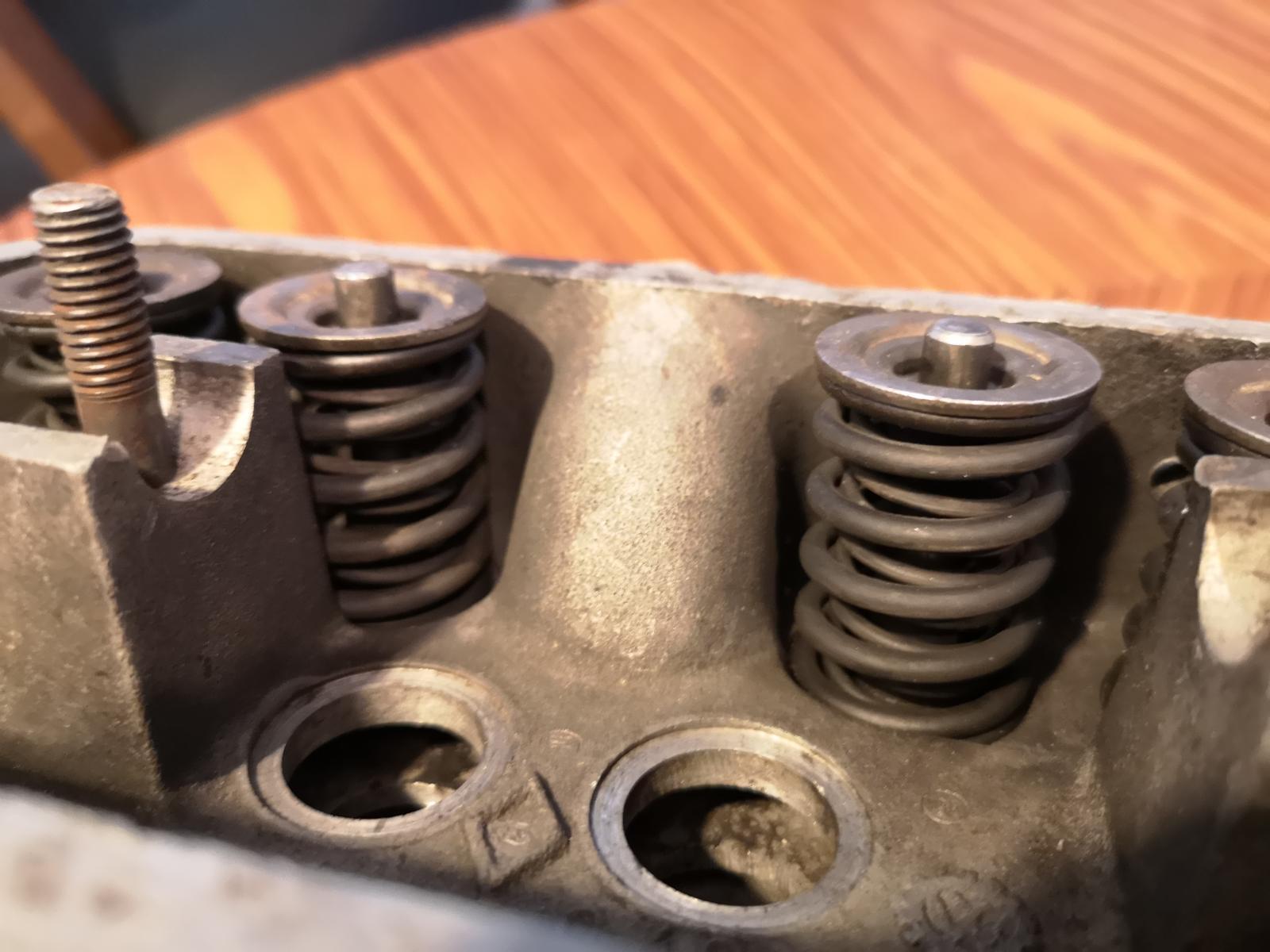

I have a strange head, because it is really early with cog wheel. It has dual spring, that is really weird.
Does anyone know about this?

thanks

[virtanen]

Measure the diameter of the cylinder openings. It tells if it's a pre or post 43 KdF head.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects

[sled]

my 1951 engine had dual springs.
_________________
drive your split.

[virtanen]

Dual springs were in use up to 29th of May in 1952.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects

[ngobet]

Ok thank you all, I didn't know that early 25hp had dual springs.

Will check the cylinder opening

[[email protected]]

I wish someone repo dual springs for 25hp/36/okrasa heads...

[swanlakers]

Would those springs be different from 25hp springs?
_________________
https://www.thesamba.com/vw/archives/lit/56ghia/cover.jpg

[ngobet]

[virtanen]

It's for 1131 ccm, 1943-49, the most probably made in the war time.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects

[ngobet]

thank you for sharing
