 Posted: Sat Feb 12, 2022 11:14 pm Post subject: 63 throttle cable |
 |
|
| Hello everyone I have a 63 beetle with a 1600 dual port, stock pedal. I ordered the stock throttle cable and it was too short. I have searched and found where people say the stock cable works. I tried the empi universal cable and was not impressed with the hook up front not being too secure. Is it possible I received the wrong cable? I threw the packaging away already so I cannot check. |
|
| Back to top |
|
 |
obnoxiousblue
Samba Member
Joined: February 21, 2007
Posts: 3027
Location: East Northport, NY
|
| Posted: Sun Feb 13, 2022 3:21 am Post subject: Re: 63 throttle cable |
|
|
What is the part number on the cable you received? Can you hold the two cables side by side and make sure they’re (at least close to) the same size?
I have been in and out of my accelerator cable and pedal probably 5 times in the last week after having the cluster rebuilt. The stock linkage upfront uses an eyelet style hook that simply hooks over the end of the Z bar. It’s a simple solution and it’s pretty secure (mines never jumped off at least) so long as there is tension on the cable created by the throttle return spring on the carb.
Now, the correct cable for the car is 2650mm, P/N ending in …555C. But, in going with the 1600 the carb may stand further back and thus require a longer cable - of this I am not sure.
For $7 it won’t hurt to order a later/longer cable but the connection up front will likely be the zig-zag style.
_________________
Mike
1964 Beetle
2001 Eurovan Camper |
|
| Back to top |
|
|
rickcsvdubs
Samba Member
Joined: August 25, 2004
Posts: 229
|
| Posted: Sun Feb 13, 2022 6:00 am Post subject: Re: 63 throttle cable |
|
|
| Thanks for the reply, unfortunately I do not have the original packaging for the cable. I thought about the later cable style but the connection up front will get me. The issue I had with the empi cable was the open eyelet was a lot shorter/smaller than the original cable. Each time the accelerator would return the cable would pop off. I did compare both cables however. I clamped them in my vice and pulled tightly. The universal empi cable I cut to fit was about 2.5-3” longer. |
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1021
Location: South Florida
|
| Posted: Sun Feb 13, 2022 10:55 am Post subject: Re: 63 throttle cable |
|
|
Sometimes you gotta rig your own solution. Fix'd mine on the shoulder of a freeway thanks to a coat hanger size aluminum rod found right there roadside, bent it into a J shape and used a barrel clamp from a previous broken cable fix. It's been working well for many years on a nearly daily driver.
Rig'd other end of cable decades earlier, using one of these:
https://www.summitracing.com/parts/svw-35077 |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Sun Feb 13, 2022 10:58 am Post subject: Re: 63 throttle cable |
|
|
Measure your existing cable and compare it to the available stocks lengths listed below, then order the one that best fits. All cables below have an eyelet at the pedal end.
111721555 -- 2667mm/105inch
111721555A -- 2630mm/103.5 inches
111721555C -- 2650mm/104.3 inches
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33073
Location: Hot Arizona
|
| Posted: Sun Feb 13, 2022 12:13 pm Post subject: Re: 63 throttle cable |
|
|
Another option possibly
I've used a throttle cable extender on mine since back in 1976, when I went to single Weber 40DCNF carburetor (1835cc engine).
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
rickcsvdubs
Samba Member
Joined: August 25, 2004
Posts: 229
|
| Posted: Sun Feb 13, 2022 7:16 pm Post subject: Re: 63 throttle cable |
|
|
| I thought about one of those cable extenders. How long roughly are they? Thanks again for everyone chiming in with all the info. It’s been a little bit of a bumpy road getting this old lady back on road, but will be worth it. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25918
Location: Olympia Wash Rinse & Repeat
|
|
| Back to top |
|
|
obnoxiousblue
Samba Member
Joined: February 21, 2007
Posts: 3027
Location: East Northport, NY
|
| Posted: Sun Feb 13, 2022 11:21 pm Post subject: Re: 63 throttle cable |
|
|
My understanding is that the tube was 66 and up. Are you certain it would work right on an earlier car? My cable on my 64 rubs. I’d be interested in the tube.
_________________
Mike
1964 Beetle
2001 Eurovan Camper |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33073
Location: Hot Arizona
|
| Posted: Mon Feb 14, 2022 9:05 am Post subject: Re: 63 throttle cable |
|
|
| rickcsvdubs wrote: |
| I thought about one of those cable extenders. How long roughly are they? |
I'm guessing about 2 inches long. I'm also guessing that I'm too lazy right now to go to the garage to measure mine.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25918
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Feb 14, 2022 12:15 pm Post subject: Re: 63 throttle cable |
|
|
| obnoxiousblue wrote: |
My understanding is that the tube was 66 and up. Are you certain it would work right on an earlier car? My cable on my 64 rubs. I’d be interested in the tube. |

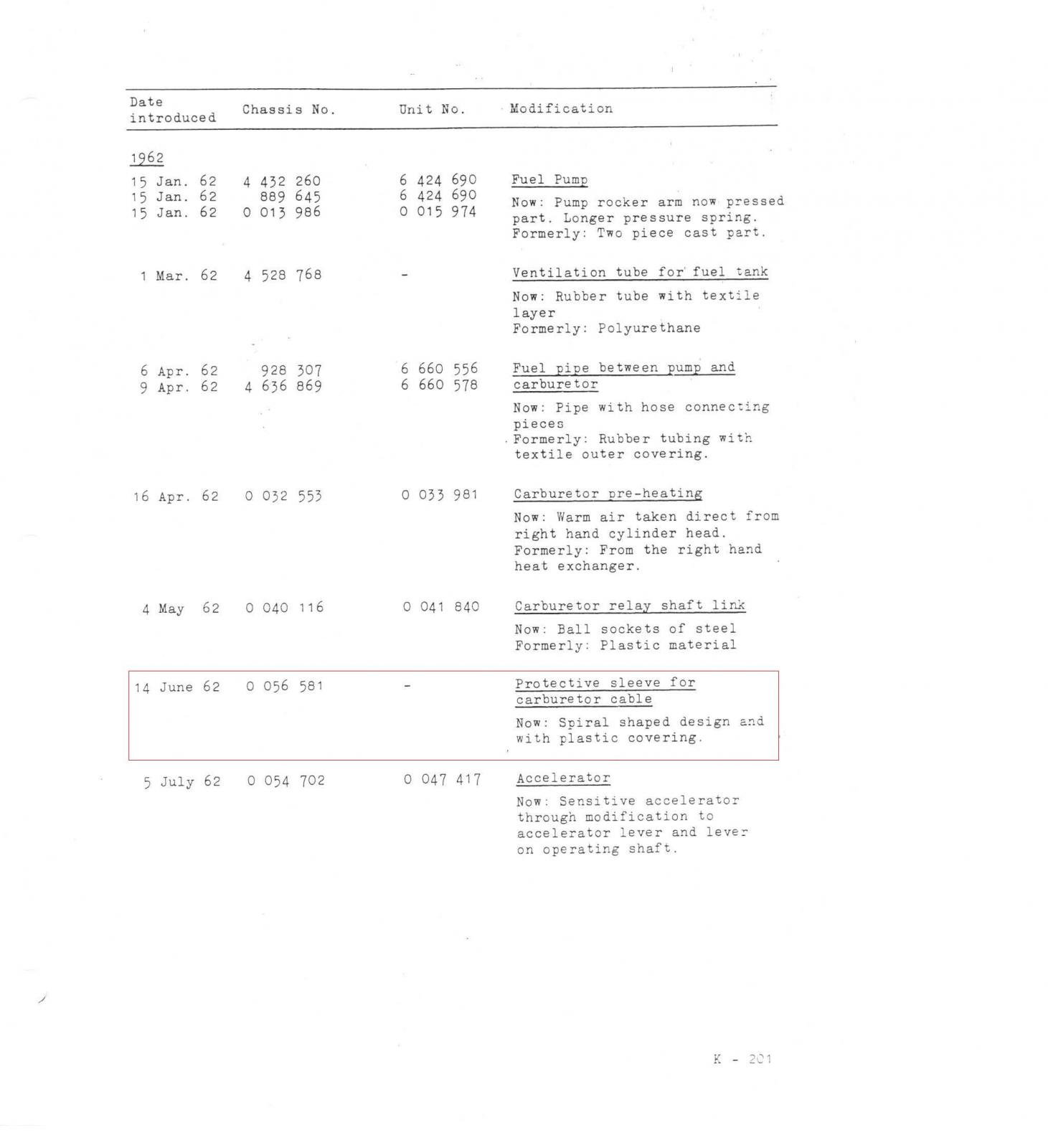

Did you read our "Protective Tube" quote from the part manual post thru that link? Not certain if it was a bowden tube, but VW was using something earlier than 64.
Using later beetle bowden tube on our 1960 walk thru panel camper conversion. Found could carefully work off one of the ends of the bowden tube, then shorten the tube to work with the earlier bus dimension, and work back on the end.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
rcooled
Samba Member
Joined: September 20, 2008
Posts: 2756
Location: Santa Cruz, CA
|
| Posted: Mon Feb 14, 2022 12:30 pm Post subject: Re: 63 throttle cable |
|
|
| obnoxiousblue wrote: |
My understanding is that the tube was 66 and up. Are you certain it would work right on an earlier car? |
I use one in my '63 w/a1600DP...no issues.
_________________
'63 Ragtop (current)
'65 Ghia coupe (totaled)
'67 Ghia convertible (current)
'69.5 Ghia convertible and
'62, '63, '65, '69 Bugs (all long gone) |
|
| Back to top |
|
|
rickcsvdubs
Samba Member
Joined: August 25, 2004
Posts: 229
|
| Posted: Mon Feb 14, 2022 7:32 pm Post subject: Re: 63 throttle cable |
|
|
| Cusser wrote: |
| rickcsvdubs wrote: |
| I thought about one of those cable extenders. How long roughly are they? |
I'm guessing about 2 inches long. I'm also guessing that I'm too lazy right now to go to the garage to measure mine. |
Lol, I completely understand and fully support your lack of motivation. I have to go grab my laptop from my car and can’t bring myself to do it. |
|
| Back to top |
|
|
obnoxiousblue
Samba Member
Joined: February 21, 2007
Posts: 3027
Location: East Northport, NY
|
| Posted: Mon Feb 14, 2022 7:33 pm Post subject: Re: 63 throttle cable |
|
|
| Eric&Barb wrote: |
Did you read our "Protective Tube" quote from the part manual post thru that link? Not certain if it was a bowden tube, but VW was using something earlier than 64.
|
Yup. Much to my surprise in fact. The service manual doesn’t show the tube being used on Beetle accelerator cables until 1966. In my head, it’s the “right thing” to have, so I’m actually surprised it wasn’t used on earlier models.
I’m going to order one up and give it a go on my 64.
_________________
Mike
1964 Beetle
2001 Eurovan Camper |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79490
Location: Sneaking up behind you
|
| Posted: Mon Feb 14, 2022 7:35 pm Post subject: Re: 63 throttle cable |
|
|
Always use "protection".
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
rickcsvdubs
Samba Member
Joined: August 25, 2004
Posts: 229
|
| Posted: Mon Feb 14, 2022 7:37 pm Post subject: Re: 63 throttle cable |
|
|
I tried with the bowden and without. I ordered one from a later model. I like the idea of shortening it though when I find my solution. Lots of good suggestions and ideas here. Something is gonna work. Also in addition to myself not wanting to grab my laptop I have yet to go out in the cold to the garage to measure the cable yet. I’ll get there, just have to take that first step.  |
|
| Back to top |
|
|
usmc1345
Samba Member
Joined: April 24, 2005
Posts: 307
Location: Belgrade Mt
|
| Posted: Mon Feb 14, 2022 8:07 pm Post subject: Re: 63 throttle cable |
|
|
| MrGoodtunes wrote: |
Sometimes you gotta rig your own solution. Fix'd mine on the shoulder of a freeway thanks to a coat hanger size aluminum rod found right there roadside, bent it into a J shape and used a barrel clamp from a previous broken cable fix. It's been working well for many years on a nearly daily driver.
Rig'd other end of cable decades earlier, using one of these:
https://www.summitracing.com/parts/svw-35077 |
I like this quick fix here. Gonna keep an extra barrell nut or two in my ash tray now. I always have some bailing wire in the bug too.as well. Thank you Mr. Goodtunes. I appreciate it. Semper Fi......... Kevin
_________________
Semper Fidelis |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25918
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Feb 14, 2022 9:57 pm Post subject: Re: 63 throttle cable |
|
|
| obnoxiousblue wrote: |
Yup. Much to my surprise in fact. The service manual doesn’t show the tube being used on Beetle accelerator cables until 1966. In my head, it’s the “right thing” to have, so I’m actually surprised it wasn’t used on earlier models.
I’m going to order one up and give it a go on my 64.
|
Problem with that listing is it only shows the tube being used for that chassi to chassi time period, and does not list it as the very first used.
There are a few parts that are not listed in the parts manuals. EG we have a DEC62 and MAR63 single cabs. Both have a metal fuel line clamped to the body up front of the engine front tin and the line continues just short of the fuel tank. Have yet to find in any listing in the type 2 parts and workshop manuals of those.....
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25918
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Feb 14, 2022 10:23 pm Post subject: Re: 63 throttle cable |
|
|
Just for the heck of it looked into our AUG64 type 2 parts manual and it lists a:
| Quote: |
70(of the parts diagram) 111 721 551 Protective tube - Accelerator cable 1(quantity)
(shorten to 670 mm) |
Pretty sure it is original to the parts manual, there is no date on the bottom of the page. Next page back has a "27/67" which should mean 27th week of 1967, meaning it was an updated page.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
empi3
Samba Member
Joined: October 03, 2015
Posts: 379
Location: SW Wyoming
|
| Posted: Tue Feb 15, 2022 11:47 am Post subject: Re: 63 throttle cable |
|
|
FWIW
