 Posted: Sat Sep 29, 2012 9:44 am Post subject: Reassembling small nut rear brakes? |
 |
|
I know this has probably been covered in another post but I've had tremendous problems getting the rear brakes back together because the springs hook into the back of the plate.
One fella told me to put it together and put it in that way but I'm damned if I can get the springs back in.
They're under tension and are small.
Some step by step pics would be great.
_________________
Cheers & God Bless
'62 Beetle
Jägdwagen |
|
| Back to top |
|
 |
splitpile
Samba's Worst Speller
Joined: May 03, 2000
Posts: 5928
Location: back to living where hell meets the suface
|
| Posted: Sat Sep 29, 2012 10:45 am Post subject: Re: Reassembling small nut rear brakes? |
|
|
| Andy P wrote: |
I know this has probably been covered in another post but I've had tremendous problems getting the rear brakes back together because the springs hook into the back of the plate.
One fella told me to put it together and put it in that way but I'm damned if I can get the springs back in.
They're under tension and are small.
Some step by step pics would be great. |
I didn't take pics but I just did one yesterday.
I put the shoe with the e-brake lever on firts and attach the top spring. I then do the bottom spring. I just use a pair of GOOD need nose pliers to strech the spring. Old springs are easy to put on, the new WW springs take some umphhh to get on.
I then install the e-brake spreader bar and and the other shoe and proceed in the same fashion, top spring then bottom.
Many flying springs , takes some effort
_________________
Stocking distributor of "The Funky Green Panels"
www.BUSTORATION.com metal and more for your bus
"no more hacking my sig line" |
|
| Back to top |
|
|
Andy P
Samba Member
Joined: February 04, 2001
Posts: 1166
Location: NSW, Australia.
|
| Posted: Sat Sep 29, 2012 10:57 am Post subject: |
|
|
I'll have a crack at it tomorrow arvo.
_________________
Cheers & God Bless
'62 Beetle
Jägdwagen |
|
| Back to top |
|
|
Old Paint
Samba Member
Joined: May 29, 2010
Posts: 441
Location: Battle Ground, Washington
|
| Posted: Sat Sep 29, 2012 3:30 pm Post subject: |
|
|
when I put mine back together I used a.....well you ever get one of those mega screwdriver sets?? I got one with some screwdrivers that look like dental tools, the L shaped one worked perfectly.
_________________
Greg
1961 Ragtop
1961 Single Cab (Old Paint) |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12626
|
| Posted: Sat Sep 29, 2012 4:13 pm Post subject: |
|
|

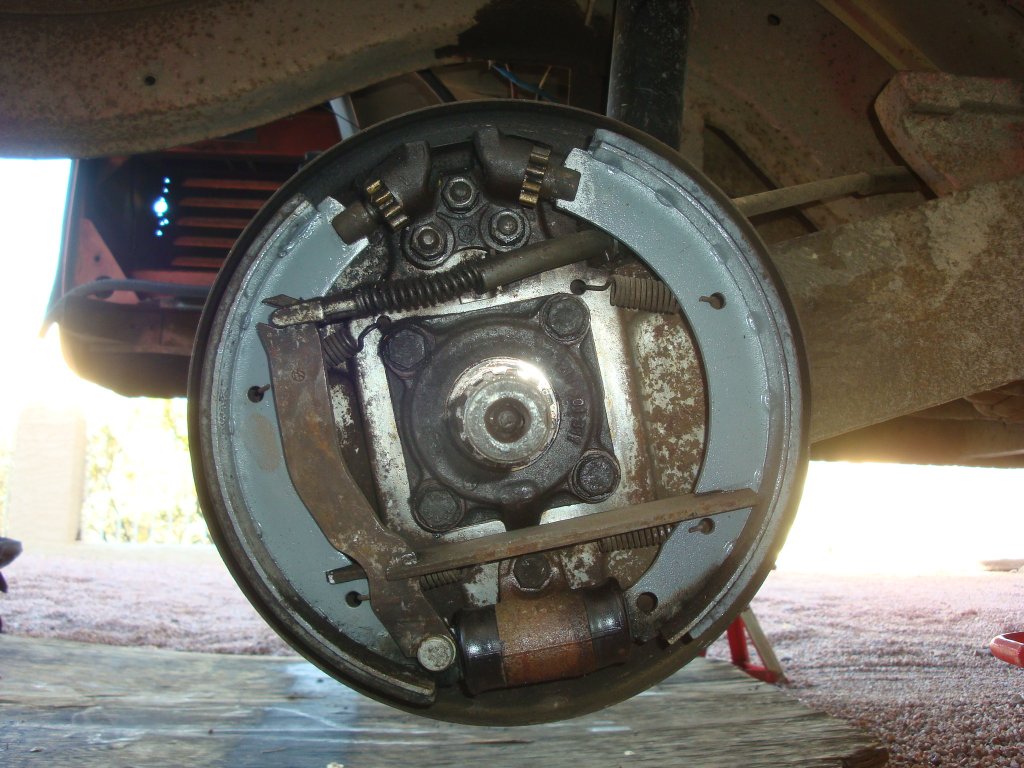

small nut rear brake:
I use a hook tool to get the springs into place.
When fitting the shoes, I sometimes leave them out of the adjusters. After the springs are in place, then I use a screw driver to put the top of the shoes into the adjuster stars.
Hold screwdriver vertical, rest the tip against the seal holder, pull shoe away from center rotate shoe slightly towards backing plate, drop shoe into adjuster. |
|
| Back to top |
|
|
Andy P
Samba Member
Joined: February 04, 2001
Posts: 1166
Location: NSW, Australia.
|
| Posted: Sat Sep 29, 2012 6:51 pm Post subject: |
|
|
Thanks for all the tips, lads.
I'll try the long nose pliers first as I have a pair and go from there.
_________________
Cheers & God Bless
'62 Beetle
Jägdwagen |
|
| Back to top |
|
|
otis_bartleh
Samba Member
Joined: August 19, 2009
Posts: 1151
Location: Burlington, WA
|
| Posted: Mon Oct 01, 2012 11:13 am Post subject: |
|
|
I also used needle nose pliers with the shoes mostly set, then used a screw driver to pry them back and into the stat adjusters... Watch out for what direction your fingers are pointed for when the needle nose slips off though!
Needle nose vise grips would be handy here... To bad I forgot I had them in my toolbag till after I was done... <facepalm>
