PostPosted: Mon Dec 28, 2015 12:21 pm    Post subject: Air cooled engine bay Reply with quote

Iam refurbishing a 1980 vanagon revi and it came to me in quit a state they had threw away the FI and had a carb on it and it run (sort of) it had NO I mean zero oil pressure I got it to it and someone had put type 1 pump gears into the type 4 pump well there not long enough to engage the cam anyway the engine is all rebuilt tin all looking pretty I got a FI setup and I am pluming it but the Bentley is not showing routing of the vac lines and how the harness lays on the engine I mostly know where things go but Iam anal and would like to see a stock engine bay any out there?
_________________
where its cold and snowy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
jismay
Samba Member


Joined: February 02, 2010
Posts: 195
Location: Norco, CA
jismay is offline

PostPosted: Mon Dec 28, 2015 12:34 pm    Post subject: Re: Air cooled engine bay Reply with quote

I have a 1980 with an (almost) stock engine bay. I'll grab a picture and toss it up here shortly.
_________________
1970 Squareback with 1915cc dual 40idf
1979 Beetle Convertible
1980 Vanagon Westfalia
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
chompy
Samba Member


Joined: August 12, 2014
Posts: 362
Location: Portland, OR
chompy is offline

PostPosted: Mon Dec 28, 2015 1:23 pm    Post subject: Re: Air cooled engine bay Reply with quote

This should help a bit:

Image may have been reduced in size. Click image to view fullscreen.


Go visit Ratwell's site for more pictures and individual shots.
http://www.ratwell.com/technical/VacuumHoses.html
_________________
'81 Westfalia Subaru EJ22
Manual Transmission
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bigbore
Samba Member


Joined: December 19, 2003
Posts: 3150
Location: Wasilla Alaska
bigbore is offline

PostPosted: Mon Dec 28, 2015 1:33 pm    Post subject: Re: Air cooled engine bay Reply with quote

thanks that helps aliitle but that's a bus and I have one of those here in the shop. where the lines (and harness) go I know its how they lay in the engine bay so it needs to be a vanagon.
_________________
where its cold and snowy
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
oldhuldy67
Samba Member


Joined: November 25, 2008
Posts: 503
Location: somewhere with a southern exposure
oldhuldy67 is offline

PostPosted: Mon Dec 28, 2015 1:34 pm    Post subject: Re: Air cooled engine bay Reply with quote

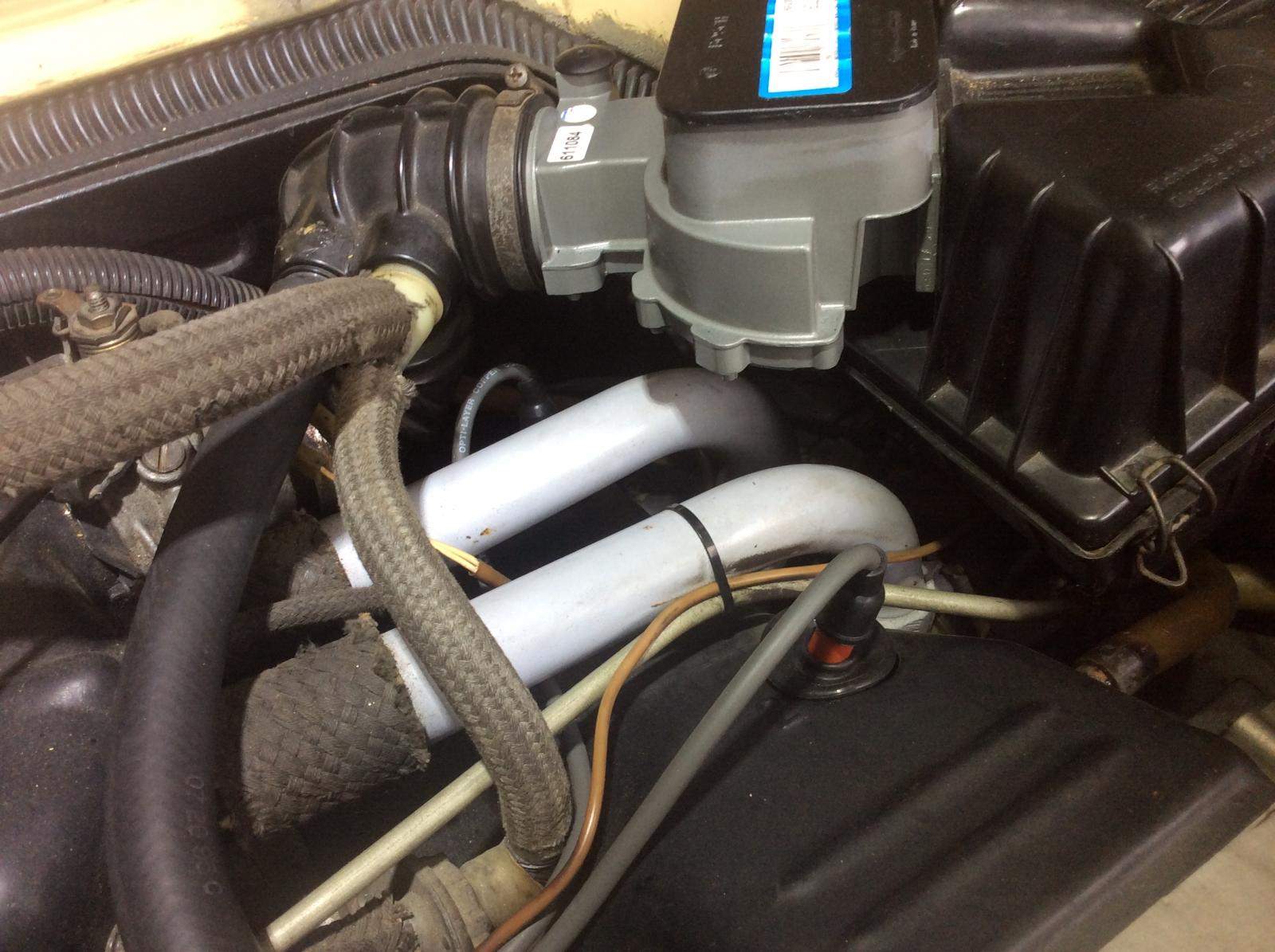

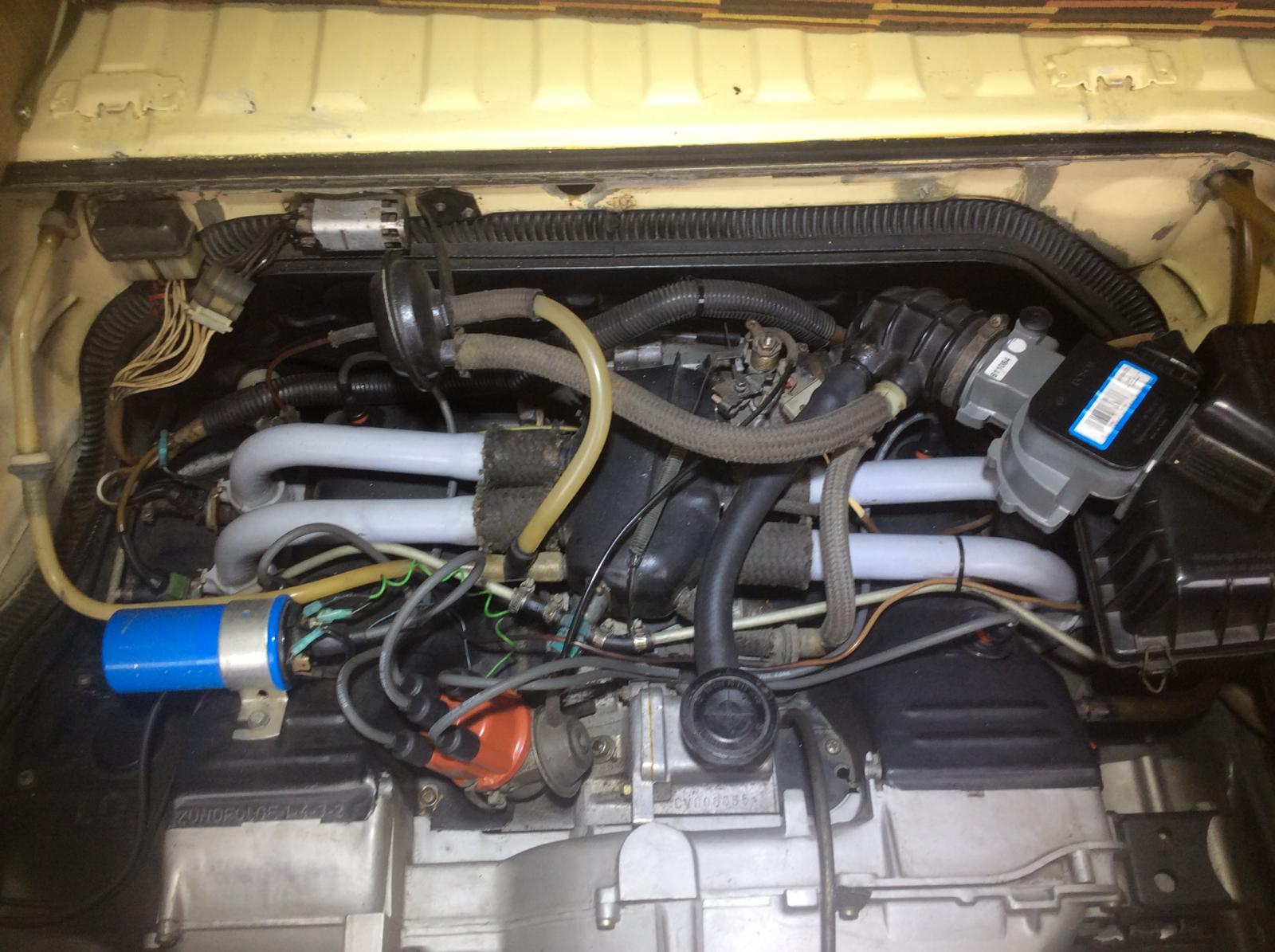

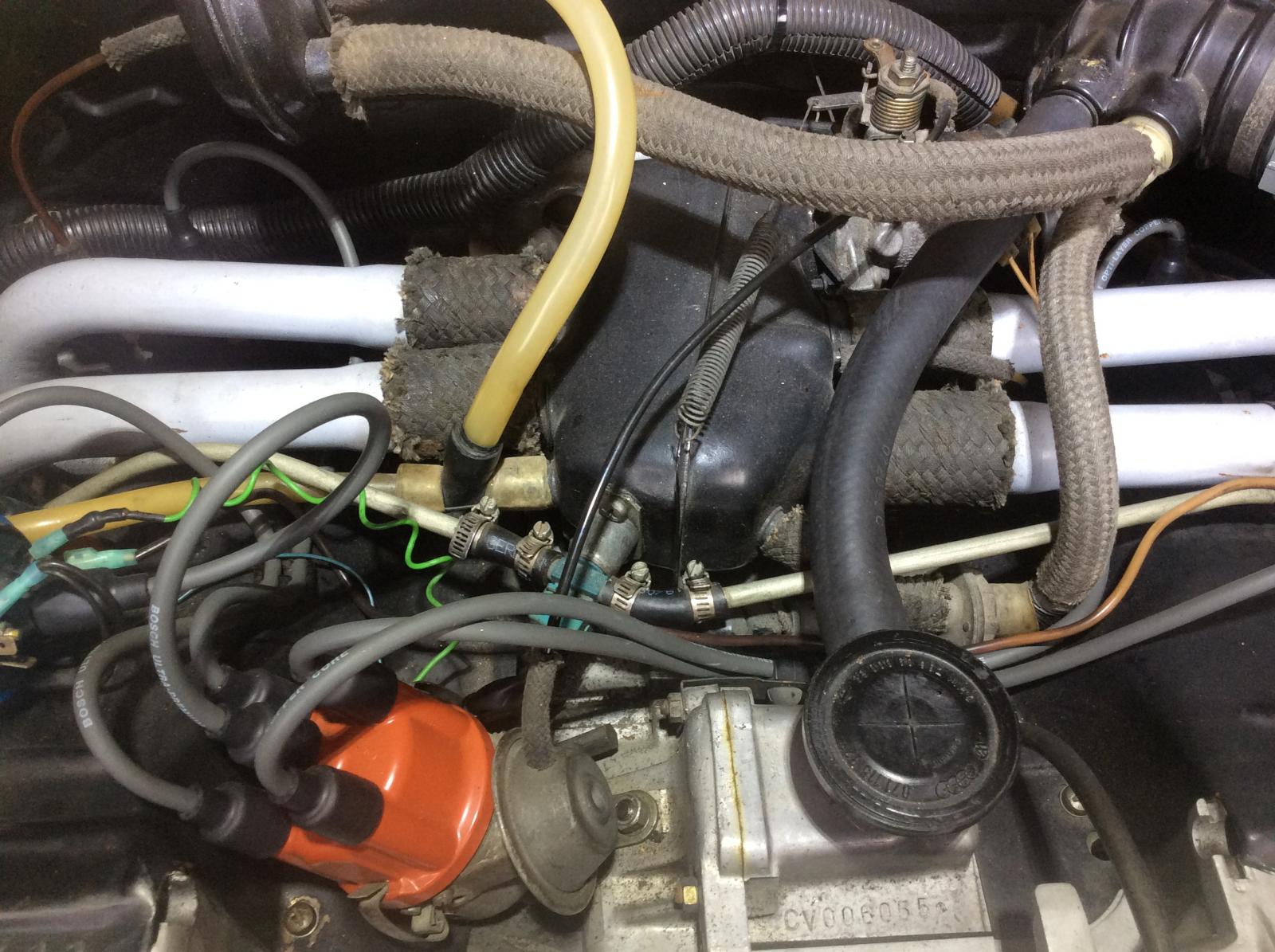

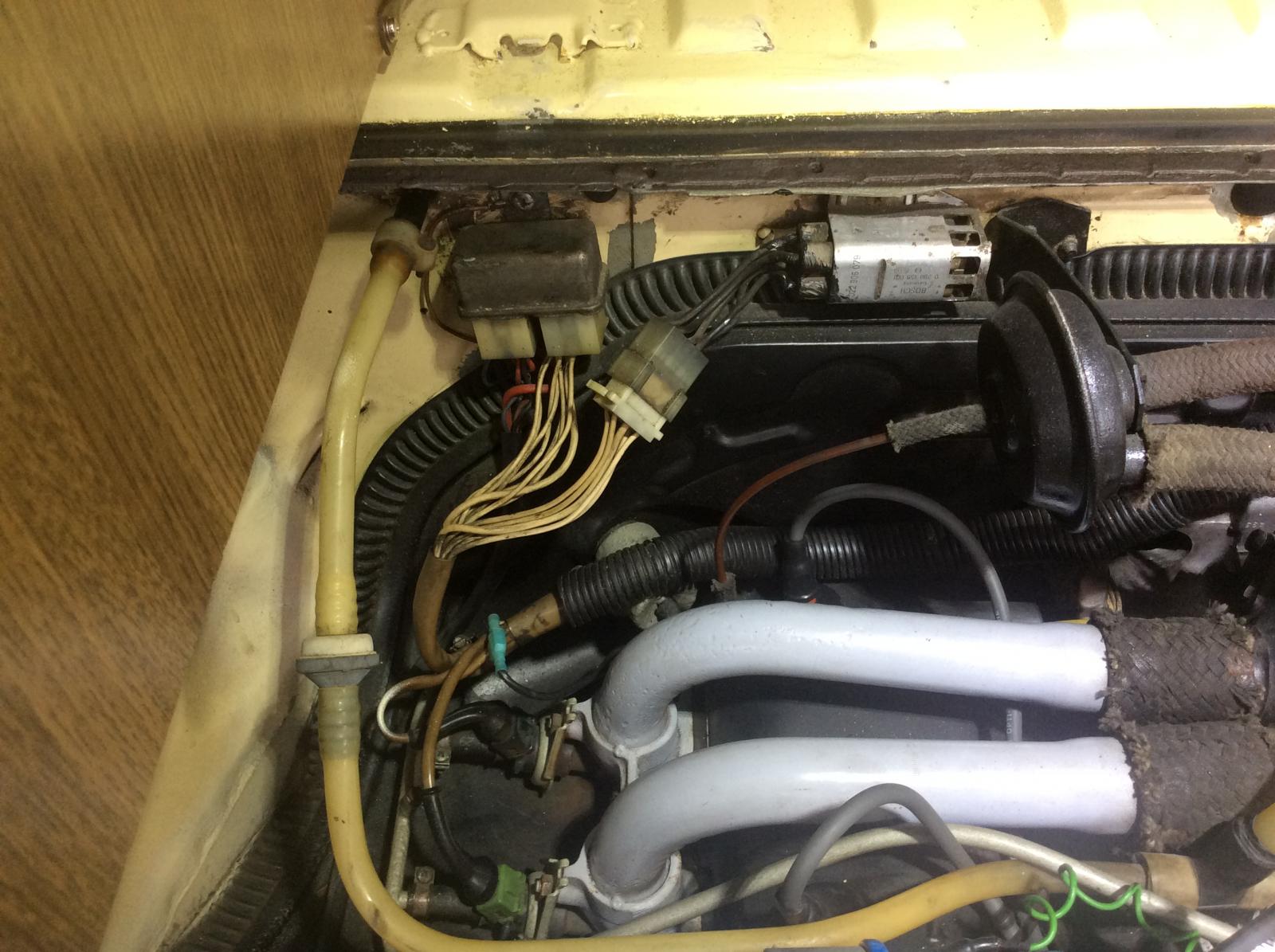

Yep, that's the place. Thought I'd throw in these.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Currently:1980 Westy Westfalia Poptop (a total stock-look rebuild with all my favorite camping mods)
1967 stock Sunroof Beetle
Formerly:
1978 Westy Campmobile, the"EM50 Urban Assault Vehicle" code named "The Pickle"
1973 Squareback (sold on a lark)
1973 Super Beetle (crashed..walked away without a scratch)
1972 Standard Beetle (lost in a relationship..)
1966 Beetle (the Black Beauty, my Dad's)
1964 Beetle (the Beige Bug, my beginning beater, also my Dad's) Thanks, Dad.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bigbore
Samba Member


Joined: December 19, 2003
Posts: 3150
Location: Wasilla Alaska
bigbore is offline

PostPosted: Mon Dec 28, 2015 7:03 pm    Post subject: Re: Air cooled engine bay Reply with quote

Thanks that is helpful right there.
