1966 body off resto "Stute The Wonder Bug"
Page: 1, 2  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Mon Aug 27, 2012 6:28 pm    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

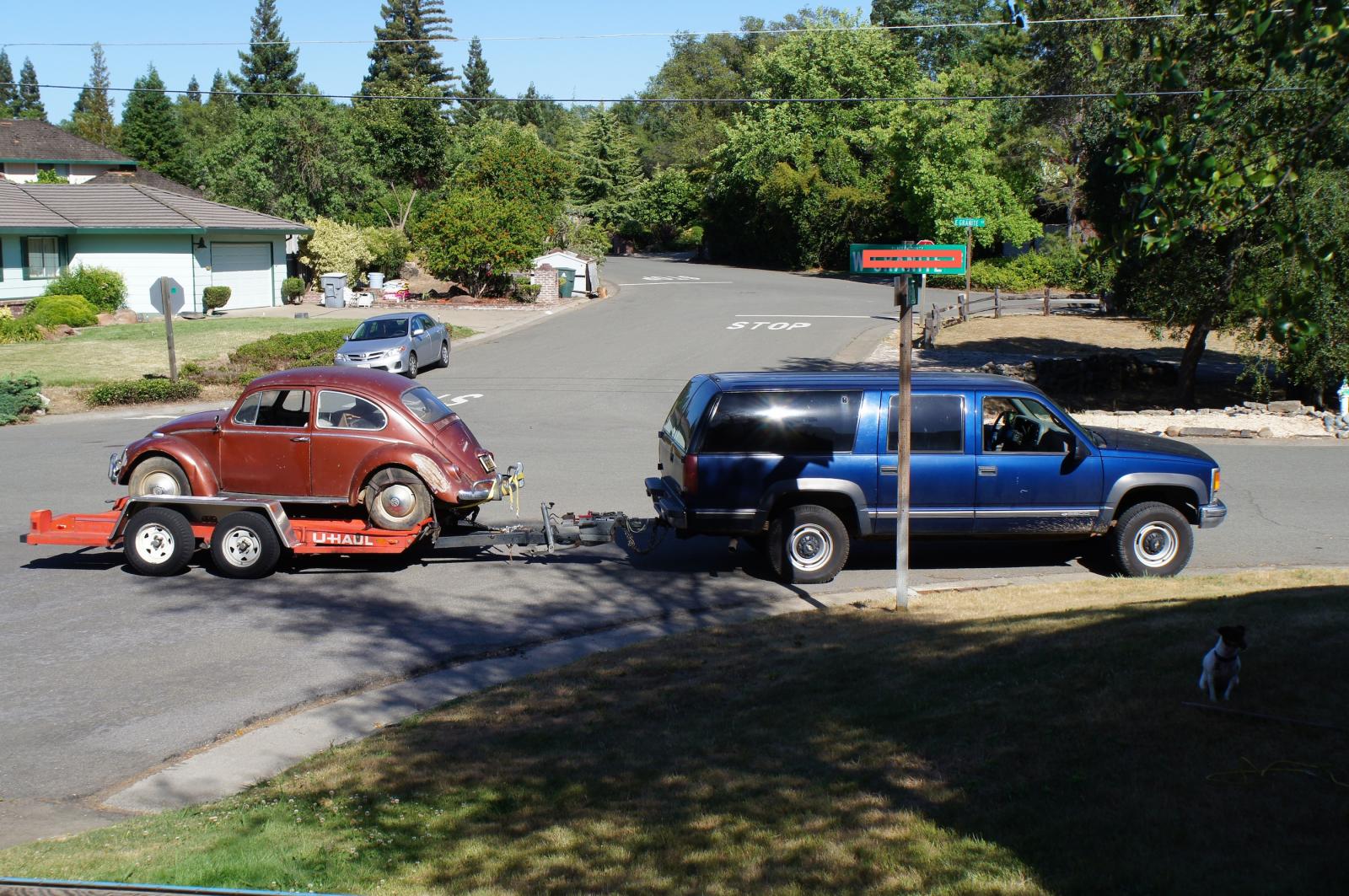

My brother (aka:Braun)blessed me with a 66VW body and chassy with a 1200 / 6v. I decided to take it down to bare metal and rebuild completely - body off. I am in the 10th week and decided to log the progress here.
Image may have been reduced in size. Click image to view fullscreen.

Welcome to your new home "Stute".
Image may have been reduced in size. Click image to view fullscreen.

Not too bad.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

did quite a bit of dismantling the first night. The girls were helping too.
they found 3/4 of doobie under the bonnet.
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
flyboat
Samba Member


Joined: April 21, 2010
Posts: 2752
Location: Bath NC
flyboat is offline

PostPosted: Mon Aug 27, 2012 6:42 pm    Post subject: Reply with quote

As long as the girls are helping out, it should go fine. If it doesn't, blame the girls. Have fun and make memories

Lots of folks name their cars, but "stute", share this one with us.
_________________
79 super Vert
62 Ragtop Bug
66 tintop Westy
Porsche 914
09 Z06 Vette track car
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 8:16 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

glass & tank out
Image may have been reduced in size. Click image to view fullscreen.

Engine out
Image may have been reduced in size. Click image to view fullscreen.

ready to take body off.
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 8:36 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Saw a DIY body off on youtube
http://www.youtube.com/watch?v=Va6A68yiimE
it worked. simple as it looked.
Image may have been reduced in size. Click image to view fullscreen.

Ta Daaaaa! body off. . .
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/


Last edited by TCBeier on Tue Aug 28, 2012 9:00 am; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
VWcruzer
Samba Member


Joined: November 29, 2011
Posts: 104
Location: lake stevens, WA
VWcruzer is offline

PostPosted: Tue Aug 28, 2012 8:47 am    Post subject: Reply with quote

Great work so far, I'm looking forward to seeing the finished product.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 9:05 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

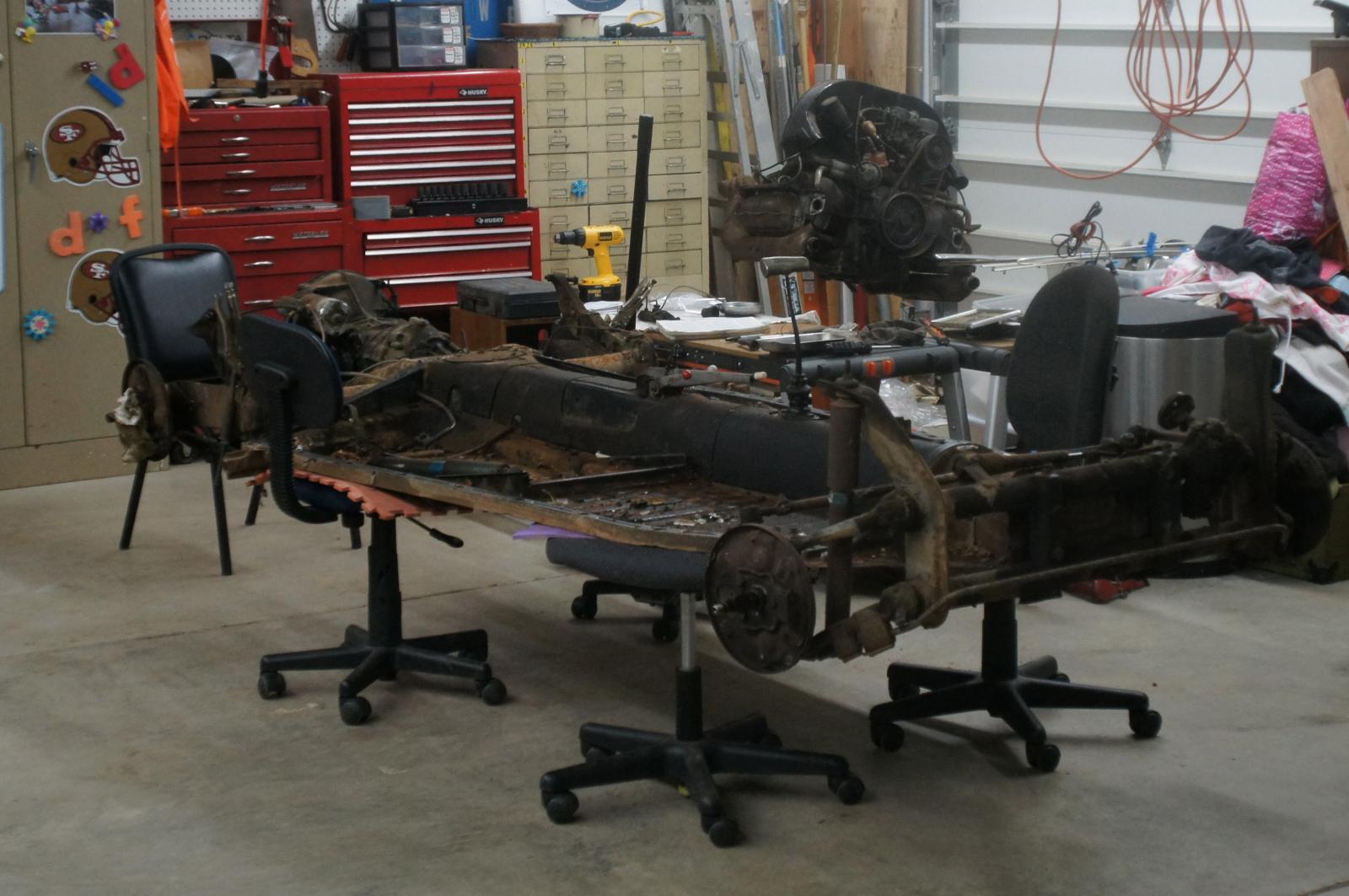

I found that 4 office chairs to roll the chassy around worked like a charm. I can sit in one place and maneuver the chassy about with ease (while seated).
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 10:03 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Was going to take the spring plates off and got a bit trepidatious because of all the horror stories (WATCH OUT!). So I decided to take the transaxle off first.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Pulling the bearings was a PITA! I finally reshaped a HF puller and it worked.
Image may have been reduced in size. Click image to view fullscreen.

Here is a close up of the tool that did it. The chain vise kept it from slipping off.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 10:06 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

This project is one of my "bucket List" things. I am a body off resto virgin. Please...any pointers will help.
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 10:21 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

I found that coffee filters were perfect for keeping the tranny free from debris
Image may have been reduced in size. Click image to view fullscreen.

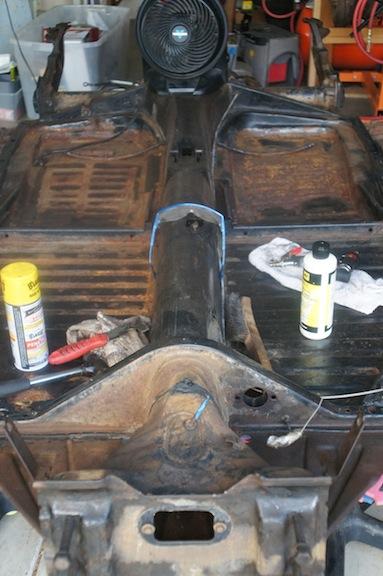

Now it is time to strip the chassy of all the cables n such.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 10:23 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Is that thick asphalt type stuff on the pan original or after market?
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 10:28 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Now to remove the front end. I have no idea as to what I am doing or the order in which to disassemble this thing.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
wayne1230cars
Samba Member


Joined: April 05, 2010
Posts: 2686
Location: Canada
wayne1230cars is offline

PostPosted: Tue Aug 28, 2012 10:34 am    Post subject: Reply with quote

Great work and a very interesting post. Smile Keep the pics coming.
_________________
1960 beetle
1970 beetle convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 11:50 am    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

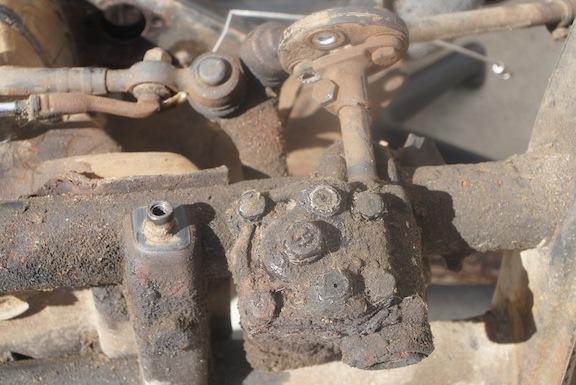

Hmmmm... I used a dremmel to mark the steering box location. What a mess!. it grinds when turned, so I guess I have to rebuild this too. Any pointers?
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 12:05 pm    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Cables, shifter, and the beam has left the chassy! Now I get to media blast and clean stuff.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 12:12 pm    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

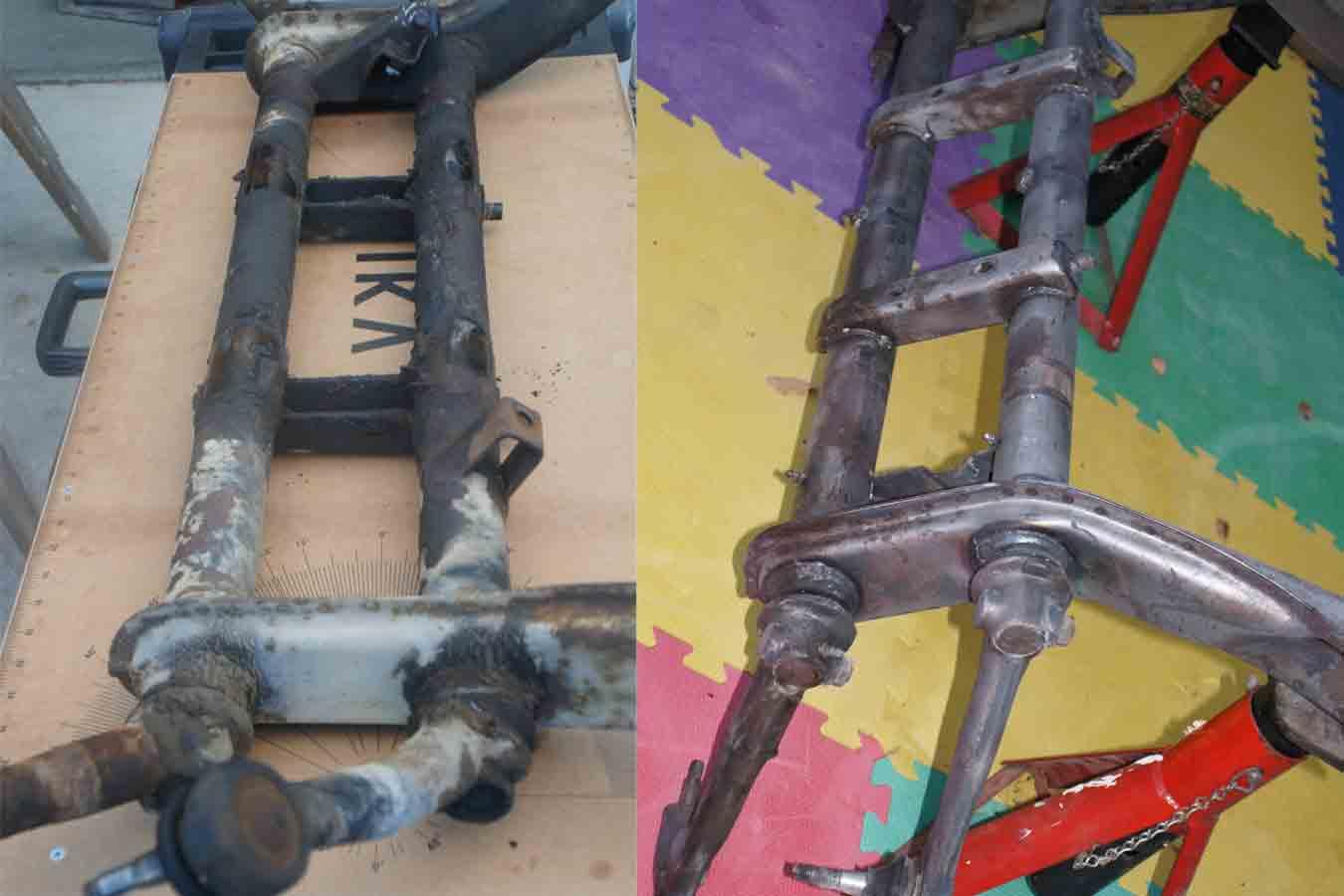

First attempt at blasting (HF sale on blasters). Nozzle too large for soda ash - try again next week.
Image may have been reduced in size. Click image to view fullscreen.

This was originally posted on page 198 of what did you do to your beetle today.
I am sorry for the double post. I am trying to get it all on this one thread.
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TCBeier
Samba Member


Joined: June 12, 2012
Posts: 109
Location: Granite Bay, Ca.
TCBeier is offline

PostPosted: Tue Aug 28, 2012 12:35 pm    Post subject: 1966 body off resto "Stute The Wonder Bug" Reply with quote

Bought a radio off a Samba member (locally)... seems the only thing the car didn't have. Second purchase was the glass to frame seals for the pop outs. Spent many hours searching info on how best to do it (not a whole lot out there). I found one post here http://www.thebugshop.org/bsp57_17.htm with photos. The guy used a nylon binding strap which was difficult to keep centered. I was dreading the task - as it appeared daunting.
Lo and behold, after trying diff things for several hours, I thought of this cable / turnbuckle thing. The cable rides in the window to body seal grove and cinches it up like a hot knife through butter.Each window went together in 20 minutes. Oh, and I found KY jelly to be the best medium to aid in slipping the frame on. This photo was taken prior to final cinching - see the gap at the seam.
Image may have been reduced in size. Click image to view fullscreen.

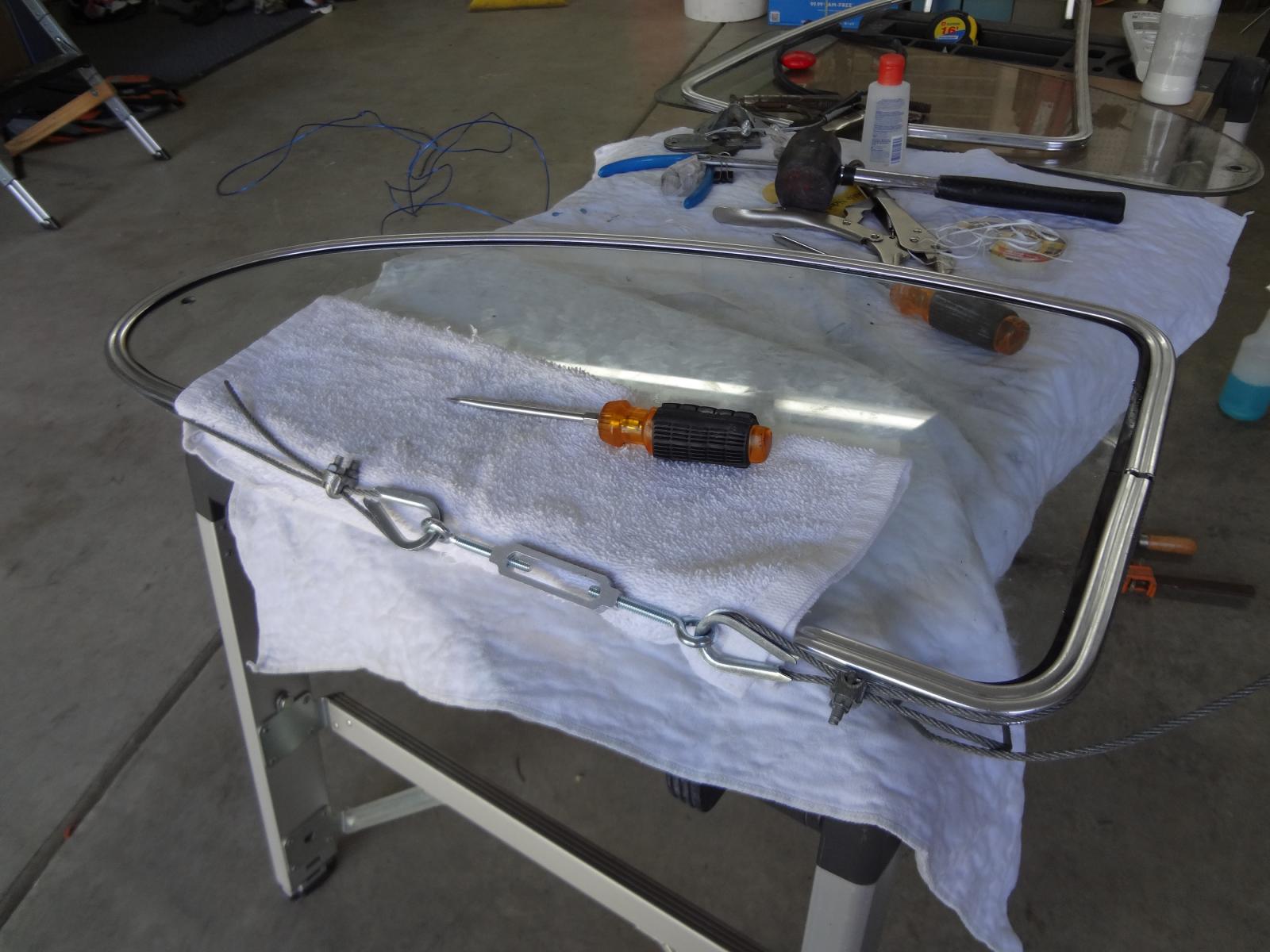

Dental floss perpendicular between rubber n frame helped to keep the rubber in place while cinching.
Image may have been reduced in size. Click image to view fullscreen.
[/img]

This is the last double post I promise! I was so excited about the result that I posted it here http://www.thesamba.com/vw/forum/viewtopic.php?t=5...lass+frame before starting this resto thread.
_________________
Here's to women, that wonderful vine. She blooms every month, bears every nine. She is the only creature this side of hell...can draw juice from a nut, without crackin' the shell. - CHEERS!

http://www.thesamba.com/vw/forum/viewtopic.php?t=525849&highlight=stute

http://stutethewonderbug.blogspot.com/
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Chris659
Samba Member


Joined: June 14, 2011
Posts: 654
Location: Central Florida
Chris659 is offline

PostPosted: Tue Aug 28, 2012 7:33 pm    Post subject: Reply with quote

Looking really good so far! You have some really nice workspace too!
_________________
61 ragtop, 12 turbo beetle
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
notsnarb
Samba Member


Joined: April 05, 2006
Posts: 849
Location: MI
notsnarb is offline

PostPosted: Sat Sep 01, 2012 5:58 pm    Post subject: Re: 1966 body off resto "Stute The Wonder Bug" Reply with quote

TCBeier wrote:
Bought a radio off a Samba member (locally)... seems the only thing the car didn't have. Second purchase was the glass to frame seals for the pop outs. Spent many hours searching info on how best to do it (not a whole lot out there). I found one post here http://www.thebugshop.org/bsp57_17.htm with photos. The guy used a nylon binding strap which was difficult to keep centered. I was dreading the task - as it appeared daunting.
Lo and behold, after trying diff things for several hours, I thought of this cable / turnbuckle thing. The cable rides in the window to body seal grove and cinches it up like a hot knife through butter.Each window went together in 20 minutes. Oh, and I found KY jelly to be the best medium to aid in slipping the frame on. This photo was taken prior to final cinching - see the gap at the seam.
Image may have been reduced in size. Click image to view fullscreen.

Dental floss perpendicular between rubber n frame helped to keep the rubber in place while cinching.
Image may have been reduced in size. Click image to view fullscreen.
[/img]

This is the last double post I promise! I was so excited about the result that I posted it here http://www.thesamba.com/vw/forum/viewtopic.php?t=5...lass+frame before starting this resto thread.


OMG, please, please PM me and I'll send you illustrated details on how replace pop-out seals, I do a set every few weeks and it really is the easiest job to do - and I've never ever had to cinch them either. All credit to you for the ingenuity and well done.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1229
Location: North central, CT
EA812 is offline

PostPosted: Sat Sep 29, 2012 6:10 pm    Post subject: Re: 1966 body off resto "Stute The Wonder Bug" Reply with quote

TCBeier wrote:
I found that 4 office chairs to roll the chassy around worked like a charm. I can sit in one place and maneuver the chassy about with ease (while seated).
Image may have been reduced in size. Click image to view fullscreen.


That is too funny, love it!
_________________
Project 66 Daily Driver http://www.thesamba.com/vw/forum/viewtopic.php?t=538786&highlight=
Herbie build
http://www.thesamba.com/vw/forum/viewtopic.php?t=336044
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
62RagAZ
Samba Member


Joined: August 14, 2011
Posts: 147
Location: Peoria, Arizona
62RagAZ is offline

PostPosted: Sun Sep 30, 2012 7:46 am    Post subject: Reply with quote

Looks like a great project, I see you live in Granite Bay Ca. I am surprised you are able to work on your car in the garage there without neighbors saying anything. My mother lives right near Sierra College and Douglas just up the hill on Sierra College and her neighborhood is full of HOA nazi's I swear!

Looking forward to seeing your progress, have a good one!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
