 Posted: Thu Apr 27, 2006 3:08 pm Post subject: Fire Extinguisher Placement? |
 |
|
Does anyone have any experience with placement of fire extinguisher? I am trying to think of easy places that are not in the way etc... I didn’t find any threads searching. Any Ideas? Thanks.
_________________
Long live the VW Buses...
Video's, Screensavers, Stickers, Shirts, Forum & More! ... @ www.lovemybus.com
Bug Lovers Check out- www.lovemybug.com |
|
| Back to top |
|
 |
steponmebbbboom
Samba Member
Joined: May 01, 2004
Posts: 6390
|
| Posted: Thu Apr 27, 2006 3:14 pm Post subject: |
|
|
What size do you have? 2&1/2 lb or less?
Ive heard of people putting the extinguisher on the heater pedestal behind the handbrake lever, but it has to mount off to the side. Ive got a 5 pounder sitting loose between the front seats, but if I were to mount it I would put it vertically on the sheetmetal in the walk through section. Some others mount theirs in the back but as far as Im concerned, when there's a fire you want that thing as close to your hands as possible. I dont wanna see smoke out the rearview mirror and have to go whiffling through the rear cabinet to get at it while the bus is burning away.
edit:sp
Last edited by steponmebbbboom on Fri Apr 28, 2006 3:52 pm; edited 1 time in total |
|
| Back to top |
|
|
lovemybus
Samba Member
Joined: March 10, 2005
Posts: 128
Location: Oregon, USA
|
|
| Back to top |
|
|
steponmebbbboom
Samba Member
Joined: May 01, 2004
Posts: 6390
|
| Posted: Thu Apr 27, 2006 3:30 pm Post subject: |
|
|
Hey, it's better than nothing. Although I do suggest you upgrade to something with a bit more hang time.
Ive got a five pounder but that's only because it was free and I didnt have the money for a Halotron. That would be the ultimate extinguisher for our buses. |
|
| Back to top |
|
|
suzygrnburg
Samba Member
Joined: February 23, 2005
Posts: 264
Location: Teaticket MA
|
| Posted: Thu Apr 27, 2006 4:03 pm Post subject: |
|
|
i put my small one (not sure of the size) on the passenger side by the floor under the rear seat. It has a velcro attachement so I can just open the slider and just yank it off if need be. It's out of way and looks ok!
_________________
Without Love in the Dream It Will Never Come True! |
|
| Back to top |
|
|
Adventurewagen
Samba Member
Joined: April 14, 2003
Posts: 1583
Location: Seattle
|
| Posted: Thu Apr 27, 2006 4:04 pm Post subject: |
|
|
I have a 2.5lb Kidde ABC Multipurpose Dry Chemical extinguisher. I mounted it behind the drivers seat. Isn't easy access for the kitchen, but if I ever get an engine fire its right by me if I need to jump out and hose it down. I think I may get another smaller one just for the kitchen and mount it near by. That way I can get a much smaller one geared toward grease fires from all the quesadillas Im makin.
_________________
63 Gulf Blue Notch
71 Sierra Yellow Adventurewagen |
|
| Back to top |
|
|
steponmebbbboom
Samba Member
Joined: May 01, 2004
Posts: 6390
|
| Posted: Thu Apr 27, 2006 4:06 pm Post subject: |
|
|
Mmmmmm...  Is this powdered corn flour?  |
|
| Back to top |
|
|
magiceddie88
Samba Member
Joined: September 27, 2005
Posts: 256
Location: Alaska
|
| Posted: Thu Apr 27, 2006 4:12 pm Post subject: |
|
|
I got mine set up behind the passengers rear seat mine had one in the place its it...if you do store it, store it horizonatally if its one of those smaller ones besure to shake it up every once in a while if you dont if you suddenly need it nothing will come out (as the stuff on the inside well settle in the bottom so store if possible horizonally if you cant then be sure to shake it...
Magiceddie88
I'll try to post pics in the bay window forum... |
|
| Back to top |
|
|
steponmebbbboom
Samba Member
Joined: May 01, 2004
Posts: 6390
|
| Posted: Thu Apr 27, 2006 4:19 pm Post subject: |
|
|
| magiceddie88 wrote: |
| besure to shake it up every once in a while if you dont if you suddenly need it nothing will come out (as the stuff on the inside well settle in the bottom ... |
this is true, but rather than shake it I would tap it on the pavement before use. |
|
| Back to top |
|
|
jered
Samba Member
Joined: February 16, 2006
Posts: 436
|
| Posted: Thu Apr 27, 2006 6:17 pm Post subject: |
|
|
I put mine on the base of the the rear seat... right next to the door... it fits perfectly...
I will put a picture up tonight for you to see....
_________________
No VW right now....  |
|
| Back to top |
|
|
60sbeetleguy
Samba Member
Joined: January 05, 2004
Posts: 110
Location: Wilkes-Barre, PA
|
| Posted: Thu Apr 27, 2006 6:35 pm Post subject: |
|
|
I have mine mounted just in front of the passenger door on door frame. Easy to just reach over and grab it and go.
Al
73 Westy |
|
| Back to top |
|
|
MalibuLX3
Samba Member
Joined: October 02, 2005
Posts: 839
Location: Ventura, CA
|
| Posted: Thu Apr 27, 2006 6:57 pm Post subject: |
|
|
I once saw a picture of a guy who mounted his on the steering wheel column. It looked shapr and easy to grab. Does anyone remeber seeing that picture in a prior thread?
_________________
1978 Westfalia |
|
| Back to top |
|
|
jmstu76
Samba Member
Joined: March 01, 2004
Posts: 1280
Location: Edmond Oklahoma
|
| Posted: Thu Apr 27, 2006 9:19 pm Post subject: |
|
|
I did what STEP said. Mounted horizontally on the passenger side heater duct up and kind of behind the e brake mechanism. I figured that I'd better have it close to me while I'm driving in case I've got to grab it and go. I didn't want to have to get out, open another door, find the extinguisher and them try to battle the fire. I also mounted my 3 cell Mag Light inbetween the drivers seat and the drivers door on the inner dogleg. I fgured that If I need light at night, I want to be able to grab it from where I'm at.
_________________
James
'76 Deluxe Sage Green Westy
2258 cc GD case 78mm CW crank, 2.0 H-beam rods 5,325” 22mm pin, JE forged pistons with 15cc dish, JE rings, type 11 clearanced oil pump, CB Eagle 2205 Type-2 “Torque Special” hydraulic cam with matched lifters fed by CB Dual Weber 40 IDF MX with 6” foam air filters, currently 55 idle, 130 main, 200 air correction, 32 mm venturis. 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated. 11/18/2020 |
|
| Back to top |
|
|
1979westie
Samba Member
Joined: January 08, 2004
Posts: 1093
Location: Flying this P-27 bomber
|
| Posted: Thu Apr 27, 2006 10:27 pm Post subject: |
|
|
I have 2, including the small one that came mounted to the rear bench seat in deluxe westys, and a larger one in the storage area for the jack, just under the passenger's seat hidden by the rubber cover. It's out of sight, but I know it's there at a moments notice.
_________________
Your car may do 0-60 in under 5 seconds, but can it sleep 4 and cook a meal?
1979 Deluxe Campmobile (quickly rusting away)
33K miles when bought, now at 61K
Proud Member #2 SBS (Stock Bus Society) |
|
| Back to top |
|
|
chris331
Samba Member
Joined: March 30, 2004
Posts: 220
Location: So. Cal.
|
| Posted: Fri Apr 28, 2006 11:20 pm Post subject: |
|
|
I have two 2 1/2 lb extinguishers... They both came with plastic holders w/ easy to remove straps, so I zip tied it to the vent behind the e-brake on the passenger side, where it's still easy for me to grab and easy for the passenger as well... The other one I've kept under the back seat or where my spare should go... i keep that one handy for "repair" days when I'm testing stuff out...
_________________
'72 Deluxe Transporter |
|
| Back to top |
|
|
jered
Samba Member
Joined: February 16, 2006
Posts: 436
|
| Posted: Sat Apr 29, 2006 6:02 am Post subject: |
|
|
| steponmebbbboom wrote: |
| magiceddie88 wrote: |
| besure to shake it up every once in a while if you dont if you suddenly need it nothing will come out (as the stuff on the inside well settle in the bottom ... |
this is true, but rather than shake it I would tap it on the pavement before use. |
being that I was a manager for the building I am in... and the one responsible for the fire inspections for 2 years...
according to the fire mashal where I am... the proper way to maintain a fire extinguisher, is to take it, flip it over once a month and listen for the sand like material to slide from one end to the other... as long as you hear the sliding sand sound... it's good... if you don't... shake it and try again...
if you still don't hear any sliding sand noise... then you are supposed to replace or have it serviced...
Just another view on making sure they are good...
_________________
No VW right now.... |
|
| Back to top |
|
|
patrickm2213
Samba Member
Joined: July 15, 2005
Posts: 118
Location: Louisville, KY
|
| Posted: Sat Apr 29, 2006 7:45 am Post subject: |
|
|
Here's how mine came with my new project, seems to be a pretty good place.
_________________
1965 Beetle
1971 Bus Kombi |
|
| Back to top |
|
|
steponmebbbboom
Samba Member
Joined: May 01, 2004
Posts: 6390
|
| Posted: Sat Apr 29, 2006 8:52 am Post subject: |
|
|
| mork wrote: |
| What should I know about putting out an engine fire? Is there some technique or perhaps something to avoid? Problem areas to focus on? I'm a bit paranoid and I don't want to get stuck with an empty extinguisher and a fire still burning. |
If you are uncertain how to use an extinguisher, go to the local fire department, they give courses on their proper use. A first instinct is to open the decklid to get right at the engine, this is not always a good idea since fire can flash out and seriously burn you. Spray into the air intake grilles and underneath the rear of the bus. You shouldnt risk opening the decklid but I would be very tempted to. The handle will be very hot.
I think bigger is better in this case if you are panicky around an engine fire (who isnt). The more hang time your extinguisher has, the more mistakes you can safely make and still have some left over. |
|
| Back to top |
|
|
Bajatacoma
Samba Member
Joined: August 05, 2003
Posts: 675
Location: the Great State of Denial
|
| Posted: Sat Apr 29, 2006 1:05 pm Post subject: |
|
|
I've got one under the driver's side pedestal in that well with the brake fluid resevor and one on the front of the z-bed.
_________________
'78 Westy
Who is the happier man, he who has braved the storm of life and lived or he who has stayed securely on shore and merely existed?
Hunter S Thompson |
|
| Back to top |
|
|
VanderBus
Samba Member
Joined: April 26, 2005
Posts: 202
Location: Santa Paula, CA
|
| Posted: Sat Apr 29, 2006 10:23 pm Post subject: |
|
|

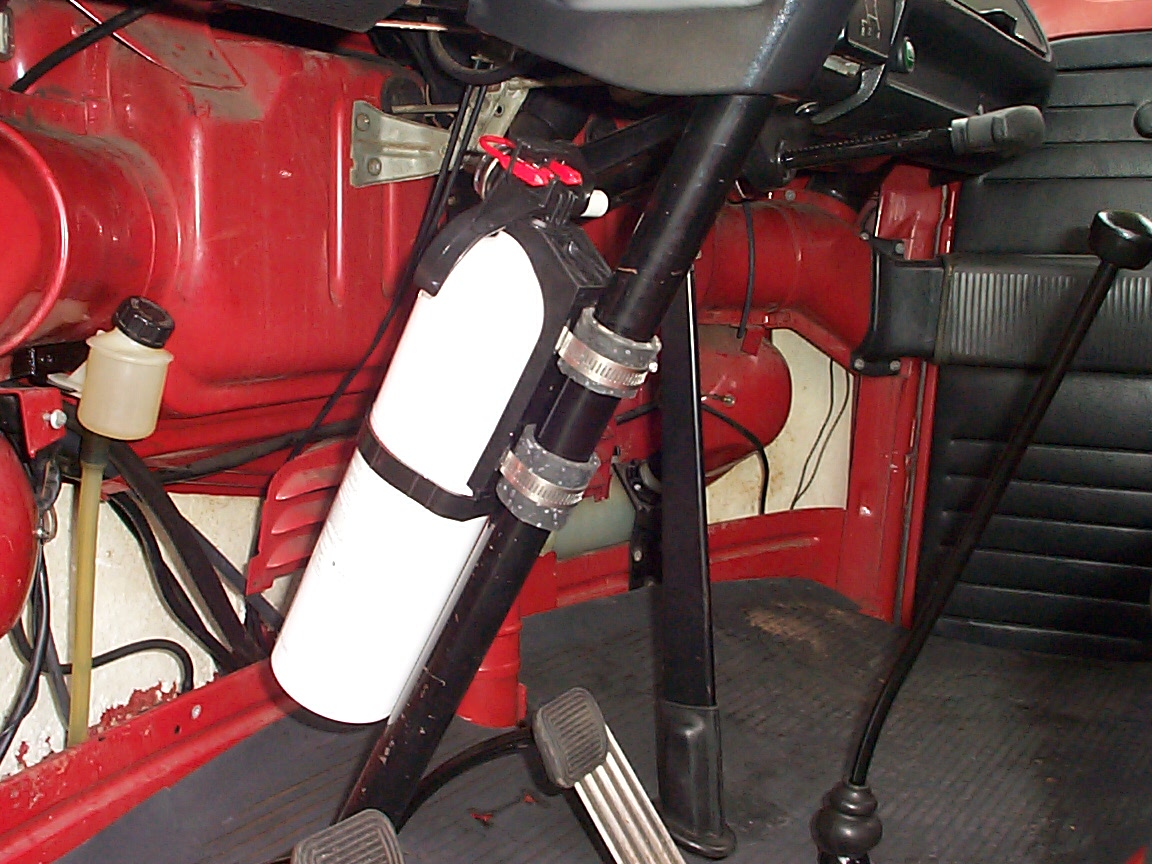

I settled in on this concept of mounting my extinguisher to the back of the steering column of my 70 bus and had to share. After driving the bus for a week with this installed, I realized it never got in my way and is easy to reach if I ever need it.
_________________
1969 Bug (in pieces)
1970 Bus (daily driver) |
|
