PostPosted: Sat Dec 22, 2012 4:44 pm    Post subject: Project 66 Daily Driver. Reply with quote

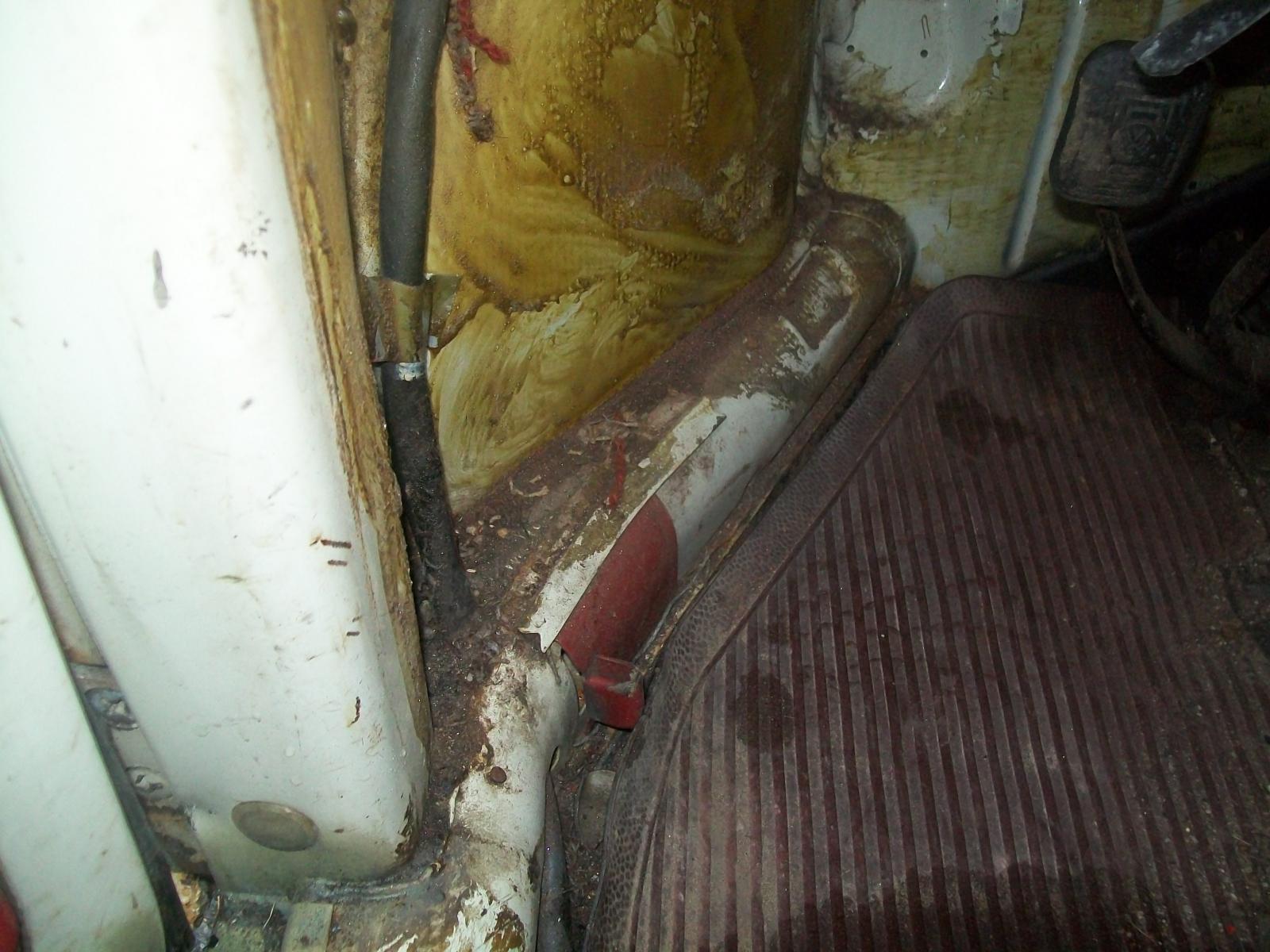

After completing Project Herbie this year (see http://www.thesamba.com/vw/forum/viewtopic.php?t=336044) I decided to do it all again. Well not everything this time. I found a better candidate that has solid heater channels and mostly solid floor pans. My plan is once it is done to use this one as a daily driver for a year. I followed the blog Jonathan Klinger had for his 365Days of A and thought what a good car the Beetle would be for this plus people drive them daily all the time.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
[/img]


Last edited by EA812 on Thu Feb 21, 2013 10:49 am; edited 3 times in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Jon65
Samba Member


Joined: September 29, 2012
Posts: 2414

Jon65 is offline

PostPosted: Sat Dec 22, 2012 8:51 pm    Post subject: Reply with quote

Cool. Looks like a good project.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Sat Jan 05, 2013 8:57 am    Post subject: Reply with quote

Since this isnít going to be a body off resto I decided while the engine is out to take care of some rust removal and painting. Pulled the trans axle and cleaned it up plus replaced the mounts and metal brake lines.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by EA812 on Tue Jan 29, 2013 9:32 am; edited 2 times in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
terrieann
Samba Member


Joined: August 17, 2011
Posts: 50
Location: Columbia County, NY
terrieann is offline

PostPosted: Sat Jan 05, 2013 11:34 am    Post subject: Reply with quote

Looks so interesting! Wish I had a place to dig into mine and wish I wasn't so chicken to do it!
_________________
1972 VW Type 3 Fastback - Her name is Joy
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Sat Feb 09, 2013 3:45 pm    Post subject: Reply with quote

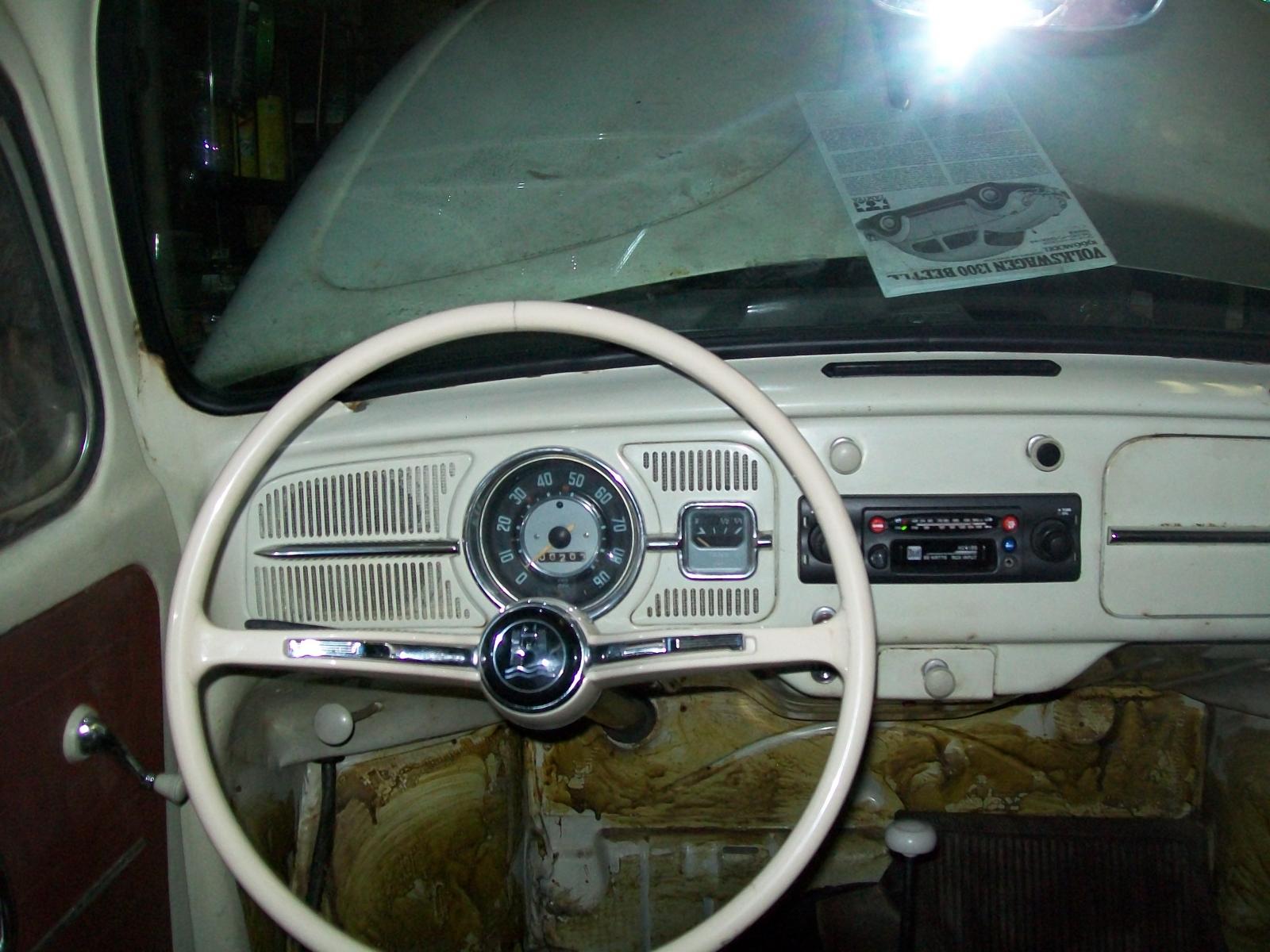

Cleaned the dash up recently. The paint still looks good.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
[/img]
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Thu Feb 21, 2013 10:55 am    Post subject: Reply with quote

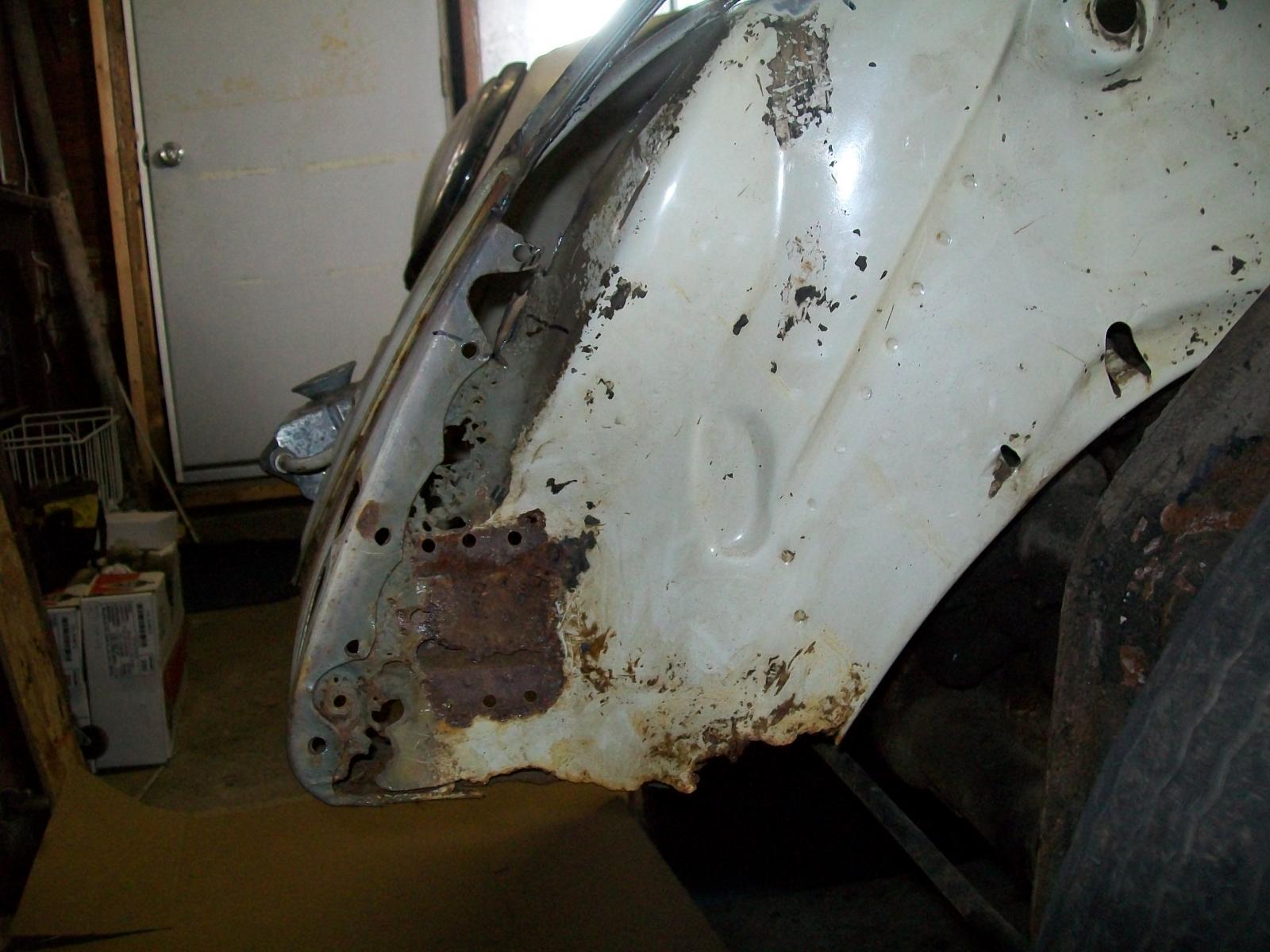

I cut out some cancer recently and spliced in a piece that came with this project.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here it is with the fender for a test fit. Turns out this piece was straighter than original. Now the hood closes better .

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Sun Mar 03, 2013 3:38 pm    Post subject: Reply with quote

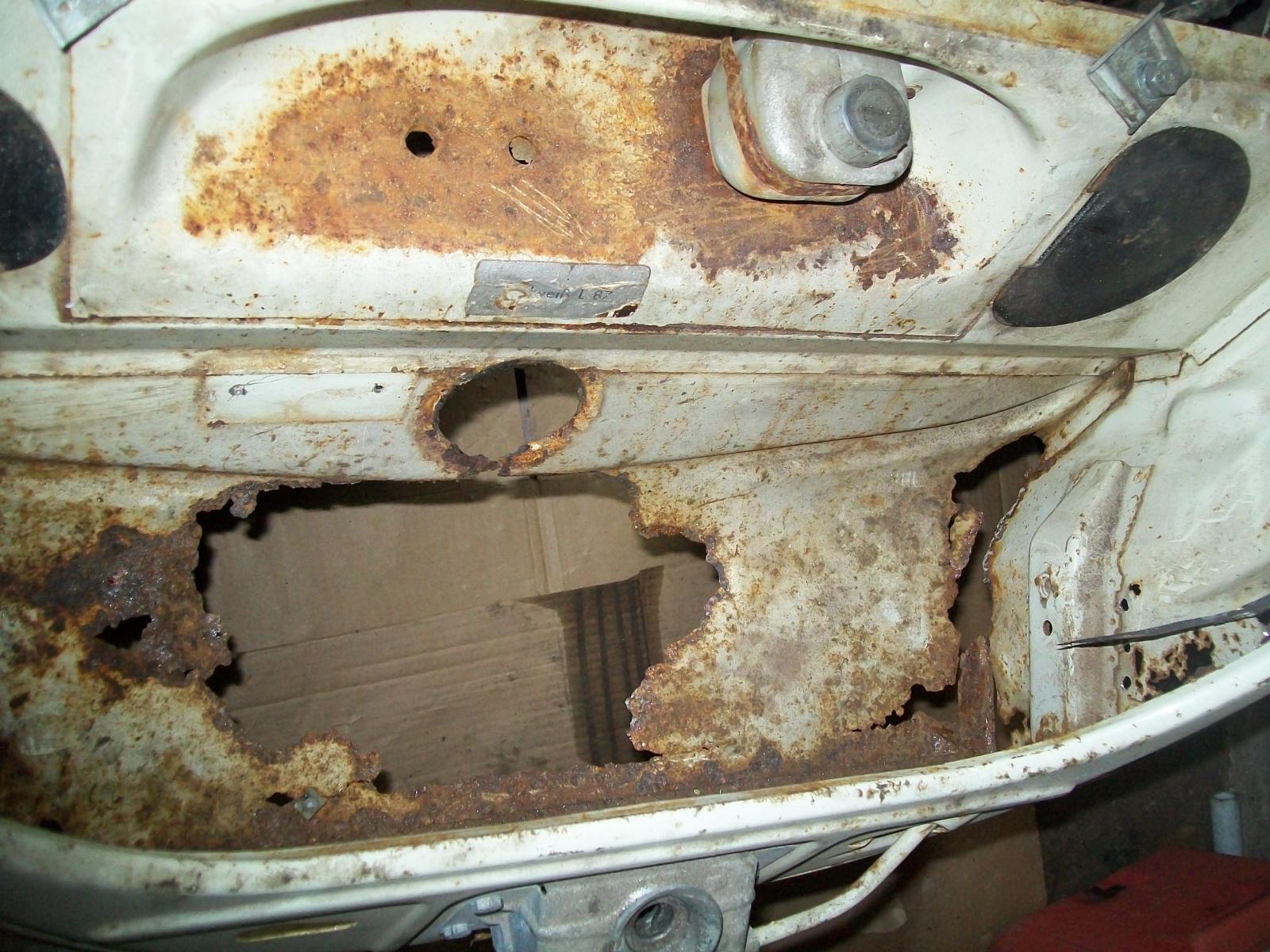

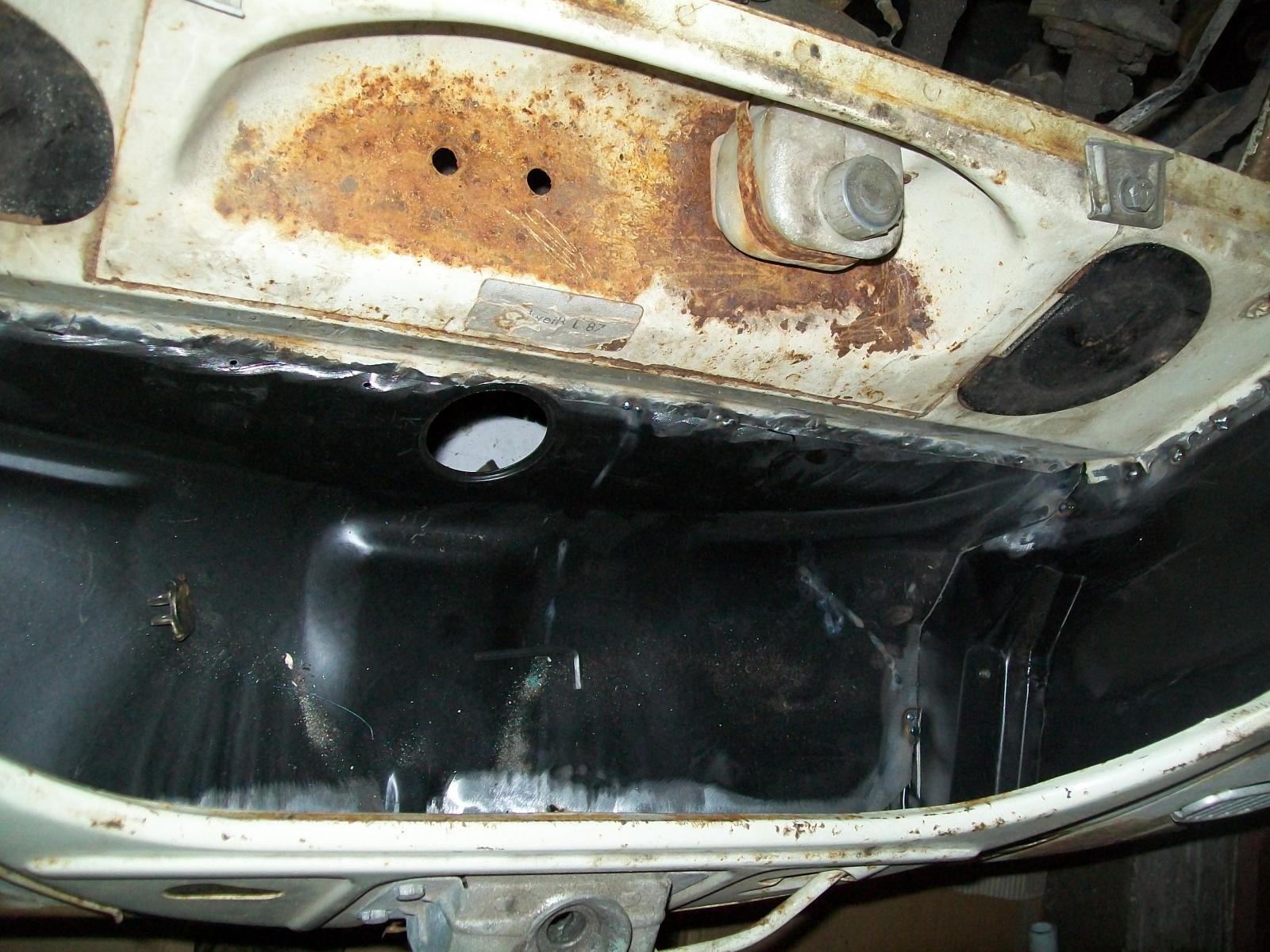

I wasnít planning on doing any welding on this project yet but A fellow CVA member kind of lit a fire under my butt so Iíve rebuilt the spare tire compartment now and fixed the front left quarter panel. The biggest part of the welding is done now.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Jon65
Samba Member


Joined: September 29, 2012
Posts: 2414

Jon65 is offline

PostPosted: Sun Mar 03, 2013 6:36 pm    Post subject: Reply with quote

Sweet. Cool

Nice, clean job. Looks great.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Mon Mar 04, 2013 12:32 pm    Post subject: Reply with quote

jon65 wrote:
Sweet. Cool

Nice, clean job. Looks great.


Thanks!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Wed Mar 06, 2013 9:58 pm    Post subject: Reply with quote

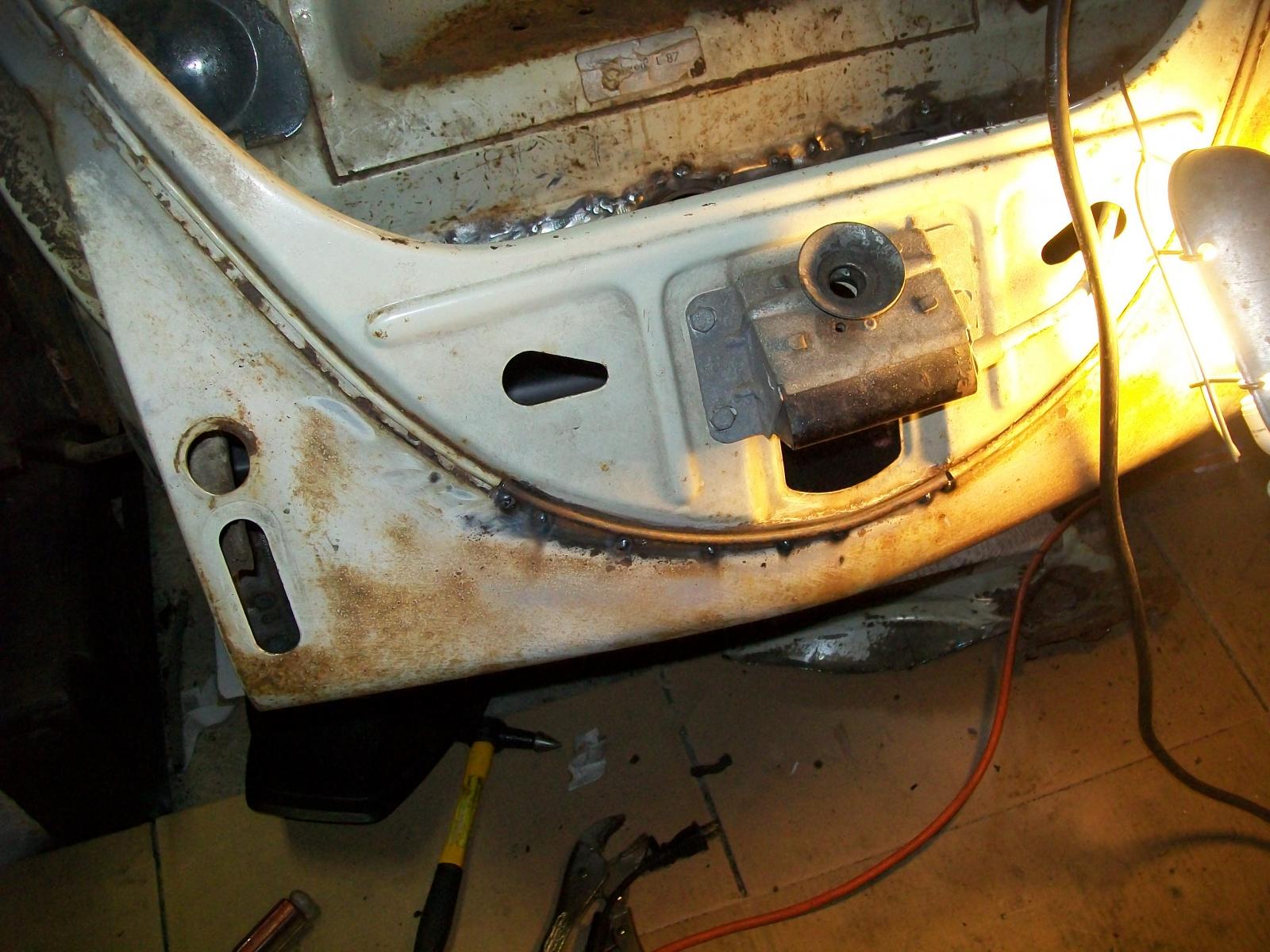

I spent a lot of time to save the original front apron. When cutting the front spare tire compartment side off I welded the apron to what was left to the quarter panel so I wouldnít loose its position on the body. Since it was still attached that way it was hard to drill out the spot welds in there so I had to spend a lot of time grinding them off instead.

Image may have been reduced in size. Click image to view fullscreen.

Since the hood seal channel was messed up I finally figured a way to manipulate the channel piece left over from Herbie.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Mon Apr 01, 2013 2:27 pm    Post subject: Reply with quote

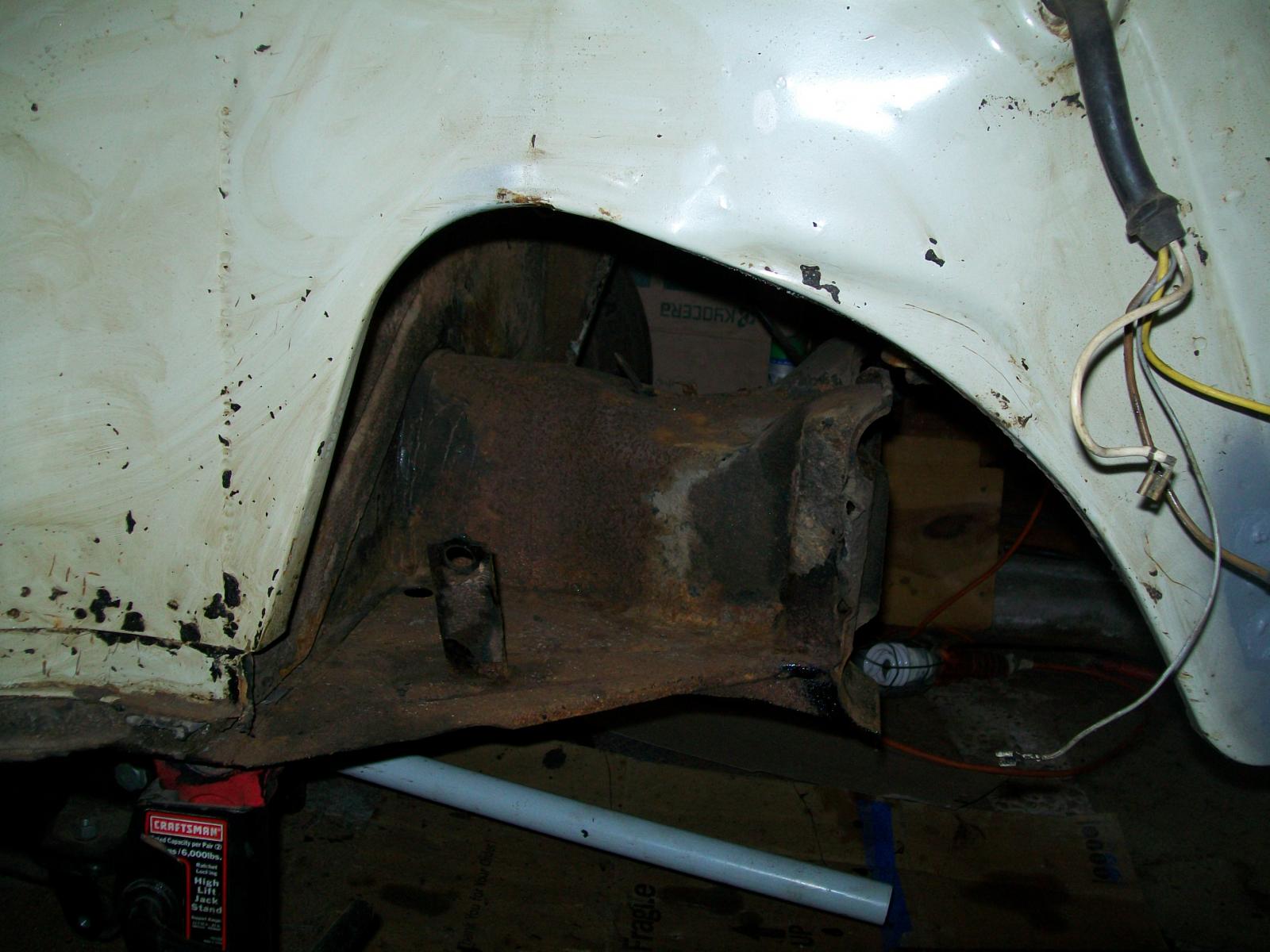

Some updates: I finished repairing the rear corners of the floor pan halves. Then painted with Eastwood rust encapsulator. I'm using Tractor Supply tractor and implement paint this time around instead of bed liner paint for the final coat. The stuff is like an epoxy paint and cheap too!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1186
Location: Texas
sportin-wood is offline

PostPosted: Mon Apr 01, 2013 8:54 pm    Post subject: Reply with quote

Looking good! Always good to see someone saving a bug, giving it new life.
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Wed Apr 03, 2013 7:27 am    Post subject: Reply with quote

sportin-wood wrote:
Looking good! Always good to see someone saving a bug, giving it new life.


Look whose talking. Good job on yours as well!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1186
Location: Texas
sportin-wood is offline

PostPosted: Wed Apr 03, 2013 12:21 pm    Post subject: Reply with quote

Yeah, but you seem to have waaay better welding skills than I have! One question - are you going to be changing out your transmission mounts (front and rear)? I'm looking to do that soon, but can't seem to find any forum posts on doing that on our '66 year bugs (specifically the front mount). The rear should be faily simple especially because I have the motor out already.
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli


Last edited by sportin-wood on Fri Apr 05, 2013 9:16 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Thu Apr 04, 2013 11:36 am    Post subject: Reply with quote

Yea I did all the trans mounts plus the nose cone seal. With the engine out now would be the best time to do them. Since your probably gonna be doing brake lines and stuff, it isnít much more work to pull the transaxle. Make sure to notch the spring plates before hand so you donít lose alignment for your rear axles.

The bugme videos have been a big help on all this stuff.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 5450
Location: Pearl River, NY
Rome is offline

PostPosted: Sat Apr 06, 2013 3:29 pm    Post subject: Reply with quote

Great to see a relatively solid '60's Beetle being revived in New England. Good work so far! I hope you can get it roadworthy even if the bodywork is still in progress, and drive it to VW meets in CT this season.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sportin-wood
Samba Member


Joined: September 12, 2010
Posts: 1186
Location: Texas
sportin-wood is offline

PostPosted: Sat Apr 06, 2013 9:01 pm    Post subject: Reply with quote

EA812 wrote:
.......Make sure to notch the spring plates before hand so you donít lose alignment for your rear axles.

The bugme videos have been a big help on all this stuff.


Been watching my BugMe Video Vol. 5 on transmission removal - is the torsion plate the same as the spring plate? That's what he notches.
_________________
.
Click here to see my 66 project bug.
.
"Relax, all right? My old man is a television repairman, he's got this ultimate set of tools. I can fix it." --- Jeff Spicoli
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Sun Apr 14, 2013 10:51 am    Post subject: Reply with quote

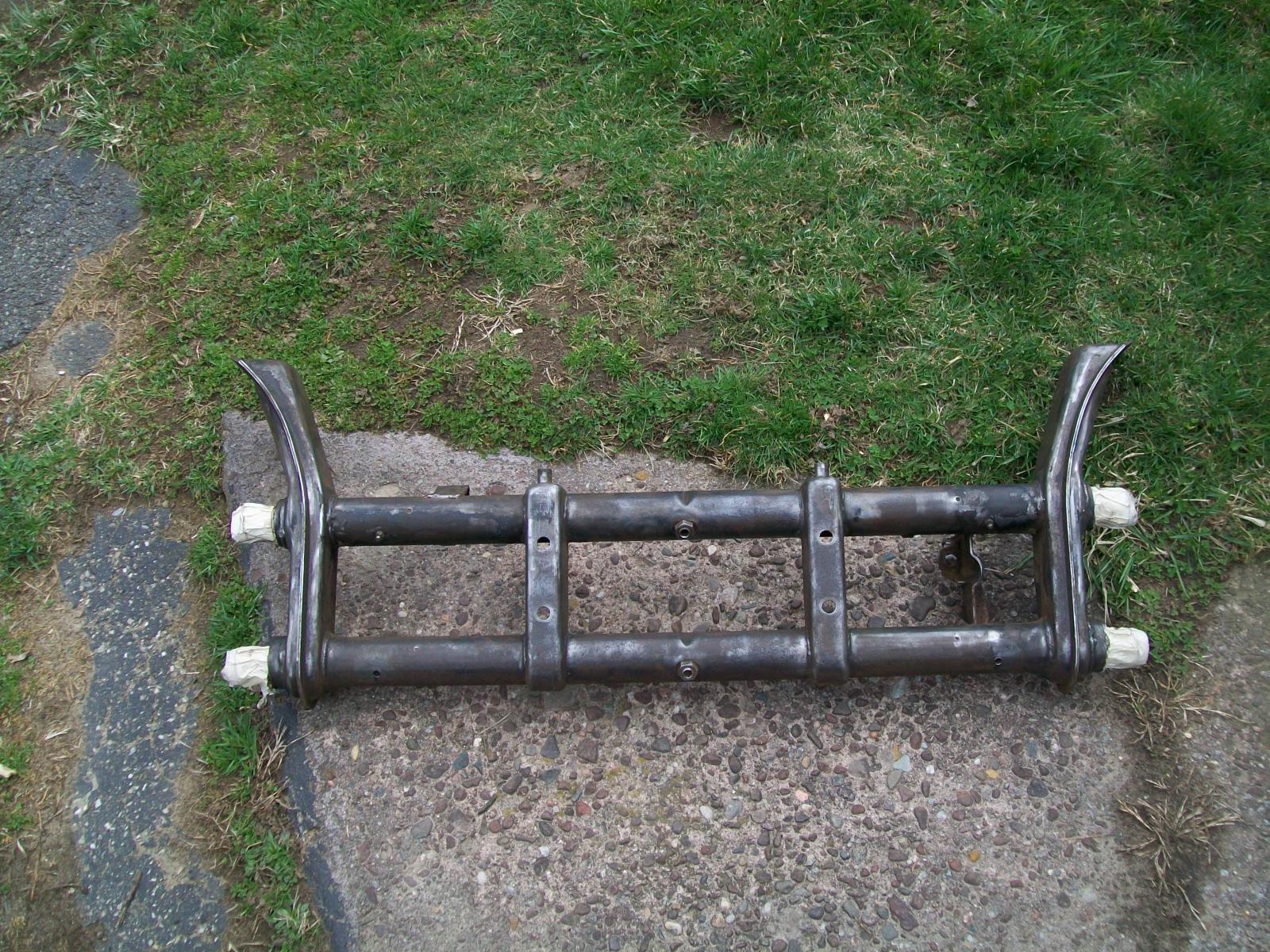

Took the axle beam off recently, cleaned it up a bit and painted. Itís defiantly gonna need ball joints and tie rods.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EA812
Samba Member


Joined: December 07, 2008
Posts: 1034
Location: North central, CT
EA812 is offline

PostPosted: Sun Apr 21, 2013 3:54 pm    Post subject: Reply with quote

sportin-wood wrote:
EA812 wrote:
.......Make sure to notch the spring plates before hand so you donít lose alignment for your rear axles.

The bugme videos have been a big help on all this stuff.


Been watching my BugMe Video Vol. 5 on transmission removal - is the torsion plate the same as the spring plate? That's what he notches.


I think so. He also gives a good trick on how to align it all back up with the bolts and a vice grip. You will be in good shape following his directions;) I watched the video when I put it all back a few months ago.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
shano63 Premium Member
Samba Member


Joined: October 06, 2006
Posts: 3451
Location: Poughkeepsie NY
shano63 is offline

PostPosted: Sun Apr 21, 2013 4:04 pm    Post subject: Reply with quote

Great work Brent....I'll be watching for more updates! Cool
_________________
63 T1 Ragtop Gulf Blue, Certified abortion
70 Westy
68 Baja
04 Wrangler Rubicon 5spd
66 F250 4X4 4spd
08 Ranger 5spd
08 civic 5spd

Chris

Take it as it comes-- Morrison
Back to top
View user's profile Send private message Gallery Classifieds Feedback
