 Posted: Sat Dec 22, 2012 11:19 pm Post subject: Who has a picture of a Dehne gas gauge in a split? |
 |
|
I want to see what the different mounting possibilities look like. Thanx...
_________________
CH³NO²
Z = z² + C
Der Blitzkrieg Kafers
#notacallooker |
|
| Back to top |
|
 |
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25860
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sun Dec 23, 2012 9:17 am Post subject: |
|
|
From a search of the "Gallery" for "Dehne":
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
qwerty
Samba Member
Joined: March 18, 2004
Posts: 345
|
| Posted: Sun Dec 23, 2012 10:17 am Post subject: |
|
|
| Looks like an oval or zwitter, not split window dash... |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25860
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sun Dec 23, 2012 10:23 am Post subject: |
|
|
Even if it was an early KG dash the mount is the same. Image is listed as "Dehne 1951/52".
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
bwaz
Samba Member
Joined: August 24, 2004
Posts: 1811
|
| Posted: Sun Dec 23, 2012 11:12 am Post subject: |
|
|

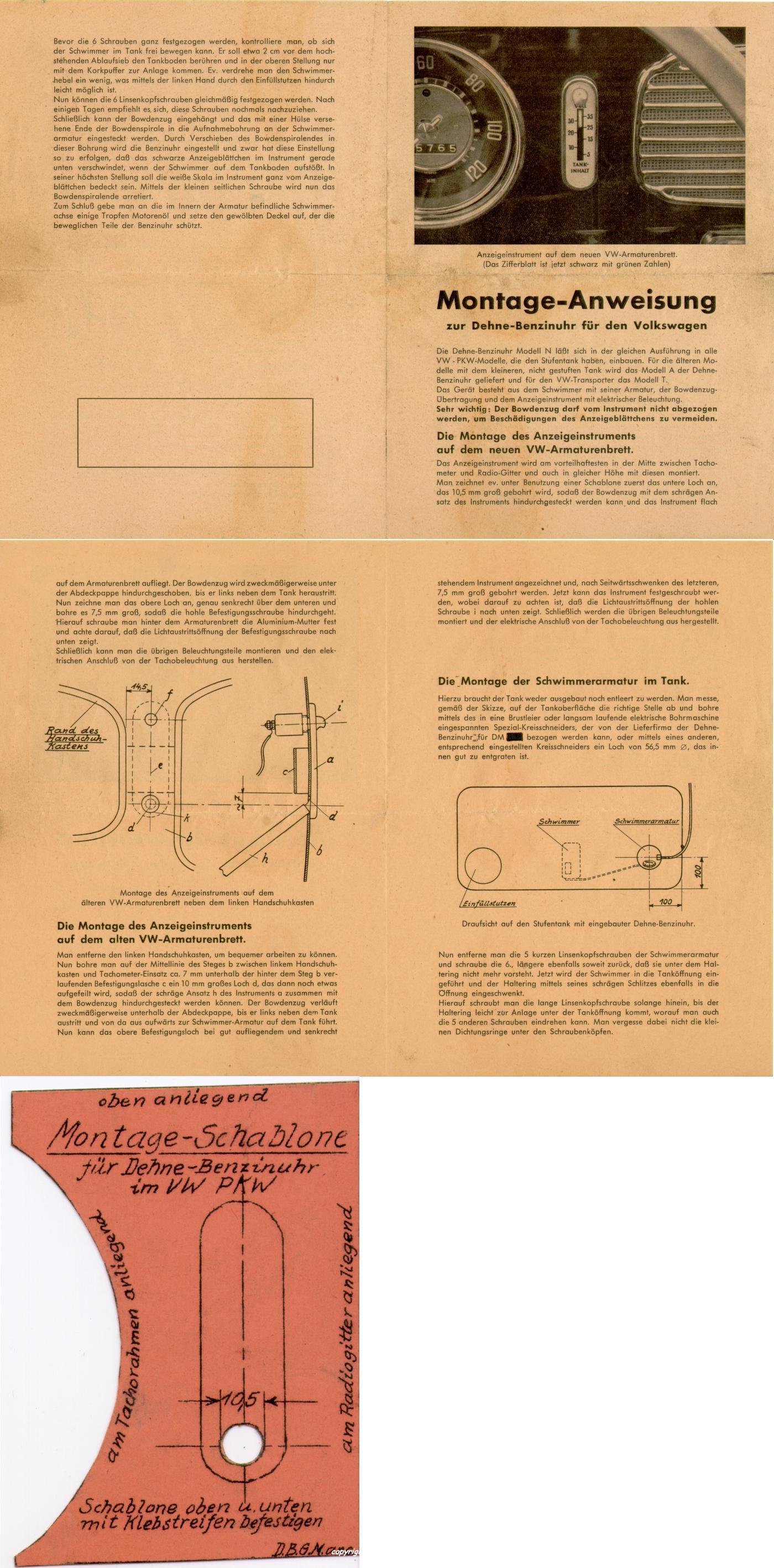

Middle part of the paperwork? Looks like a split dash pod next to the glovebox. (thanks for the original post to Eurodub and Andi )
Last edited by bwaz on Sun Dec 23, 2012 11:18 am; edited 1 time in total |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Sun Dec 23, 2012 11:59 am Post subject: |
|
|
i put mine in the front of steering wheel ... just as it was intended originally. it's in plain sight there and the cable is running almost straight to the fuel tank.
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
Splitdog
Samba Split Personality
Joined: February 16, 2004
Posts: 4135
Location: Planet VW
|
| Posted: Sun Dec 23, 2012 1:04 pm Post subject: |
|
|
Thanks guys. It is hard to find good pics of this in a split dash. I know some people have extensive photo collections from shows, etc. So keep 'em coming!
_________________
CH³NO²
Z = z² + C
Der Blitzkrieg Kafers
#notacallooker |
|
| Back to top |
|
|
Splitdog
Samba Split Personality
Joined: February 16, 2004
Posts: 4135
Location: Planet VW
|
| Posted: Mon Dec 24, 2012 1:55 pm Post subject: |
|
|
_________________
CH³NO²
Z = z² + C
Der Blitzkrieg Kafers
#notacallooker |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Mon Dec 24, 2012 3:14 pm Post subject: |
|
|
mine..
PS just noticed that all the above pics have the gauge mounted slightly lower than in the manual above. that was caused by the dash pod fixture on the back, if i recall correctly i had problems drilling holes to clearance that mount.
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
Splitdog
Samba Split Personality
Joined: February 16, 2004
Posts: 4135
Location: Planet VW
|
| Posted: Mon Dec 24, 2012 4:34 pm Post subject: |
|
|
Nice.  Anyone with alternative mountings? I really want to check it out before I DRILL INTO MY SPLIT DASH!
_________________
CH³NO²
Z = z² + C
Der Blitzkrieg Kafers
#notacallooker |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Mon Dec 24, 2012 4:38 pm Post subject: |
|
|
andy oval56.de heb
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
Splitdog
Samba Split Personality
Joined: February 16, 2004
Posts: 4135
Location: Planet VW
|
| Posted: Mon Dec 24, 2012 4:40 pm Post subject: |
|
|
Right on! Thanks eurodub.
_________________
CH³NO²
Z = z² + C
Der Blitzkrieg Kafers
#notacallooker |
|
| Back to top |
|
|
coolparts
Samba Member
Joined: November 23, 2004
Posts: 194
|
| Posted: Mon Dec 24, 2012 4:41 pm Post subject: |
|
|
| i think it only looks good on an oval not a split . |
|
| Back to top |
|
|
Robs '52s
Samba Member
Joined: January 15, 2005
Posts: 385
Location: Nor-Cal far eastbay
|
| Posted: Mon Dec 24, 2012 6:00 pm Post subject: |
|
|
From my old split.
[/img]
|
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Thu Dec 27, 2012 9:30 pm Post subject: |
|
|
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
pcalbar
Samba Member
Joined: August 02, 2003
Posts: 88
Location: San Antonio, TX
|
| Posted: Tue Apr 08, 2025 9:53 am Post subject: Re: Who has a picture of a Dehne gas gauge in a split? |
|
|
Within the wonderful installation instruction provided in this forum, I see a location for the sender hole in the top right side of the early style gas tank. My June 1952 Beetle came with the Dehne gauge but its original gas tank is long gone. The written instructions indicate that the hole should be 56.5mm in diameter. Before I cut my hole, I’d appreciate confirmation that this location and hole size are accurate.
In addition, I’d appreciate anyone that has a correct early white face for the viewable gauge take detailed pictures and, if possible, include measurements so I can recreate one for my car. |
|
