Oatsey's 1969 Beetle rebuild thread - Details & Pics
Forum Index -> Beetle - Late Model/Super - 1968-up Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Oatsey
Samba Member


Joined: February 06, 2013
Posts: 8
Location: St. Louis, MO
Oatsey is offline

PostPosted: Thu Feb 07, 2013 3:32 pm    Post subject: Oatsey's 1969 Beetle rebuild thread - Details & Pics Reply with quote

Greetings: Long time lurker under a different screen name, first time poster. I love this community and the information contained in it....... Thank You for your contributions that have helped me with multiple beetles in the past.

I have decided to share my rebuild of my 1969 VW Beetle.

I am no novice to VW nor mechanics in general. My first car was a 1973 Super (circa 1996) and I'm a gearhead by blood. This is now my 4th beetle and my father has had a couple along the way.

History:
Bought the car almost 2 years ago from local guy. P.O. bought the car 3 years before that from a guy in Alabama who did all of the work that you see in the below pictures.
------------------------------------------------------------------------
Current Condition:
Suspension: Weld in adjusters, stock beam width, stock spindles, lots of 5 year old urethane bushings throughout the car, dropped an unknown number of notches in the back.

Body: Creative Car Craft widened fiberglass fenders (which I believe to be 3" wider than factory) Straight and pretty clean sheet metal with 5 year old flat black paint. Relatively rust free, but has been crashed in the front at one point so it has a newer front apron poorly welded in... Stock floor pans/channels with repairs on passenger rear pan. Rear apron cut out w/fiberglass cover panel. Pop-out windows, and a broken windshield.

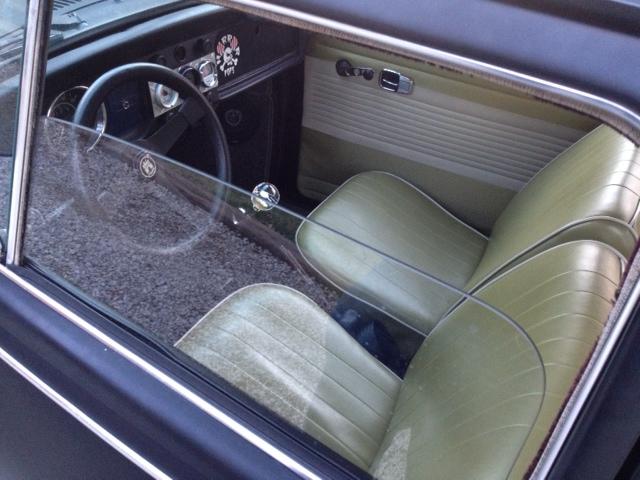

Interior: Lowback seats, green/offwhite vynil throughout, grey carpet in and rubber mats. Headliner is up there, but poorly installed and looks ugly. Clumsily small aftermarket steering wheel, padded dash and some mismatched gauges in a piece of stainless in the factory radio location complete the "look". Radio is in the glovebox and it has some fiberglass kick panelsWindows are hard to roll up and down, passenger side vent window doesn't open without falling out. The wires are a MESS. Lots of added on stuff, ad hoc switches and grounds in the wrong place....

Drivetrain: (Please help me figure out what I have) I have not verified what I actually have but I have been the P.O. told me I have a 1641cc with a 110 engle cam. Dual carburetor and alternator conversion. (he wasn't a VW enthusiast and was repeating what he was told when he bought the car) The engine runs good, but wouldn't turn over easily when I bought it. Replaced the starter, power cables, and battery and it starts easy now... It runs strong but occasionally I doubt the carburetors are tuned properly as it has a rough idle when cold starting and has poor MPG. After driving and stopping, say at a gas station, the restart can sporadically be troublesome -- The engine turns over freely but almost acts like it isn't getting fuel and can take some good luck and finger-crossing to get it running..... It's never stranded me, but I attribute that to a good battery and a good starter.
I also have a pretty heavy oil leak that I need to track down while I have this car apart. Transmission shifts great w/no leaks.

Wheels & Brakes: BRM wheels -- (I don't know if they are original, can you help?) 135s in the front/165 in back. Brake hardware has low miles on it but there is a leak somewhere that causes a weak pedal and loss of confidence in a quick stop. At least one wheel bearing is worn and making noise.

Here are the Pics:

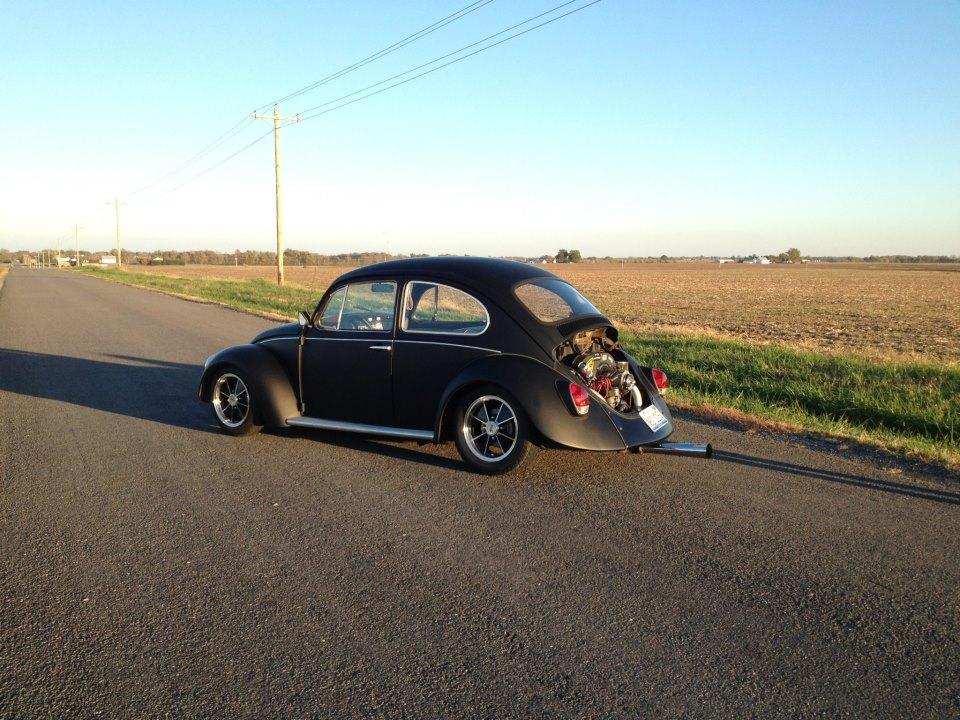

The day I brought it home in all it's cheesy glory with spikes and maltese crosses everywhere!
Image may have been reduced in size. Click image to view fullscreen.

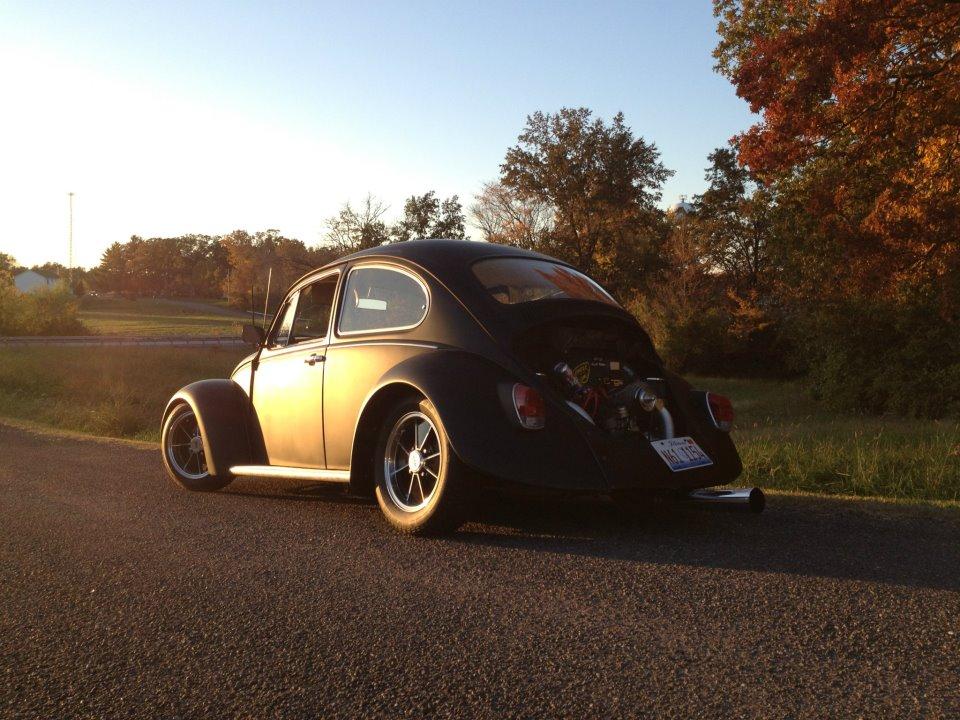

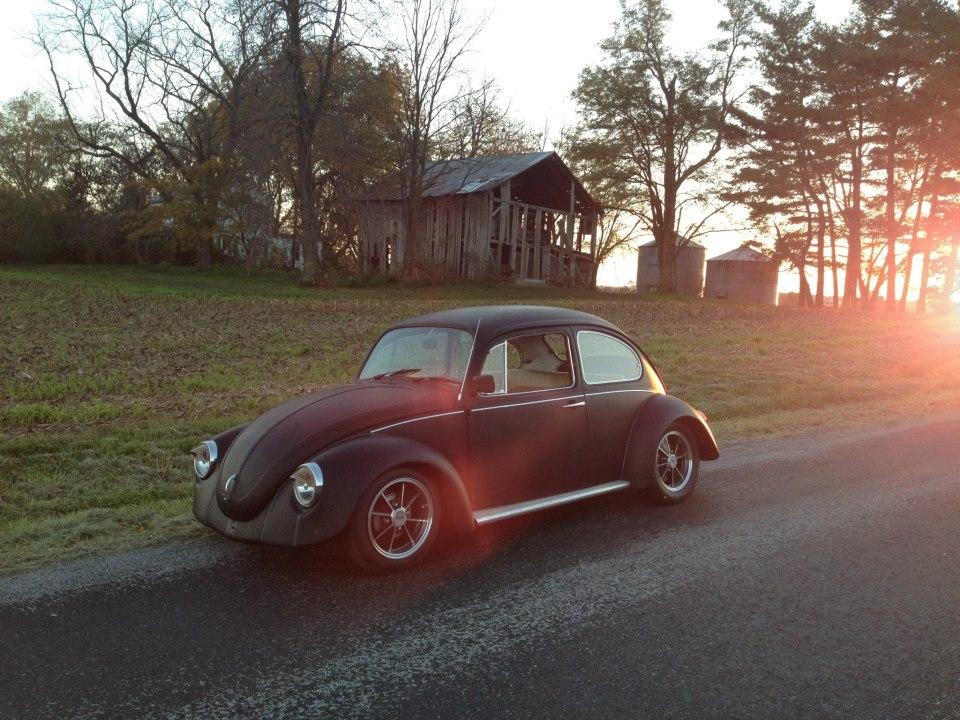

After about a year of driving it:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.




----------------------------------------------------------------------------------

PLANS:
Suspension: Bring the front up very slightly & bring the rear down moderately so that the car sits level. (Dependent upon wheel/tire selection)

Body: Pull body from pan. Address minor issues including the ugly welds on the front apron and respray it. Paint color will be white with a matte/flattened clear coat. Cut fenders for brackets install pre-67 style bumpers w/risers. Replace windshield. Acquire pre-67 deck lid and install, because it just looks cool!

Interior: Install full wiring harness from Painless, etc. Acquire and install a pre-67 factory steering wheel, remove dash pad. Remove ugly "custom gauge cluster". Install headunit where it belongs. Install a proper tachometer on the steering column. Replace rear view mirror. Replace headliner. Install new carpet kit. Replace window channel slider felt(name?). Repair passenger vent window.

Drivetrain: Pull engine, sell dual carb setup in lieu of a single carb setup. Find oil leak & repair. Clean up the gunk. General organization of engine wires. Remove fan shroud and paint.

Wheels & Brakes: I will likely sell these wheels to replace with something with an offset that will compliment the wide fenders in the rear. General recondition of all brake lines and cables. Replace wheel bearings on both front wheels.
------------------------------------------------------------------------------------

Stay tuned, I know I'll need your help!
I've already started the work, and have more pictures to add of my progress.

This is going to be fun!


Oats
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mr. Mofo
Samba Member


Joined: July 12, 2011
Posts: 146
Location: Arizona
Mr. Mofo is offline

PostPosted: Thu Feb 07, 2013 4:23 pm    Post subject: Reply with quote

Very nice bug, have fun with it. And are those early door cards? love the interior. 69's are nice
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Oatsey
Samba Member


Joined: February 06, 2013
Posts: 8
Location: St. Louis, MO
Oatsey is offline

PostPosted: Thu Feb 07, 2013 11:52 pm    Post subject: Catch up post: 02/05/13 Reply with quote

Previous to 2/5/13 work night I removed big interior bits: Seats, carpet, door panels, rear 1/4 interior panels and stored them away.



2/5/13 Removed Removed fenders, running boards, windshield, pass door, rear 1/4 windows, rear glass, PO addon gauge cluster and all wiring/oil pressure lines, antenna, washer squirter, headlights, wiper motor assembly and wires. Couldn't get the Drivers side door off because of this ugly problem! Badly stripped screw heads! What do I do? Tried to cut a groove to use a flathead screwdriver to no avail....
Image may have been reduced in size. Click image to view fullscreen.


Other Pics:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

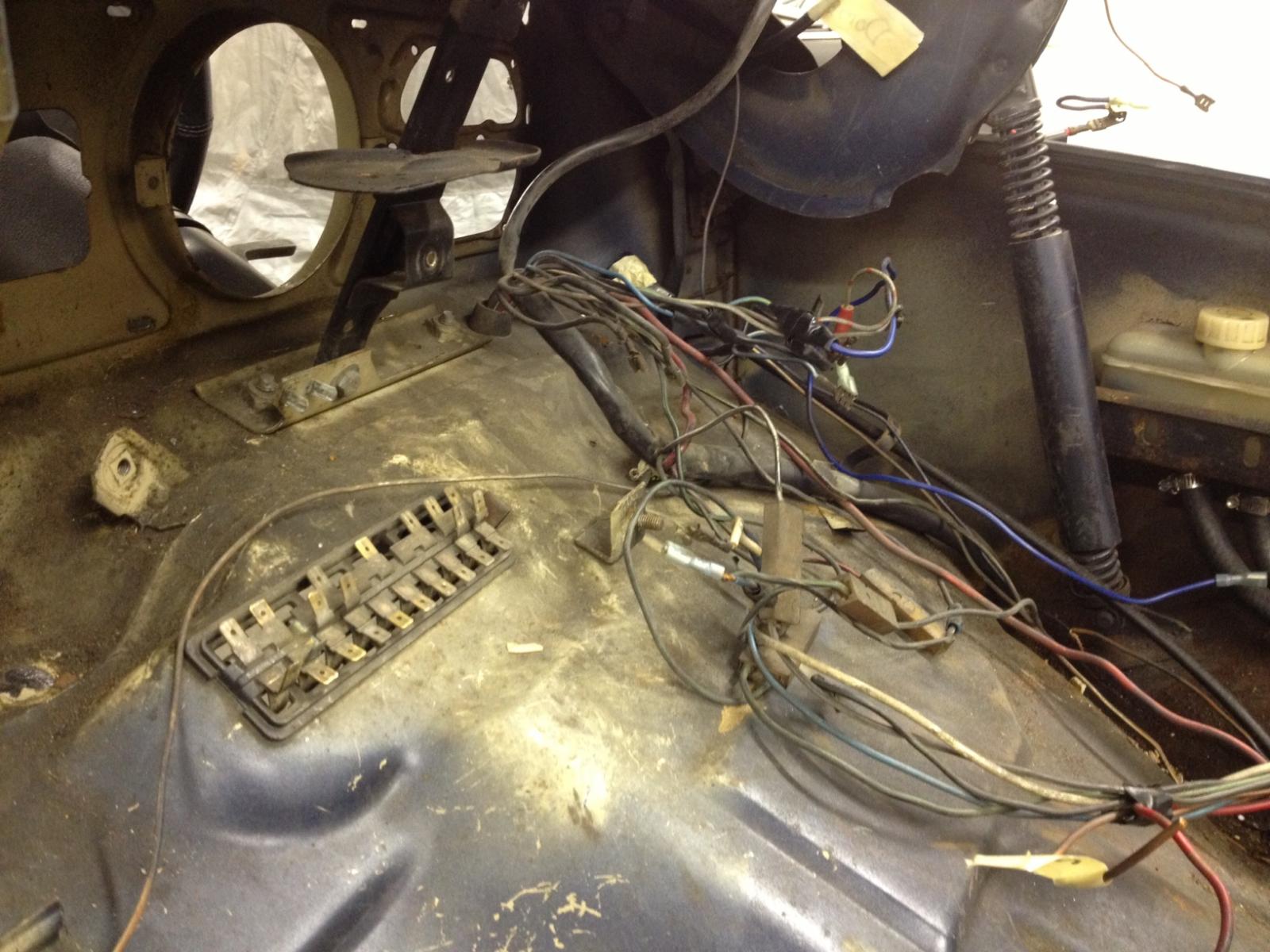

2/7/13: Removed almost all of the remaining factory wiring up front, removed visors, dome light and finally headliner. Pulled up as much of the carpet padding and sound deadener as possible.

Pics:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
hobbybob517
Samba Member


Joined: June 02, 2011
Posts: 1194
Location: Netherlands
hobbybob517 is offline

PostPosted: Fri Feb 08, 2013 4:09 am    Post subject: Reply with quote

nice bug man, also nice bike in the background.

will be watching this one.
_________________
THE BUILD http://www.thesamba.com/vw/forum/viewtopic.php
SBD wrote:

3 million rpm? Well there's your problem! No wonder it blew up!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vernonc
Samba Member


Joined: April 23, 2012
Posts: 681
Location: Parkersburg, WV..yes, I sold the boat
vernonc is offline

PostPosted: Fri Feb 08, 2013 4:47 am    Post subject: Reply with quote

Nice car and it looks like you're going to do it right.

Sure wish I had a nice garage like yours to work in. Laughing

mort
_________________
"Those who don't read newspapers are un-informed. Those who do read newspapers are mis-informed." Will Rogers

'69 sedan, low mileage, all original.....currently being 'freshened-up' for road trips and daily driving...just not every day

Freshening-up link http://www.thesamba.com/vw/forum/viewtopic.php?t=617386
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
69vduber
Samba Member


Joined: April 23, 2008
Posts: 441
Location: Spring Texas
69vduber is offline

PostPosted: Fri Feb 08, 2013 5:09 am    Post subject: Reply with quote

good work .Hope you took lots of pics of the wiring and switches. I did the same a couple of years ago ( see gallery) On the door you may need to just take the pin out. My body guy had to do that on pass side.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
anima40000
Samba Member


Joined: March 05, 2011
Posts: 83
Location: Las Vegas
anima40000 is offline

PostPosted: Fri Feb 08, 2013 10:21 pm    Post subject: Reply with quote

I had the same problem with my doors, i had to drill them out and then get a stripped bolt extracter to help

http://www.harborfreight.com/12-piece-screw-extractor-set-40349.html
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LeftSatisfied
Samba Member


Joined: October 17, 2010
Posts: 212
Location: Canyon Lake, Ca.
LeftSatisfied is offline

PostPosted: Sat Feb 09, 2013 2:19 am    Post subject: Reply with quote

For the door screws. Buy a left handed drill bit and run the drill motor in reverse. That way, if you get lucky, the screws may break free and run themselves out. If not, you still have a hole drilled to try an "easy out". Tip: run the drill slow, it will grab better increasing your chances of removal.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
70photobus
Samba Member


Joined: January 30, 2012
Posts: 1
Location: United States
70photobus is offline

PostPosted: Wed Feb 13, 2013 6:23 pm    Post subject: Reply with quote

Looking good Jason!
Back to top
View user's profile Send private message Classifieds Feedback
Oatsey
Samba Member


Joined: February 06, 2013
Posts: 8
Location: St. Louis, MO
Oatsey is offline

PostPosted: Mon Feb 25, 2013 2:48 pm    Post subject: Reply with quote

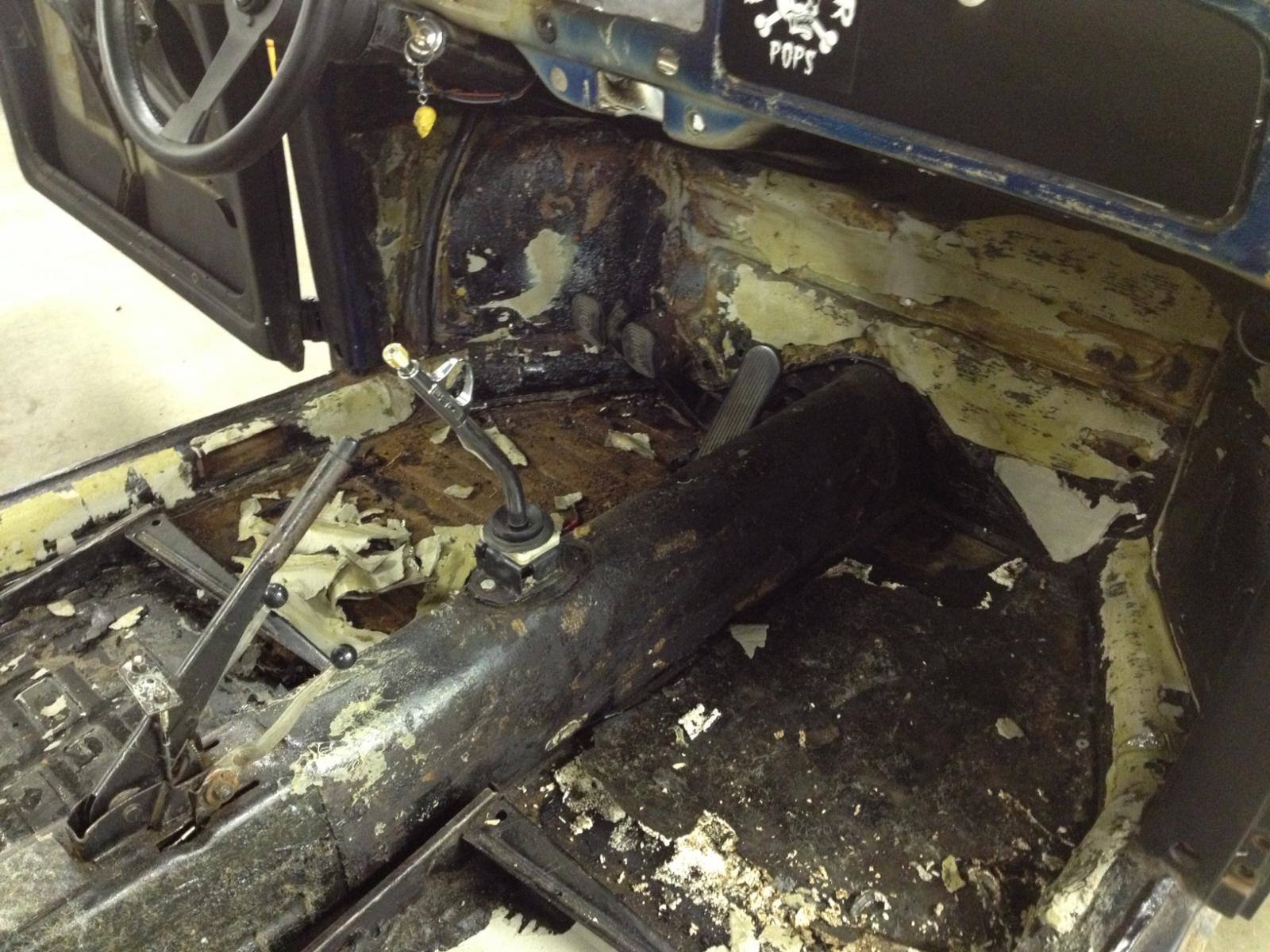

It's been awhile since I've spent time in the garage working on this project. Tonight I plan to attack the stripped door hinge screws and the floor pan "insulation".

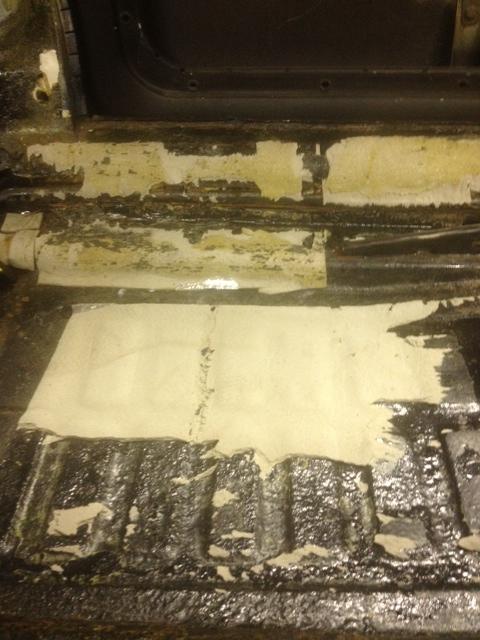

I have a bunch of this foam matting backed by double stick tape to deal with -- Adhesives and foam don't typically bode well with grinders and wire wheels in my experience....

Putty knives and screwdrivers are working, but just barely - Any suggestions to remove this junk easily?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Oatsey
Samba Member


Joined: February 06, 2013
Posts: 8
Location: St. Louis, MO
Oatsey is offline

PostPosted: Mon Feb 25, 2013 11:54 pm    Post subject: Reply with quote

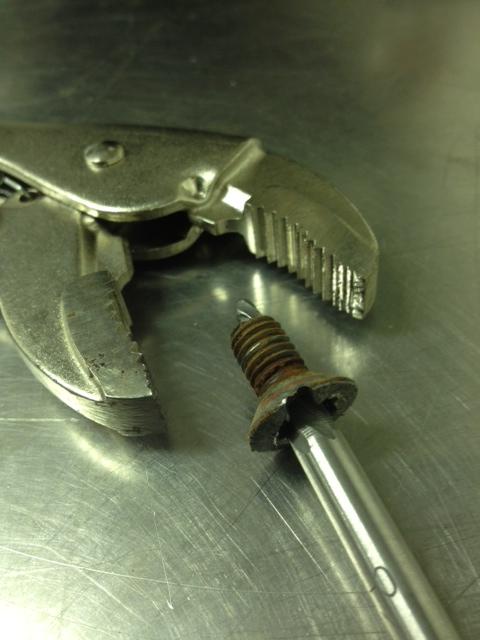

Monday night's work: I stopped by the local Harbor Freight and grabbed an extra set of easy outs, like the ones that anima40000 suggested, and with a careful touch I managed to get both of the jacked up hinge screws out of the body while breaking only one cheap drill bit.

After that, I removed the remainder of the wiring harness from the front of the car. Only wires from the steering column remain, but have been pushed from through the body.

Scraped a few chunks of stuff off of the body and pans -- I think I will try some heat as most of this stuff is general adhesive.....

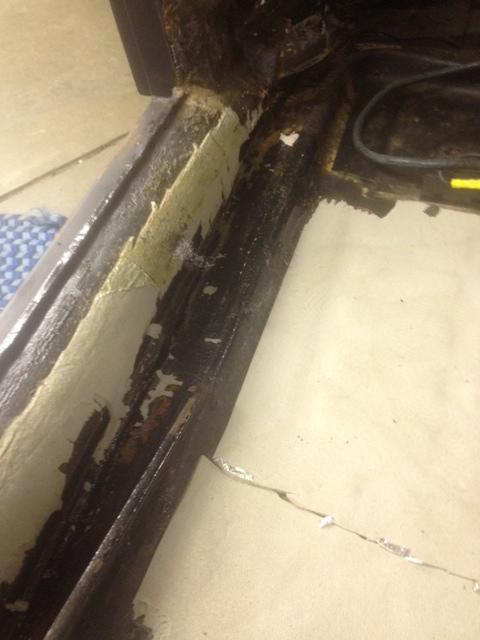

Some of the deadner is tar-backed - going to take a lot of heat to melt this stuff......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
