Custom passenger door side light (split from dog thread)
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1525
Location: Vancouver BC
tam_shops is offline

PostPosted: Wed Mar 13, 2013 7:41 pm    Post subject: Reply with quote

digga_b wrote:
This is Charlie,

Image may have been reduced in size. Click image to view fullscreen.




Hey, how'd you get a light over the passenger door, or did you add it yourself? I thought it strange that my passenger door had no light, but figured they were all like that!

tam
_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
Back to top
View user's profile Send private message Classifieds Feedback
digga_b
Samba Member


Joined: March 16, 2006
Posts: 11
Location: Kansas City
digga_b is offline

PostPosted: Thu Mar 14, 2013 12:45 am    Post subject: Reply with quote

tam_shops wrote:

Hey, how'd you get a light over the passenger door, or did you add it yourself? I thought it strange that my passenger door had no light, but figured they were all like that!

tam


I added it. There is a cover plate on the hole, you should be able to feel it under the headliner. I changed all of my lights. Those particular lights came out of the rear of a late 1999 to 2005 Golf/Jetta. The hole will need to be slightly enlarged to add these lights. I even added the small frame that these lights fit into and they hold the headliner tight to the hole.
Back to top
View user's profile Send private message Classifieds Feedback
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1525
Location: Vancouver BC
tam_shops is offline

PostPosted: Thu Mar 14, 2013 7:14 pm    Post subject: Reply with quote

Great, thank you! I don't remember seeing a plate over my passenger side door, will look around next time I'm in the van. I should be able to add that myself, too! And, sure we'll have a few Jettas in our junk yards. I'll want one for both sides. I will have to add it to my list which grows faster than I can find things and/or do them, though, it's 7pm now and kids are just going to bed, *almost* light enough that I could go and do the shelf lining in the cupboards and get to that long list of cleaning people added to my almost long list! LOL

Charlie looks happy with his own light too and is super cute btw!
digga_b wrote:

I added it. There is a cover plate on the hole, you should be able to feel it under the headliner. I changed all of my lights. Those particular lights came out of the rear of a late 1999 to 2005 Golf/Jetta. The hole will need to be slightly enlarged to add these lights. I even added the small frame that these lights fit into and they hold the headliner tight to the hole.

_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
Back to top
View user's profile Send private message Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3644
Location: Maine
Timwhy is offline

PostPosted: Fri Mar 15, 2013 2:49 am    Post subject: Reply with quote

tam_shops wrote:
Great, thank you! I don't remember seeing a plate over my passenger side door, will look around next time I'm in the van. I should be able to add that myself, too!


Just be prepared to run the wires needed from the drivers side dome light under the headliner.
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
tam_shops
Samba Member


Joined: November 15, 2012
Posts: 1525
Location: Vancouver BC
tam_shops is offline

PostPosted: Fri Mar 15, 2013 8:35 am    Post subject: Reply with quote

Why does everything get more complicated when you guys break down the instructions for me into the basic steps. And, how do you guys always catch when I missed the hard part? LOL Thank you so much. I'd have figured it out when I went and looked at my door and saw nothing there, which is what I though in the first place! Crying or Very sad Going to have to wait until someone shows me how to run wires under the headliner with out damaging anything! LOL And, don't do it now b/c I still haven't put my stereo in or done my cleaning or put my new plug and cover in! LOL Though, knowing you guys that's already up here somewhere. Smile
Timwhy wrote:

Just be prepared to run the wires needed from the drivers side dome light under the headliner.


tam
_________________
1987 Vanagon Westfalia GL Automatic

Making it special:
http://www.thesamba.com/vw/forum/viewtopic.php?t=545885
Back to top
View user's profile Send private message Classifieds Feedback
Jennepher Premium Member
Administrator


Joined: September 10, 2002
Posts: 4392
Location: Arizona
Jennepher is offline

PostPosted: Fri Mar 15, 2013 10:55 am    Post subject: Reply with quote

Since other people may be interested in this, I split this off-topic discussion into its own thread.
_________________
Donate to TheSamba.com

Stop dead photo links! Post your photos to The Samba Gallery!
If your post begins "I know this is against the rules but..." just stop typing.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12680
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Fri Mar 15, 2013 11:11 am    Post subject: Reply with quote

just be glad they're not telling you to run the wires down the Pass door pillar so you can have the light come on only when the pass door opens.
like I did.. that was a major PITA fishing the wires thru the small hole that isn't accessible under the dash.. Ohh and I had my Dash removed and still cursed and bled for an hour.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3644
Location: Maine
Timwhy is offline

PostPosted: Fri Mar 15, 2013 2:01 pm    Post subject: Reply with quote

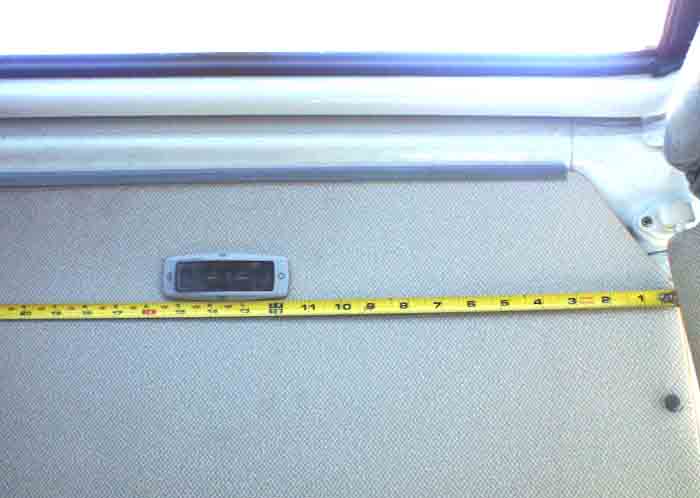

This will give you an idea where the hole for the passengers side dome lamp should be.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
digga_b
Samba Member


Joined: March 16, 2006
Posts: 11
Location: Kansas City
digga_b is offline

PostPosted: Wed Mar 20, 2013 7:59 am    Post subject: Reply with quote

Good idea to move the thread.

What year did they change the headliner? Here is what I was talking about on my '84.

This will be over the rear seat on the slider side.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr[/img]

If you push on the headliner, you can feel that cover plate. Here I located each end.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

Then I made a few cuts.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

After the cuts are made, you can pull that plate out.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

The plate.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

If you want to install a period correct light, all you need to do is run the wires then pop in the light and you are done.


Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

Now, if you want to upgrade to the mkIV lights, the hole will need to be trimmed in order for them to fit correctly. Not much needs to be taken out. This is the ring that you would use with the newer style lights. These hold the headliner into the hole and allow the lights to be installed and removed with ease. I laid it over the cover plate so you can see approximately how much needs to be trimmed.

Image may have been reduced in size. Click image to view fullscreen.

Untitled by MaxeyB, on Flickr

I ran all my wires from the drivers side under the dash when I had my dash out.
Back to top
View user's profile Send private message Classifieds Feedback
purplepeopleeater
Samba Member


Joined: July 23, 2005
Posts: 3117
Location: E. Washington
purplepeopleeater is offline

PostPosted: Wed Mar 20, 2013 8:11 am    Post subject: Reply with quote

those are a good replacement, I believe those are from the new beetle, I like.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rubbachicken
Samba Member


Joined: October 05, 2004
Posts: 3058
Location: socal
rubbachicken is offline

PostPosted: Wed Mar 20, 2013 9:21 am    Post subject: Reply with quote

purplepeopleeater wrote:
those are a good replacement, I believe those are from the new beetle, I like.


yes, i have the ones in the first pic, they came from a new bug
i just wired another set into a syncro, it's easy to feed the wires across the roof lining if you undo the screws by the pop top hatch, job took no more than 30 minutes.
_________________
lucy our westy

lucy's BIG adventure

meet 'burni'


markswagen {mobile mechanic} san diego area all early VW's cared for.

619 201 0310 or 617 935 4182
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2098
Location: PA
Zero419 is offline

PostPosted: Wed Mar 20, 2013 9:45 am    Post subject: Reply with quote

could a fish tape get through?

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncromike
Samba Member


Joined: November 14, 2011
Posts: 655
Location: Boise, ID
syncromike is offline

PostPosted: Wed Mar 20, 2013 10:30 am    Post subject: Reply with quote

Zero419 wrote:
could a fish tape get through?


I used a flexible fish tape like this: http://www.grainger.com/Grainger/GREENLEE-Fish-Tap...20172638:s It's basically speedometer cable out of the sheath but mine's only 20ft long or so. It was very easy to go down the pillar and come out behind the glove box, only took a minute. Replacing the wire on the driver side was an entirely different experience though. Using speedometer cable seems to work way better than the normal steel fish tape, I just bend a slight kink at the end and twirl the cable like a plumbing snake to get around all the bends and into the small holes. I'd be worried that running wiring across the headliner to the other dome light would eventually be visible and sag the headliner.
_________________
_____________________
'91 Syncro w/ Country Homes PopTop
Back to top
View user's profile Send private message Classifieds Feedback
