 Posted: Sun Apr 28, 2013 7:47 pm Post subject: Fixed steering coupler now no horn **Fixed horn** |
 |
|
{1975 bay window}
So I installed a new steering coupler replaced the ground wire at the coupler cleaned all the contacts point for that wire. Put it all back together and no horn. Checked the horn button everything looks good cleaned it just because.
I have 12.0 volts to the positive side of the horn with the ignition on and no volts when ignition is off.
It is possible the horn went out before the steering coupler I haven’t used it in months. Could the horn have just died?
thanks
_________________
1975 Bay Window {Big Red}
Last edited by 75bus4/me on Fri May 31, 2013 9:07 pm; edited 1 time in total |
|
| Back to top |
|
 |
VDubTech
Samba Member
Joined: December 29, 2002
Posts: 9156
Location: Syracuse, NY
|
| Posted: Sun Apr 28, 2013 7:59 pm Post subject: |
|
|
Hook up power to one side, ground to the other. Listen for sound. If no sound, the horn is bad.
_________________
First Trip in the RustyBus:
http://www.thesamba.com/vw/forum/viewtopic.php?t=279077&highlight=
| borninabus wrote: |
| a measurement of your rod would be extremely useful. |
| notchboy wrote: |
| my dad wasnt a belittling cock when he tought me how to wrench on cars. |
| EverettB wrote: |
One photo = good for reference.
10 photos = douchebaggery |
|
|
| Back to top |
|
|
germansupplyscott
Samba Member
Joined: May 22, 2004
Posts: 7286
Location: toronto
|
| Posted: Sun Apr 28, 2013 8:18 pm Post subject: |
|
|
make the ground wire is properly installed.
_________________
SL |
|
| Back to top |
|
|
75bus4/me
Samba Member
Joined: November 10, 2011
Posts: 414
Location: Arizona
|
| Posted: Sun Apr 28, 2013 9:05 pm Post subject: |
|
|
With ignition on there is 12 volts I hooked up a ground wire to frame and no horn, so dead horn?
_________________
1975 Bay Window {Big Red} |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52724
|
| Posted: Sun Apr 28, 2013 9:24 pm Post subject: |
|
|
| 75bus4/me wrote: |
| With ignition on there is 12 volts I hooked up a ground wire to frame and no horn, so dead horn? |
Do you still have 12v to the one terminal when you have the other one grounded? If so, yes it is probably a bad horn. You should at least clean both connections on the horn well before totally giving up on it. |
|
| Back to top |
|
|
old DKP driver
Samba Member
Joined: March 30, 2005
Posts: 4143
Location: Los Gatos,Ca.
|
|
| Back to top |
|
|
mexnotch
Samba Member
Joined: November 08, 2007
Posts: 51
Location: Mexico
|
| Posted: Wed May 08, 2013 3:12 pm Post subject: |
|
|
Not to highjack your thread but:
I have a similar problem with my horn, when I got my bus the horn was operated via a push button on the dash. I have discovered that the problem is that the ground wire is not connected to the steering coupler and if I touch one of the bolts with the wire, the horn button on the wheel works well, BUT I have no idea how to connect the ground wire to the steering coupler, if I just attack it to one of the bolts it will get torn appart when turning. Could I be missing a part down by the coupler?
Can someone provide a picture of how the ground is attached to the coupler please?
Thanks
_________________
Henry
1974 Mexican Bus
1965 Notch 1500S
1972 Type 181 Safari |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42955
Location: at the beach in Northern Wokistan
|
| Posted: Wed May 08, 2013 3:15 pm Post subject: |
|
|
| mexnotch wrote: |
Not to highjack your thread but:
I have a similar problem with my horn, when I got my bus the horn was operated via a push button on the dash. I have discovered that the problem is that the ground wire is not connected to the steering coupler and if I touch one of the bolts with the wire, the horn button on the wheel works well, BUT I have no idea how to connect the ground wire to the steering coupler, if I just attack it to one of the bolts it will get torn appart when turning. Could I be missing a part down by the coupler?
Can someone provide a picture of how the ground is attached to the coupler please?
Thanks |
Enrique - put your year bus in your signature line or you avatar. The answer is year specific.
_________________
 Canned Water - the new California approved parts cleaner (except in a drought in which case rub it with sand).
George Carlin:
"Most people don't know what they're doing, and a lot of them are really good at it."
Skills@EuroCarsPlus:
"never time to do it right but always time to do it twice" |
|
| Back to top |
|
|
tootype2crazy
Samba Member
Joined: October 08, 2007
Posts: 1276
Location: St. Louis Missouri
|
| Posted: Wed May 08, 2013 3:47 pm Post subject: |
|
|
A surefire way to test the horn is to take it off (you don't have to) and apply 12 volts to it directly from the battery. If it yelps your problems are elsewhere. That's where I always start before wasting time going over everything else.
_________________
air-cooled or nothing for me
1978 Sunroof Deluxe Bus (daily driver)
1978 Transporter (mom's, making into a camper)
1970 Single Cab 2.1 turbo/EFI 6 Rib, 78 front beam, vanagon backing plates on rear (project)
2001 GTI VR6 (wife's) |
|
| Back to top |
|
|
mexnotch
Samba Member
Joined: November 08, 2007
Posts: 51
Location: Mexico
|
| Posted: Wed May 08, 2013 4:03 pm Post subject: |
|
|
| SGKent wrote: |
Enrique - put your year bus in your signature line or you avatar. The answer is year specific. |
Good point, I already did (or at least I think I did)
Anyway it's a 74
Thanks
_________________
Henry
1974 Mexican Bus
1965 Notch 1500S
1972 Type 181 Safari |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53210
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed May 08, 2013 4:57 pm Post subject: |
|
|
| mexnotch wrote: |
| SGKent wrote: |
Enrique - put your year bus in your signature line or you avatar. The answer is year specific. |
Good point, I already did (or at least I think I did)
Anyway it's a 74
Thanks |
Excellent (sortof), a 74 can have 2 different horn systems, is your wiper and signal switch in a separate metallic housing from the ignition switch?, or is everything covered by one singular plastic shroud?
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
mexnotch
Samba Member
Joined: November 08, 2007
Posts: 51
Location: Mexico
|
| Posted: Wed May 08, 2013 5:41 pm Post subject: |
|
|
| busdaddy wrote: |
Excellent (sortof), a 74 can have 2 different horn systems, is your wiper and signal switch in a separate metallic housing from the ignition switch?, or is everything covered by one singular plastic shroud? |

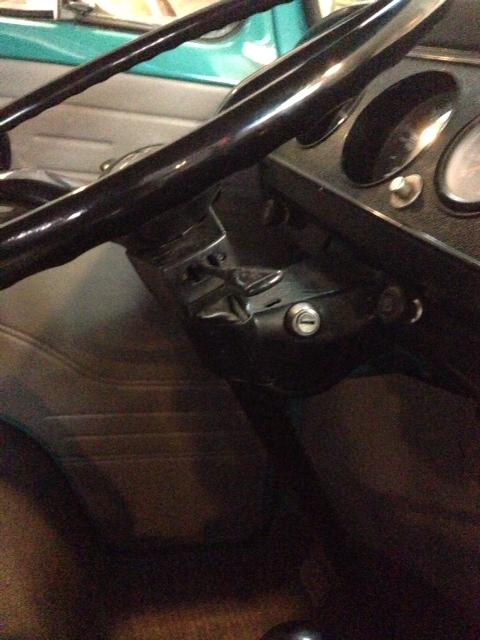

Separate housing. Here's a picture. (BTW, you can see the push button for the current horn  )
_________________
Henry
1974 Mexican Bus
1965 Notch 1500S
1972 Type 181 Safari |
|
