 Posted: Sun May 19, 2013 9:03 am Post subject: Brake Caliper ID T2 |
 |
|
To link to this thread
| Code: |
| [url=http://www.thesamba.com/vw/forum/viewtopic.php?t=556225&start=0&postdays=0&postorder=asc&highlight=]Brake Caliper ID T2[/url] |
With the information available at the time of writing. What I can surmise is as follows.
1971 started out with a small caliper, 12mm mounting holes and 1 bleeder valve, that when mounted bleeder must be on top.
Sometime in 71 they retained the small caliper, 12mm mounting holes but installed two bleeder valves.
1972. 12mm mounting holes with 2 bleeders. Small calipers.
1973-79 larger calipers, 14mm mounting holes and 2 bleeders.
Two manufacturers were available.
ATE 1973-75
GIRLING 1976-79
Note: check your calipers before ordering parts because both will fit 1973-79.
Brake pads are the same for both the ATE and Girling.
Note that these parts are different.
#8 Retaining pin note: girling 8a retaining spring (hairpin), ate uses an expanding collar to hold the Retaining pin in place.
#6 Retainer
#7 Spreader spring
#20-21
It has been reported that VW was known to use up the parts from the previous year. Model year changes occurred in Aug. So if you have a build date close to Aug. check to see if you have the earlier parts.
VdubEngineering. Allows the fitment of more common and economical 74-79 disks/hubs/calipers on 71-72 spindles.
How to identify GIRLING and ATE calipers.
Refer to the parts diagram above. ATE #8, Girling #08 and #8A
#8 ATE Brake pad Retaining pin 73-79 prt 211 615 261 A
Note the little round split compression ferrule on the end. This is what holds the pin in the caliper.
ATE Note the brake pad retaining pin uses a compression furrel to retain the retaining pin.
Girling (Note the Hairpin cotter pin) that retains the Brake pad retaining pin. This identifies it as a Girling caliper.
This One's a Girling later Bay. Note: 14mm mounting holes.
Notice the 14mm mounting holes.
This piston retaining plate is from a Girling caliper. Arrow points in the direction the wheel travels.

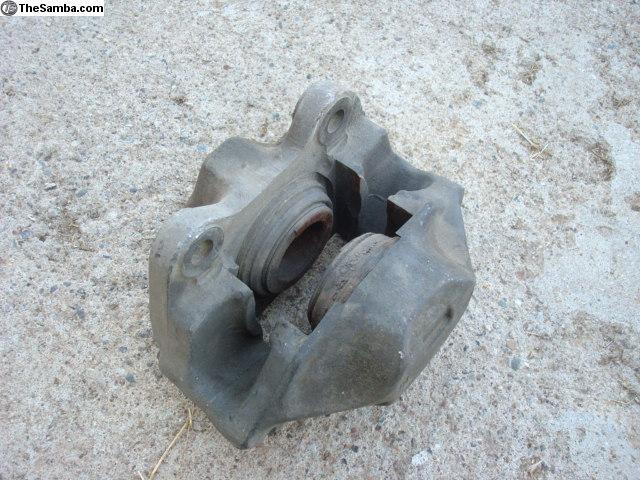

71 Caliper
71 ATE notice the 12mm mounting holes.
Note wear the brake line attaches looks like a cows head.
71 bay window

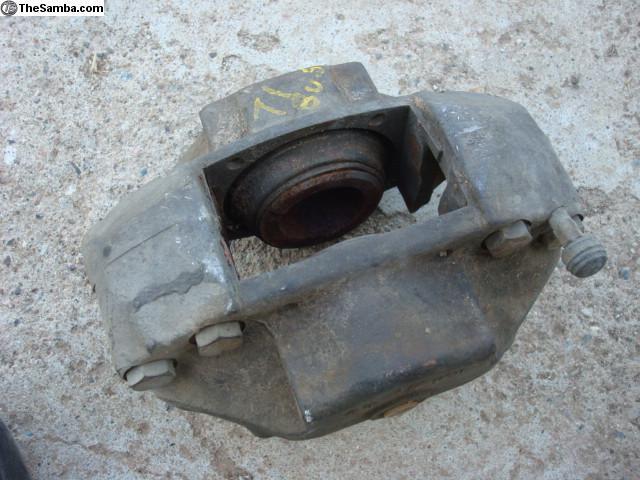

71 only Ate Bus calipers
[/quote]
72 Bus calipers. Early 71 had smaller 12mm mounting holes and the single bleeder. In mid -'71 they installed 2 bleeders.
Note: 14mm mounting holes and two bleeder valves.
Last edited by Tcash on Fri Aug 25, 2017 6:15 pm; edited 19 times in total |
|
| Back to top |
|
 |
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Sun May 19, 2013 9:04 am Post subject: |
|
|
Moved Down
Last edited by Tcash on Thu May 23, 2013 1:46 pm; edited 1 time in total |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|

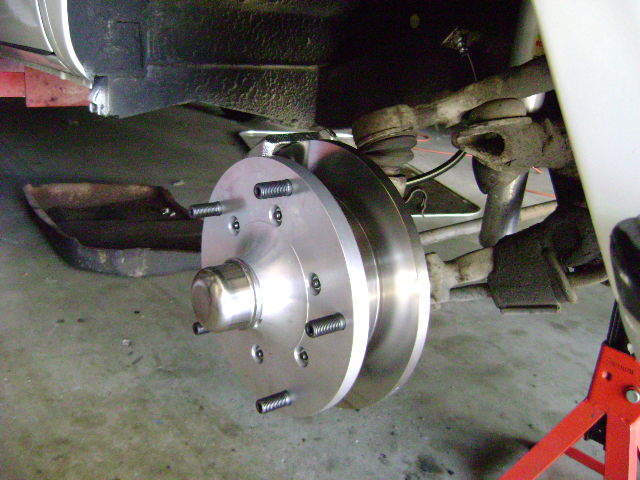

| Posted: Sun May 19, 2013 9:05 am Post subject: CSP Disc Brakes |
|
|
| Tcash wrote: |
Posted in 2008
| Rwheeler wrote: |
Installed a set of CSP Disc brakes from Wolfsburg West. Started yesterday and finished this afternoon. Vey high quality kit from Germany. And expensive at $1,400 bucks!
Go to the galley under baywindow campers and I'll have some pics there in a few minutes. |
|
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Sat Oct 26, 2013 4:00 pm Post subject: 73 Calipers |
|
|

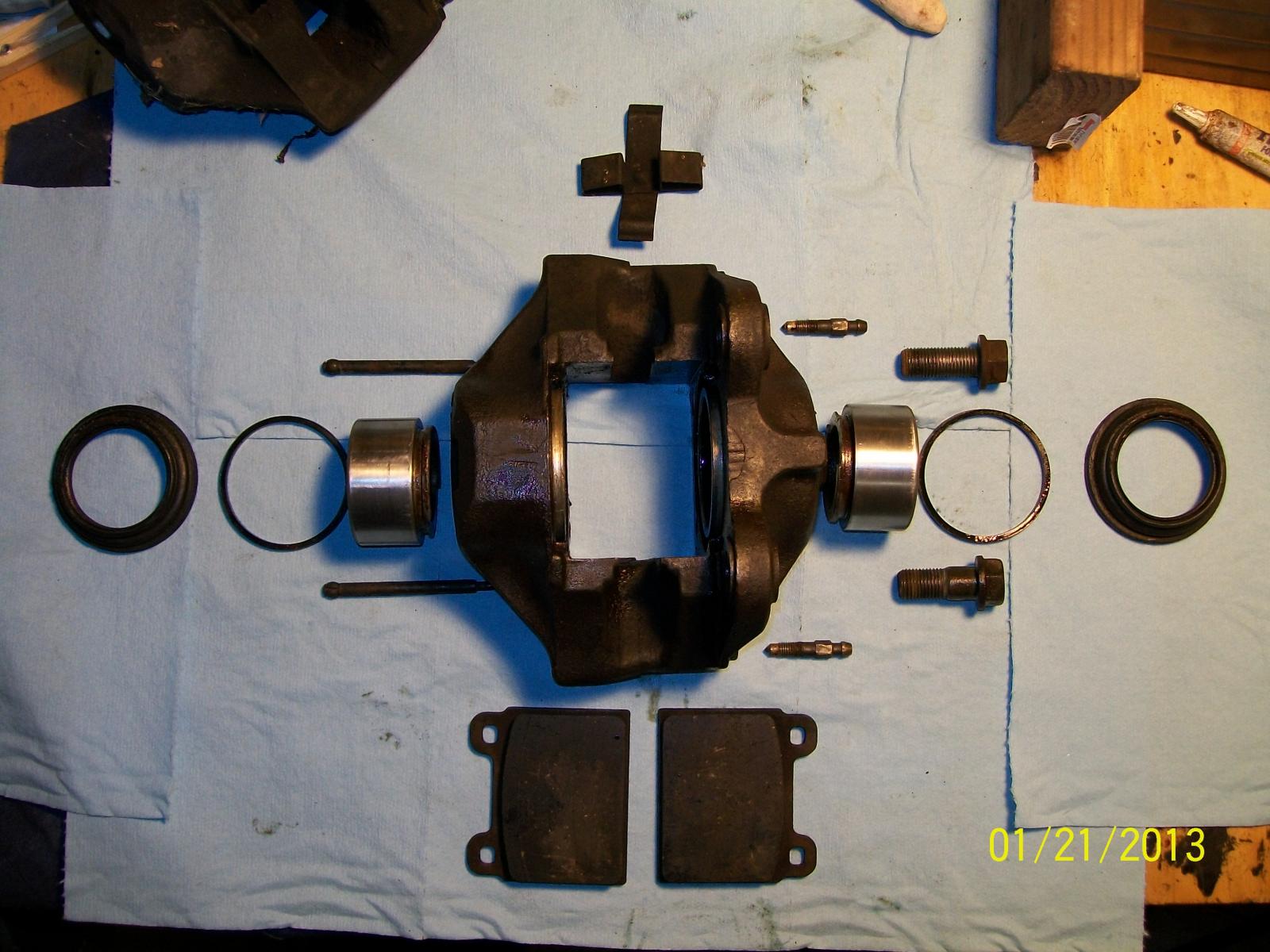

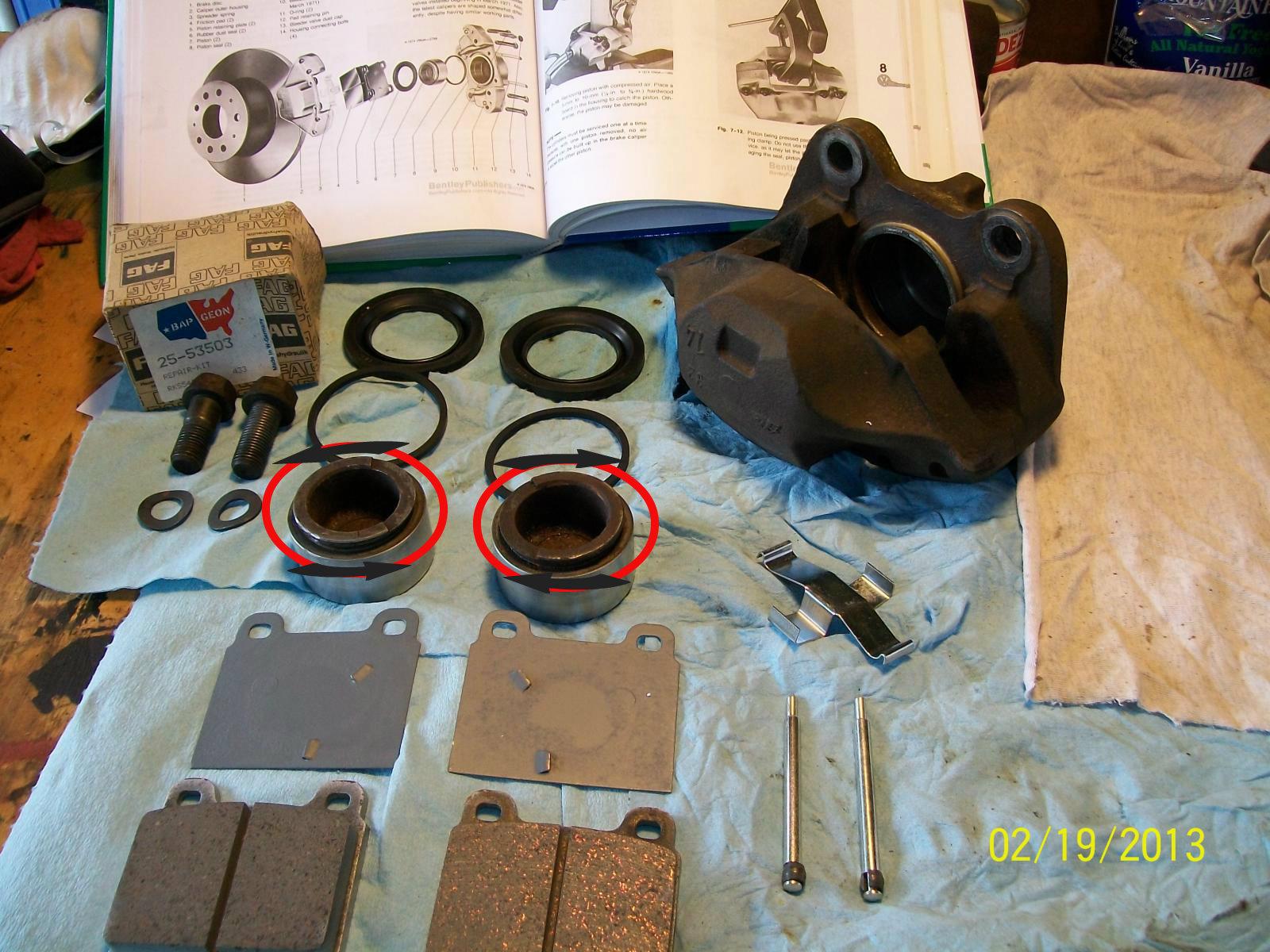

73 Caliper exploded view. Note wave washers for the mounting bolts are not present. Also one bolt is a shoulder bolt and the other is a threaded bolt. I think this is not by design but rather one of the bolts was from another vehicle?

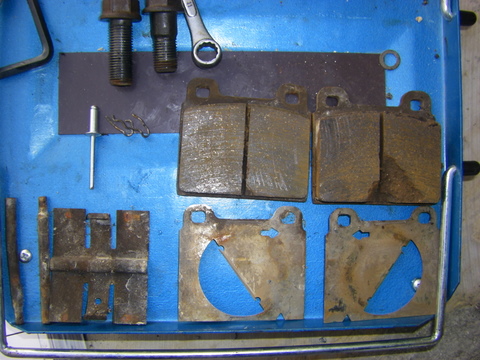

73 Piston Locating plates

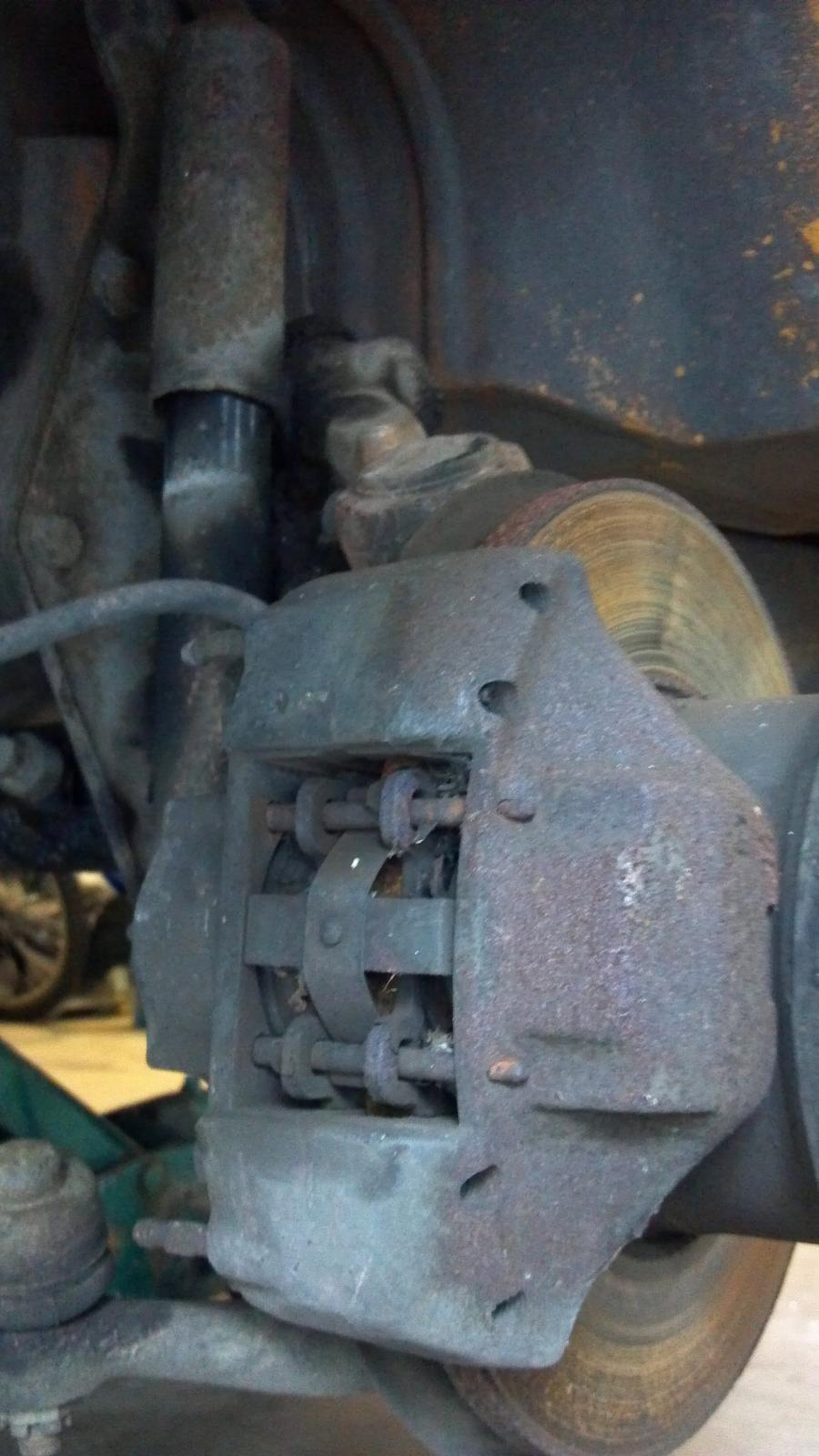

73, note wave washers present, retaining pins have compression retainers to locate the pins.
73 Piston Locating plate on piston illustration.
73 Piston Locating plate on caliper illustration.
|
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4087
Location: Seattle, WA
|
| Posted: Sat Oct 26, 2013 4:23 pm Post subject: |
|
|
Nice clear photos! W/regard to shoulder bolts, I believe they were
used on all the bus/vanagon calipers, from the very beginning. I've also seen (in a shot of some VW service literature posted right here in this forum) that they appeared at both the top and bottom position at various points in time. The latest Brazilian ATE calipers for late bays have but a single bleeder screw.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
Amskeptic
Samba Member
Joined: October 18, 2002
Posts: 8586
Location: All Across The Country
|
| Posted: Tue Jan 28, 2014 10:42 am Post subject: Re: 14 mm caliper mounting bolts |
|
|
| Tcash wrote: |
Thanks kreemoweet, forgot about this.
12mm shoulder bolts go on top. |
I just posted elsewhere on this that the early disk brake buses had smaller calipers with 10mm thick pads and 12 mm bolts with the shouldered ones on the bottom. They torque to 94 ft/lbs.

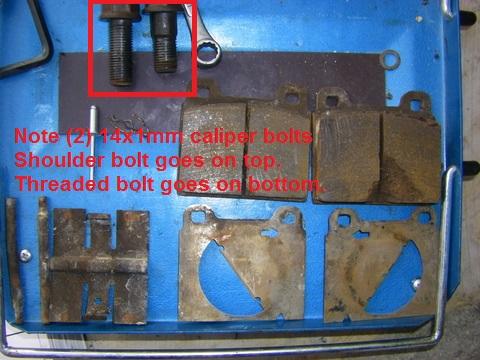

The '73 models on up were supplied with larger calipers that take 14mm thick pads, 14mm bolts with the shouldered ones now installed on the top. They torque to 103 ft/lbs.
The shims with cut-out tabs are used to orient the cut-outs in the piston circle to the bottom (the leading edge of the pads) to reduce squealing.
Colin
_________________
www.itinerant-air-cooled.com
www.facebook.com/groups/324780910972038/ |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10797
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Tue Jan 28, 2014 12:14 pm Post subject: |
|
|
perhaps someone with the yellow late bay service book can find the pics/descriptions and post them? a lot of info in earlier editions of the Bentley manual is not applicable to later model busses.
otherwise, from the 1979 edition Bentley manual. read the text, look at the pic. #15 is the LOCATING BOLT.
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Fri Jun 06, 2014 9:52 am Post subject: Shoulder bolts and Caliper piston retaining plates |
|
|
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52731
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Jun 28, 2015 12:04 pm Post subject: |
|
|
Has anyone done a side by side comparison of the later ATE seals VS: the early ones?, they are all 54 MM diameter and aside from the width of the casting and the mounting holes they look the same inside, what am I missing? Why 2 different kits offered?
Edit: Nevermind, I just went a blew a late one apart, aside from the piston being 4mm longer there's no difference in the hydraulic or dust seals.
Rockauto here I come, Daddy needs some new dust seals!
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42403
Location: at the beach
|
| Posted: Sun Jun 28, 2015 1:40 pm Post subject: |
|
|
my 1971 had ATE style calipers with just pins and no clips. The hardware setup was the same as my 1977 but a smaller caliper. The plates that sat between the piston and pad had the locating tabs.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin |
|
| Back to top |
|
|
Ben Middleton
Samba Member
Joined: April 11, 2016
Posts: 225
Location: England, UK
|
| Posted: Tue Apr 14, 2020 7:26 am Post subject: Re: Brake Caliper ID T2 |
|
|
The pics have unfortunately gone missing from this article.
I have a 1972 model year T2 that was built in August 1971. The front right caliper has two bleed nipples and the front left caliper has one. They both have 14mm bolts.
They are both ATE. The front left is ATE 32 and the front right is ATE 10 3.
Could anyone tell me whether my brake calipers are the 72-79 ones, or are they the earlier models?
Thanks!
EDIT- They are 12mm mounting holes. I guess I have the earlier one  |
|
| Back to top |
|
|
ImAddicted
Samba Member
Joined: April 24, 2012
Posts: 1199
Location: Unorganized Territory, Maine
|
| Posted: Tue Apr 14, 2020 7:36 am Post subject: Re: Brake Caliper ID T2 |
|
|
Reload the page? None of the pics are missing?
_________________
1979 Transporter (sold)
KC1MUR
| strfish7 wrote: |
| Original condition, which means something different on this forum than anywhere else! |
|
|
| Back to top |
|
|
Ben Middleton
Samba Member
Joined: April 11, 2016
Posts: 225
Location: England, UK
|
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4087
Location: Seattle, WA
|
| Posted: Tue Apr 14, 2020 8:50 am Post subject: Re: Brake Caliper ID T2 |
|
|
If you have 14 mm bolts, then you have the late 73-79 calipers. The early 71-72 knuckle had 12 mm threads, and
the 14 mm bolts would not fit thru the 71-72 caliper holes.
You really should not rely on vendor descriptions, as many do not seem to grasp the concept of "model years", going
by date of manufacture or something instead.
As noted in a post earlier in this thread, the seals are identical
for all years of bus ATE calipers. The seals are only what most "rebuild" kits contain. I see that one kit contains new
spring washers for the bolts, so that one would be specific to early or late.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Ben Middleton
Samba Member
Joined: April 11, 2016
Posts: 225
Location: England, UK
|
| Posted: Thu Apr 16, 2020 3:08 pm Post subject: Re: Brake Caliper ID T2 |
|
|
| I bought a the 72-79 kit, although my van was built in August 1971. The outer seals don’t have a metal ring like the originals, is this the same for most kits? |
|
| Back to top |
|
|
germansupplyscott
Samba Member
Joined: May 22, 2004
Posts: 7245
Location: toronto
|
| Posted: Thu Apr 16, 2020 5:57 pm Post subject: Re: Brake Caliper ID T2 |
|
|
Typically only the Girling calipers (which are only used on very late Bay) have the circlip ring that secures the dust seal to the caliper. If you have a '71 with ATE calipers and the dust seals have a ring, that probably means the calipers were repaired at some point, with a non-OEM kit. The Girling dust seals with the circlip tend to fit looser on the caliper, hence the need for the clip. If the dust seals in your new kits fit the caliper snugly - and are not sloppy or wanting to fall off - they are fine to use.
SL |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17827
Location: sticksville, ct.
|
| Posted: Thu Apr 16, 2020 9:40 pm Post subject: Re: Brake Caliper ID T2 |
|
|
holy fucking shit, is that the ghost of german supply posting?
_________________
| gprudenciop wrote: |
my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese....... |
| Jake Raby wrote: |
| Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public. |
| Brian wrote: |
| Also the fact that people are agreeing with Skills, it's a turn of events for samba history |
|
|
| Back to top |
|
|
Ben Middleton
Samba Member
Joined: April 11, 2016
Posts: 225
Location: England, UK
|
| Posted: Fri Apr 17, 2020 6:53 am Post subject: Re: Brake Caliper ID T2 |
|
|

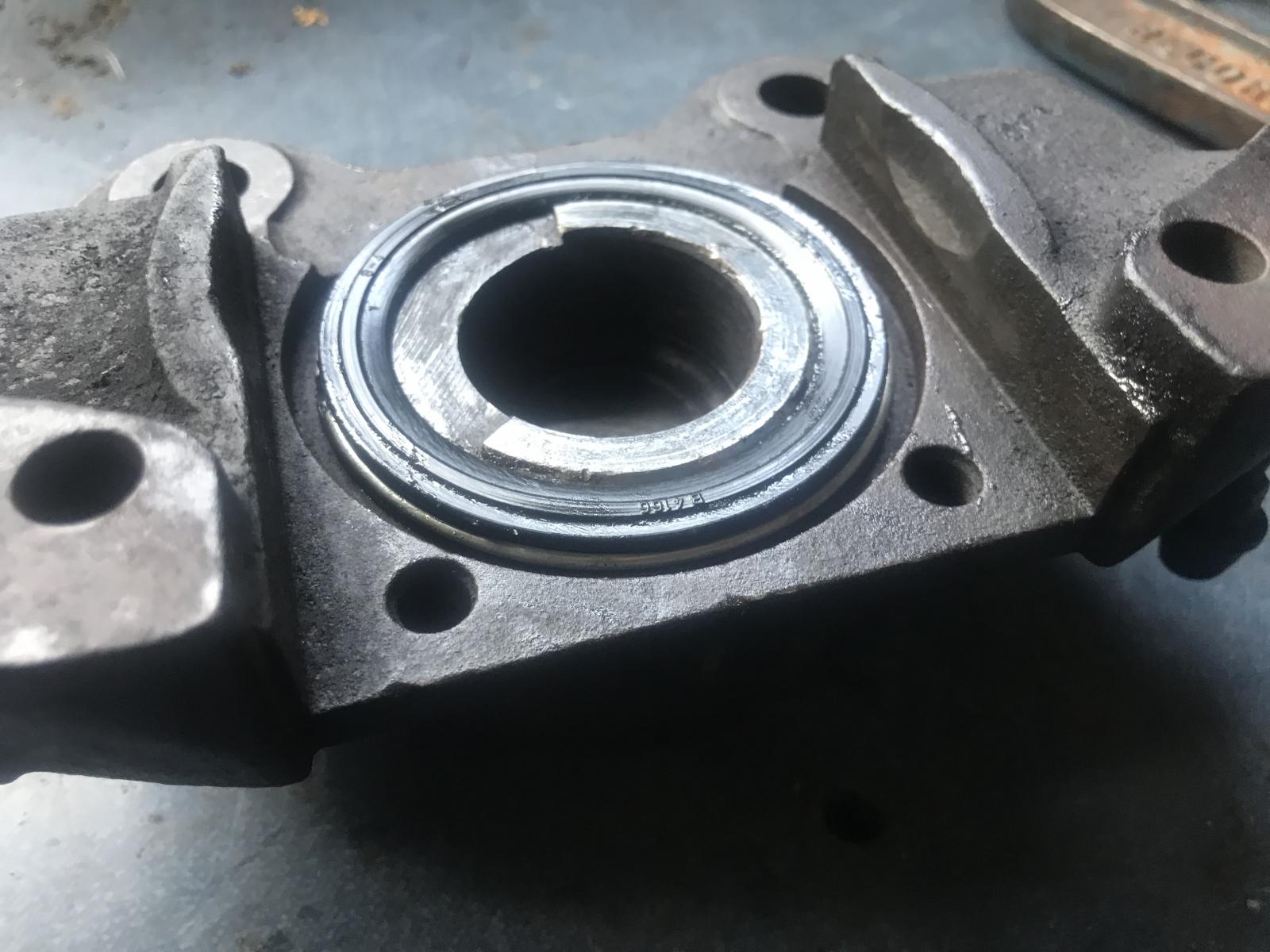

Well that’s interesting- I assumed they were original seals. Very glad I replaced them now. Here is a photo of the old seal and the new:
|
|
| Back to top |
|
|
|
