 Posted: Sun Jun 28, 2020 7:51 pm Post subject: Finally got one! New Manx clone owner! Lotsa questions |
 |
|

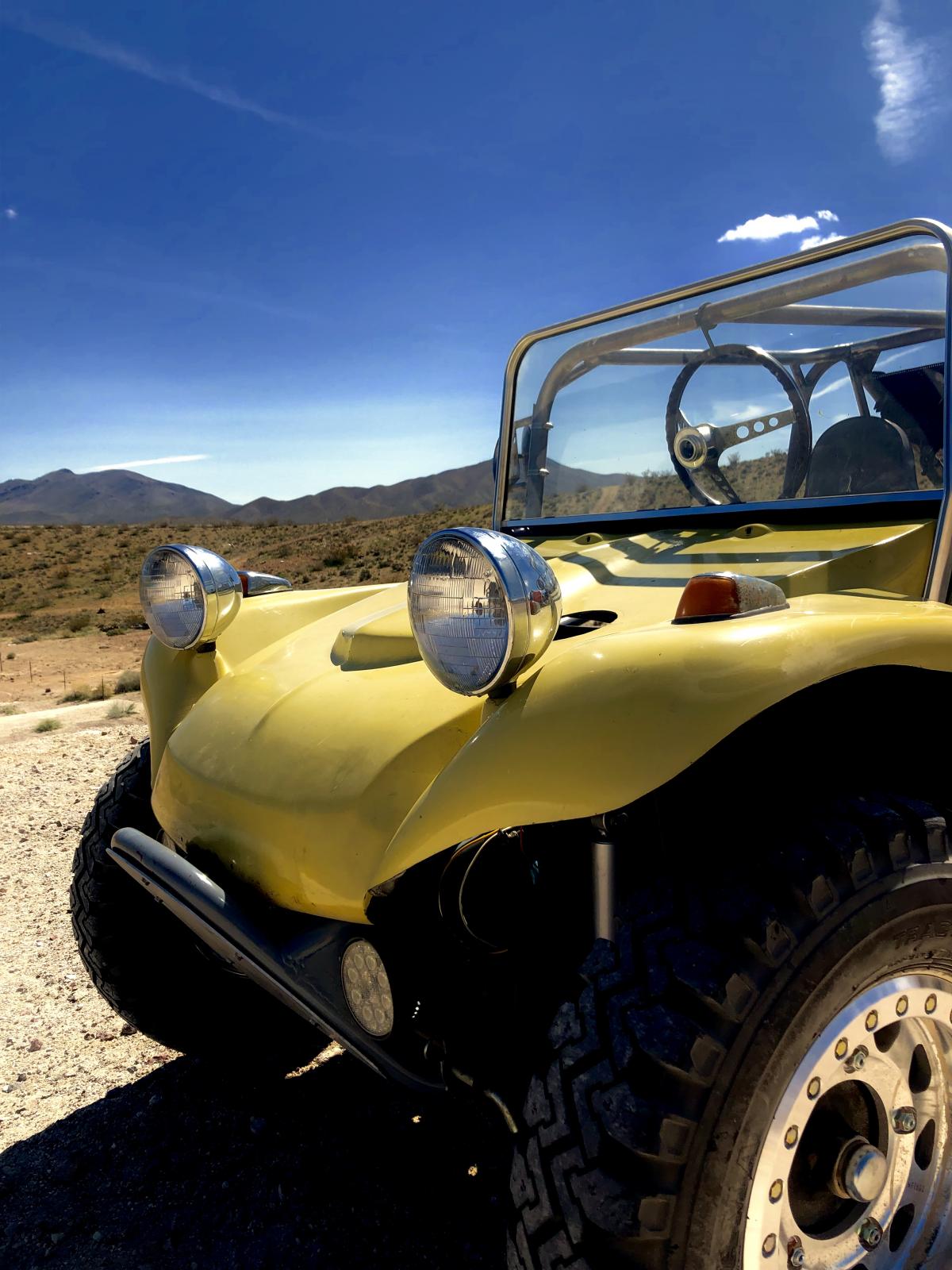

I've wanted one since I was a kid. Finally got one for my 52nd birthday!
It's a 59 pan and a 61-65 motor. I've been working on trying to get it to stop chattering when taking off in 1st, and popping out of 2nd gear. Replaced the coupler and added a non-existent bushing that pushed through the hole that holds it in place. I need a 2nd person to help with that. Transmission mounts seem okay, so I'm thinking it's the bushing.

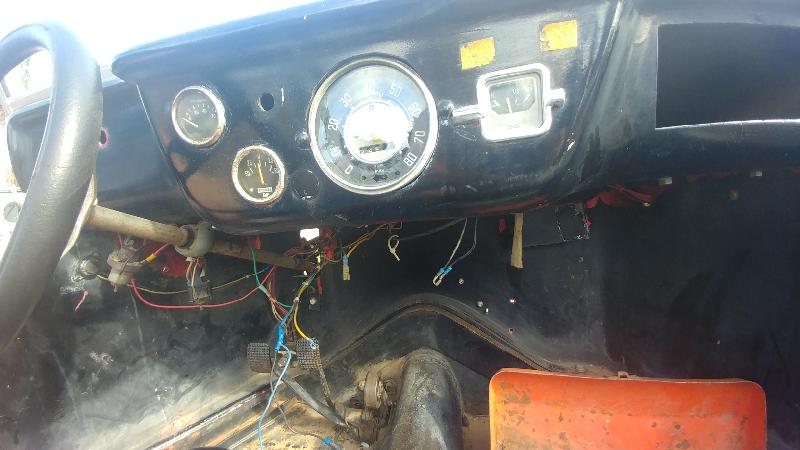

When I got it none of the lights or gauges worked. I've got the 4 lights up front working, the taillights and horn, but that's it. I downloaded a wiring diagram, but only some wire colors match up. Anyone able to give me an idea based on the pictures? Any help would be greatly appreciated!
_________________
1971 Westy (The Mean Tangerine)
1969 Lambretta GP 200
Lambretta Race Bike #14 RIP
Find yourself! |
|
| Back to top |
|
 |
Manx102
Samba Member
Joined: June 07, 2010
Posts: 484
Location: California
|
| Posted: Sun Jun 28, 2020 7:57 pm Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
Congratulations mackmix looks like a nice one to start with!
_________________
"The simplest of outdoor adventures - the most treasured memories." - Bruce Meyers
54 years of "outdoor adventures" and "treasured memories" with our Manx in my gallery. |
|
| Back to top |
|
|
jspbtown
Samba Member
Joined: January 27, 2004
Posts: 5253
|
| Posted: Mon Jun 29, 2020 5:31 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
For the chattering have you checked your bowden tube curve?
As far as the wiring that would be a remove and replace if I owned that buggy. |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 20882
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Mon Jun 29, 2020 5:40 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
Have to agree with JPS if wiring is badly butchered, sometimes it easier to just start over unless you really like challenges...
Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Last edited by Dale M. on Thu Jul 02, 2020 6:14 am; edited 1 time in total |
|
| Back to top |
|
|
oprn
Samba Member
Joined: November 13, 2016
Posts: 15111
Location: Western Canada
|
| Posted: Mon Jun 29, 2020 6:46 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
Awesome! I too had wanted one since childhood and finally got it 3 years ago. Yes that is your typical Buggy rat's nest! Nothing time and patience won't sort out. I have mostly sorted mine but a new one might have been quicker.
I love that the little 1200 is still running! Sweet! |
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
| Posted: Mon Jun 29, 2020 8:47 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
Thanks guys! I'm super stoked on it! I feel like a 10 year old kid at Disneyland on the autopia ride when driving it. As far as the bowden curve, I did read something about that. I will have to look into it further, I didn't fully understand what I read. I need to get a Bentley! I'll post a picture here.
I know the pictures of the wiring look bad, but I don't think it's as bad as it looks. There's only a few wires disconnected, and the others seem to be well secured. I suspect it was done pretty well, then someone got ahold of it that didn't know what they were doing. Not that I do, but to rewire the whole thing is more than I can atack right now. Thanks again for the comments, this by far is the most fun car I've ever had!
_________________
1971 Westy (The Mean Tangerine)
1969 Lambretta GP 200
Lambretta Race Bike #14 RIP
Find yourself! |
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
MrGoodtunes
Samba Member
Joined: May 14, 2012
Posts: 1052
Location: South Florida
|
| Posted: Mon Jun 29, 2020 9:16 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
| mackmix wrote: |
| Can you tell anything about the Bowen curve from this ... |
Yes. Looks awfully close to straight, which makes it most likely the cause of your clutch chatter. Also, that clutch cable end is a ticking time bomb. Here's a good thread about that:
https://www.thesamba.com/vw/forum/viewtopic.php?t=662237 |
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
jspbtown
Samba Member
Joined: January 27, 2004
Posts: 5253
|
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
Mike E.
Samba Member
Joined: April 22, 2019
Posts: 110
Location: Torrance, California
|
| Posted: Tue Jun 30, 2020 8:32 pm Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
| mackmix wrote: |
Also, pretty sure it's a "dune runner" with the modified t-bird style hood. Would you agree?
|
Yep, that's it. I have the same car.
|
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
|
| Back to top |
|
|
andygere
Samba Member
Joined: January 31, 2014
Posts: 600
Location: Central Coast, CA
|
| Posted: Wed Jul 01, 2020 5:39 pm Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
The shift rod bushing may not be your problem, but I'm willing to bet it needs to be replaced. Shifting is so much nice once you do. It's an easy job for one if you make a simple tool out of PVC pipe. I have a few pictures in this thread, just scroll down a bit to see them.
https://www.thesamba.com/vw/forum/viewtopic.php?t=156749&start=3900 |
|
| Back to top |
|
|
Mike E.
Samba Member
Joined: April 22, 2019
Posts: 110
Location: Torrance, California
|
| Posted: Wed Jul 01, 2020 5:52 pm Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
| I learned that the shifter adjustment is as critical as both the front bushing and the rear coupler. I replaced the bushing, replaced the coupler with a quality part and then watched a video on how to properly adjust the shifter. Prior to that, I just thought you throw the two bolts in the holes and go for it. Shifts much better now. One more area to look is the actual shift rod (if you can't get it to shift properly with the other stuff) remember that shift rod had to be cut down 14" like the rest of the chassis. If the fabricator didn't get it lined up it can make those problems worse. Looks like a fun project. Enjoy |
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
| Posted: Wed Jul 01, 2020 10:40 pm Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
Nice custom tool Andy! I'm going to make one!
Yes Mike, I was wondering about that too. I took the shift rod into the local vw shop (vee parts) and showed it to the guy that works there. He's got a manx and said it looked okay. I'm gonna add 3 washers to the bowden tube and see if that helps.
_________________
1971 Westy (The Mean Tangerine)
1969 Lambretta GP 200
Lambretta Race Bike #14 RIP
Find yourself! |
|
| Back to top |
|
|
mackmix
Samba Member
Joined: June 10, 2008
Posts: 537
Location: San Diego California (SO CAL)
|
| Posted: Fri Jul 03, 2020 11:42 am Post subject: Re: Finally got one! New Manx clone owner! Lotsa questions |
|
|
This can't be right. Do you have to remove the pedal cluster every time you loosen the clutch cable? I mean it didn't feel like it came off the "pedal arm" where it's connected. But now it feels sloppy and there's a clicking noise. There's not much difference in the curve that I can tell. I've got not started it yet because the clutch really feels weird.

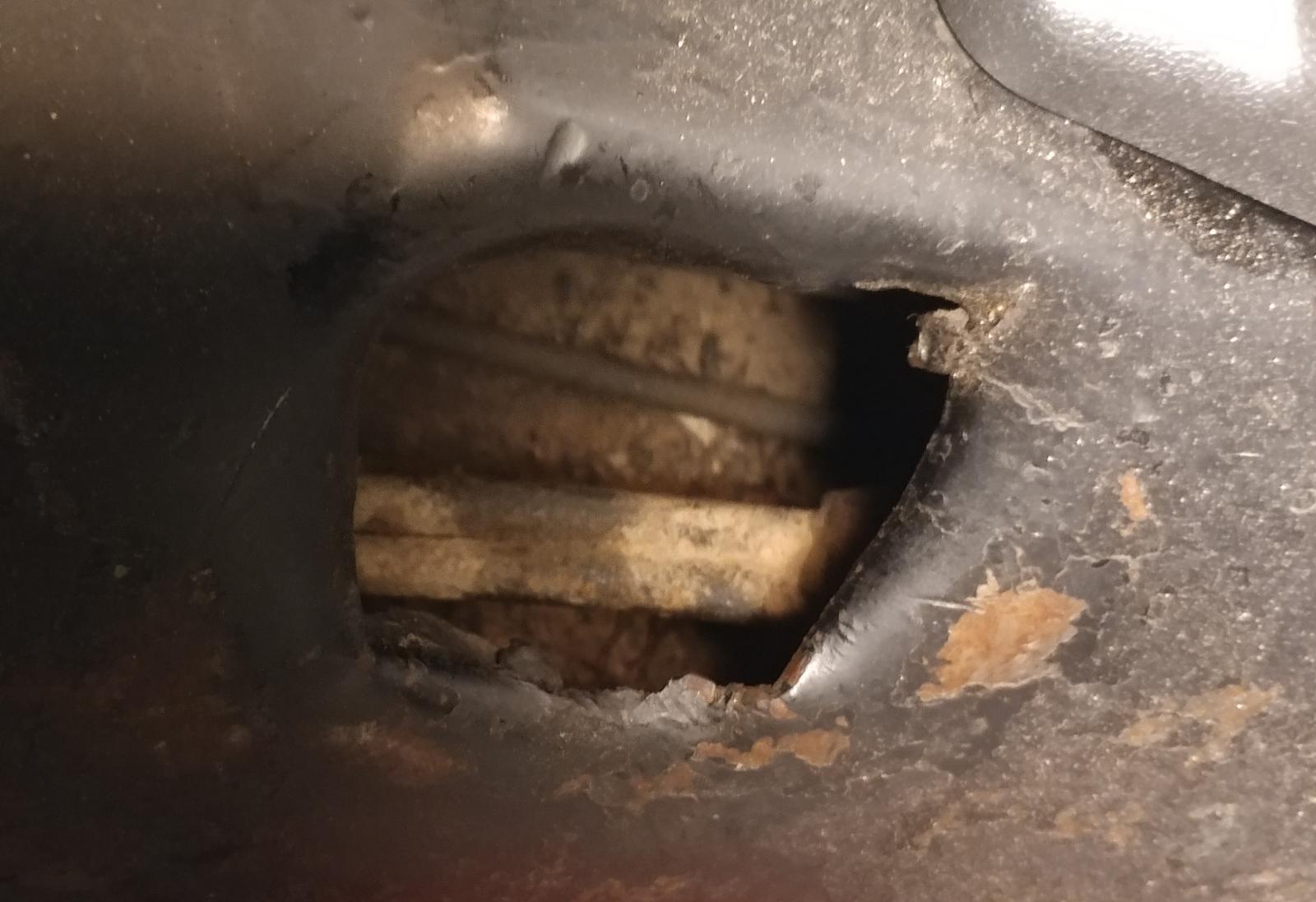

Another thing is that there's stuff going on inside the tunnel that seems strange to me, one of the POs cut a hole in the passengers side of the tunnel and may have cut something. It looks like 2 metal tubes struck together that are just hanging in there. Can anyone give some insight to what that is? Thanks in advance!
