 Posted: Sun Nov 24, 2013 8:01 pm Post subject: 15" rims instead of 16"?! |
 |
|

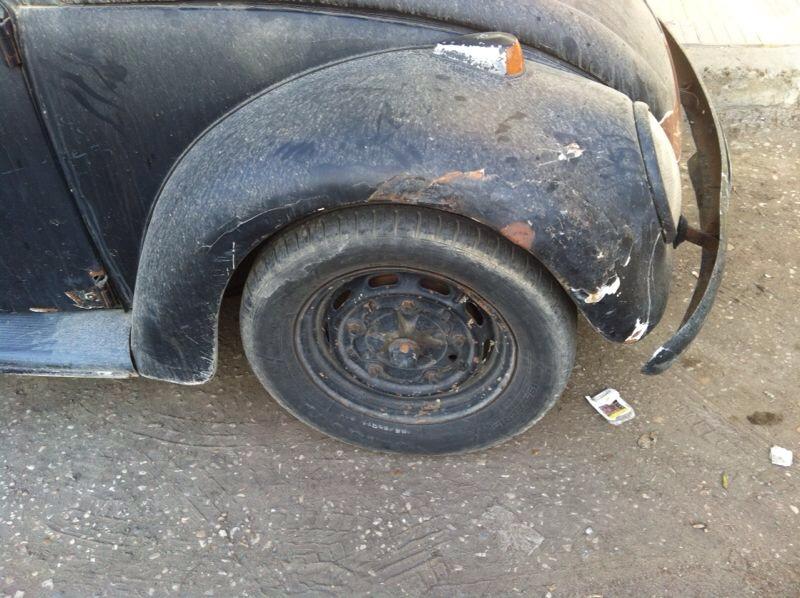

This split has some items not correct for its year (1950) including 15" rims from the later models instead of 16" ones?! I believe previous owner changed the front beam to a later 60s models! Any comments, analysis , advice since I am going to restore that one ! It s working fine like that though!
_________________
- Split De luxe 1950
- Oval Ragtop 1956
- Karmann Ghia 1966 Convertible
- Bug 1970 Convertible |
|
| Back to top |
|
 |
Grant Reiling
Samba Slow-Change Artist
Joined: November 28, 2003
Posts: 495
Location: behind the wheel
|
| Posted: Sun Nov 24, 2013 8:44 pm Post subject: Re: 15" rims instead of 16"?! |
|
|
| Ghia 1966 wrote: |
This split has some items not correct for its year (1950) including 15" rims from the later models instead of 16" ones?! I believe previous owner changed the front beam to a later 60s models! Any comments, analysis , advice since I am going to restore that one ! It s working fine like that though!
|
@ Ghia 1966, My analysis is it happened with the beam swap.
If your plan is fully returning to stock, add another spendy one to your list.
BUT, if your plan is to make it a nice driver, as you said " It s working fine like that though!"
why not roll it on the one it has while you search for a set of 16s plus the correct beam to hang them on?
(yeah, the slotted 15s detract, but may be overlooked while you score the many other things it needs/deserves?)
Your car, your budget, your call.
Best,
Grant
_________________
1952 Azure Blue 12G (LHD Deluxe 3-fold sunroof Sedan).
"What you really know is possible in your heart is possible.
We make it possible by our will.
What we imagine in our minds becomes our world. That’s just one of many things I have learned from water."
Misaru Emoto
The Hidden Messages in Water |
|
| Back to top |
|
|
VWLady
Crazy VW Lady
Joined: March 13, 2004
Posts: 3866
Location: Twin Cities, MN
|
| Posted: Sun Nov 24, 2013 9:29 pm Post subject: |
|
|
| Find the serial number on the beam and you can tell what year it is. Check the part that the rubber snubber fits on for the number. |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Sun Nov 24, 2013 9:32 pm Post subject: |
|
|
My split still looks bone stock but has a later beam and later brakes, later gearbox and also later engine. That didn't stop me from cruising all across Europe and to the major shows. on 15" ...
correct parts do show up occasionally, it's your decision if you want a bone stock or a car to just enjoy.
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
Ghia 1966
Samba Member
Joined: April 27, 2012
Posts: 542
Location: NY
|
| Posted: Sun Nov 24, 2013 9:34 pm Post subject: |
|
|
| eurodub wrote: |
My split still looks bone stock but has a later beam and later brakes, later gearbox and also later engine. That didn't stop me from cruising all across Europe and to the major shows. on 15" ...
correct parts do show up occasionally, it's your decision if you want a bone stock or a car to just enjoy. |
Absolutely agree with u! I m intending to try to save every $$$ I could as long as it s ok and not a major cosmetic default
_________________
- Split De luxe 1950
- Oval Ragtop 1956
- Karmann Ghia 1966 Convertible
- Bug 1970 Convertible |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10756
Location: Pearl River, NY
|
| Posted: Thu Nov 28, 2013 3:32 pm Post subject: |
|
|
For a low $ interim solution on your wheels, just find some 15" "smoothies" from the late 1950's thru 1965 Type 1, and paint them two-tone cream inner and black outer (spray cans are fine). Put on the chrome hubcaps too. Even though the two-tone wheel scheme came slightly later in the split era, and then only on deluxes, to most people it will look "period correct".
Smoothie 15" 5-bolts are usually very cheap here in the USA. 16" wheels are MUCH more expensive, and then you have to buy 16" tires as well. With the 15" smoothies painted like I suggested, you can swap the 15" tires on your current wheels on if they are still OK. |
|
| Back to top |
|
|
DDub
Samba Member
Joined: January 06, 2005
Posts: 320
Location: central pa.
|
| Posted: Thu Nov 28, 2013 5:19 pm Post subject: |
|
|
| Looks like '66 or '67 drums front and rear too. Are you sure the pan wasn't replaced? |
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7124
Location: Lawrenceville, Ga
|
| Posted: Thu Nov 28, 2013 6:05 pm Post subject: |
|
|
| DDub wrote: |
| Looks like '66 or '67 drums front and rear too. Are you sure the pan wasn't replaced? |
was thinking the same, easy enough to find out
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
Ghia 1966
Samba Member
Joined: April 27, 2012
Posts: 542
Location: NY
|
| Posted: Thu Nov 28, 2013 7:27 pm Post subject: |
|
|
| mandraks wrote: |
| DDub wrote: |
| Looks like '66 or '67 drums front and rear too. Are you sure the pan wasn't replaced? |
was thinking the same, easy enough to find out |
The beams were changed for later models from 60s
_________________
- Split De luxe 1950
- Oval Ragtop 1956
- Karmann Ghia 1966 Convertible
- Bug 1970 Convertible |
|
| Back to top |
|
|
usariemen
Samba Member
Joined: August 28, 2004
Posts: 1745
Location: Germany
|
| Posted: Fri Nov 29, 2013 6:08 am Post subject: |
|
|
| mandraks wrote: |
| DDub wrote: |
| Looks like '66 or '67 drums front and rear too. Are you sure the pan wasn't replaced? |
was thinking the same, easy enough to find out |
We saw the pan already.
And it´s split.
_________________
Master of my domain! |
|
