For you guys that already have solar on your roof.

How did you run your wires from the panel to the inside of your Van.

or in my case

Whats the best route to run wires from my Westy Poptop to the inside of the Van?

I'm trying not to make holes in the top flat part of my Camper Top.

I've seen where some guys have run them into the rear vents and then into the Van but would think that would have wind drag on the wires, and also help to funnel rain along the wire run.

I'm kind of leaning towards trying to route them into the Van from the rear area, hatch etc?

What did you do, and whats the best path into the Vans cavity?
.
Back to top
View user's profile Send private message Classifieds Feedback
joseph928
Samba Member


Joined: September 22, 2011
Posts: 2114
Location: flagstaff az.
joseph928 is offline

PostPosted: Mon Oct 07, 2013 10:10 am    Post subject: solar Reply with quote

Blue Bay Bus You can just see the wires in the upper left going in. Put in a small loop under the hatch to drain off any water that might get in. Then run the wires behind the closet and down the spice rack then down to the battery. And have my MPPT charge controller in the center of spice rack. With the circuit breakers next to it. And with a pop top we do it the same way. Very Happy
Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 syncro westy tin top sun roof , GW2.3, rear locker, decoupler, Gary Lee tire rack & winch mount, lift, south african grill, big brakes , rhein alloy ,15 BFG AT, Fiamma 10 foot awning ,140 watt rear 85 watt front solar , mppt, truckfridge, automatic fire extinguishing system, tencent oil cooler, And a RMW SS exhaust! - 1971 bug convertible 1776 engine- 2010 Subaru turbo - 1993 Toyota 4x4 truck - 1999 Harley 95 CI, big bore, Andrews cams . Also 80-84- vans. Stock 65 sunroof bug.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dubbified
Samba Member


Joined: March 03, 2010
Posts: 1406
Location: Redmond, WA
dubbified is offline

PostPosted: Mon Oct 07, 2013 10:55 am    Post subject: Reply with quote

I ran my wires down the louvers, no holes.

Right into the engine bay, driverside, zipped up to other wires, sheathed, and routed under the rear seat, into the same rubber booties the hoses for the antifreeze shared. (I deleted rear heater)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3990
Location: Maine
Timwhy is offline

PostPosted: Mon Oct 07, 2013 1:25 pm    Post subject: Reply with quote

I ran mine in thru the rear vent. Drilled two holes and put grommets in them, pulled the wire thru
and sealed them with Black RTV

Image may have been reduced in size. Click image to view fullscreen.


Looped the wires so the water would drip off them.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Mon Oct 07, 2013 1:32 pm    Post subject: Reply with quote

more info and pics here

http://www.thesamba.com/vw/forum/viewtopic.php?t=448941&highlight=wires
_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncronoid
Samba Member


Joined: January 21, 2012
Posts: 1110
Location: Stanford, CA and Bend, OR
Syncronoid is offline

PostPosted: Mon Oct 07, 2013 1:57 pm    Post subject: Reply with quote

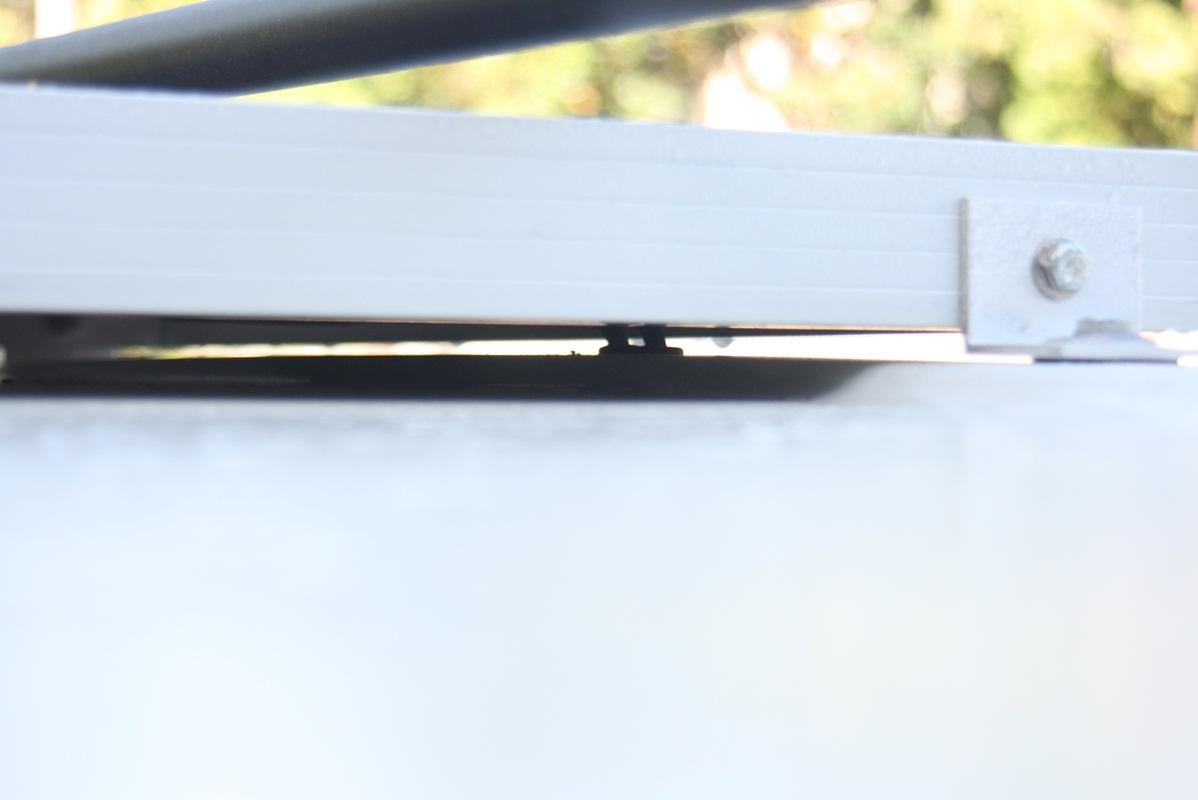

I drilled two small holes on the raised portion of the poptop, right underneath the panel. Holes sealed with rubber grommets. Has never, ever leaked. The wires fit so tight in the grommets that I had to grease the cables to slide them in. Also, the panel on top keeps water away from the holes, even when the top is up. I looked at all the setups here on the Samba and decided this was the best and cleanest way to do it and not risk water leaks. I think wires hanging on the outside, in plain view, look like a hack job.
