1500 exhaust
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
frilly
Samba Member


Joined: April 20, 2008
Posts: 36
Location: uk
frilly is offline
PostPosted: Mon Dec 30, 2013 2:55 pm    Post subject: 1500 exhaust Reply with quote
hey all , what are the differences in the bus exhausts? my bus motor is a 1500 any pics of the changes would be greatfully received thanks in advance neil
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joe56vw
Samba Member


Joined: June 24, 2004
Posts: 3202
Location: Olympia wa
joe56vw is offline
PostPosted: Mon Dec 30, 2013 3:24 pm    Post subject: Reply with quote
1200 thru 1600 bus exhaust pretty much looks the same

http://www.wolfsburgwest.com/wolfsburg_new/fuelsystem/bus_mufflers.cfm
_________________
'60 15 window walkthrough
http://www.thesamba.com/vw/forum/viewtopic.php?t=559931&highlight=

why is there no sarcasism button on here?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 26138
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline
PostPosted: Mon Dec 30, 2013 8:20 pm    Post subject: Reply with quote
1200 has less width between the connections to the heat exchangers and heads.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 71684
Location: Phoenix 602
EverettB is offline
PostPosted: Mon Dec 30, 2013 10:04 pm    Post subject: Reply with quote
Also early 1200s have no upper heater box pieces. "Stale air heating".

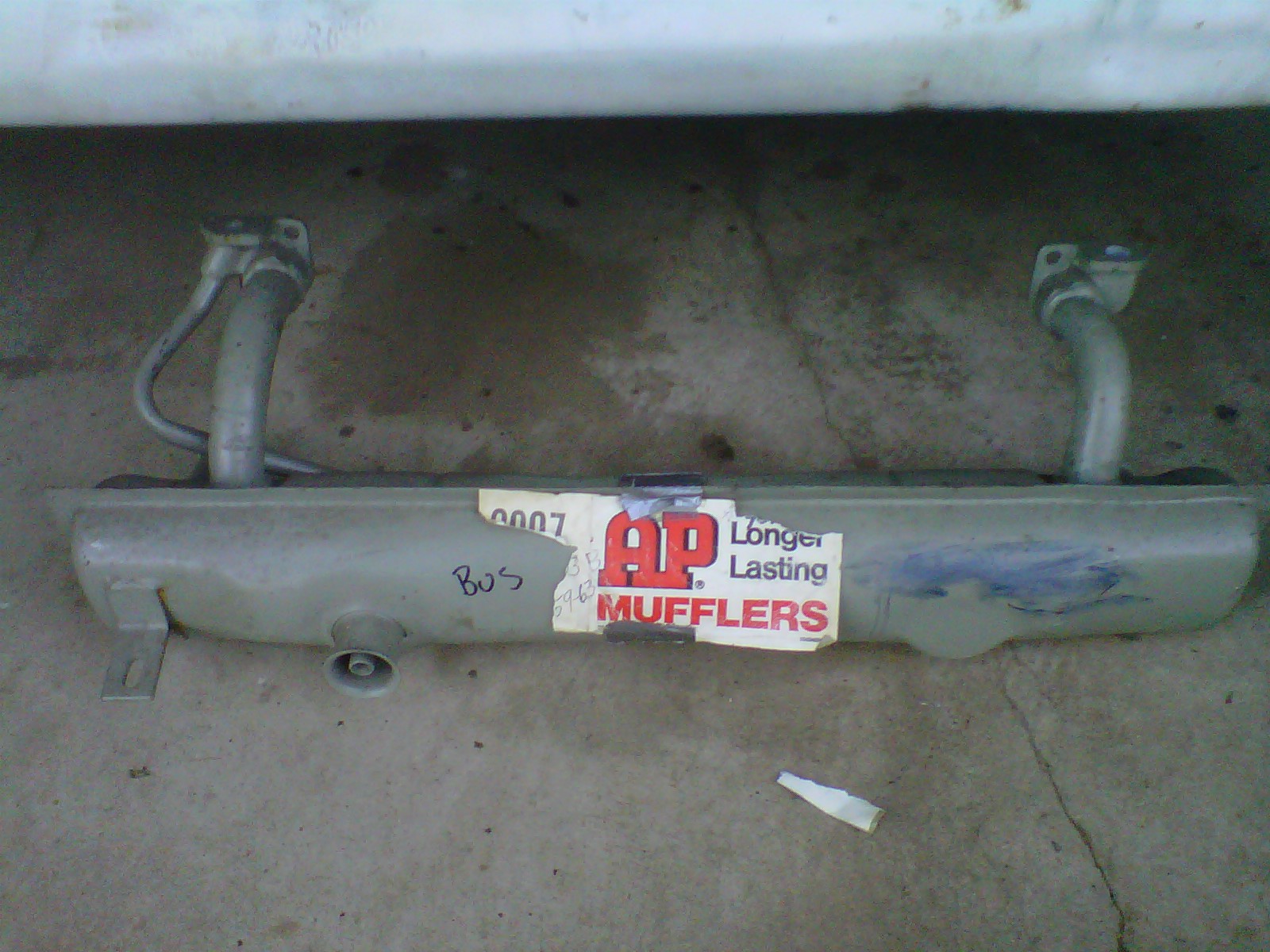

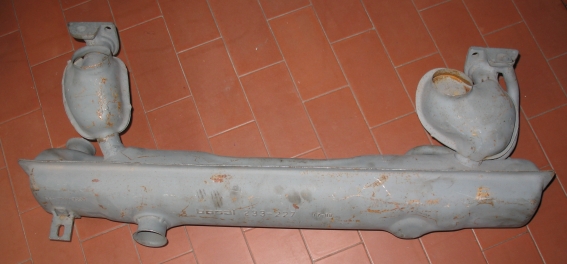

36hp style
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

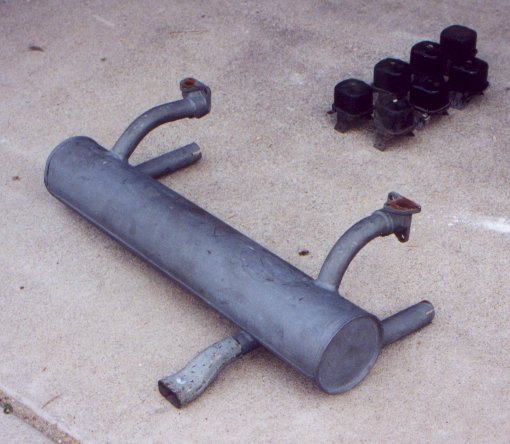

40hp style
Image may have been reduced in size. Click image to view fullscreen.

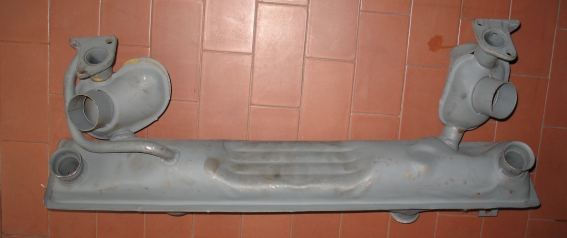

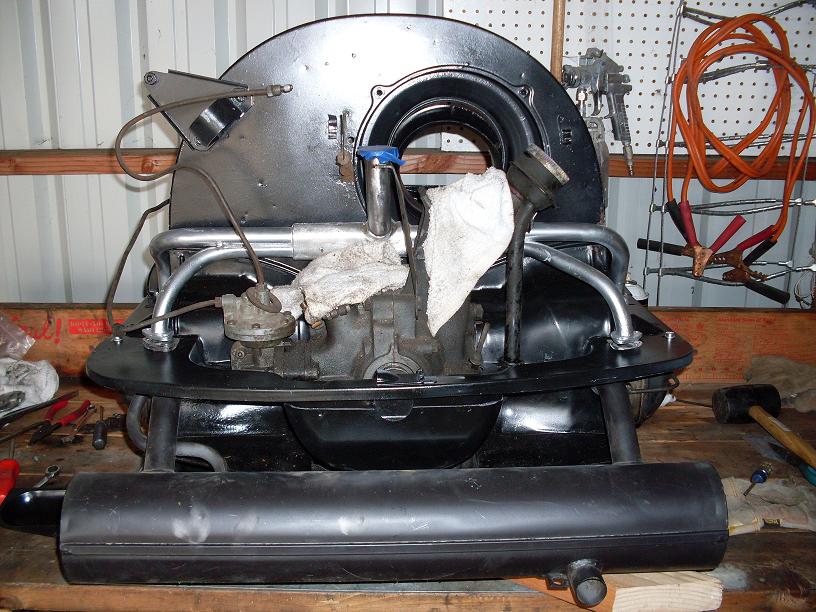

1500/1600 style
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
