 Posted: Tue Jan 05, 2016 5:41 pm Post subject: Gas heater location in a walkthrough |
 |
|
Hello folks,
My 65 Roadrunner at some point had a Stewart Warner gas heater installed. It's the typical kind sold by VWOA mounted in the engine compartment opposite the battery. The problem is the spare tire well was cut out and covered to make room for it. If I return the spare to its original home there will be no room for the heater.
What was the typical MO for mounting gas heaters in a walkthrough bus?
|
|
| Back to top |
|
 |
campingbox
Samba Member
Joined: November 14, 2000
Posts: 10261
Location: Petaluma, CA
|
| Posted: Tue Jan 05, 2016 6:02 pm Post subject: Re: Gas heater location in a walkthrough |
|
|

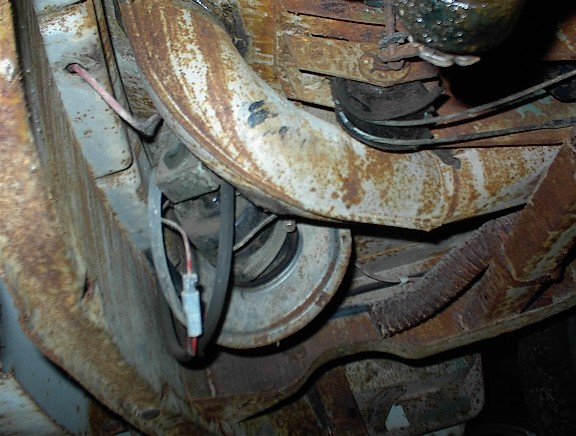

That photo looks normal for a SW heater install. Yes, the wheel well tub gets removed and blocked off.
The eberspacher heater the factory installs doesn't require removing the wheel well.
It looks like this:
Last edited by campingbox on Wed Jan 06, 2016 1:30 pm; edited 1 time in total |
|
| Back to top |
|
|
langsmer
Samba Member
Joined: November 18, 2004
Posts: 1127
Location: CO/NM border
|
| Posted: Tue Jan 05, 2016 6:34 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
Thanks Campingbox. I was wondering if an Eberspacher would be slim enough to fit.
I wonder if the heater was installed by Riviera as my bus has lived its entire life within 10 miles of the dealership. |
|
| Back to top |
|
|
esde
Samba Member
Joined: October 20, 2007
Posts: 6393
Location: central rust belt
|
| Posted: Tue Jan 05, 2016 7:31 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
There was a stewart warner heater that fit under the parcel tray in the front. It looks like most of the parts of a rear mounted heater, but arranged differently to fit. Hard to tell from the pics, and I've never been able to peek under the cover at one in person.
I have a type 3 eberspacher that I am considering mounting under the bus, with a Y fitting to add hot air to the factory center tube. |
|
| Back to top |
|
|
My57Oval
Samba Member
Joined: March 10, 2005
Posts: 624
|
| Posted: Tue Jan 05, 2016 9:29 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
Sorry, i know I'm in the wrong forum again 😅 But speaking of heaters...does anyone know what happened to Ark Mirvis AKA "The Heaterman"?
Back in the 90s he used to come by our shop often to buy heaters and heater parts for his business.
I bought what is basically an NOS SW 6V heater from him around 2007 or so. Beautiful work. Brand new heater.
But he seems to have vanished. I wonder if he passed away. |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22688
Location: Escondido CA
|
| Posted: Tue Jan 05, 2016 10:20 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
| My57Oval wrote: |
Sorry, i know I'm in the wrong forum again 😅 But speaking of heaters...does anyone know what happened to Ark Mirvis AKA "The Heaterman"?
Back in the 90s he used to come by our shop often to buy heaters and heater parts for his business.
I bought what is basically an NOS SW 6V heater from him around 2007 or so. Beautiful work. Brand new heater.
But he seems to have vanished. I wonder if he passed away. |
No he's still out there - not restoring heaters though - but trolling to see if anyone wants to buy the business he once had.
If you want a gas heater things to consider:
For one - they are a super sub group of your regular VW groups you have. People are into them but not many actually use them, restore them or even know how they work.
Old heaters are just that - old heat with no real parts source and or servicing. You get an old heater - better learn it like your learnt valve adjusting every 3k
Stewart Warner: Very cheap to get stuff for. Lots of NOS shit from complete units to parts floating around. American Made   Two different applications as described above for the split window bus. Bad - no one seems to be into them. Good heaters yet for some reason not as sought after as the Eberspacher.
Ahhh, Eberspacher. Sleek cylindrical swiss watch in your engine bay. If you had this cool - "hot " accessory added to your bus in 72, it would've set you back $800-$1000. Expensive add on for sure. Very popular. All the types - B2, BN2, BN4, BA4 & BA6 can be adapted to fit somewhere somehow to a car, lorry, bus, boat, moped. Sweet add ons like clockwork timer switches, clocks with switches & 24 hr timers. Built in thermostats. Cool down timing with self shut off (stuff the SW did not have)
When putting in heat to your Split - you can go og correct early BN4 like Campingbox showed you or you can go late BN4 with better running and longevity like the thermo BN4 in the vid below. Sound like I like Eberspachers
Link
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
My57Oval
Samba Member
Joined: March 10, 2005
Posts: 624
|
| Posted: Wed Jan 06, 2016 7:00 am Post subject: Re: Gas heater location in a walkthrough |
|
|
Yeah, I've got one of his heaters so don't need another one for sure.
Ark if you read this send me an email. I don't want to buy your business, i just want to discuss this heater you sold me a # of years ago. I don't know what the hell it was originally intended for back in the day, but its surely not for my car. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26271
Location: Olympia Wash Rinse & Repeat
|
| Posted: Wed Jan 06, 2016 8:13 am Post subject: Re: Gas heater location in a walkthrough |
|
|
Post the model number and would be nice to have an image.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
ToolBox
Samba Member
Joined: January 27, 2004
Posts: 3445
Location: Detroit, where they don't jack parts off my ride in the parking lot of the 7-11
|
| Posted: Wed Jan 06, 2016 9:47 am Post subject: Re: Gas heater location in a walkthrough |
|
|
| langsmer wrote: |
Hello folks,
My 65 Roadrunner at some point had a Stewart Warner gas heater installed. It's the typical kind sold by VWOA mounted in the engine compartment opposite the battery. The problem is the spare tire well was cut out and covered to make room for it. If I return the spare to its original home there will be no room for the heater.
What was the typical MO for mounting gas heaters in a walkthrough bus?
|
This was the SW solution. just use a different hole in the wheel to secure it to the mount.
Hit this link for more info than you need on SW heaters.
http://www.thesamba.com/vw/archives/manuals/heater_ac.php |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22688
Location: Escondido CA
|
| Posted: Wed Jan 06, 2016 1:08 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
| My57Oval wrote: |
Yeah, I've got one of his heaters so don't need another one for sure.
Ark if you read this send me an email. I don't want to buy your business, i just want to discuss this heater you sold me a # of years ago. I don't know what the hell it was originally intended for back in the day, but its surely not for my car. |
Yes post it up, lets see.
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
My57Oval
Samba Member
Joined: March 10, 2005
Posts: 624
|
| Posted: Wed Jan 06, 2016 1:16 pm Post subject: Re: Gas heater location in a walkthrough |
|
|
I will. I'll take some pictures tonight.
Add them to this post.
Rob |
|
