Westfalia awning size
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
sgellis
Samba Member


Joined: July 06, 2016
Posts: 2183
Location: SW Nova Scotia, Canada
sgellis is offline
PostPosted: Tue Aug 14, 2018 12:00 pm    Post subject: Westfalia awning size Reply with quote

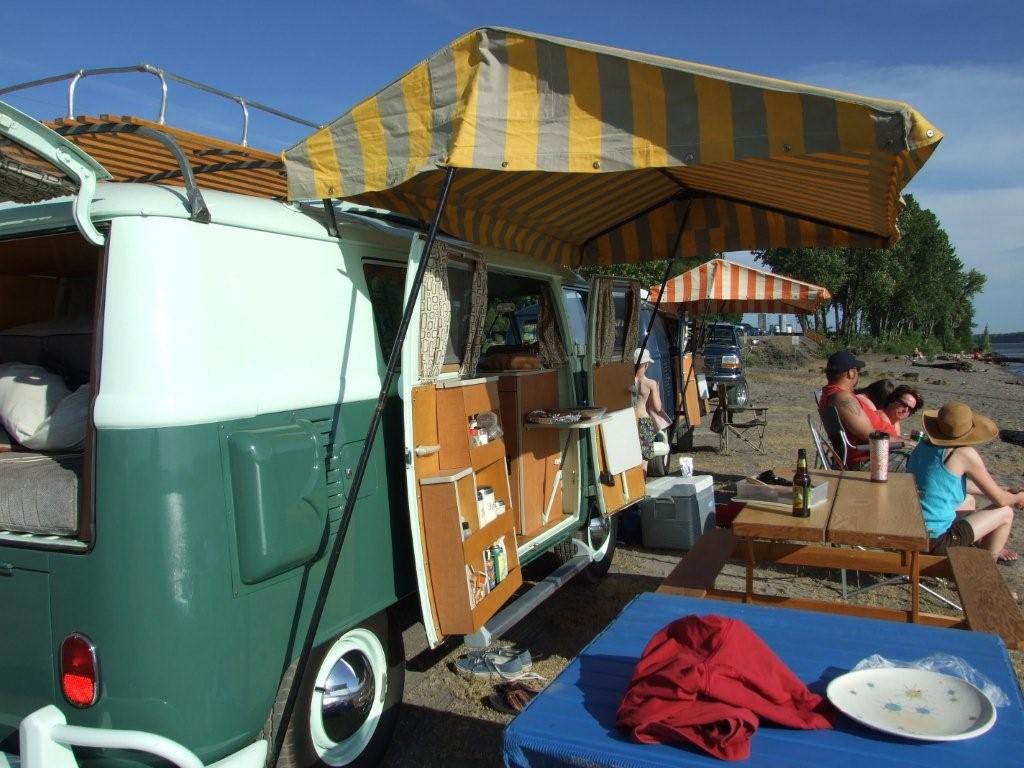

Looking for the ruff size of this awning. I am going to build one similar and want the size to look correct.

Thanks!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
My 64 Kombi restoration
My camper interior build
My 54 standard restoration
The Nova Scotian Barndoor (YouTube)
The Nova Scotian Barndoor (CAD drawings)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
velvetgreen
Samba Member


Joined: August 17, 2004
Posts: 2888
Location: Canada
velvetgreen is online now
PostPosted: Tue Aug 14, 2018 12:10 pm    Post subject: Re: Westfalia awning size Reply with quote
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
velvetgreen
Samba Member


Joined: August 17, 2004
Posts: 2888
Location: Canada
velvetgreen is online now
PostPosted: Tue Aug 14, 2018 12:14 pm    Post subject: Re: Westfalia awning size Reply with quote

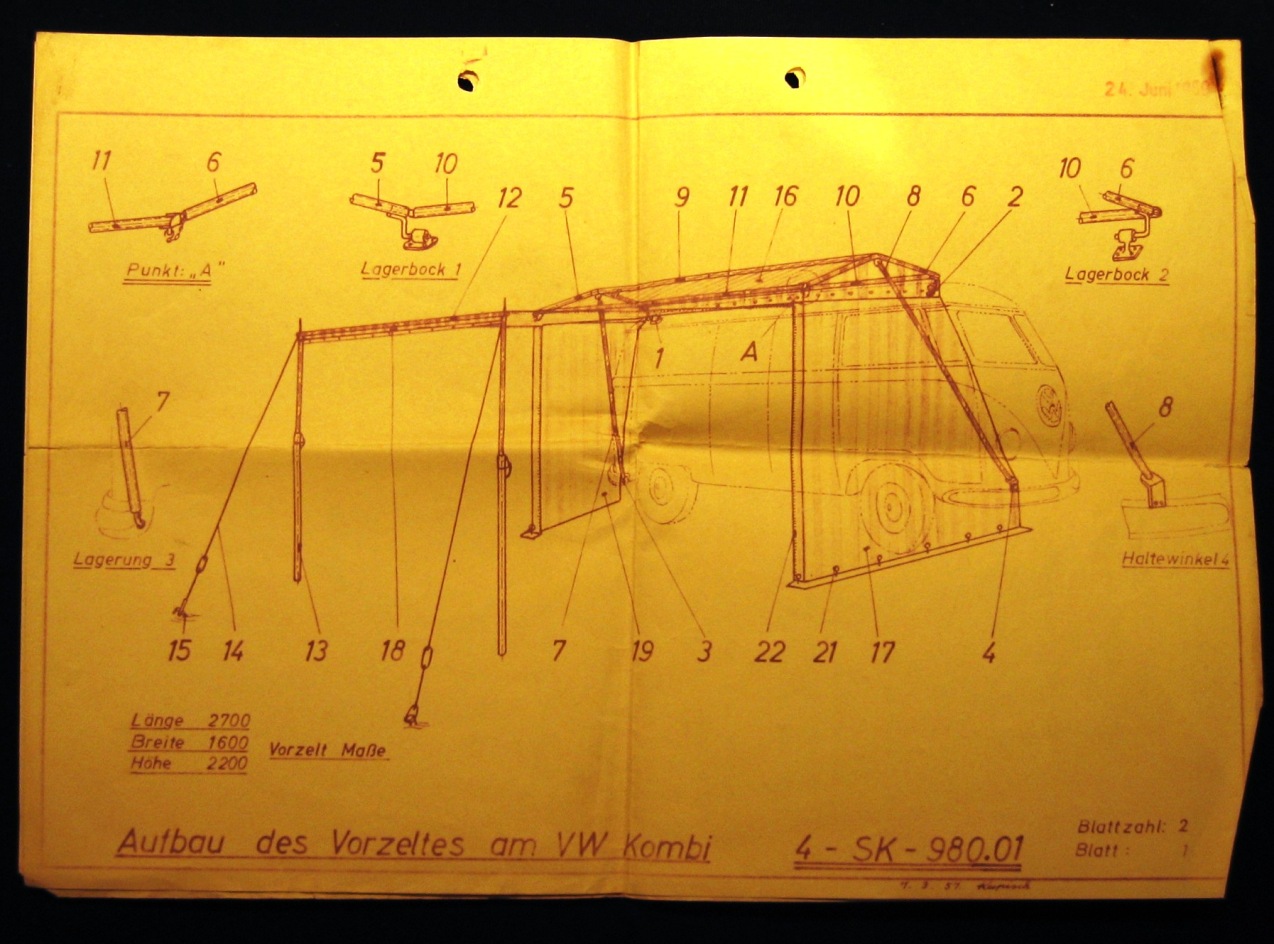

"Lange"-> length 2700
