 Posted: Sat Feb 01, 2014 4:41 pm Post subject: Instrument Cluster ID T2 |
 |
|
Instrument Cluster ID T2
| lustig69 wrote: |
April of '68:
Brake warning light is placed at top, no symbols for indicator lights and odometer is 5 digits, no fractional miles/kilometers.
|
68-70 Instrument Cluster
71 Instrument Cluster
72 Instrument Cluster
73-75 Instrument Cluster
76-79 Instrument Cluster
Instrument cluster mounting clips 211 957 089
KMH RHD 74 Instrument Cluster
KMH T2a Instrument Cluster complete no brake light
KMH T2b Instrument Cluster trip meter speedo + Gas Heater Clock
KMH T2b Instrument Cluster trip meter speedo + Gas Heater Clock
Last edited by Tcash on Sun Jul 16, 2017 12:53 pm; edited 2 times in total |
|
| Back to top |
|
 |
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8339
Location: Oceanside
|
| Posted: Sat Feb 01, 2014 4:52 pm Post subject: |
|
|
April of '68:
Brake warning light is placed at top, no symbols for indicator lights and odometer is 5 digits, no fractional miles/kilometers.
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Sat Feb 01, 2014 5:05 pm Post subject: |
|
|
| Added thank you lustig69. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
|
| Back to top |
|
|
Ginger Rogers
Samba Member
Joined: November 03, 2014
Posts: 29
Location: Suffolk, U.K.
|
| Posted: Wed Nov 19, 2014 3:17 am Post subject: |
|
|

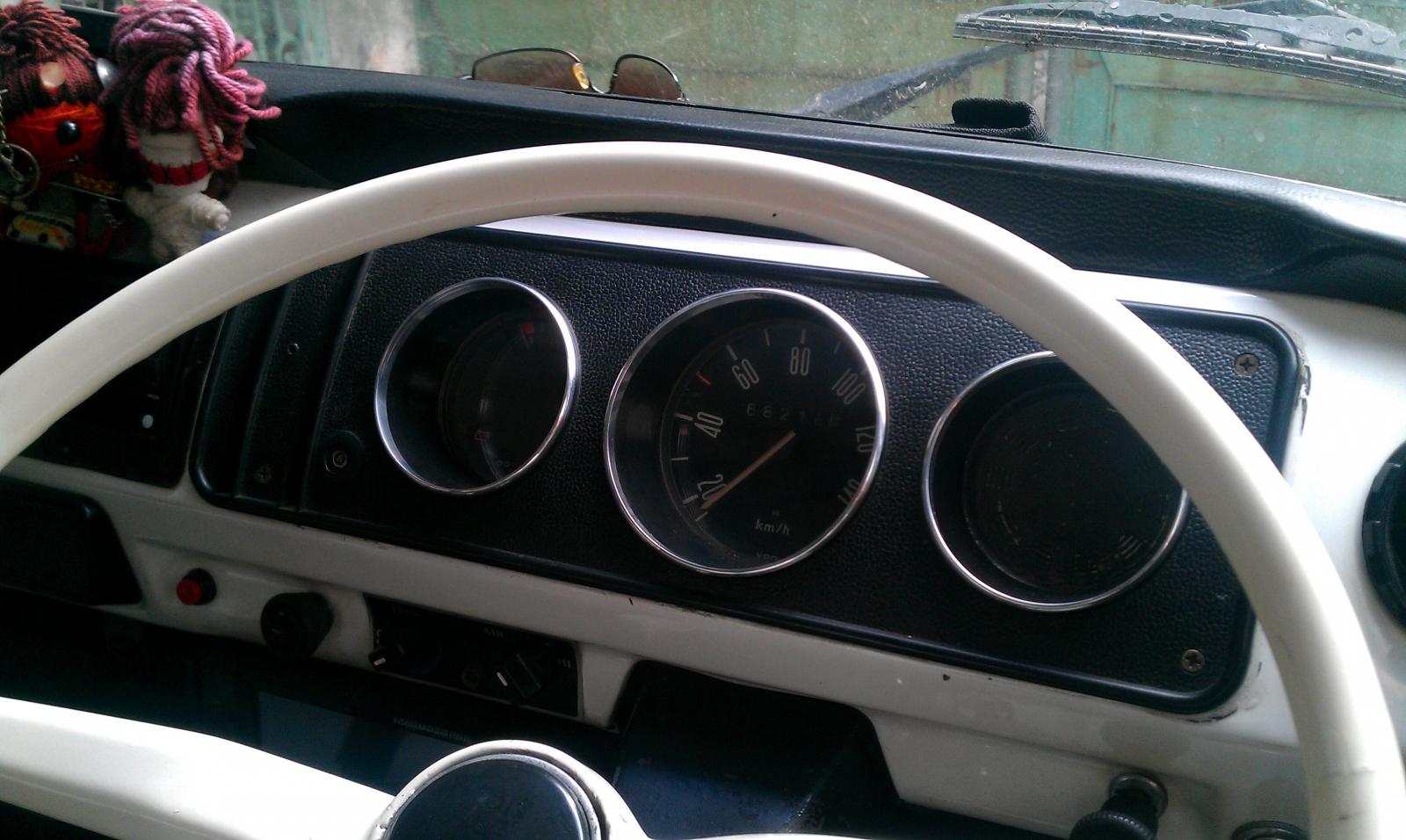

This is the cluster on my '73 Westy. Looks different to the one shown above.
Sorry about the reflections, but the warning lights are in the dark grey finish without the silver centre. The clock binnacle also is in dark grey. Which is correct?
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed Nov 19, 2014 10:37 am Post subject: |
|
|
Ya, I was working on a Gauge Post. I guess I should have titled this post (Instrument panel insert (w/o instruments)
Thank You
Tcash |
|
| Back to top |
|
|
Ginger Rogers
Samba Member
Joined: November 03, 2014
Posts: 29
Location: Suffolk, U.K.
|
| Posted: Wed Nov 19, 2014 4:32 pm Post subject: |
|
|
| Tcash wrote: |
Ya, I was working on a Gauge Post. I guess I should have titled this post (Instrument panel insert (w/o instruments)
Thank You
Tcash |
Sorry, can't understand what you're saying here. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53222
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed Nov 19, 2014 4:47 pm Post subject: |
|
|
| Ginger Rogers wrote: |
This is the cluster on my '73 Westy. Looks different to the one shown above.
Sorry about the reflections, but the warning lights are in the dark grey finish without the silver centre. The clock binnacle also is in dark grey. Which is correct? |
Someone's swapped in an earlier speedometer, the fuel gauge and clock blank are correct for a 73, not so much for the speedo.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Ginger Rogers
Samba Member
Joined: November 03, 2014
Posts: 29
Location: Suffolk, U.K.
|
| Posted: Thu Nov 20, 2014 3:50 am Post subject: |
|
|
| Thanks busdaddy, guess I'll have to start looking for a grey-face speedo. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Thu Dec 25, 2014 7:59 am Post subject: |
|
|
EDIT IN RED
In the first post, second picture, description should read (69-70 Instrument Cluster) |
|
| Back to top |
|
|
andrig's
Samba Member
Joined: July 30, 2020
Posts: 77
Location: Strasburg, CO
|
| Posted: Wed Dec 30, 2020 12:11 pm Post subject: Re: Instrument Cluster ID T2 |
|
|
| Tcash wrote: |
Instrument Cluster ID T2
| lustig69 wrote: |
April of '68:
Brake warning light is placed at top, no symbols for indicator lights and odometer is 5 digits, no fractional miles/kilometers.
|
68-70 Instrument Cluster
71 Instrument Cluster
72 Instrument Cluster
73-75 Instrument Cluster
76-79 Instrument Cluster
Instrument cluster mounting clips 211 957 089
KMH RHD 74 Instrument Cluster
KMH T2a Instrument Cluster complete no brake light
KMH T2b Instrument Cluster trip meter speedo + Gas Heater Clock
KMH T2b Instrument Cluster trip meter speedo + Gas Heater Clock |
I know I am waking up a very old thread, but this has been extremely useful for me. I may develop an instrument cluster for bay window buses that supports modern gauges, for those that may want additional instrumentation, and more modern technology, but want to keep a stock appearance, and/or not have a bunch of gauges mounted in weird spots that are hard to see.
I have a good design of the instrument panel, but I wanted to possibly also include heat/defrost/fresh air control levers, that would match better the new instrument panel.
In the pictures for the '73-'75 instrument cluster, there are three control levers. I have seen this exact same instrument cluster (with the red transparent labels that are backlit) on the Just Kampers online store (U.K.), with four levers. In the picture here, it has three, but they appear to be the style held in with the plastic bushing/pin. That would normally be four levers. The three levers that are plastic and push on, seem to have started in '76, according to your pictures. The Just Kampers list the plastic push on style levers as '74-'79.
Does anyone truly know when the new style push on plastic levers where introduced, and whether in '73 they really only had three levers or four?
Also, if they did go to three levers in '73, where they still the steel ones with the plastic knob that connected with the plastic bushing/pin?
I don't necessarily have to include levers, but it could be a nicer product if it included upgraded levers too. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53222
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed Dec 30, 2020 12:25 pm Post subject: Re: Instrument Cluster ID T2 |
|
|
The 3 plastic levers started on the 1973 model year, new heat system=less levers and space age plastic. Some of those pictures are the victim of swapped parts, they focus on the dash pod and not the levers.
From the 73 owners manual:
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Whaanga
Samba Member
Joined: May 07, 2016
Posts: 645
Location: Rochester, NY
|
| Posted: Wed Dec 30, 2020 4:33 pm Post subject: Re: Instrument Cluster ID T2 |
|
|

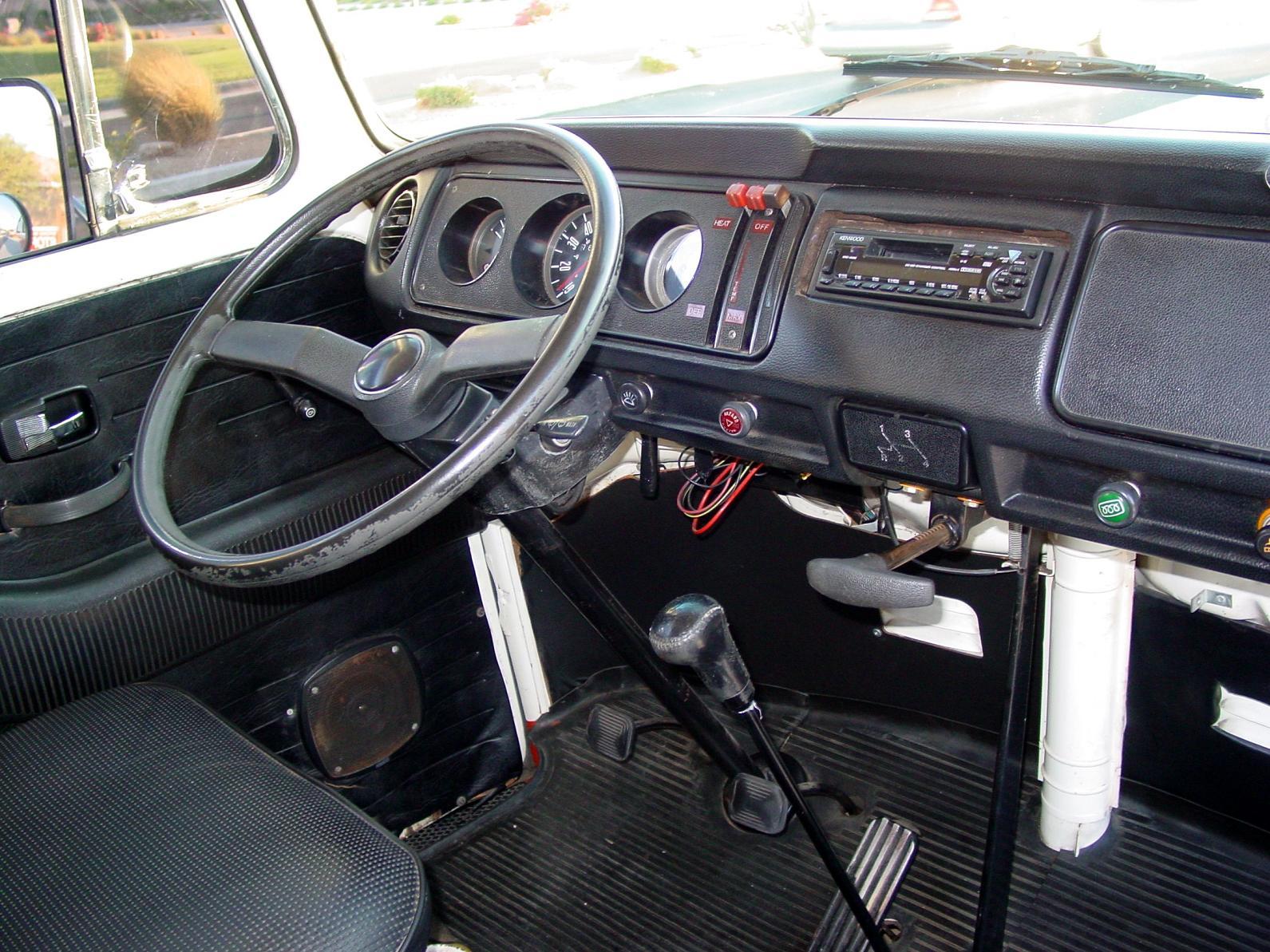

My bus is from Sept of 73. Here is a recent photo of the dash. Mine has the plastic ‘snap on’ heat levers with two for heat and one for fresh air.
_________________
Late 1973 Bay w/a transplanted 914 Engine |
|
| Back to top |
|
|
andrig's
Samba Member
Joined: July 30, 2020
Posts: 77
Location: Strasburg, CO
|
| Posted: Thu Dec 31, 2020 12:21 pm Post subject: Re: Instrument Cluster ID T2 |
|
|
| busdaddy wrote: |
The 3 plastic levers started on the 1973 model year, new heat system=less levers and space age plastic. Some of those pictures are the victim of swapped parts, they focus on the dash pod and not the levers.
From the 73 owners manual:
|
Thanks, I really appreciate this. |
|
| Back to top |
|
|
andrig's
Samba Member
Joined: July 30, 2020
Posts: 77
Location: Strasburg, CO
|
| Posted: Thu Dec 31, 2020 12:22 pm Post subject: Re: Instrument Cluster ID T2 |
|
|
| Whaanga wrote: |
My bus is from Sept of 73. Here is a recent photo of the dash. Mine has the plastic ‘snap on’ heat levers with two for heat and one for fresh air.
|
Awesome! Two confirmations, that indeed it did change over to three levers, and they are the plastic push on style.
I appreciate this immensely. |
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3246
Location: South Benfleet, Essex, UK
|
| Posted: Fri Feb 26, 2021 6:37 am Post subject: Re: Instrument Cluster ID T2 |
|
|
| Whaanga wrote: |
My bus is from Sept of 73. Here is a recent photo of the dash. Mine has the plastic ‘snap on’ heat levers with two for heat and one for fresh air.
|
My British specification, right-hand-drive, 1973 model-year (manufactured in late-August or early-September 1972), VW 1600 Type 2 Kombi (Type 23-517) based Westfalia Continental motor-caravan, was factory-fitted with three metal & rubber-knobbed heating & ventilation control levers.
It has instruments of the style as those shown for the 1971 & 1972 model years. There are moulded cut-outs for two warning lights at the top & bottom of the instrument panel, of the size & shape of the brake circuit failure warning lights, which are located to the extreme left of the fuel-gauge & six-warning-light cluster, close to the heater & ventilation lever slots.
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk |
|
| Back to top |
|
|
yellardogg
Samba Member
Joined: September 18, 2024
Posts: 4
Location: E. TX.
|
| Posted: Thu Sep 19, 2024 8:28 am Post subject: Re: Instrument Cluster ID T2 |
|
|
Hello, everyone.

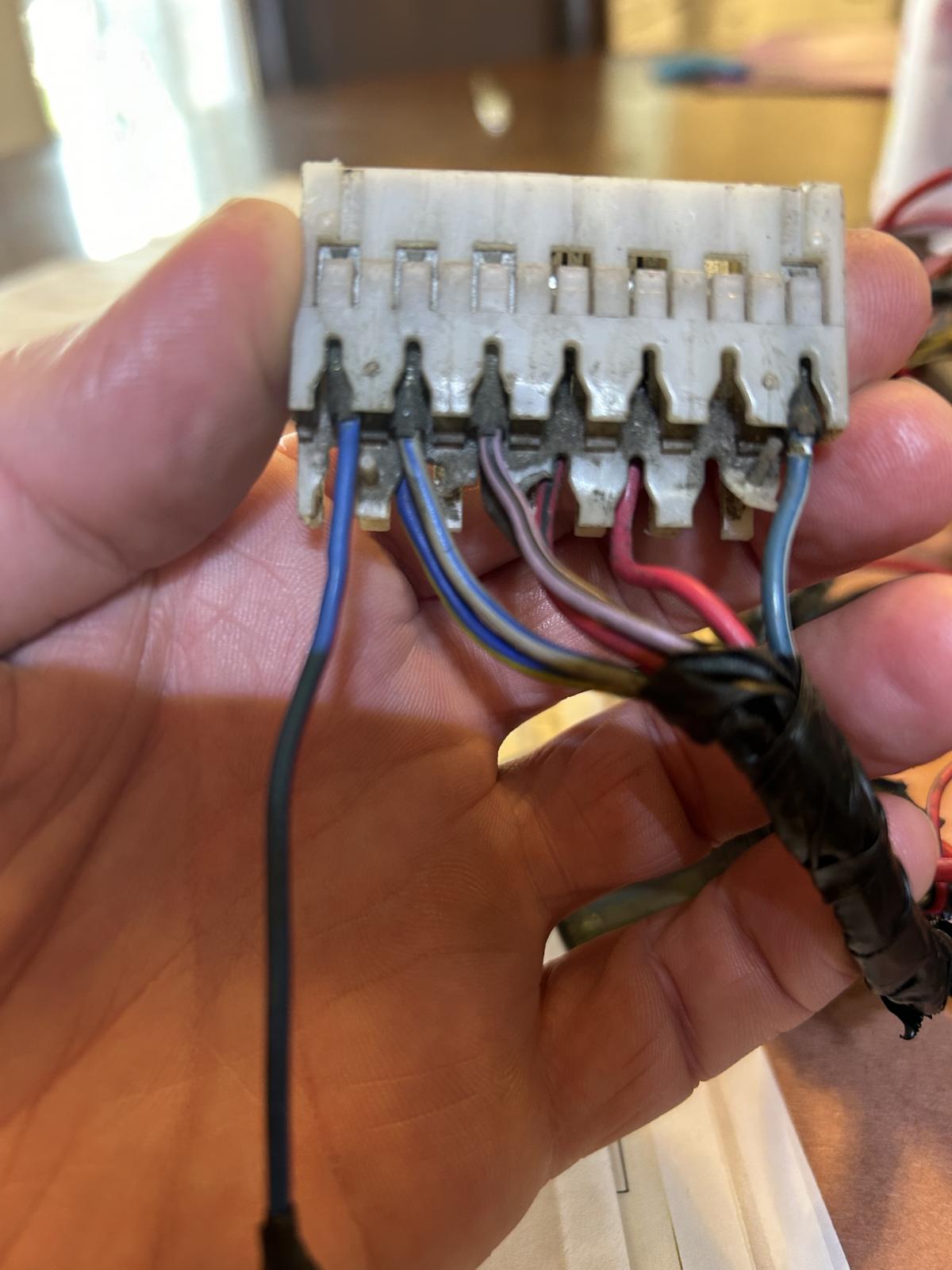

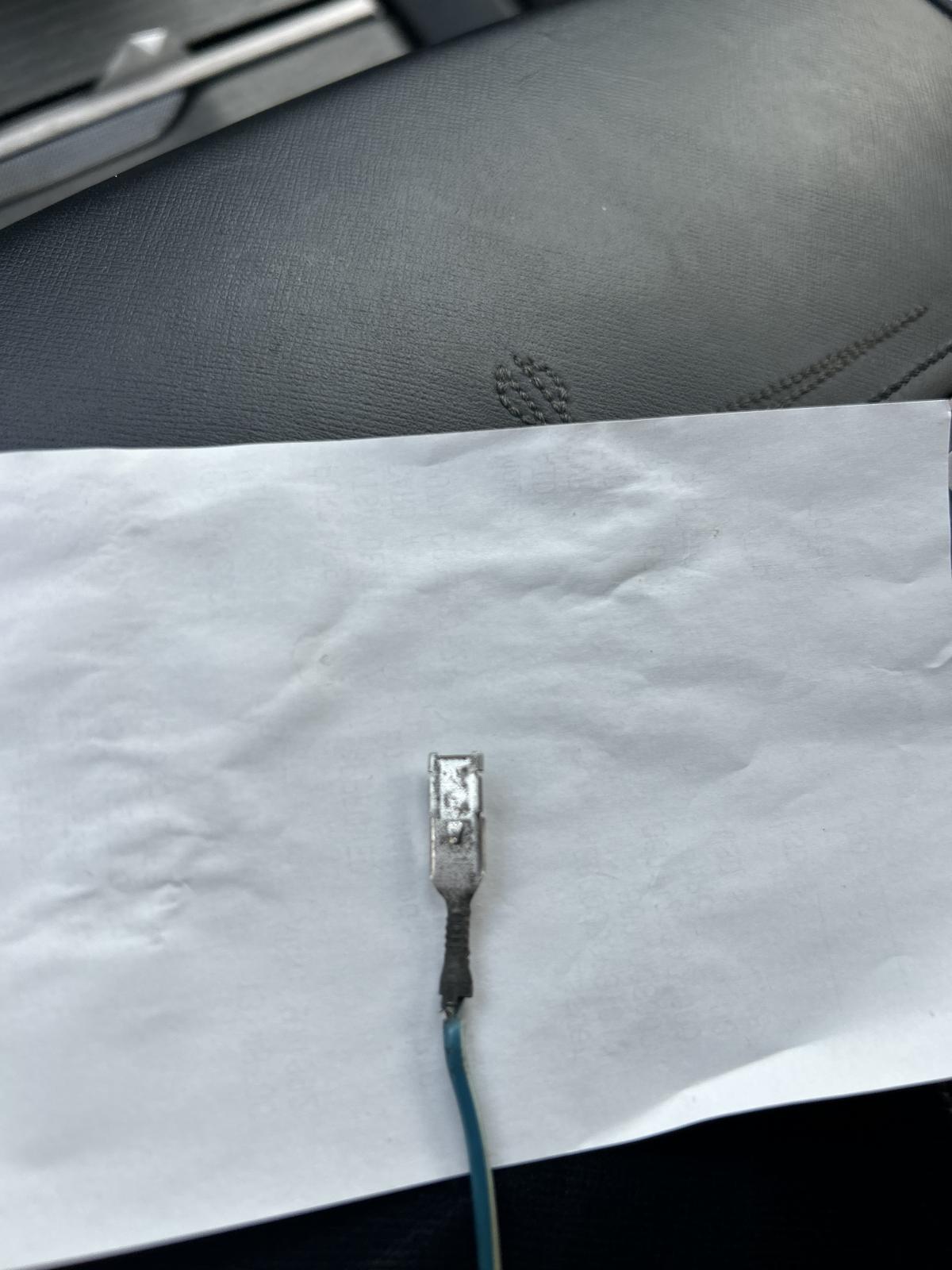

I'm trying to get some advice, input, opinion, direction, parts, or whatever kind of help I can get! We have a '74 Type 2 bus. We've rewired the entire thing. I'm trying to locate wire terminals, that go in the connector to connect to the back of the instrument cluster. They are not made any longer, and I cannot find any of them anywhere. I have not idea how to handle this problem at this point. Any information on how to circumvent their use, or where to find them or anything would be appreciated!
*if I need to move this post, please advise!
Thank y'all!
|
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13631
Location: West Coast, USA
|
|
| Back to top |
|
|
yellardogg
Samba Member
Joined: September 18, 2024
Posts: 4
Location: E. TX.
|
| Posted: Thu Sep 19, 2024 11:26 am Post subject: Re: Instrument Cluster ID T2 |
|
|
There are two rows stacked and appear to connect to both sides (or either side) of the Connector plate on the back of the cluster, if that makes sense. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53222
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Sep 19, 2024 2:53 pm Post subject: Re: Instrument Cluster ID T2 |
|
|
VW didn't put that there, step one is find out what make and model of car it's from.
