Turn signal housing Type 3? Ghia? or?
Forum Index -> Type 3 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Egypt Classic Cars
Samba Member


Joined: June 21, 2010
Posts: 126
Location: Egypt
Egypt Classic Cars is offline

PostPosted: Fri Apr 04, 2014 6:16 am    Post subject: Turn signal housing Type 3? Ghia? or? Reply with quote

Hello

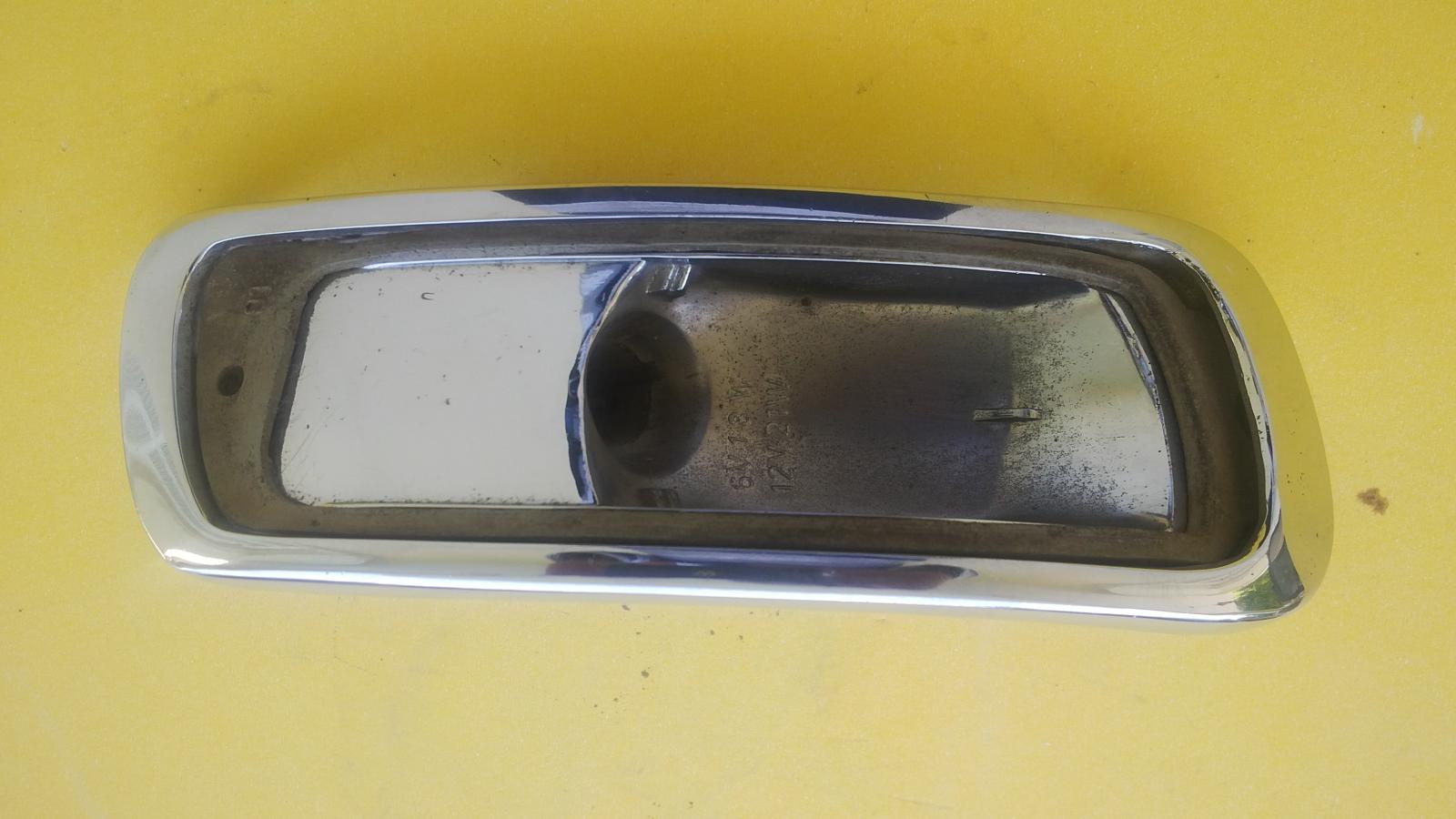

I need help identify this light housing, it should be VW but which model and year

Ashraf

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Ashraf
1950 Split Window
1953 Zwitter
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gregson1
Samba Member


Joined: December 13, 2004
Posts: 464

gregson1 is offline

PostPosted: Fri Apr 04, 2014 6:48 am    Post subject: Reply with quote

It's a left hand side Type 3 Karmann Ghia turn signal housing. It's the single contact later version of the part that does not support the parking light, so is typically used in conjunction with the parking light in the headlight, aka 'city lights'. It can be converted by replacing the end cap with a dual pole cap, and then trimming one of the nubs off the bulb.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Egypt Classic Cars
Samba Member


Joined: June 21, 2010
Posts: 126
Location: Egypt
Egypt Classic Cars is offline

PostPosted: Fri Apr 04, 2014 10:51 pm    Post subject: Reply with quote

Thanks,
for which Karmann Ghia years?
_________________
Ashraf
1950 Split Window
1953 Zwitter
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gregson1
Samba Member


Joined: December 13, 2004
Posts: 464

gregson1 is offline

PostPosted: Sat Apr 05, 2014 7:51 am    Post subject: Reply with quote

Type 3 Karmann Ghia--also known as the Type 34--ALL years, but only for those countries that put the parking light up in the headlight.

The early years up to about '63 or '64 had a riveted Bakelite cap to which in turn the electrical connectors themselves were riveted, instead of the peened into place white cap, as yours has. The nice thing about the white caps is that they can be more easily converted. The connector closest to the edge should be labeled with an embossed '31' in the plastic, which means electrical ground, so don't connect the parking or turn signal wiring to it. To confirm, run a continuity check across that terminal and anywhere on that turn signal housing you should get a dead short. You'll want to hook the turn signal wire to the other terminal labeled '57' or '58'.

Looks like a very nice NOS or 'lightly used' part that includes the often missing lens seal.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Egypt Classic Cars
Samba Member


Joined: June 21, 2010
Posts: 126
Location: Egypt
Egypt Classic Cars is offline

PostPosted: Sat Apr 05, 2014 11:09 am    Post subject: Reply with quote

Thanks for great info, they are a real NOS very little wear due to long time storage

Ashraf
