 Posted: Wed Apr 09, 2014 9:22 pm Post subject: Baffle plate? |
 |
|
| Is the baffle plate under the generator stand really necessary? |
|
| Back to top |
|
 |
glutamodo
The Android
Joined: July 13, 2004
Posts: 26634
Location: Douglas, WY
|
| Posted: Wed Apr 09, 2014 9:36 pm Post subject: |
|
|

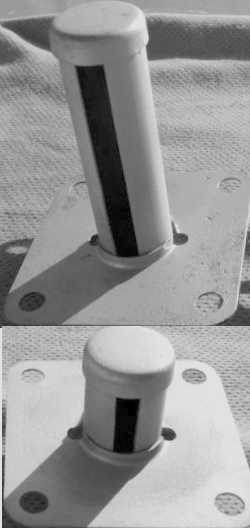

Definitely. The cam gears sling a lot of oil in that general area. Back in the 1961-64 40HP era when they still had a small hole in the top of the block, VW even acknowledged that some kind of a deflector might be needed - and specified a sort of a "tower" deflector to be used as seen here:
|
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Tue Dec 26, 2017 9:19 am Post subject: Re: Baffle plate? |
|
|

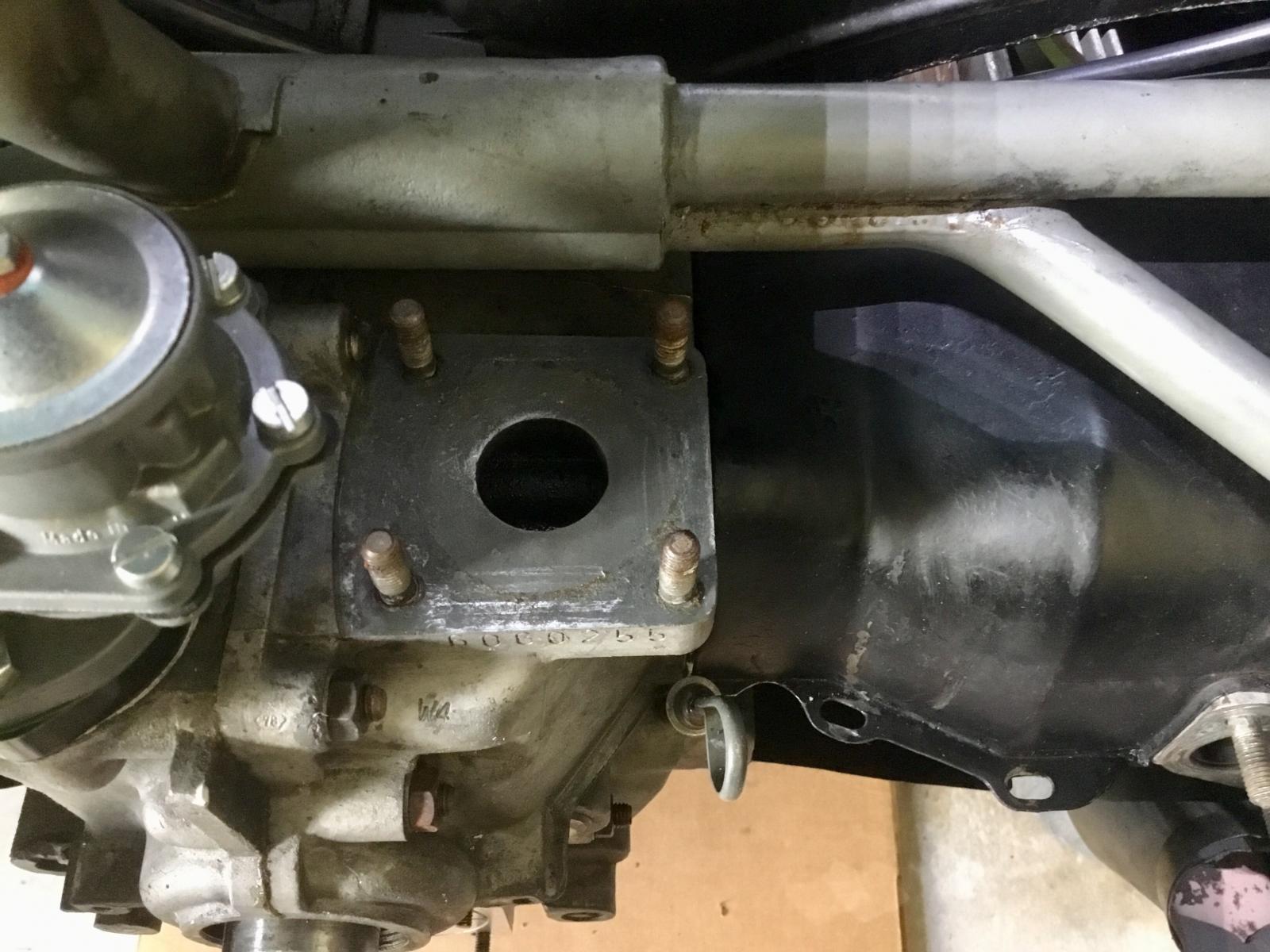

Doing some work to stop oil leaks on my engine. Its a 1962 40 hp case. The generator stand to case was leaking oil, so this morning I removed the stand, and found that there is no baffle present.
Anyone know where I can buy one of these baffles?
_________________
“Tinker Toy” 1967 Savannah Beige Beetle Sedan...........Mostly Original Survivor
“Fritz” 1964 Gulf Blue Karmann Ghia Coupe...Complete Pan-Off Restoration SOLD |
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Tue Dec 26, 2017 9:36 am Post subject: Re: Baffle plate? |
|
|
Can I use this one?
_________________
“Tinker Toy” 1967 Savannah Beige Beetle Sedan...........Mostly Original Survivor
“Fritz” 1964 Gulf Blue Karmann Ghia Coupe...Complete Pan-Off Restoration SOLD |
|
| Back to top |
|
|
mikedjames
Samba Member
Joined: July 02, 2012
Posts: 3436
Location: Hamble, Hampshire, UK
|
| Posted: Tue Dec 26, 2017 10:36 am Post subject: Re: Baffle plate? |
|
|
That type is meant to deflect the oil and have it drip off the down pointing baflfles so the baffles point to the right and down on a later engine block
. Your engine block has a smaller hole so you would need to flatten the baffles then bend them so they again point down and to the right over the hole.
Of course fitting it upside down would be better than nothing so oil flying up hits the baffle and drips down.
_________________
Ancient vehicles and vessels
1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.
1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy |
|
| Back to top |
|
|
mark tucker
Samba Member
Joined: April 08, 2009
Posts: 23945
Location: SHALIMAR ,FLORIDA
|
| Posted: Tue Dec 26, 2017 1:06 pm Post subject: Re: Baffle plate? |
|
|
| if I had the lator block i would probably open it up to match the later style baffels.that way there would be less area for oil puddling and faster drain back/oil filling |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26634
Location: Douglas, WY
|
| Posted: Tue Dec 26, 2017 3:31 pm Post subject: Re: Baffle plate? |
|
|
That later style one is intended for after they changed the opening in the block - Reworking the block for this is specified in the workshop manual as well but that's something you would only want to do at rebuild time. (there are two areas that get opened up)
This is one I did many years ago:
_________________
Andy T.
"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!" |
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Tue Dec 26, 2017 3:53 pm Post subject: Re: Baffle plate? |
|
|
| glutamodo wrote: |
| That later style one is intended for after they changed the opening in the block - Reworking the block for this is specified in the workshop manual as well but that's something you would only want to do at rebuild time. ] |
l
Agreed. So what would you recommend then? Going without a baffle, and probably continue to experience oil leaks from the filler...or modifying the later baffle as described above, or?
_________________
“Tinker Toy” 1967 Savannah Beige Beetle Sedan...........Mostly Original Survivor
“Fritz” 1964 Gulf Blue Karmann Ghia Coupe...Complete Pan-Off Restoration SOLD |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26634
Location: Douglas, WY
|
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Wed Dec 27, 2017 9:04 am Post subject: Re: Baffle plate? |
|
|
| FL-Frank wrote: |
Can I use this one?
|
From the Bentley Service Manual for 1966 - 1969...
“On the 1500 cc engine, an oil deflector plate is installed between the crankcase and the generator support to keep oil from being thrown out through the crankcase breather. With some modification this plate can be installed on earler engines. Gaskets are fitted above and below the plate.”
The picture of the plate in the manual looks like the one currently available for purchase from several vendors.
So, if I’m unable to source the earlier tower type deflecor, I’m thinking I will try my hand at modifying the flat one to fit my application.
Meanwhile, I’ve read a lot of posts here about stuffing the oil filler tube with stainless steel pot scrubbers. Is this something I should consider doing?
_________________
“Tinker Toy” 1967 Savannah Beige Beetle Sedan...........Mostly Original Survivor
“Fritz” 1964 Gulf Blue Karmann Ghia Coupe...Complete Pan-Off Restoration SOLD |
|
| Back to top |
|
|
FeelthySanchez
Samba Member
Joined: February 03, 2011
Posts: 1349
Location: Now is that a real poncho, or a Sears poncho?
|
| Posted: Wed Dec 27, 2017 3:17 pm Post subject: Re: Baffle plate? |
|
|
Either trick would suffice.
If using the steel baffle/plate, suggest trimming it to fit (remove louvers outside of the circle) w/ a Dremel.
| FL-Frank wrote: |
Can I use this one?
So, if I’m unable to source the earlier tower type deflecor, I’m thinking I will try my hand at modifying the flat one to fit my application.
Meanwhile, I’ve read a lot of posts here about stuffing the oil filler tube with stainless steel pot scrubbers. Is this something I should consider doing? |
_________________
| modok wrote: |
| I would like if you had enough clue to communicate what you are doing. |
| Ryan Tucker wrote: |
| Enough clue..Whats that mean? |
| OldIronSpine wrote: |
What is a boost retard?
The real problem with NA engines is you don't hear the nice whine of the turbo as it spools up.
Where do you put the inter cooler for it at? And does it use its own coolent?
Before I commit, I'm going to do more research because I don't really know what piston rings are. |
|
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Mon Jan 08, 2018 6:25 pm Post subject: Re: Baffle plate? |
|
|
I wasnt able to source an og tower type baffle, so I found a local metal shop to fabricate one for me.
_________________
“Tinker Toy” 1967 Savannah Beige Beetle Sedan...........Mostly Original Survivor
“Fritz” 1964 Gulf Blue Karmann Ghia Coupe...Complete Pan-Off Restoration SOLD |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26634
Location: Douglas, WY
|
|
| Back to top |
|
|
FL-Frank
Samba Member
Joined: August 08, 2015
Posts: 823
Location: Jupiter, Florida
|
| Posted: Mon Jan 08, 2018 6:46 pm Post subject: Re: Baffle plate? |
|
|
| glutamodo wrote: |
| Looks good. Did you just print out that diagram I posted above, and give that to them then? |
Yes, and thanks for the drawing Andy!
The parts appearance is not that great, but it fits well and will never be seen anyway 😃
