| Author |
Message |
VW Type 211
Samba Member
Joined: November 16, 2005
Posts: 33
|
 Posted: Wed Mar 21, 2007 9:03 am Post subject: Split Handbrake Cover |
 |
|
I was wondering if my split needs a handbrake cover, the rubber one.
I have a early Jan 1950 Standard. From reading around I see that the handbrake cover started sometime in 1951?
Just wondering
Gregory |
|
| Back to top |
|
 |
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4202
|
| Posted: Wed Mar 21, 2007 9:27 am Post subject: |
|
|
My October '51 has one although progressive refinements says it came in '52 I think.
Chris |
|
| Back to top |
|
|
VW Type 211
Samba Member
Joined: November 16, 2005
Posts: 33
|
| Posted: Wed Mar 21, 2007 9:43 am Post subject: Handbrake cover |
|
|
SO according to PR I shouldnt have one, and I do.
There is nothing to cover the handbrake mechanism in my 50 to be correct?
Does anybody need a nice handbrake cover, original in very nice condition?
Gregory |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1495
Location: Finland
|
| Posted: Wed Mar 21, 2007 1:51 pm Post subject: |
|
|
VW book "Besser Fahren mit dem VW" year 1950 says:
Handbrake cover
Refinements date February 1950
Assembly by request
Dealer supplies by request a cover for handbrake lever |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Wed Mar 21, 2007 2:57 pm Post subject: |
|
|
I don't beleive that the standard splits got the handbrake covers.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
twinwindows
Samba Pimp
Joined: December 08, 2000
Posts: 4086
Location: So.Cal. Highland Park GFK!
|
| Posted: Wed Mar 21, 2007 2:59 pm Post subject: |
|
|
| johnshenry wrote: |
| I don't beleive that the standard splits got the handbrake covers. |
Nope!
_________________
CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!
| myzamboni wrote: |
| Yeah, everyone's now doing it GFK style . . . everythinig is covert until the finished product is revealed. |
|
|
| Back to top |
|
|
elroocky
Samba Member
Joined: December 11, 2003
Posts: 37
Location: France, Normandy
|
| Posted: Sat Mar 24, 2007 8:37 pm Post subject: |
|
|
on one of my old vw files for standard bug (dated 1952 on the plateforme side cut cables brakes pages) the rubber cover is represented. My june 52 standard add one on.
|
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1495
Location: Finland
|
| Posted: Sat Mar 24, 2007 11:00 pm Post subject: |
|
|
| I have seen that repro parts have not that leather-like surface, they are smooth. |
|
| Back to top |
|
|
elroocky
Samba Member
Joined: December 11, 2003
Posts: 37
Location: France, Normandy
|
| Posted: Sun Mar 25, 2007 1:05 am Post subject: |
|
|
I shure that this hand brake boot is not a repro, I took it off back in 2000 went I got the car. Repro is rather recent accessorry from what I know.
david |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4202
|
| Posted: Sun Mar 25, 2007 7:07 am Post subject: |
|
|
| elroocky wrote: |
on one of my old vw files for standard bug (dated 1952 on the plateforme side cut cables brakes pages) the rubber cover is represented. My june 52 standard add one on.
|
My guess is that is a late version of that boot. It is probably very rare as well. The next version that was on ovals and all other versions after it had the pebble grain finish.
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
RareAir
Samba Member
Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
|
| Posted: Sun Mar 25, 2007 8:36 am Post subject: |
|
|
My guess is that is a late version of that boot. It is probably very rare as well. The next version that was on ovals and all other versions after it had the pebble grain finish.[/quote]

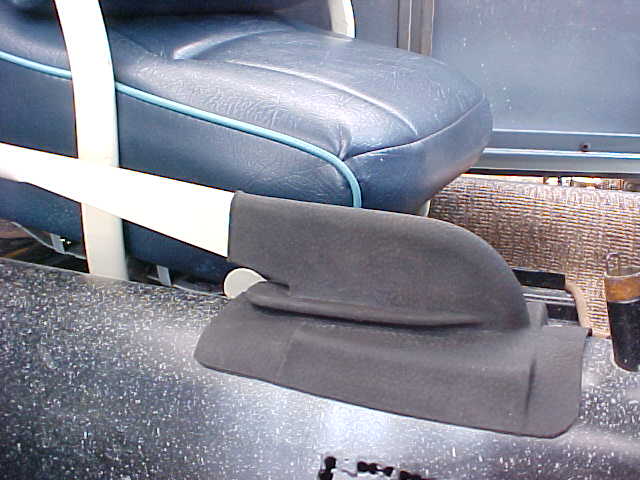

Here's what a 1953-55 boot looks like
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241 |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Sun Mar 25, 2007 9:58 am Post subject: |
|
|
Here's an NOS early split one I have....
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
elroocky
Samba Member
Joined: December 11, 2003
Posts: 37
Location: France, Normandy
|
| Posted: Sun Mar 25, 2007 1:21 pm Post subject: |
|
|
| john, do you have on your boot under a little "R" and sort of "k" letter stamped on it, A have sort of stuff like that on it.. |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4202
|
| Posted: Sun Mar 25, 2007 1:44 pm Post subject: |
|
|
| RareAir wrote: |
Here's what a 1953-55 boot looks like
|
That is what I am talking about. I always assumed that the pebble grain was introduced on that cover but apparently it was introduced on the split cover towards the end of it's production.
Mine does not have the pebble grain but is smooth like in John's picture.
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
elroocky
Samba Member
Joined: December 11, 2003
Posts: 37
Location: France, Normandy
|
| Posted: Sun Mar 25, 2007 2:23 pm Post subject: |
|
|
I agree with that Chris, pebble grain was introduced only on late splitwindows production, but was it available serial on all model's, I'm not shure, what I've been told is that before late 51's only luxe and export where with smooth boot none on standard and since end of 51 till zwitter (and even on zwitter's) boot was available on all models with pebble grain
david |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Sun Mar 25, 2007 3:23 pm Post subject: |
|
|
| elroocky wrote: |
| john, do you have on your boot under a little "R" and sort of "k" letter stamped on it, A have sort of stuff like that on it.. |
I have an embossed (raised) number "428" under mine. No R or k.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Wed Oct 06, 2010 12:36 am Post subject: |
|
|
does someone know where to get this split handbrake lever boot? i mean brown repro, originals are hen's teeth afaik.
Thanks
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Wed Oct 06, 2010 6:41 am Post subject: |
|
|
| eurodub wrote: |
does someone know where to get this split handbrake lever boot? i mean brown repro, originals are hen's teeth afaik.
Thanks |
I just sold one of the NOS ones I had in the classifieds. It lasted all of about 2 hours I think. Keep your radar on......
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
eurodub
Samba Member
Joined: August 05, 2007
Posts: 1321
|
| Posted: Wed Oct 06, 2010 7:05 am Post subject: |
|
|
i was asking about repro version just because that is a premium sought after part, and a reproduction could suit my split well. of course, repro price should be way less than for an original used or nos boot...
_________________
1960 1200 model 117 deluxe ragtop
1976 MK1 Golf |
|
| Back to top |
|
|
empiracer
Samba Member
Joined: December 17, 2002
Posts: 1108
Location: Issaquah / Seattle, Wa.
|
| Posted: Sun Jan 30, 2022 4:01 pm Post subject: Re: Split Handbrake Cover |
|
|
I’m interested peoples latest opinion of what years theses parking brake boots were offered and also interested in opinions of theses reproduction boots compared to original
I myself was surprised with the textured appearance of the brown boot , is original like this ?
|
|
| Back to top |
|
|
|
