 Posted: Sun Feb 18, 2018 12:31 pm Post subject: Help for measurements seat brackets |
 |
|
Hello all
i need help to get some measurements for the seat brackets on T2 floorpanel. im going to install seats in a kombi and have got new plates for this, but dont have the measures.
thanks for the help!

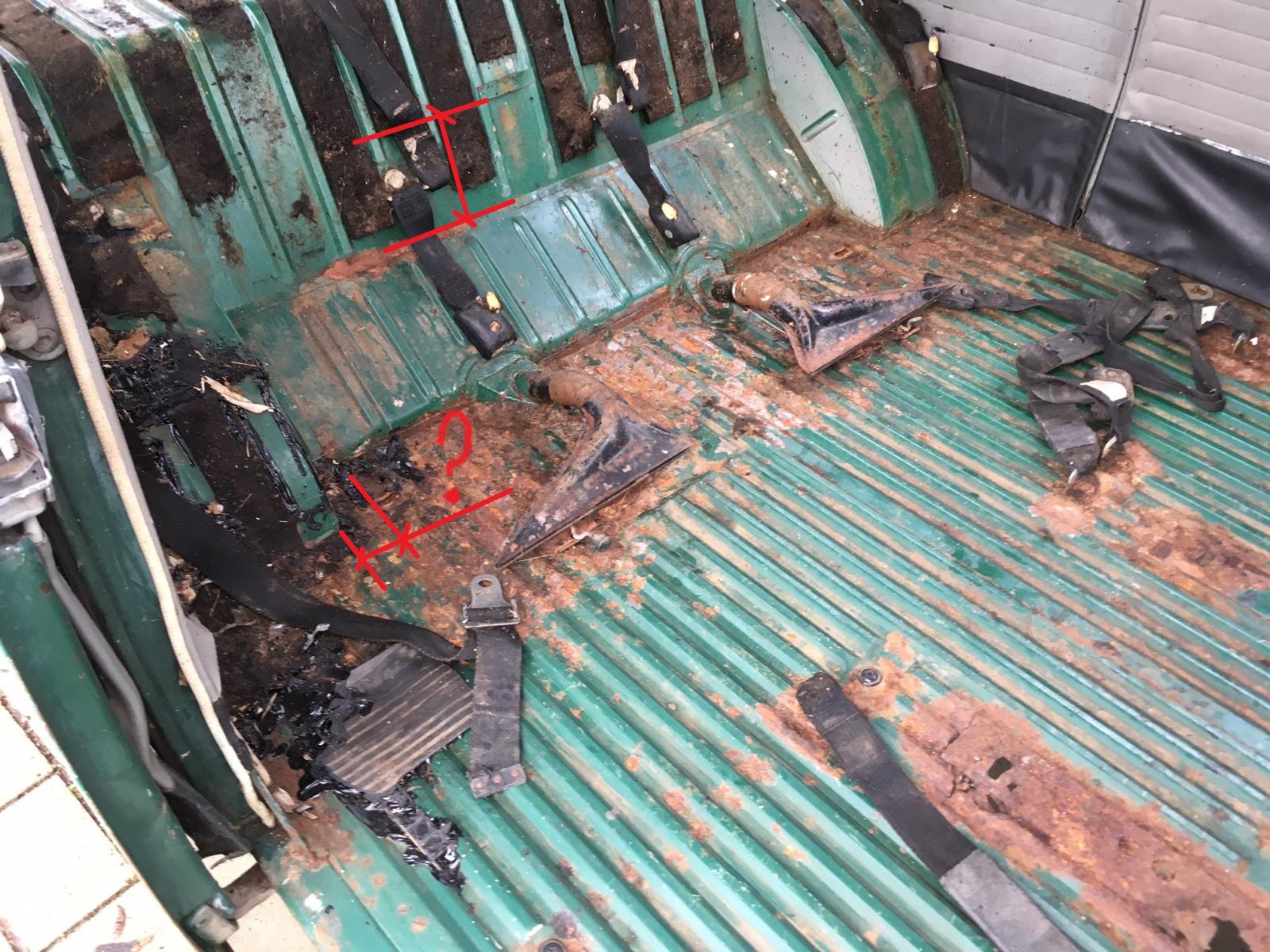

i tried to mark up on some pics i found online
|
|
| Back to top |
|
 |
Tistlo
Samba Member
Joined: July 14, 2008
Posts: 80
Location: Voss, Norway
|
| Posted: Sat Mar 24, 2018 7:05 am Post subject: Re: Help for measurements seat brackets |
|
|
Nobody have any car to measure from? would be really helpful  |
|
| Back to top |
|
|
rshepard10
Samba Member
Joined: December 28, 2013
Posts: 127
|
| Posted: Sat Mar 24, 2018 11:15 am Post subject: Re: Help for measurements seat brackets |
|
|
I can measure that up for you when I get off work, stay tuned
Edit:
Not sure if it matters but I have a 1978, not sure if the measurements for the seat brackets changed that much from year to year.
_________________
1978 VW Deluxe 2000cc FI
1994 Jeep YJ (Jurassic Park #22)
Certified Diagnostic Mercedes-Benz Technician |
|
| Back to top |
|
|
Tistlo
Samba Member
Joined: July 14, 2008
Posts: 80
Location: Voss, Norway
|
| Posted: Mon Mar 26, 2018 3:48 pm Post subject: Re: Help for measurements seat brackets |
|
|
Hey, that would be just superb. my car is also 78so that should be good stuff.  |
|
| Back to top |
|
|
rshepard10
Samba Member
Joined: December 28, 2013
Posts: 127
|
| Posted: Fri Mar 30, 2018 12:56 pm Post subject: Re: Help for measurements seat brackets |
|
|
Sorry for such a late response!
The measurements for the middle seat goes as follows
(Taken from a LHD bus)
Drivers side wall to first mount
3" 3/4
First mount to second
1' 4" 1/16
Second to third mount
1' 1" 1/2
Third to fourth
1' 4"
3rd mount to riser between front seats
1' 7" 7/8
I'm not sure what you are asking for on the rear seat
