Can someone explain what the posts are for on the 1971 Gauge Cluster.
They are below the Bright Light Warning Light, and the Parking Light Warning Light.
I am thinking they are Ground posts, but can't see it on the wiring diagram.
If ground wires? where should they run to / from?
_________________
ROBERT
My VWs & Projects - | - German Invasion VW Show - Sept 7, 2024 Shelby, NC |
|
| Back to top |
|
 |
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52650
|
| Posted: Wed Jul 23, 2014 4:52 am Post subject: |
|
|

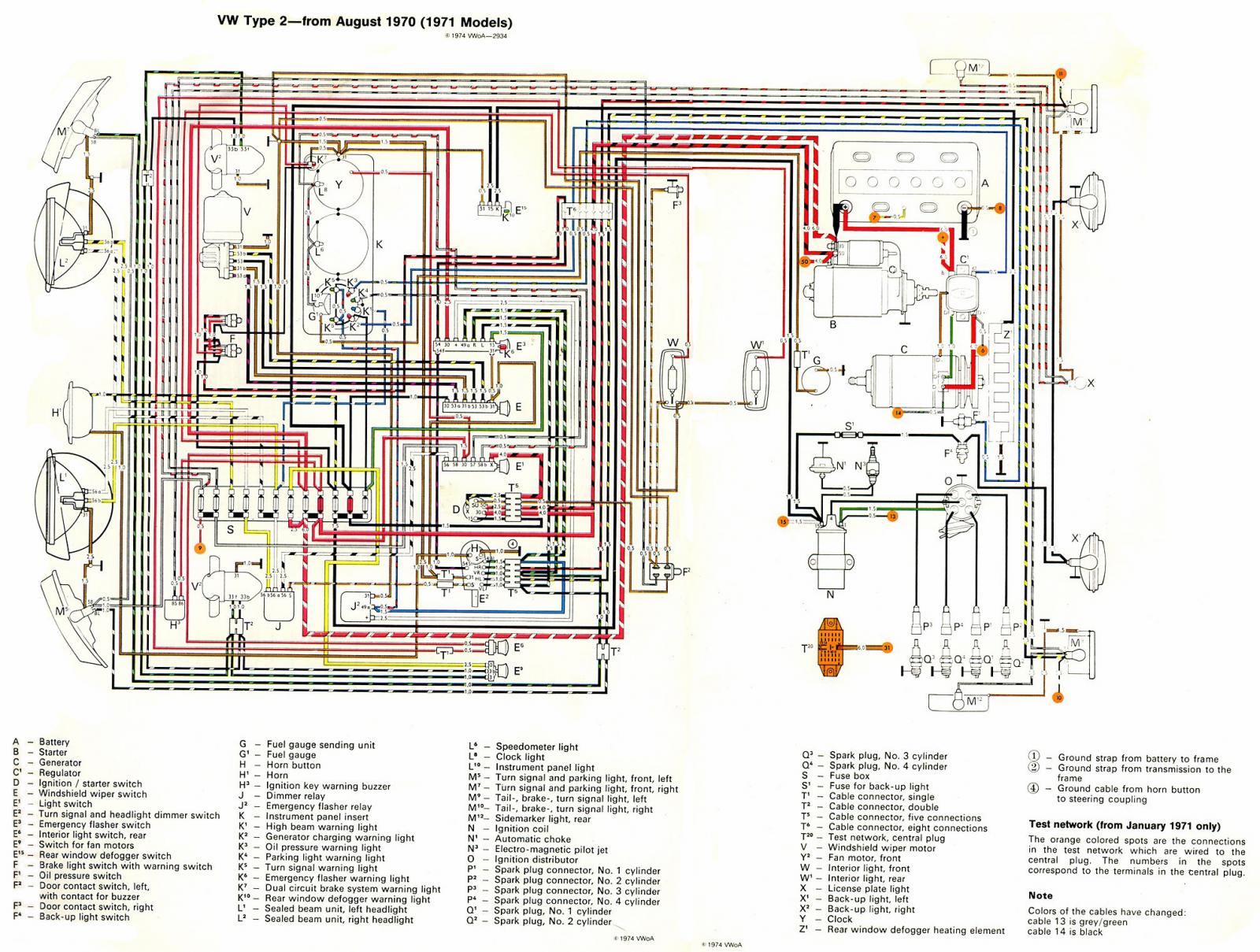

| It is just a pair of ground connections. In the diagram at the "top" of the instrument cluster you can see how the grounds are supposed to run, they are the brown wires. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed Jul 23, 2014 7:47 am Post subject: |
|
|
|
|
| Back to top |
|
|
NCdad
Samba Member
Joined: August 28, 2008
Posts: 1536
Location: South Carolina
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42905
Location: at the beach
|
| Posted: Wed Jul 23, 2014 8:36 am Post subject: |
|
|
we have a 1977 so I don't know if this will help or hurt. Ignore the arrow as it addressed a question a long time ago for someone else. The brake light will be different on a 1971 than a 1977 too. We also have an EGR light that you don't. Your dash light wire will also be a different color - mine is yellow but I THINK (and could be wrong) yours is red and gray.
