 Posted: Tue Jul 22, 2014 9:11 am Post subject: Window AC Support |
 |
|
Does anyone have a template or pictures of how to support a window AC while at a campsite? I want to do it as right as possible so as to not scratch anything up or drop the unit. Any suggestions would be appreciated.
_________________
1969 Beetle
1974 Westy 1800cc FI conversion, L62H
Need a really good mechanic for your VW bus? Consider making an appointment with Colin (Amskeptic) next time he passes thru your area. |
|
| Back to top |
|
 |
Bala
Samba Member
Joined: December 04, 2003
Posts: 2637
Location: Austin, TX
|
| Posted: Tue Jul 22, 2014 12:28 pm Post subject: |
|
|
Coincidentally I just tested a prototype A/C support this past weekend on a three day camp out.

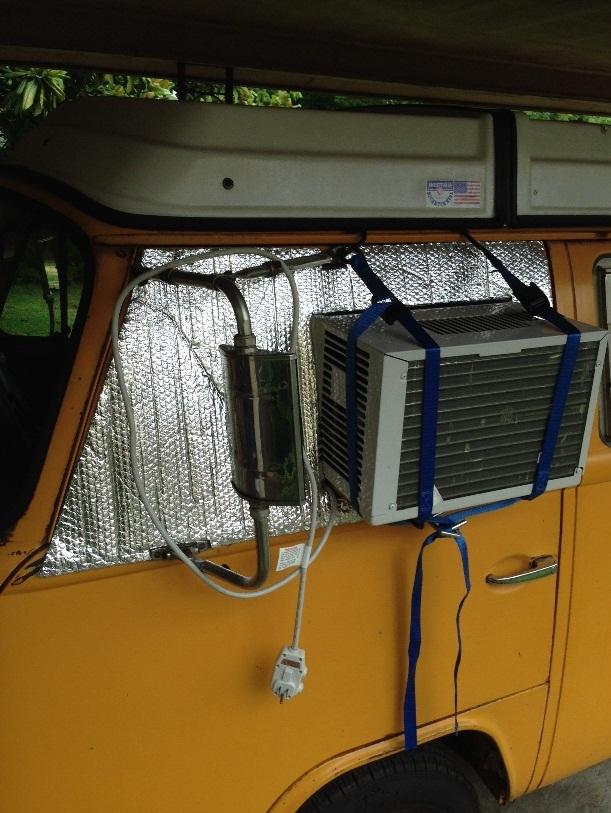

Kinda hard to describe, but I'll try. There is a small piece of plywood that acts as a shelf and in the picture you can just see the bracket/hanger things I used (plywood is on top of the brackets). The bracket sides that hook to the window opening are rubber coated and didn't scratch the paint at all. The other ends (you can just see them under the A/C) hook together and the hook end of the straps connect to them and that holds everything in place. Also on the plywood there is some foam attached so that it seals a bit better and softens the weight of the A/C unit. I used self adhesive magnetic "tape" to secure the surround insulation.
This picture was when I was just test fitting last week. It sat much more level when in use. I can snap some more pictures if you like.
_________________
1976 Westy
1966 Beetle |
|
| Back to top |
|
|
grandpa pete
Samba Member
Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
|
| Posted: Tue Jul 22, 2014 12:38 pm Post subject: |
|
|
The best one I have seen uses a piece of wire shelf and two supports off the gutter to hold the shelf up...pieces of foam filled in around the "open " window
The guy with the red and white 4 wheel drive bus made it
Fit the clothes hanger part of the shelf over the window glass
the shelf supports had adjustable screw links in them
put clear plastic tubing over the gutter hooks
I searched Air Conditioners and got three pages of info; I found this phot to give you ideas...Take out the wood support and hang 1/4 inch threaded rod off gutters
_________________
63 two fold rag
66 sedan delivery Type 6
http://www.thesamba.com/vw/forum/viewtopic.php?t=569619&highlight=sedan+delivery
Last edited by grandpa pete on Tue Jul 22, 2014 2:00 pm; edited 4 times in total |
|
| Back to top |
|
|
Randy in Maine
Samba Member
Joined: August 03, 2003
Posts: 34890
Location: The Beach
|
| Posted: Tue Jul 22, 2014 1:01 pm Post subject: |
|
|
OK I know that I live at the beach in Maine (aka "Vacationland"), but it is really required to have AC to sleep with while camping? Even down south?
I can understand a 12 volt fan that could move some air around during slumber, but we do call it camping for a reason. |
|
| Back to top |
|
|
Bala
Samba Member
Joined: December 04, 2003
Posts: 2637
Location: Austin, TX
|
| Posted: Tue Jul 22, 2014 1:07 pm Post subject: |
|
|
| Randy in Maine wrote: |
OK I know that I live at the beach in Maine (aka "Vacationland"), but it is really required to have AC to sleep with while camping? Even down south?
I can understand a 12 volt fan that could move some air around during slumber, but we do call it camping for a reason. |
My set-up was free, so I thought it would be fun to try out.
Plus, when I already have a fold out bed, sink, closet/cabinets, gas stove, etc., it's already pretty far from actual camping.
_________________
1976 Westy
1966 Beetle |
|
| Back to top |
|
|
philbrickvw
Samba Member
Joined: January 25, 2004
Posts: 107
Location: Iowa City, Iowa
|
|
| Back to top |
|
|
Greg in GA
Samba Member
Joined: April 12, 2011
Posts: 436
Location: Georgia
|
| Posted: Tue Jul 22, 2014 6:20 pm Post subject: |
|
|
Thanks to all that responded. I figured I'd get some grief but I figured I'd ask anyway  . I saw ^^^^, it looks nice but I'm also kinda cheap. If I could fabricate something as good for free-ish I would.
In the photos, is the ac sitting directly on the glass? I'm worried about it cracking. Any pictures of what/how the ac sits on would be helpful.
_________________
1969 Beetle
1974 Westy 1800cc FI conversion, L62H
Need a really good mechanic for your VW bus? Consider making an appointment with Colin (Amskeptic) next time he passes thru your area. |
|
| Back to top |
|
|
Mr. Unpopular
Samba Member
Joined: September 20, 2005
Posts: 3715
Location: Tampa Florida
|
| Posted: Wed Jul 23, 2014 9:24 am Post subject: |
|
|
| grandpa pete wrote: |
The best one I have seen uses a piece of wire shelf and two supports off the gutter to hold the shelf up...pieces of foam filled in around the "open " window
The guy with the red and white 4 wheel drive bus made it
|
This is the method I used. Our A/C is BIG (it was free) so it barely fits in the window opening and its pretty heavy for me to lift (I'm 6'2"-300 lbs).
For supports, I used rubber coated stainless wire with stainless hooks connected to each end. One end hooks on the gutters, the other is pinched around the shelf so I don't lose them.
_________________
"In any racing engine, the nearer you are to it disintegrating, the better it's performance will be"
-Keith Duckworth, creator of the Ford/Cosworth DFV |
|
