| Author |
Message |
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
 Posted: Tue Jul 29, 2014 6:48 pm Post subject: Eugene gets a pop top |
 |
|
Figured I would share my latest project which is adding a pop top to my tin top Syncro. I plan on doing the whole roof section swap but decided to just bolt on the top for now, instant gratification.
Here's the donor
I love my sawzall
Gotta get it home
Dry fit. Interlux paint is amazing!
New headliner.
Still need to cut the main hole and locate holes for rear hinges and luggage rack. Also have to staple in the new Bus Depot canvas. A lot to do but getting closer to popping the top.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
 |
davevickery
Samba Member
Joined: July 16, 2005
Posts: 2887
Location: Fort Collins, CO
|
| Posted: Tue Jul 29, 2014 7:00 pm Post subject: |
|
|
| Looks great Matt, nice redo on the roof "fuzz". Since you got the poptop metal too, your syncro deserves for it to be done 'right' with the roof cut out and donor welded in. |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Tue Jul 29, 2014 7:04 pm Post subject: |
|
|
Dave,
You are absolutely right but I want to stand straight up, not hunched over, right now. Roof section will be a winter project.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
pedrokrusher
Samba Member
Joined: July 11, 2011
Posts: 654
Location: Montreal, Quebec, Canada
|
|
| Back to top |
|
|
jerrydog411
Samba Member
Joined: September 28, 2009
Posts: 388
Location: North Vancouver, BC
|
| Posted: Wed Jul 30, 2014 6:08 am Post subject: |
|
|
Looks Great, Matt.
Where did you get the headliner material and is it less 'fuzzy' than the original?
Cheers,
John |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Wed Jul 30, 2014 6:46 am Post subject: |
|
|
Headliner material is from a local upholstery shop. It's a 1/4" foam back headliner and less fuzzy than the orginal flocking material. I used 3M trim adhesive to glue it to the top. I purchased the adhesive from a local auto body paint supplier. Required 4 cans of adhesive and about 3 yards of headliner material. Total cost was around $116.00, 36 for headliner and 80 for the adhesive.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18981
Location: Retired South Florida
|
| Posted: Wed Jul 30, 2014 6:54 am Post subject: |
|
|
| BookMarked. I have read all the conversion information I could find. It really makes it difficult to decide how to proceed. I expect to have my top off and on a few times during the process and won't bother to finish it till the rest of the project is completed. |
|
| Back to top |
|
|
jerrydog411
Samba Member
Joined: September 28, 2009
Posts: 388
Location: North Vancouver, BC
|
| Posted: Wed Jul 30, 2014 7:03 am Post subject: |
|
|
| msewalson wrote: |
Headliner material is from a local upholstery shop. It's a 1/4" foam back headliner and less fuzzy than the orginal flocking material. I used 3M trim adhesive to glue it to the top. I purchased the adhesive from a local auto body paint supplier. Required 4 cans of adhesive and about 3 yards of headliner material. Total cost was around $116.00, 36 for headliner and 80 for the adhesive.
Matt |
Thanks Matt.
much appreciated and looking forward to your progress.
John |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Tue Aug 12, 2014 7:58 pm Post subject: |
|
|
Finally got it done!!
First cut made into headliner.
Template I made to locate luggage carrier mounts.
Mount bolted up.
Sealant I used.
A look underneath at mount.
Hinge mounted up. I made a backing plate out of steel for mounting to roof, copied crazyvwvanman. I also made a template for locating the holes to be drilled. I had my wife do her own method for locating the holes, basically double check my work. We ended up being within a 1/16" of each other. Location of holes ended up being dead on and the hinges bolted up with no problems.

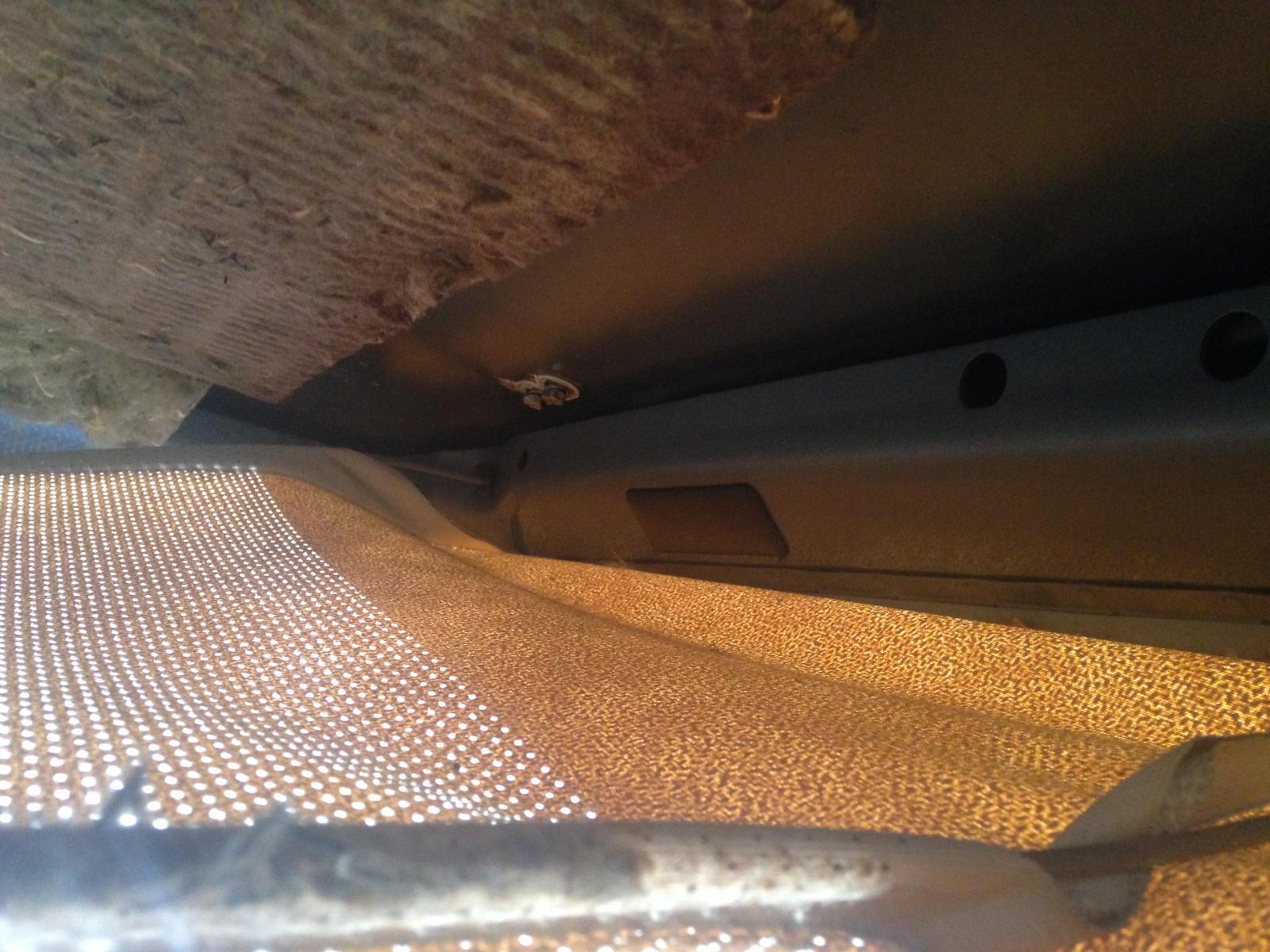

Location used to slide backing plate into place. To access it I pulled the weather stripping off at rear hatch. This exposes the headliner material which was easily pulled away from van. The thin gap in the top corner, above tension rod holding up headliner, is where the backing plate is slid into place. Definitely wouldn't want to drop it before getting a bolt started.

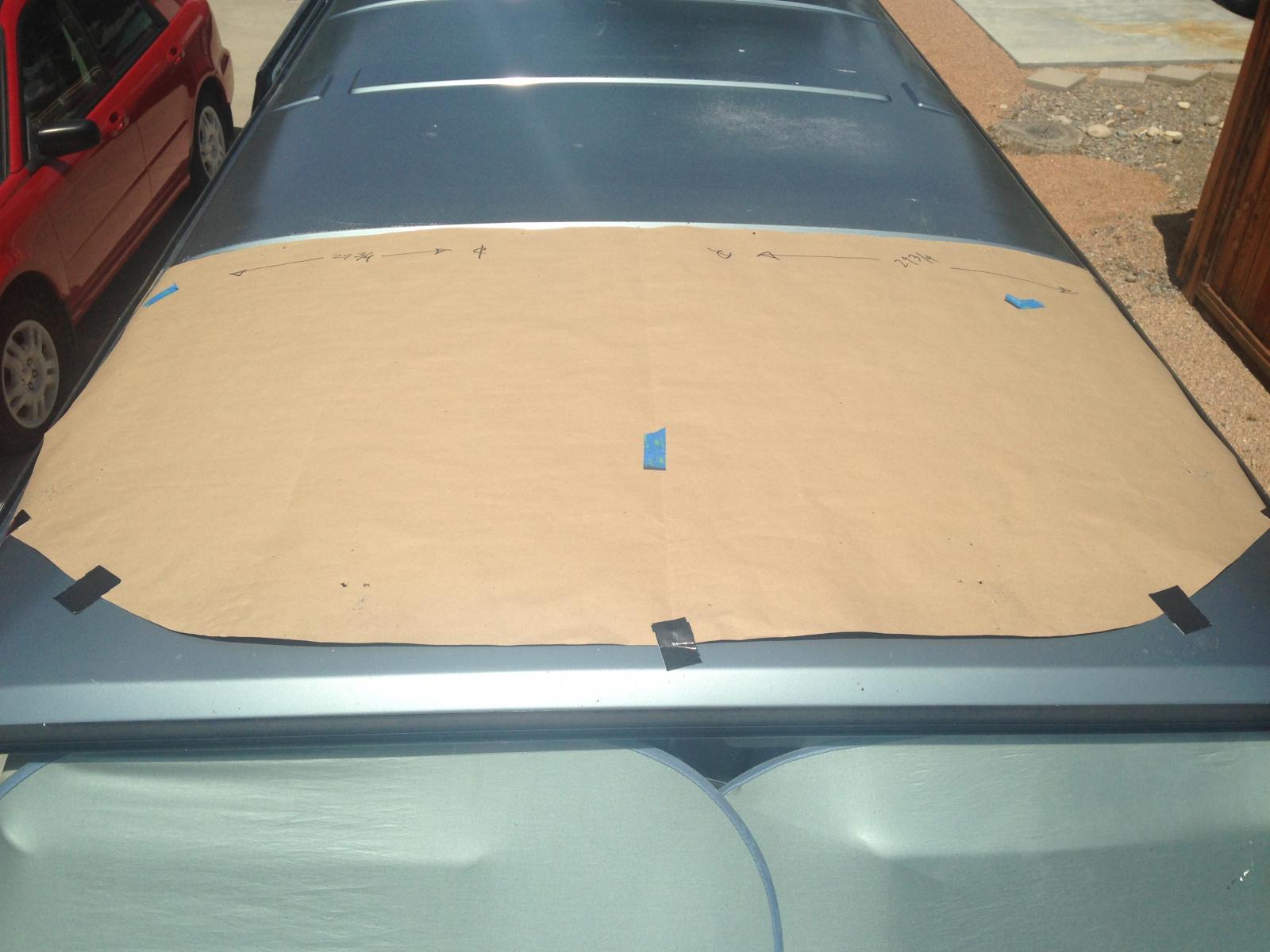

Layout for hole.
No turning back now.
How about a little rain while your cutting a hole in the roof of your van.
I'm thankful it passed by quickly and I was able to finish
Cut outs for support arm, again copied crazyvwvanman.
Support arm mounting, just used a piece of aluminum angle.
The tab on support arm was bottoming out on tin top roof section and preventing top from fully closing.
Easy fix, just hack it off.
Finished project. I didn't snap any photos during the canvas install. I scrapped the plastic tack strip & staples and replaced it with aluminum strip and screws. I laid out the bottom track by taping it to the roof so I could pre drill the holes for the mounting screws. I initially used plain sheet metal screws but had a hard time getting them to line up with the pre drilled holes. Ended up using some self tapping screws instead.
Canvas from Bus Depot. I'm pleased with it and will say the fit is tight. Pop top seal kit and interior trim lock was purchased from Go Westy. Stainless hardware was purchased from Frank Condelli.
I need to swap out the latch screws with shorter ones, poking into headliner. I used contact cement to glue the headliner to the top edge of the cut out. Finished with the trim lock.
In the end I would say the most time consuming thing was painting the top. Dry time for Interlux is 12+ hours. The most difficult part of the install was screwing down the bottom canvas to the roof using the track. Corners are tough and a flexible driver for a drill is needed. Having the roof section on site made locating all hole to be drilled easy, definitely measure twice, and then a third and a fourth maybe even a fifth before drilling any holes.
Next on the list is a level platform up top.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
Herr Motorspiele
Samba Member
Joined: June 11, 2007
Posts: 457
|
| Posted: Tue Aug 12, 2014 8:33 pm Post subject: |
|
|
Looks very nice!
I hope someone is saving the camper interior and cabinetry from the donor before it rots away!
Great job on the top! |
|
| Back to top |
|
|
Kombi///M3
Samba Member
Joined: March 16, 2011
Posts: 427
Location: Vancouver, BC
|
| Posted: Tue Aug 12, 2014 10:47 pm Post subject: |
|
|
Great job.. Exactly how I did mine except half the roof hole.
Cheers. |
|
| Back to top |
|
|
TequilaSunSet
Samba Member
Joined: May 30, 2012
Posts: 2109
Location: Philippines
|
| Posted: Tue Aug 12, 2014 11:13 pm Post subject: |
|
|
I thought a roof section had to be grafted... way cool!
_________________
Don't harsh my mellow...
1985 Hightower Vanagon 1.8T- Gone
1972 Panel Bus- Gone
1967 Bug- Gone
1964 Euro Sunroof Bug- Gone
1969/72/63 Sunroof Bug- Gone
1975 Brazilian Bug in the Philippines 🇵🇭- New to me |
|
| Back to top |
|
|
KindaHippyish
Samba Member
Joined: December 18, 2007
Posts: 109
Location: Austin, TX
|
| Posted: Wed Aug 13, 2014 8:39 am Post subject: |
|
|
Looks great! This is motivating me to go to the local VW pick-n-pull to see if there are any poptop donors.
_________________
1995 Eurovan Camper 5SPD
1991 Vanagon GL 4SPD – Subaru DOHC EJ25 - SOLD
1984 Vanagon Wolfsburg 4SPD – 1.8 I4 - Traded Away
1986 Vanagon GL Syncro 2.1L WBX 4SPD - RIP |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18981
Location: Retired South Florida
|
| Posted: Wed Aug 13, 2014 9:03 am Post subject: |
|
|
Hello, thank you for sharing your work. I have a question about your hinge attachment. I believe the camper roof has flats that the hinges sit on. In your one picture it looks like the roof is slightly deformed behind the hinge attachment.
Did you just flat bolt the hinges to the tin top roof or did you massage the area of the roof where the hinge sets?
I am looking at my options as well. I need the upper berth so will need to do a little more surgery than you, but could simplify the project if I do the hinges the way you did. Thank you. |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Wed Aug 13, 2014 9:24 am Post subject: |
|
|
I just bolted the hinges up as is with no mods to the sheet metal. I think you're
seeing scratches in the paint that occurred during the install.
Also, I still have my templates if anyone would like to use them.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
Kombi///M3
Samba Member
Joined: March 16, 2011
Posts: 427
Location: Vancouver, BC
|
| Posted: Wed Aug 13, 2014 9:37 am Post subject: |
|
|
| msewalson wrote: |
I just bolted the hinges up as is with no mods to the sheet metal. I think you're
seeing scratches in the paint that occurred during the install.
Also, I still have my templates if anyone would like to use them.
Matt |
That's good to know.. I did flattened mine a bit to make the rear
Poptop sit right and flushed with the roof.
are you going to make the bed section too?
Cheers,
Ogi |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Wed Aug 13, 2014 9:59 am Post subject: |
|
|
I'm planning on making a bed platform. Plan is to have a section of it flip over to cover a majority of the opening. I did reinforce the sides of the opening with angle aluminum to support the section that will fold over.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18981
Location: Retired South Florida
|
| Posted: Wed Aug 13, 2014 10:07 am Post subject: |
|
|
| Kombi///M3 wrote: |
| msewalson wrote: |
I just bolted the hinges up as is with no mods to the sheet metal. I think you're
seeing scratches in the paint that occurred during the install.
Also, I still have my templates if anyone would like to use them.
Matt |
That's good to know.. I did flattened mine a bit to make the rear
Poptop sit right and flushed with the roof.
are you going to make the bed section too?
Cheers,
Ogi |
Ogi, do you have any pictures of how you massaged that area? My assumption is on these older hinges, perhaps having them sitting square to the poptop is not as important as it was when they originally rolled out of the factory. If the hinges were bolted without the top, my guess would be if you measured between the hinges extended you'd find that the distance is greater compared to a actual camper chassis. Probably the wear in the hinges and the give in the fiberglass allow it to work. Thank you.
Matt, it is not the scratches, but probably a shadow I see. Thank you again for sharing. |
|
| Back to top |
|
|
Kombi///M3
Samba Member
Joined: March 16, 2011
Posts: 427
Location: Vancouver, BC
|
| Posted: Wed Aug 13, 2014 10:30 am Post subject: |
|
|
| msewalson wrote: |
I'm planning on making a bed platform. Plan is to have a section of it flip over to cover a majority of the opening. I did reinforce the sides of the opening with angle aluminum to support the section that will fold over.
Matt |
Nice.. Just an idea, how about instead of folding bed, make it sliding.
So no other mechanism involve. Just make 2 halves of the bed one
half sit on top when not needed then just slide over for the full bed.
Secure it with metal latch so they don't come apart on you while sleeping.
just an idea. Good luck.
As for rsxsr, I don't have pics but I did it by using 2x4 wood piece placed on
About 2" section and hammered the wood just enought to flattened the edge
Top where the hinges sits on.. Trace the hinges first before doing it, gives you
An idea where to flattened it. Hope I made sense;) I wrapped the wood with electrical tape to prevent scratching. But beware of paint flaking when the edge
Bend.. Tap it one at the time hard but gradual.
Good luck.
Ogi |
|
| Back to top |
|
|
msewalson
Samba Member
Joined: September 14, 2009
Posts: 544
Location: Grand Junction, Colorado
|
| Posted: Wed Aug 13, 2014 10:37 am Post subject: |
|
|
rsxsr,
Honestly I wouldn't worry about flattening out the hinge section. Just measure, drill, bolt and go.
Matt
_________________
87 Syncro w/EJ22 |
|
| Back to top |
|
|
|
