I'm working on cleaning up the 73 square I got recently. It runs really well once it warmed up, but pretty poorly when it is cold. Strangely it starts well when cold, and has a hard time start once it is warmed up. Anyway, my question is about the carbs. The FI has been replaced with some dual carb set up, which looks similar to this :

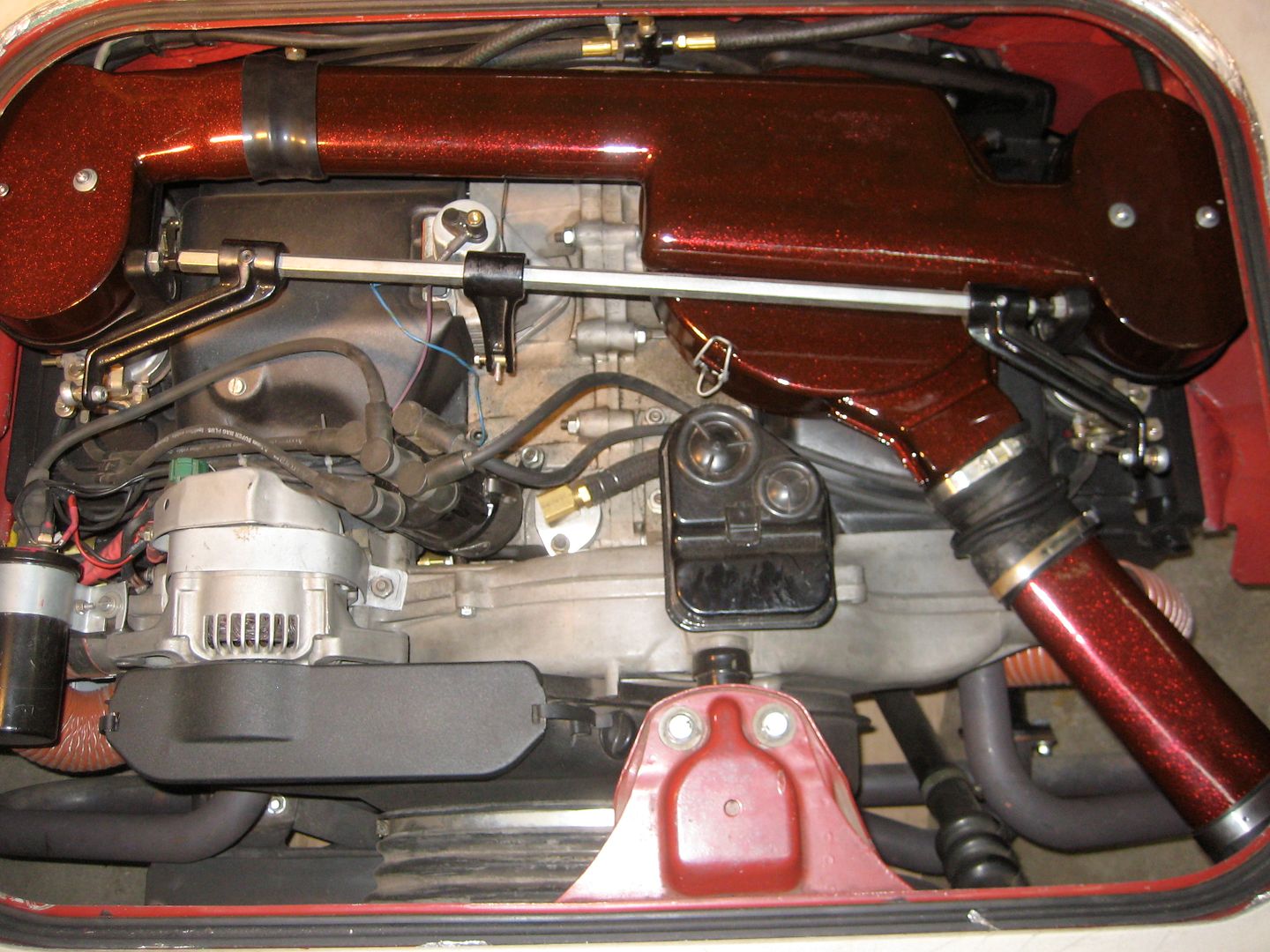

EDIT : Not my engine, but a similar set up.
The air box connection in the lower right is missing. How big of an issue is this? I'm taking it in to get the windshield replaced tomorrow at Always Vdub, and I'm guessing they will have the part to connect it.
The other question is the electrical tabs on the front of the carbs. Neither carbs are currently hooked up to anything, but it looks like there is a wire back in there that should connect to them and the distributor. Is this correct? If so, what does this wiring do, and where do I connect it to the distributor?
Thanks! I'm really excited about this car. I'll make a more thorough "rejuvenation" thread before long. It needs a lot of work, but the body is pretty straight, and low rust, other than the floor pans, which are super shitty and next on the list of work to be done.
Also, what carbs are those, and what year are they off of? The Bentley for my year obviously does not talk about this PO modification.
Last edited by the north wind on Thu Oct 23, 2014 12:49 pm; edited 1 time in total |
|
| Back to top |
|
 |
the north wind
Samba Member
Joined: August 23, 2007
Posts: 102
Location: Portland, OR
|
| Posted: Wed Oct 22, 2014 7:24 pm Post subject: |
|
|
| Oh, and I'm missing the hole cover to the box in towards the rear of the car from the fan shroud, as in the previous picture. Issue or non-issue? |
|
| Back to top |
|
|
hoss
Samba Member
Joined: May 01, 2003
Posts: 789
Location: San Jose, CA
|
| Posted: Wed Oct 22, 2014 10:49 pm Post subject: |
|
|
Can you post a picture? I would really help show what you are talking about.
If the PO installed the carbs in the photo, those are stock Type 3 Solex carbs starting in '64. Should be plenty information on how to tune them.
_________________
'54 Kombi | '57 356 Coupe | '57 Samba | '62 Notchback | '63 Beetle | '66 Pigalle Sunroof Squareback |
|
| Back to top |
|
|
the north wind
Samba Member
Joined: August 23, 2007
Posts: 102
Location: Portland, OR
|
| Posted: Wed Oct 22, 2014 11:05 pm Post subject: |
|
|
| hoss wrote: |
Can you post a picture? I would really help show what you are talking about.
If the PO installed the carbs in the photo, those are stock Type 3 Solex carbs starting in '64. Should be plenty information on how to tune them. |
I'll take some pictures tomorrow morning. The carbs look the same to me, with the same linkage and air intake. Thanks for the info! |
|
| Back to top |
|
|
the north wind
Samba Member
Joined: August 23, 2007
Posts: 102
Location: Portland, OR
|
| Posted: Thu Oct 23, 2014 8:37 am Post subject: |
|
|

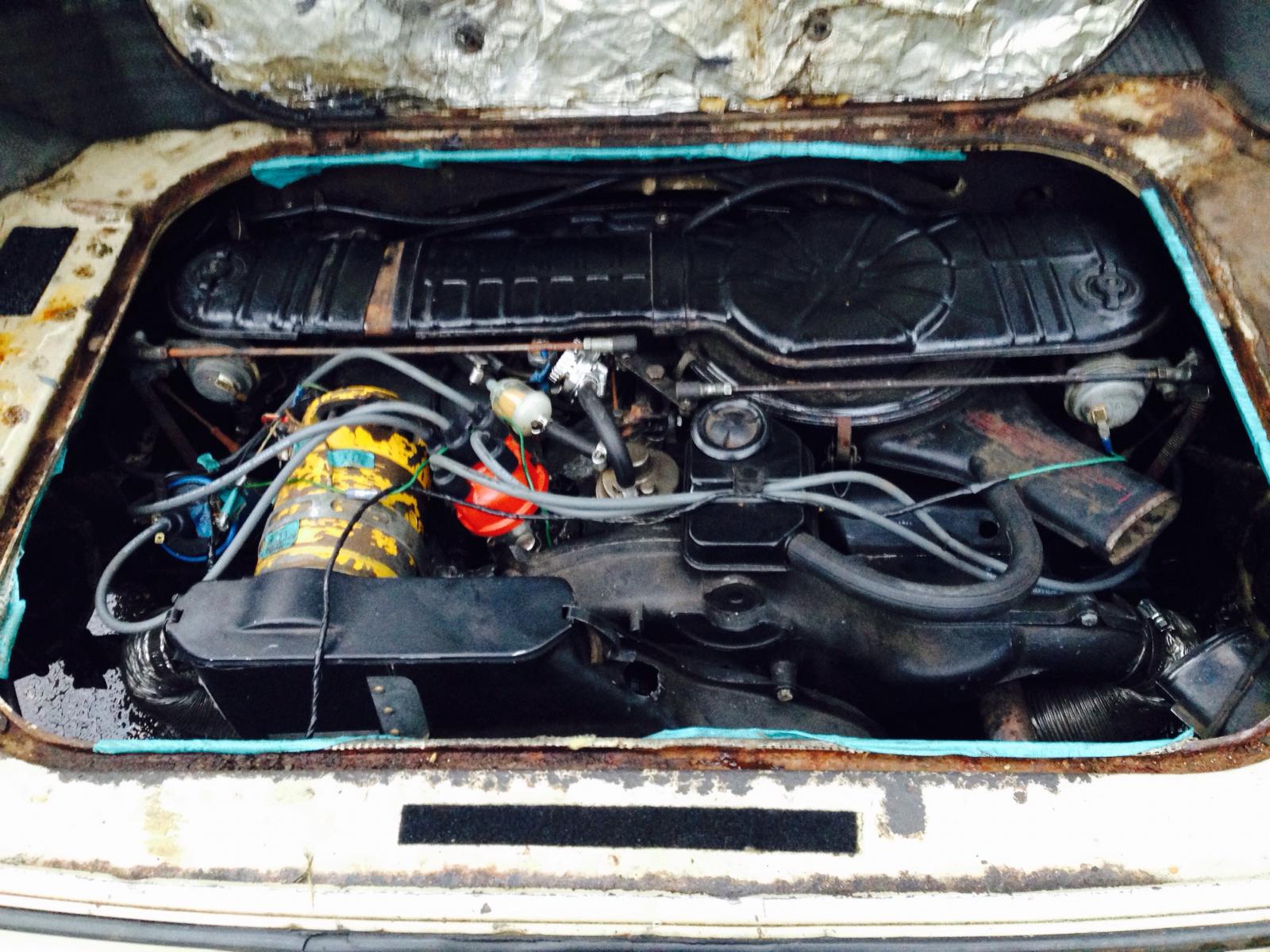

Here you can see the missing tube between the air filter on the carbs and the body vent thing.
