Phoebe - After 10+ years the Resto begins!
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Fri Oct 24, 2014 4:33 am    Post subject: Phoebe - After 10+ years the Resto begins! Reply with quote

I bought my Ghia in about 2001 or so, drove it around for about 2-3 years and took it off the road to strip and restore. Life got in the way and fast forward 10 years and one house move I am finally getting started.

Dropped off the floor pan, gearbox/axle and front beam to the shop this morning. Few panels as well. Drop off the body in the next week or so when work permits.

I'll be doing a bit of running around on this, but largely will be done through one shop based at southport on the Gold Coast, about an hour south of Brisbane. I don't have the time, patience or skills to do what some of you guys do - I dips me lid to those that do!

Her name is Phoebe, named by my eldest daughter some 12 years ago. Phoebe is an Australian delivery 1963 model (built October 1962). Factory RHD, Euro-spec. 52k (undocumented) miles. Numbers matching, originally pearl white. I'll post some photos of it now and along the way. My aim is to be driving it in the second half of next year, we'll see how that pans out!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
John Moxon
Samba Moderator


Joined: March 07, 2004
Posts: 12099
Location: Southampton U.K.
John Moxon is offline

PostPosted: Fri Oct 24, 2014 4:48 am    Post subject: Reply with quote

Good luck with the resto Angus. Still got the '54 Beetle Cab? Smile
_________________
John.
Judson Supercharger Information on The Samba
My 1958 Karmann Ghia
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Fri Oct 24, 2014 11:43 am    Post subject: Reply with quote

No I sold that some years ago. As a responsible family man I decided having two toy cars was a bit greedy. On quiet nights you can still hear me cry a little.......
Back to top
View user's profile Send private message Gallery Classifieds Feedback
John Moxon
Samba Moderator


Joined: March 07, 2004
Posts: 12099
Location: Southampton U.K.
John Moxon is offline

PostPosted: Fri Oct 24, 2014 11:59 am    Post subject: Reply with quote

Angus Dowrie wrote:
No I sold that some years ago. As a responsible family man I decided having two toy cars was a bit greedy. On quiet nights you can still hear me cry a little.......


Haha... Embarassed sorry, I mean you have my sincere condolences.
_________________
John.
Judson Supercharger Information on The Samba
My 1958 Karmann Ghia
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Mon Oct 27, 2014 4:50 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Here is a photo of Phoebe in about 2003, just to prove that she used be a complete working car! The scrungy one on the left. This was one of the last times I drove her, itching to have another go.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Complete with guard dog......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

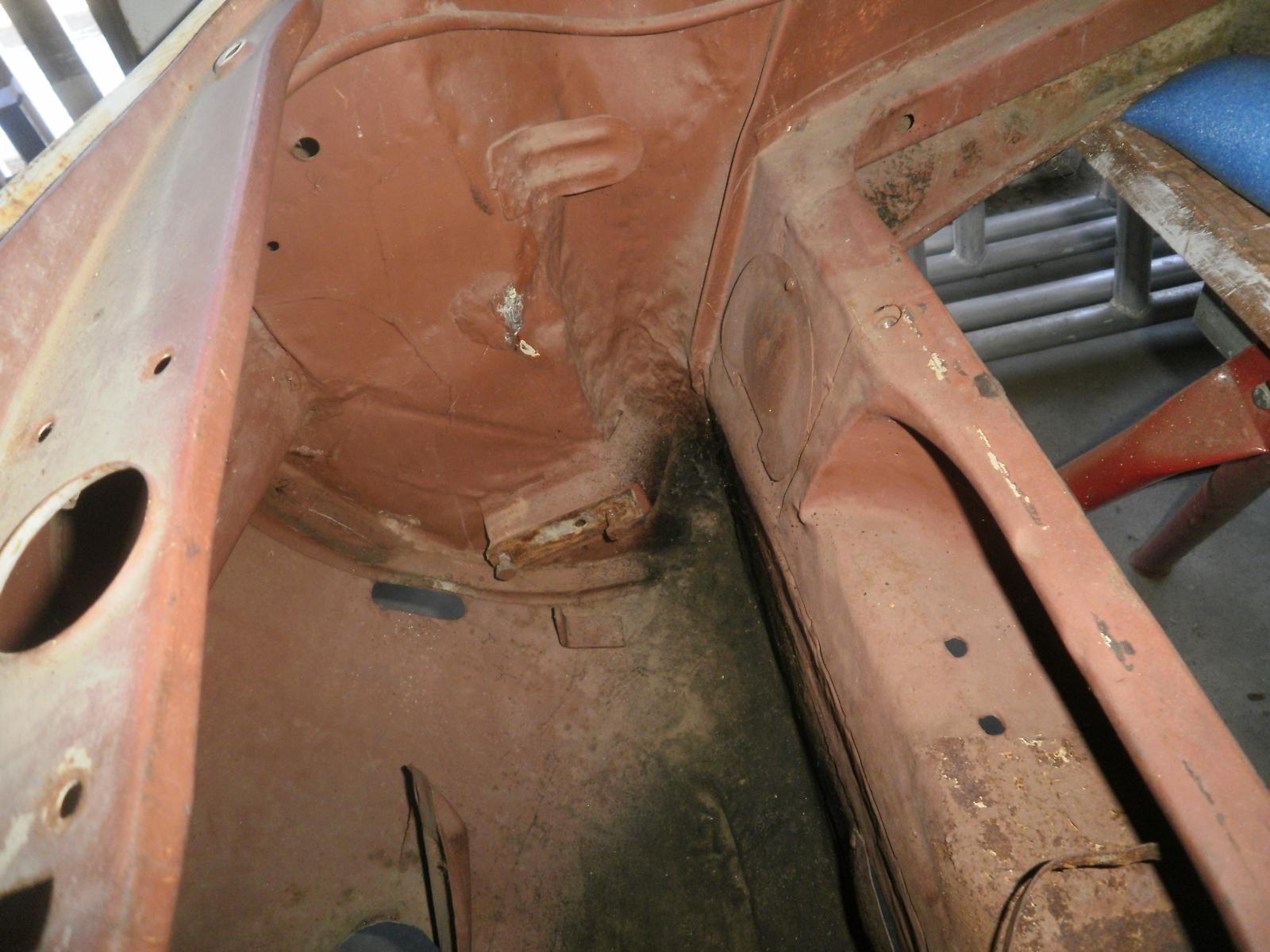

Last two show the worst damage, it hit a bollard on a RAAF base (Royal Australian Air Force) in about 1965.

She is stripped bare as can be seen. Floorpan and gearbox/front beam at the paint shop, body to follow next week if I can get away from work.

Plans are for a fairly stock re-build in Emerald Green, an original 1963 colour. Blue/white contrast roof.

Upgrades/modifications planned at this stage;

- CSP zero-offset front disc brake kit, with dual-circuit MC
- Flat 4 BRMs with about 185ish tyres
- EMPI VDM Steering Wheel
- 1962 Blaupunkt Radio
- original number stale-air 40HP with Riechert twin 28PCI kit/010 distributor.
- 12V
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 5831
Location: Pearl River, NY
Rome is offline

PostPosted: Mon Oct 27, 2014 2:47 pm    Post subject: Reply with quote

It appears that you are lucky to have such a solid, unrusted Ghia. You can probably improve considerably on those front nose area dents with hammer/dolly? How is the metal under and around the battery mount in the engine compartment?

With your plans for the Riechert dual-carbs, have you considered moving the battery to under the rear seat like where it would be on a Beetle?

Your plans sound excellent with the period-style power upgrade, brake and wheel upgrades, and paint scheme. Hope you get it done without much delay.

Dog has really strong teeth to chew on your metal body support leg! Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Mon Oct 27, 2014 6:17 pm    Post subject: Reply with quote

Rome

It's a pretty solid car, why I've hung onto it for so long! There is some rust in the drivers side (RHD car) sill, at the front of the door opening. This will no doubt get bigger when it is excavated, and most likely there will be something on the passenger side as well. It otherwise appears rust-free. Floorpan and body are getting sandblasted so all will be revealed. There are a couple of small areas on the pan that need some love.

Haven't thought about the battery at all, the Riechert kit is not large but I'll have to look into that.

That photo with the dog is probably two years old, the old fella has lost a couple of teeth since then. It does look like he's having a go at the leg doesn't it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Fri Nov 14, 2014 4:56 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


After a busy couple of weeks between work and packing to move house, I finally have got Phoebes shell loaded onto a trailer and off to the shop.

Image may have been reduced in size. Click image to view fullscreen.

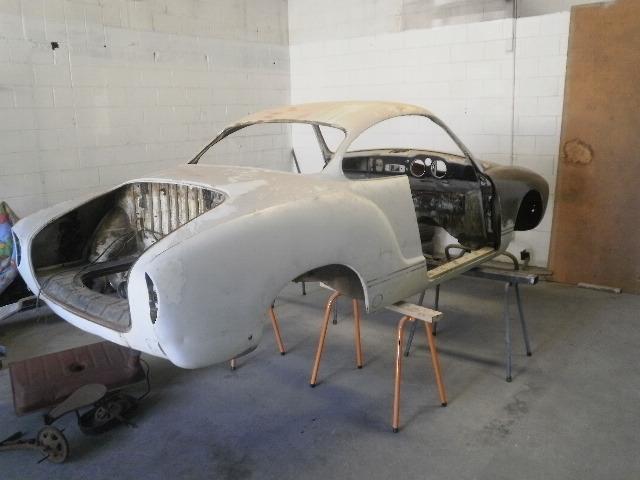

Here she is successfully at Barry's shop. We are having a public holiday here for the G20, and all of Brisbane was leaving town for the long weekend. A trip that normally takes one hour took two and a half.

Image may have been reduced in size. Click image to view fullscreen.


Fuel tank and a kids bike that's going to join the line at the sand-blasters....

Image may have been reduced in size. Click image to view fullscreen.


Bits and pieces for the floorpan, backing plates and beam.

Image may have been reduced in size. Click image to view fullscreen.


Floorpan has been blasted and will be dropped off early next week, shell will get picked up at the same time for blasting, when all will be revealed!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kingkarmann
Samba Member


Joined: November 05, 2003
Posts: 2205

kingkarmann is offline

PostPosted: Fri Nov 14, 2014 2:51 pm    Post subject: Reply with quote

Nice Ghia!
Lots of projects down under!
It's turned cold and windy here in Ohio. My Ghia is tucked away for the winter. These build threads give me something to do as we try and stay warm Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Fri Nov 14, 2014 4:25 pm    Post subject: Reply with quote

We've managed to turn on a heat wave here to coincide with the G20 going on! It's actually hotter here this weekend than it typically gets to in mid summer.

There are quite a number of ghia projects happening around Oz and NZ at the moment, especially considering there really aren't that many of them down here.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Mon Nov 17, 2014 3:59 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

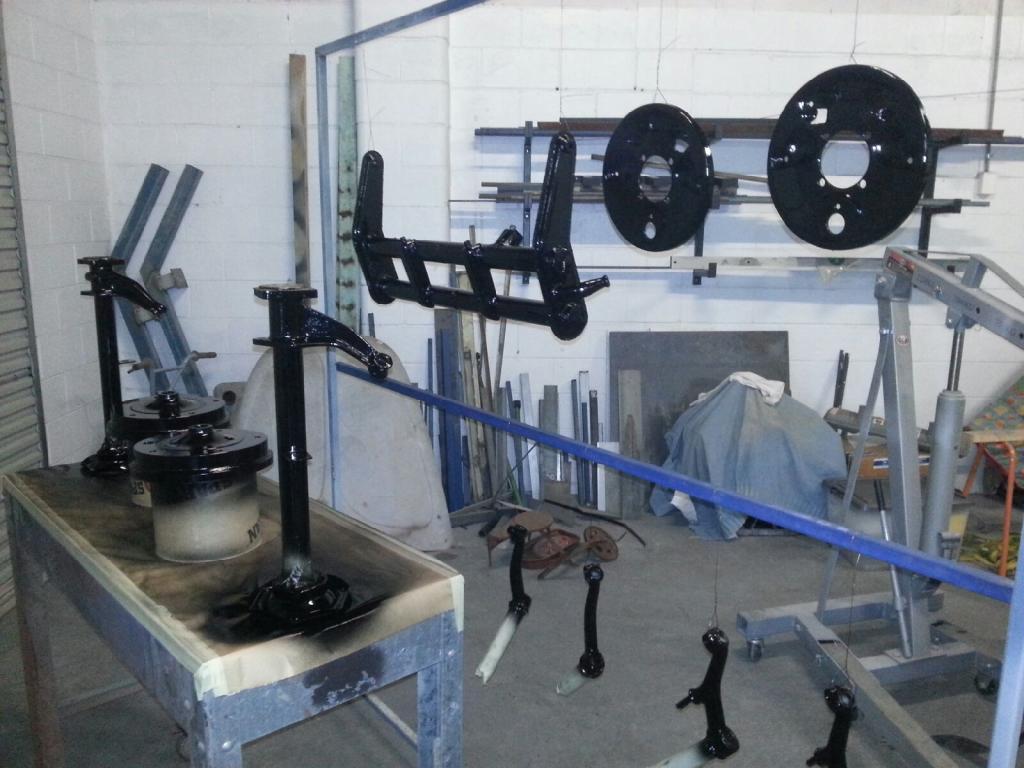

First paint applied to the car. OK it's not that exciting but it's the first shiny bit! Rear drums only as will be running with CSP discs up front.

The body is now on a frame. After carefully looking it all over the prognosis pre blast is little rust aside from the sills, but the accident damage at the front a little worse than initially thought. Overall still good to go. See if I feel the same post blasting.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Mon Nov 17, 2014 11:27 pm    Post subject: Correct fuel tank? Reply with quote

Can anyone tell me if the fuel tank pictured above is the correct one? The car sat for 30 years unused and the original may we'll have rusted out.

Has the correct one got a 'hump' at the front?

October 1962 build, '63 model.

Any help appreciated.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7002
Location: San Dimas
c21darrel is offline

PostPosted: Tue Nov 18, 2014 10:23 am    Post subject: Reply with quote

I think tanks were the same 61-66, if thats right....yours looks correct.
Hump is earlier.
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Tue Nov 18, 2014 8:20 pm    Post subject: Reply with quote

Thanks Darrel

I actually dug out the original cardboard liner that was in there and it would be shaped differently if it ever had a hump tank in there, so I think it is the original (shape) anyway.

It has a mechanical fuel-gauge sender which was unique to the ghias prior to the late '63 models I believe. I don't think the mechanical gauges were ever used on the beetles from the factory.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7002
Location: San Dimas
c21darrel is offline

PostPosted: Wed Nov 19, 2014 12:01 pm    Post subject: Reply with quote

Beetles and ghias both came with mechanical gauges for around the same period early til mid 60's. Beetles were obviously square and ghias round. Some were Magura some VDO. I like them and run one in my 68. I buy them everytime I find a good deal on them at swaps, then forward them thru Samba Classifieds. Smile
The senders have been repopped, WolfsburgWest carries them. Mine works well. Here is a Beetle thread about them..boatload of info...
http://www.thesamba.com/vw/forum/viewtopic.php?t=231562
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Wed Nov 19, 2014 1:19 pm    Post subject: Reply with quote

I posted my comment without really thinking about it much - It is true from an Australian perspective, but not the US/remainder of the world.
Aussie beetles didn't get fuel gauges at all until the "62.5" model year, and then they were electric. The 62.5 model is unique to australian manufacture, known as "the sixty-two and a half" model. So beetles here never had mechanical gauges unless they were a special delivery/custom etc.
Karmann Ghias being fully imported had whatever changes the euro-spec Ghias had, which in terms of gauges were the same as the US models.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7002
Location: San Dimas
c21darrel is offline

PostPosted: Wed Nov 19, 2014 2:35 pm    Post subject: Reply with quote

Quote:

I posted my comment without really thinking about it much


me too, wasnt even thinking you were down under. Embarassed
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Sun Nov 23, 2014 7:53 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Got the floorpan back from the blasters. Nothing too unexpected, the worst is shown in the photo, the 'low' point of the floor behind the front seats. Worst on drivers side, probably end up buying the rear pan halves and just replacing the dimpled sections.

Haven't got the body back yet, wait for that to return before putting together a replacement panel shopping list.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7002
Location: San Dimas
c21darrel is offline

PostPosted: Mon Nov 24, 2014 11:45 am    Post subject: Reply with quote

Masterseries is self leveling and will fill probably all of the pitting. Unless you really want to weld... Smile
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus Dowrie
Samba Member


Joined: March 07, 2005
Posts: 341
Location: Kangaroo Point, Australia
Angus Dowrie is offline

PostPosted: Mon Nov 24, 2014 3:35 pm    Post subject: Reply with quote

I might be able to get away with that on the passenger (left) side, but the pitting in the photo is worse than it probably looks in the photos. A lot of those dark bits at the corners of the dimples are actually pin-holes. It was a little worse than I was expecting, but that's normally what happens after blasting!

It's only in the low bits behind the front seats, the front halves are excellent. Must have had some water come in and just sit in the low points and fester away.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 16, 17, 18  Next
Jump to:
Page 1 of 18


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
