Heat exchanger to heater box? tube?
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Fredrok
Samba Member


Joined: July 06, 2014
Posts: 227
Location: Under the evergreens. CO
Fredrok is offline

PostPosted: Wed Jan 07, 2015 5:23 pm    Post subject: Heat exchanger to heater box? tube? Reply with quote

I'm unable to find any parts reference at all in the Bentley after the heat exchangers. I'm also unable to find any parts reference for a tube that would run between the exchanger and the heat box(?) I have some cheesy tubes on there now around 5" long that don't fit the ends properly. The exchanger is 60mm and the box downstream in the picture is 64mm.

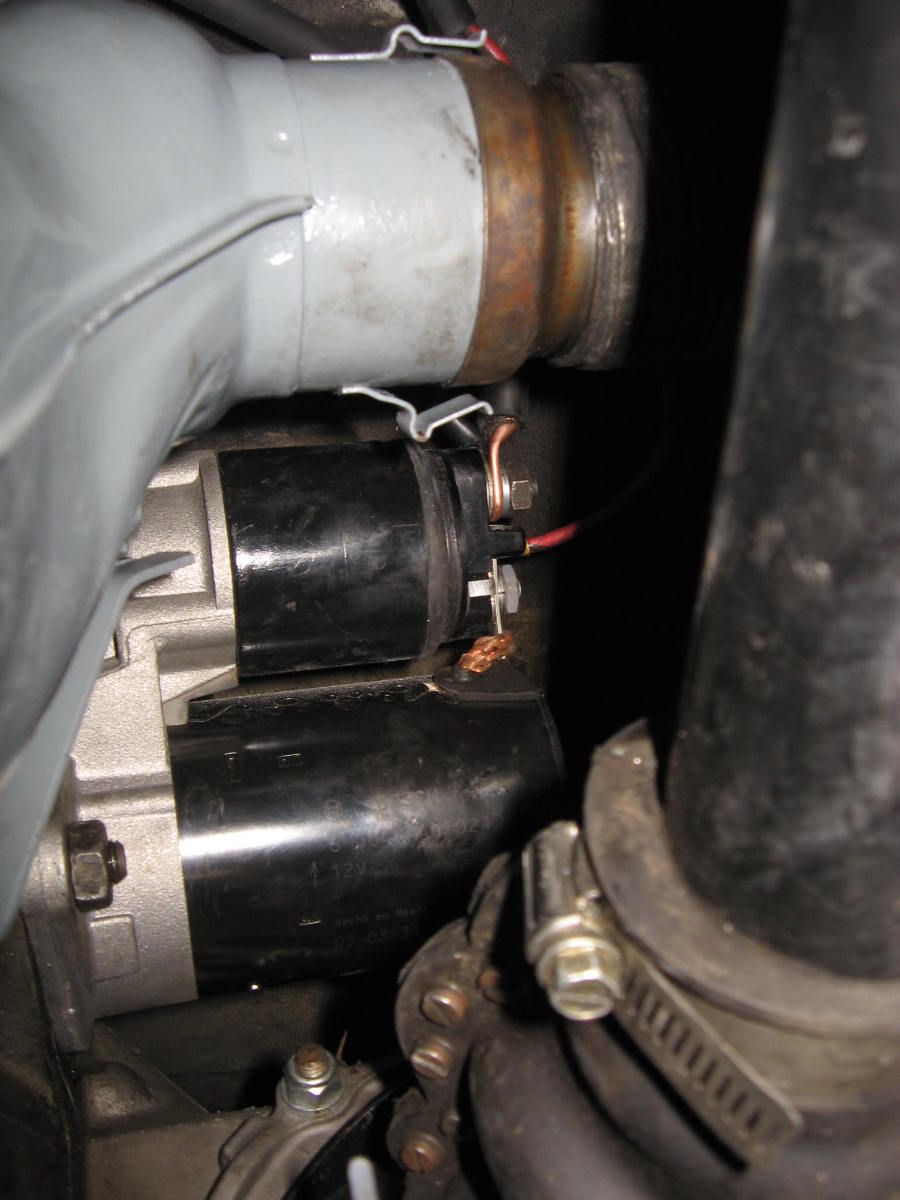

Seems all that is offered in the parts world is the longer plastic flex tubes as in the picture. I could get 2 of those to elimnate the "boxes" altogether with ends that fit properly (60mm-50mm-body tube size) but is that the method most are going with? Seems if I could get the proper flex tube, I'd just stay with the original boxes but I haven't found an appropriate flex tube yet.

Anyone have ideas they care to share? Do you have a solution for the 5"ish 60mm to 64mm flex tube I seek or just pick up a couple of the newer flex tubes in the appropriate size and be done with the boxes?

Thanks for your input.
