 Posted: Fri Jan 16, 2015 10:34 am Post subject: Front Bucket Seats ID T2 |
 |
|
To link to this thread
| Code: |
| [url=http://www.thesamba.com/vw/forum/viewtopic.php?p=7517991#7517991]Front Bucket Seats ID T2[/url] |
FRONT BUCKET SEAT ID
First off I would like to thank everyone that contributed technical and visual information for this Post!
So seat covers should be listed as follows.
68-72
73-74 With holes for headrest. Can use 68-72 covers but have to cut holes for headrest.
75 One year only. Passenger seat fixed and open back. Can use 76-79 covers.
76-79
I will be discussing the two basic styles (shapes) of seats used in the 68-79 VW T2s. The 68-73 Style and the 77-79 Style.
These two styles of seats will fit in multiple years. So it is important that you identify what seats are in your vehicle!
Be aware that Special order or Custom order seat covers are not returnable. So make sure you are ordering the correct seat covers! If you have any doubt. Ship the old seat covers to the seat cover manufacturer. Or take the seats to an upholstery shop.
SEAT ID
68-73 Style (shape) Seats
Box shape bases and backs
Seat base cover attaches on the underside with a wire (or string) running through a hem
Passenger seat Open back
73-74 have headrest mounts
These seats can be found in 68-76 buses.

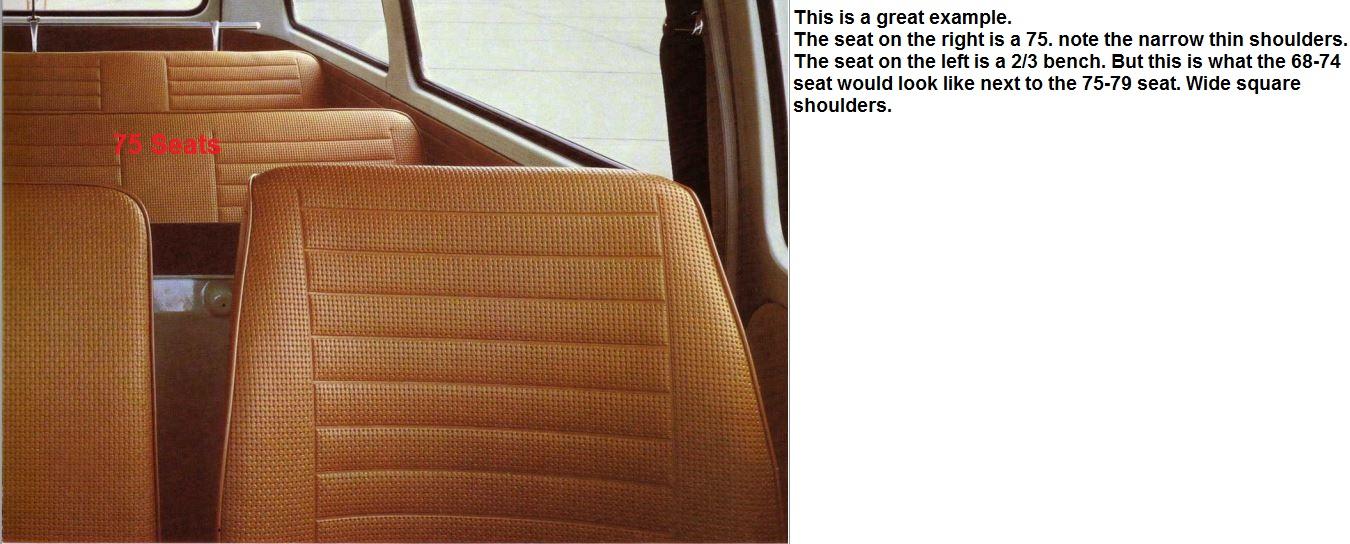

75-76 and some 74 Seats
Have the same shape as the 77-79 seats. But base cover Attaches on the underside with a plastic (or cardboard) strip that tucks into a Groove on the base plate.
Passenger seat has Open back like 68-73
These seats can be found in 74-79 buses.

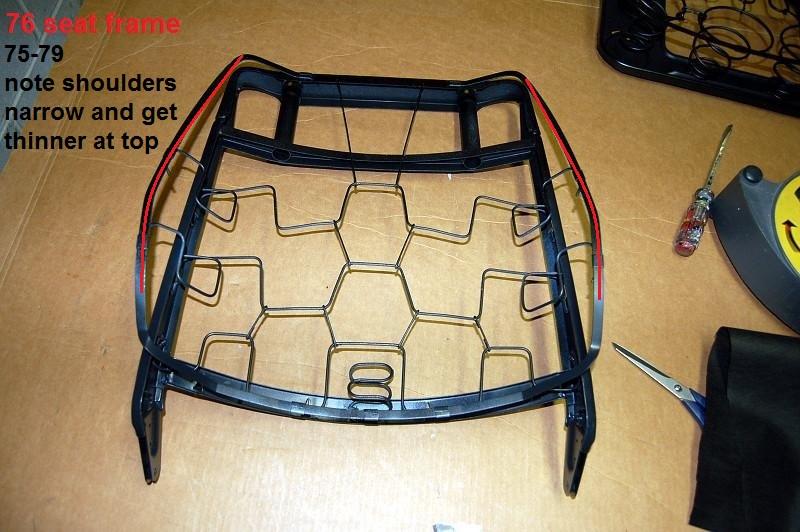

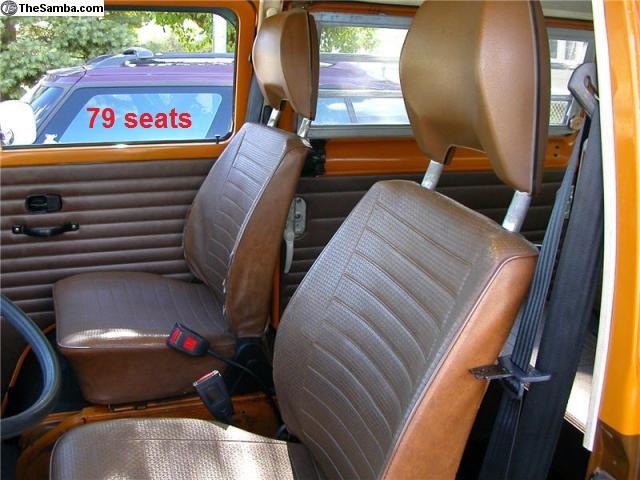

77-79 Style (shape) Seats
Drivers and Passengers Seat is the same seat for 77-79
Bases narrow at the back
Backrests, shoulders narrow and get thinner at the top. Back is more concaved shaped
Base cover is Not Attached on the underside with a plastic (or cardboard) strip that tucks into a Groove on the base plate
These seats can be found in 76-79 buses
DRIVERS SEAT UPHOLSTERY
68-73 and some 74s, upholstery the same
75-76 and some 74s, upholstery material is wedged in between a groove on the bottom of the seat frame
77-79 drivers and passengers seat upholstery the same
PASSENGERS SEAT UPHOLSTERY
68-73 and some 74’s passengers seat upholstery the same. Seat fixed. No back material.
75-76 fixed passengers seat upholstery the same. No back material
76 passengers swivel seat. Drivers seat and upholstery used. Closed back
77-79 passengers and drivers seat upholstery the same
PLEATS(lines)

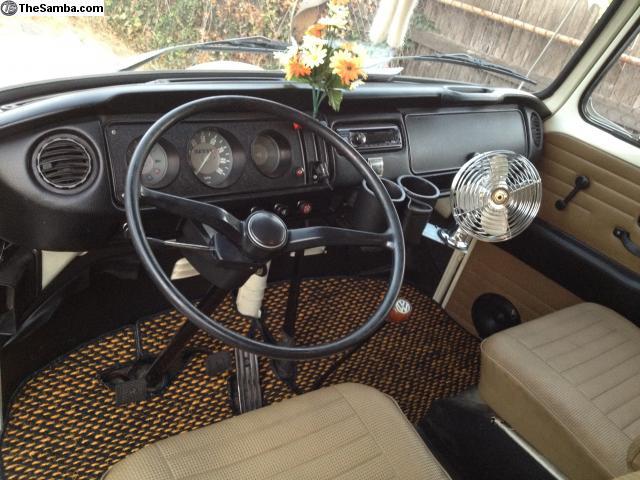

68-72 Regular seats Vertical pleats (lines)

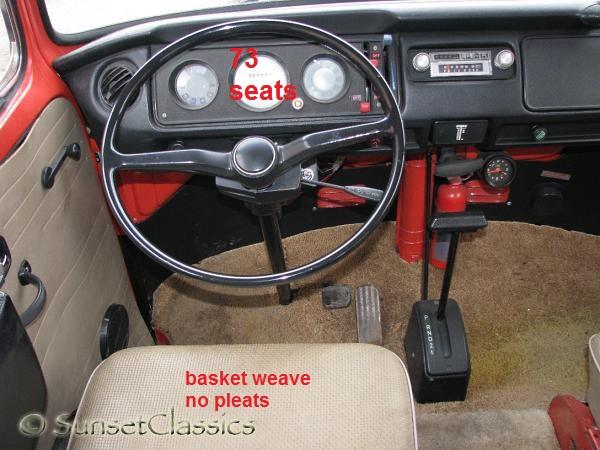

73-79 Regular seats No pleats
73-79 Microbus and Deluxe seats Horizontal pleats

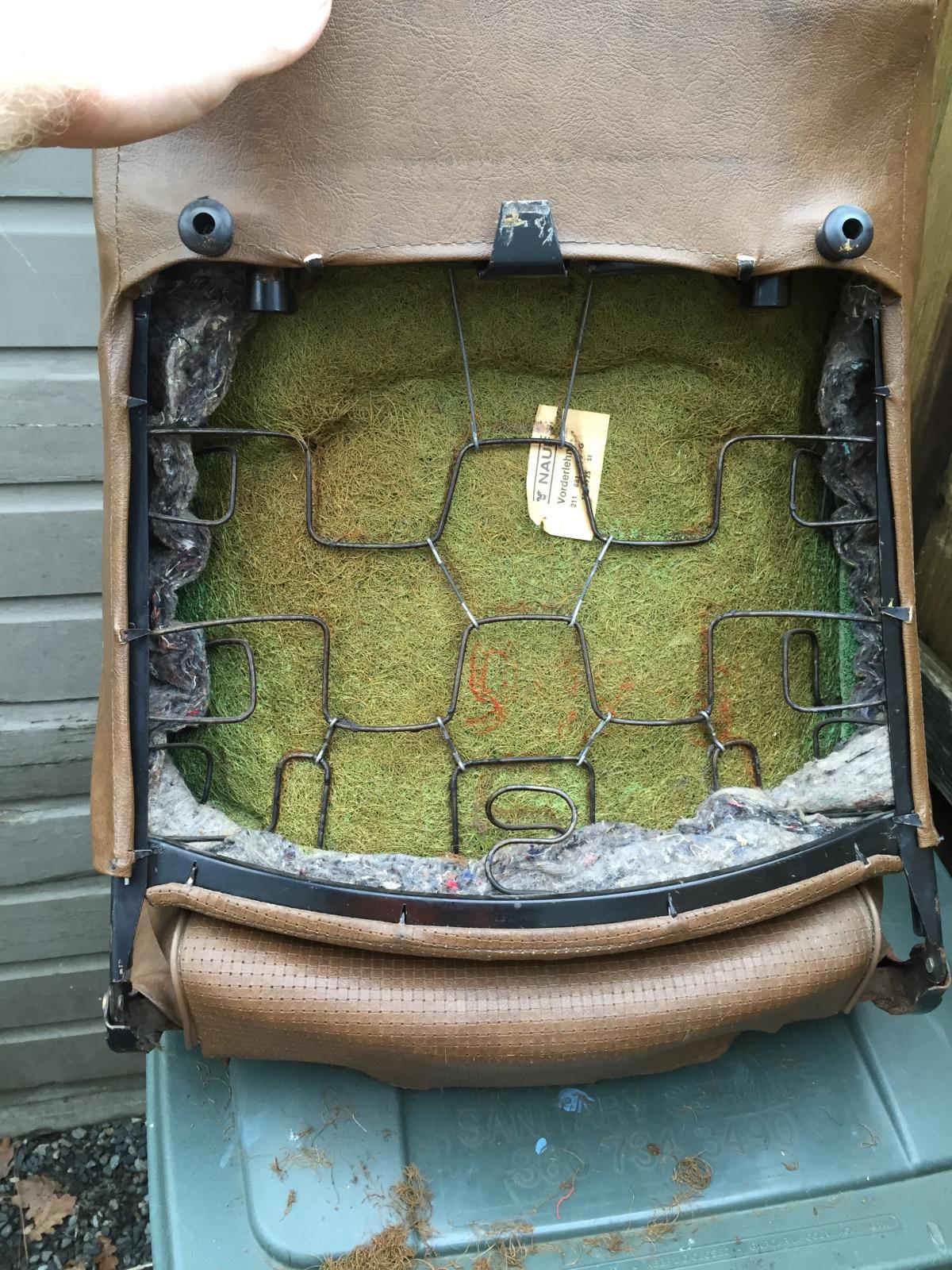

SEAT UPHOLSTERY ATTACHMENT

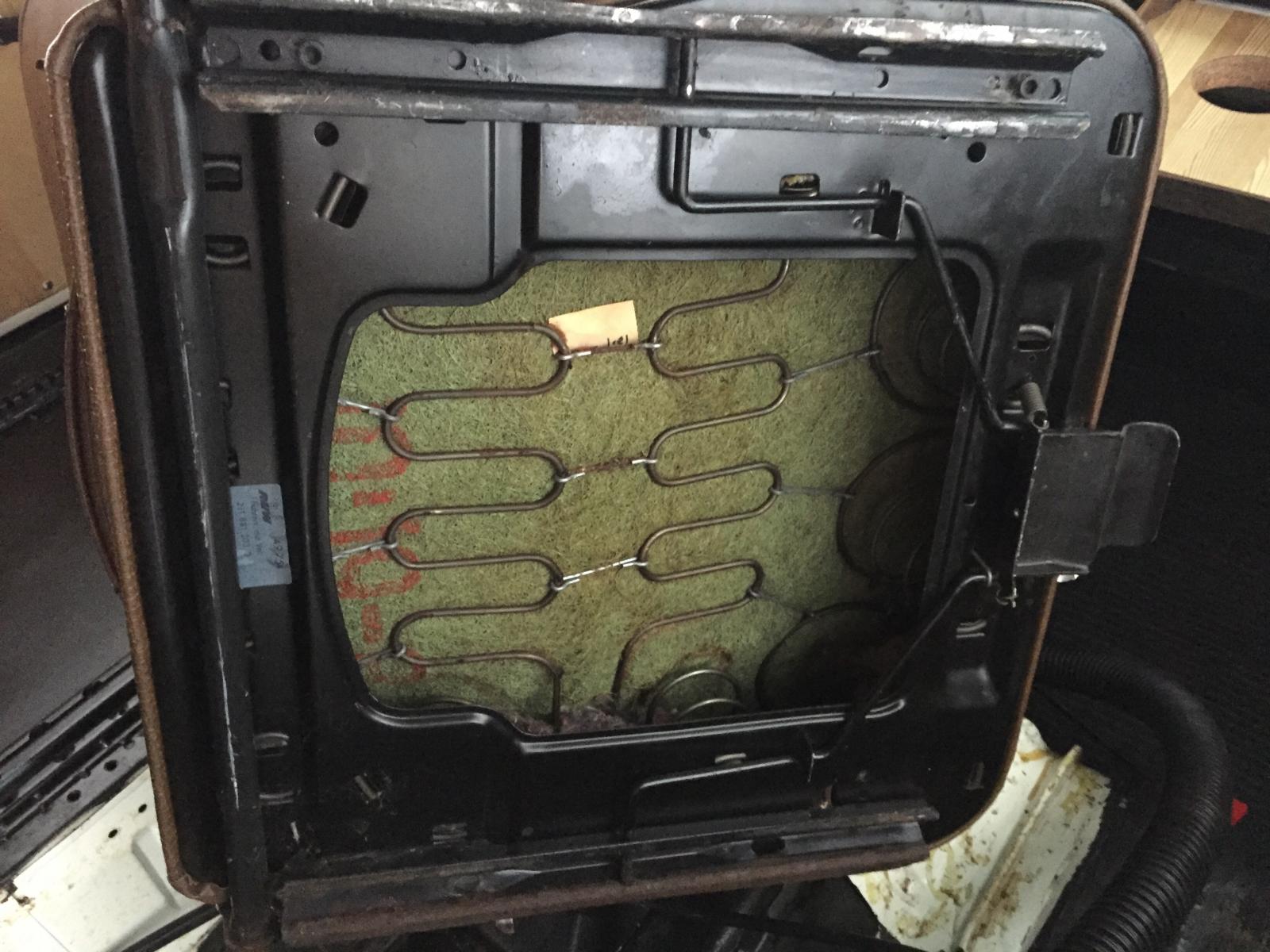

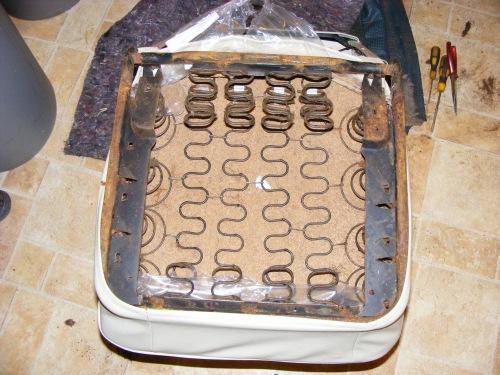

68-73 and some 74s Bottom material attached with a wire and tangs on the frame.
75-76 and some 74s. Seat cover material is wedged into a groove on the seat frame.

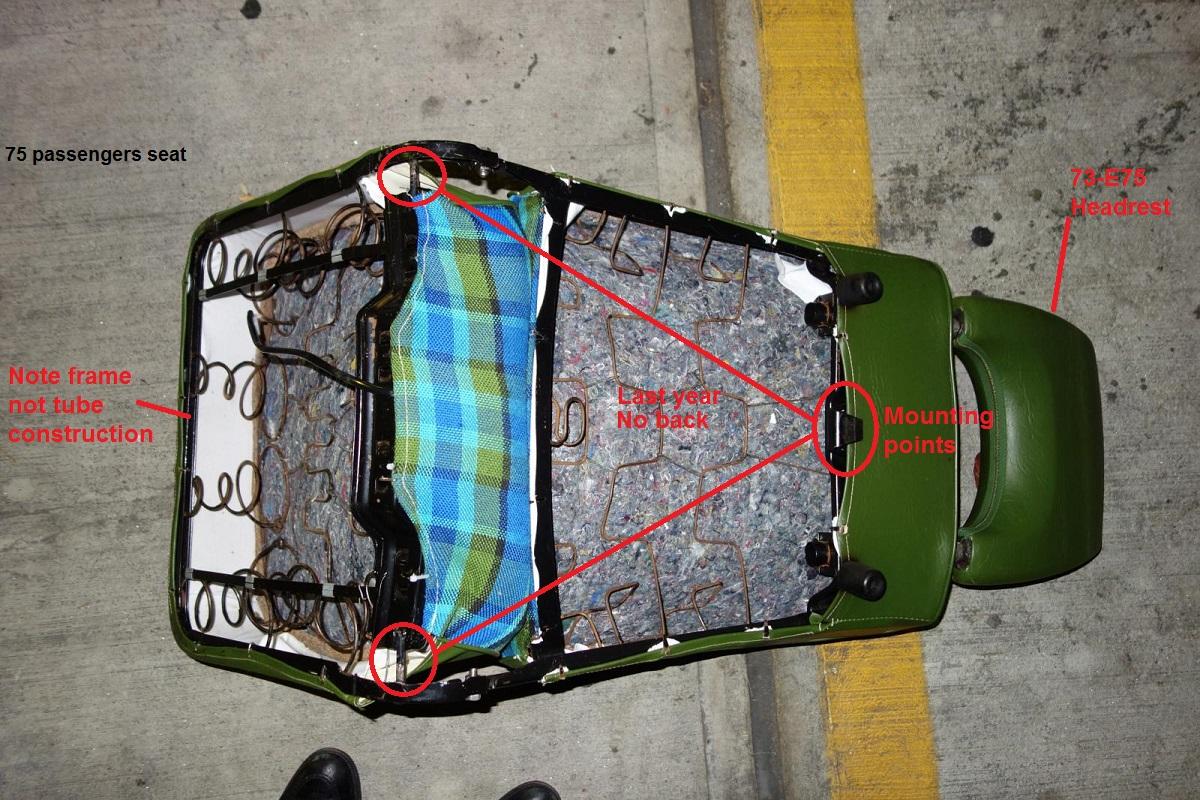

75-76 and some 74s. Fixed passengers seat cover attaches with tangs on the frame.
77 -79 ?????????????????????????????????????????(can’t find driving me crazy)

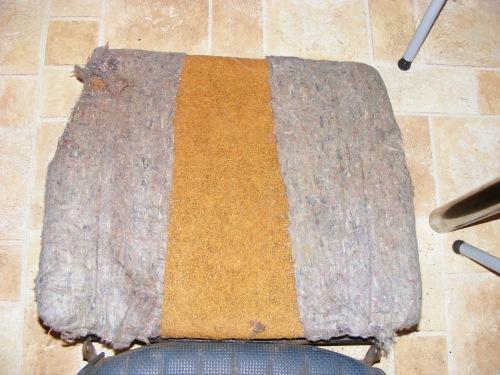

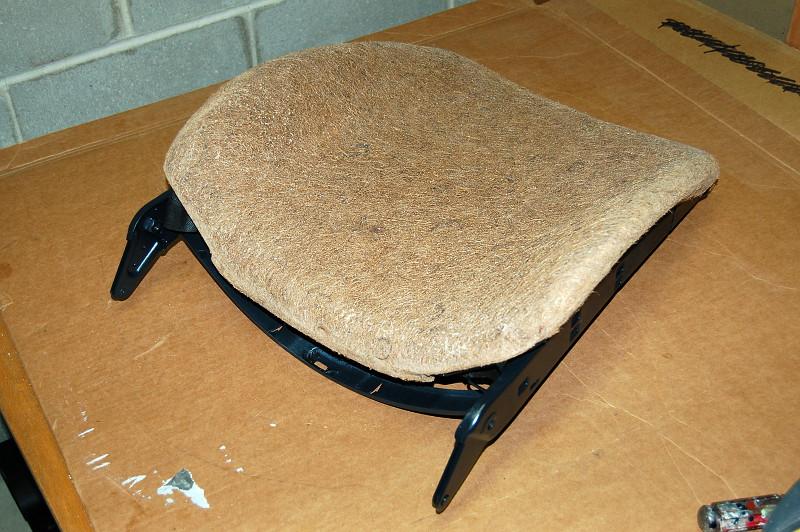

PADS
68-73 and some 74 Seat Pads the same
75-79 and some 74 Seat Pads the same

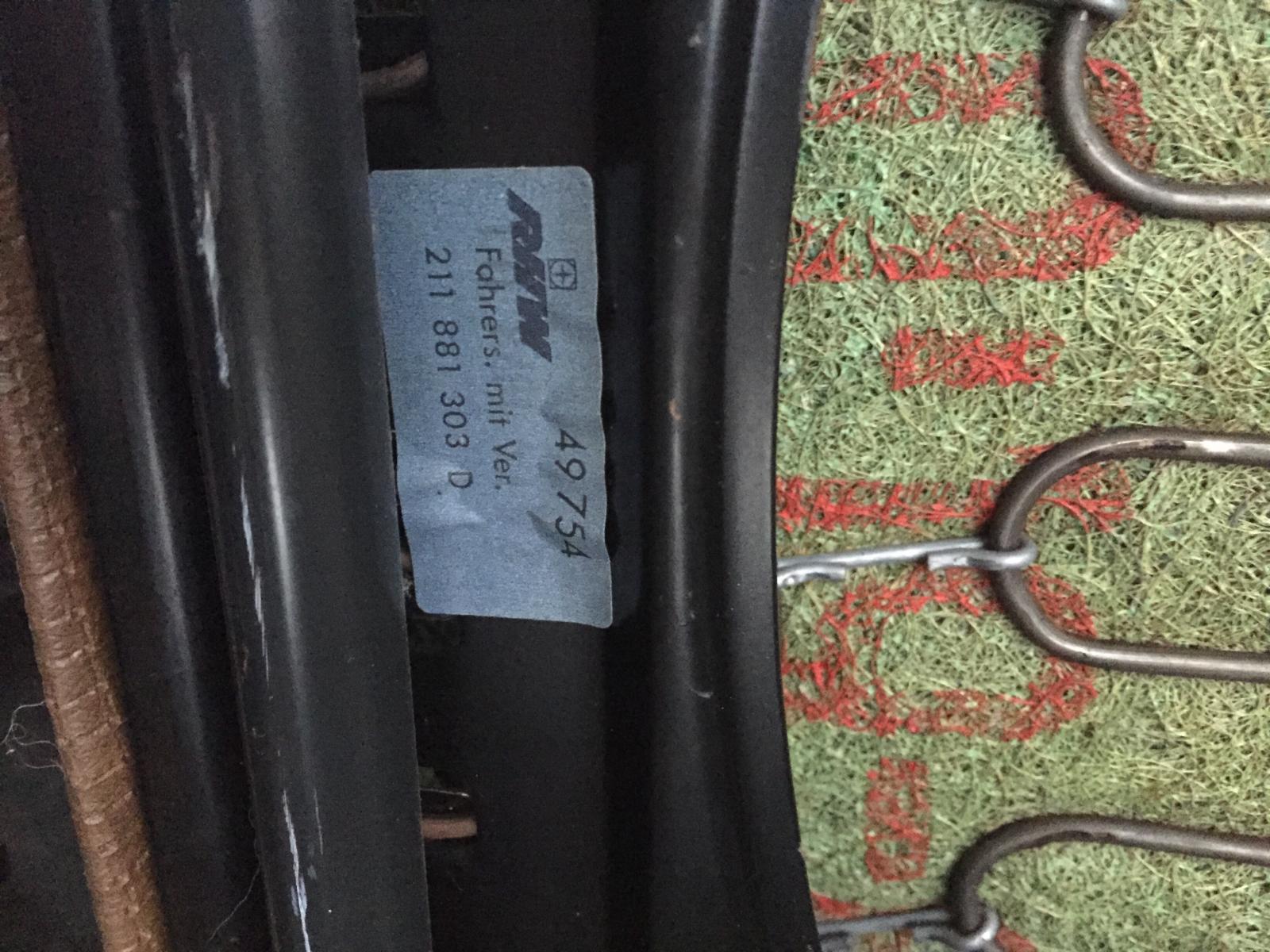

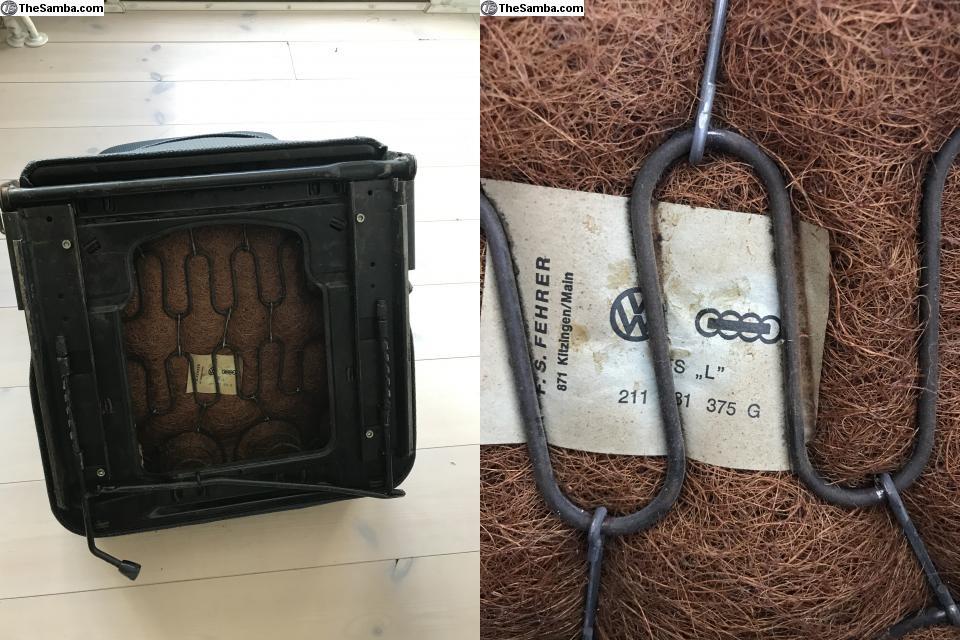

Note: this tag has the Seat Padding part number on it.
HEAD RESTRAINTS (headrest)

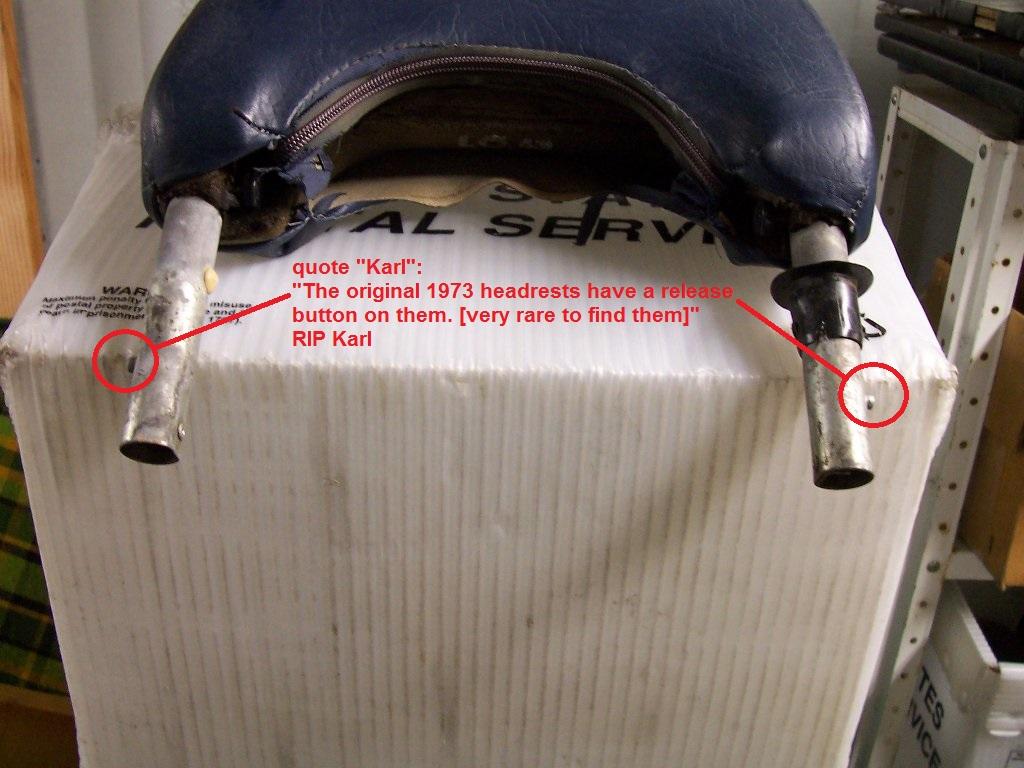

E73 headrests have a release button on them. (Karl)
73-E75 to chassis 215 2049 802 headrest have covers with zipper on the bottom. Tear drop shaped.

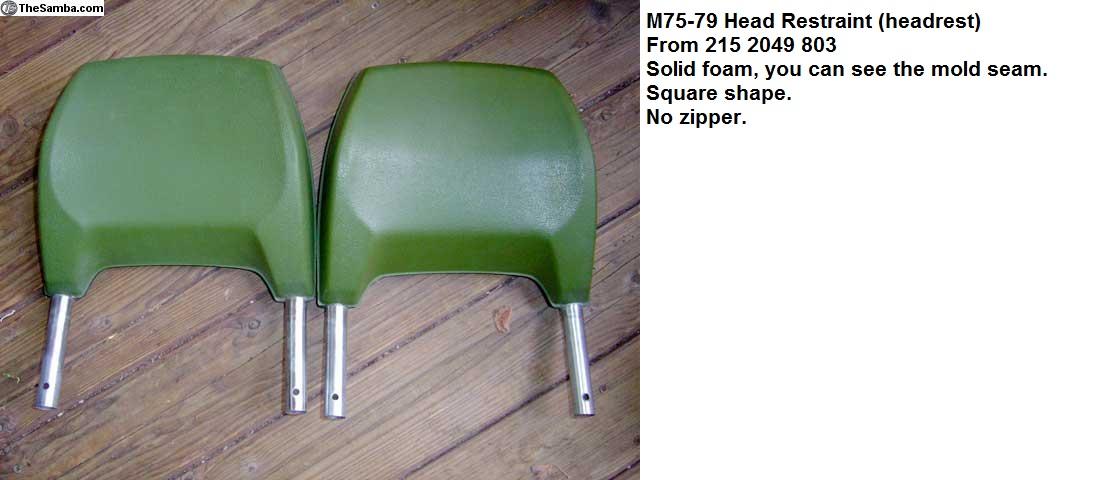

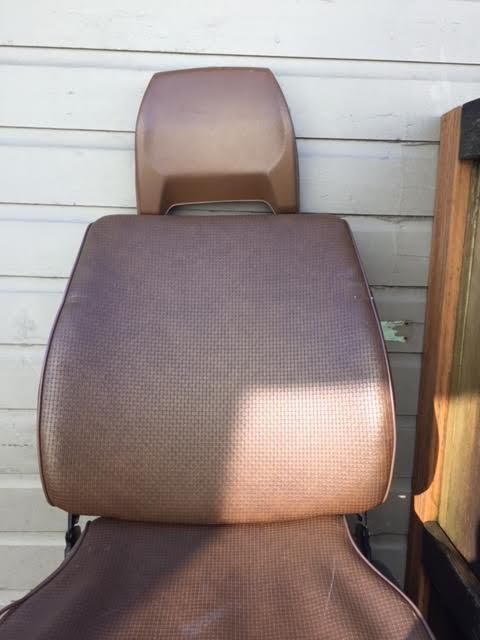

M75-79 from chassis 215 2019 803 headrest are solid foam. Square shaped.
Headrests are interchangeable. (Confirm which ones you have)
RECLINE MECHANISM

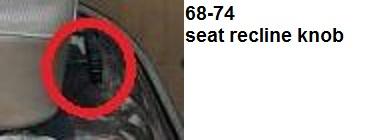

68-74 Driver seat has a round knob located on the lower front of the seat that is twisted to adjust the backrest recline.

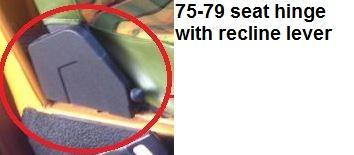

75-79 recline lever moved to the right side hinge of the seat, where seat back attaches.
RECLINE RETURN SPRING

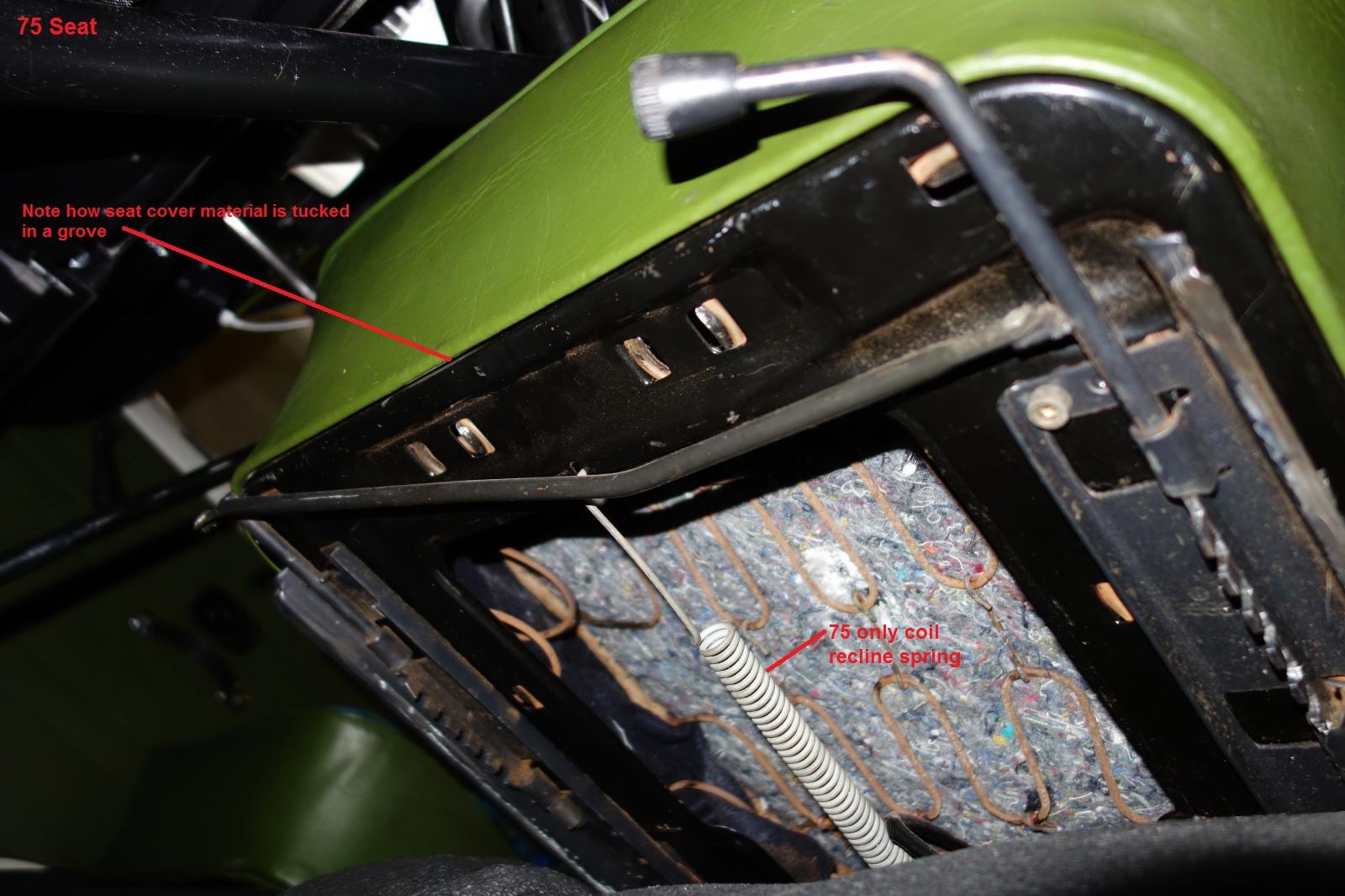

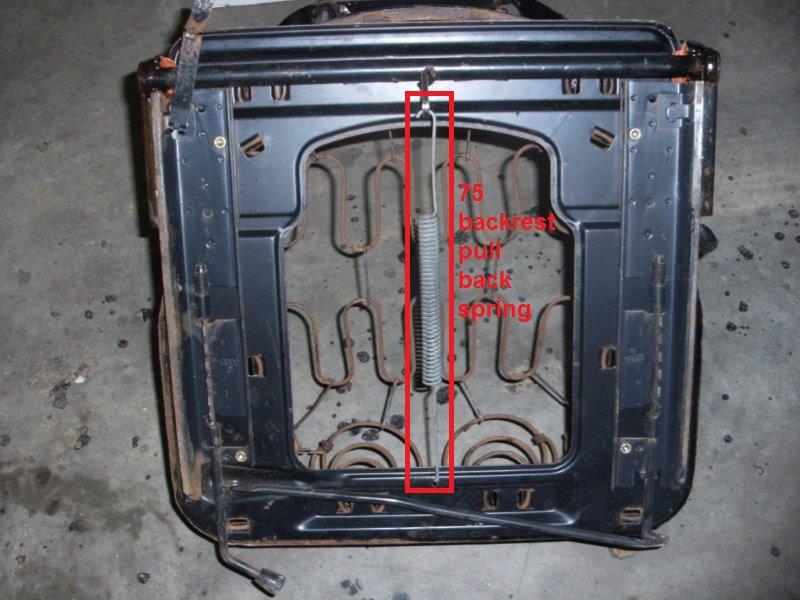

75 Drivers seat only, coil spring located in the center of the seat bottom.

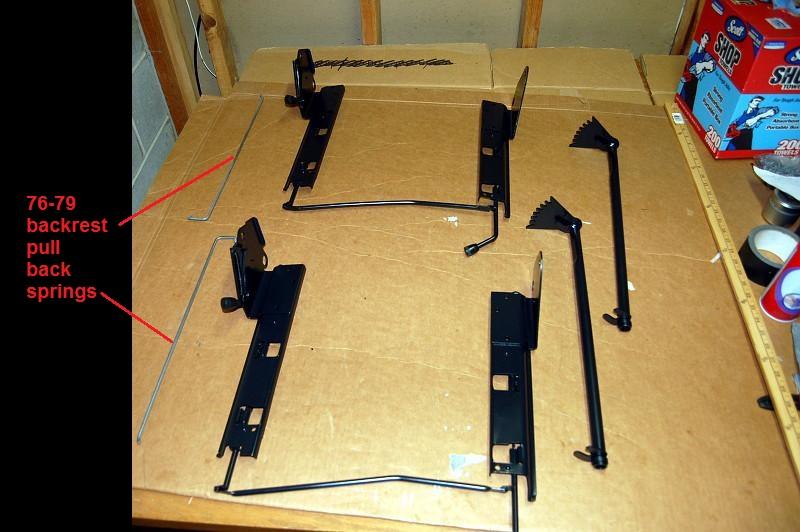

76-79 torsion rod spring located in the hinge cross bar connecting pipe.
SLIDE RELEASE LEVER
68-E76 lever located on the front left hand side of the seat. With release lever #1
L76-79 lever changed with seat tracks, located on the front middle of the seat. With release Paddle #2
SWIVEL SEATS
76 Swivel seat became an option for passengers side only
E76only Swivel bracket had the 68-73 style seat Runners. With release Lever #1
L76 Swivel bracket changed to the 77-79 style seat Runners. With release Paddle #2
77 Drivers side swivel seat offered?
77-79 Swivel brackets the same driver and passenger side

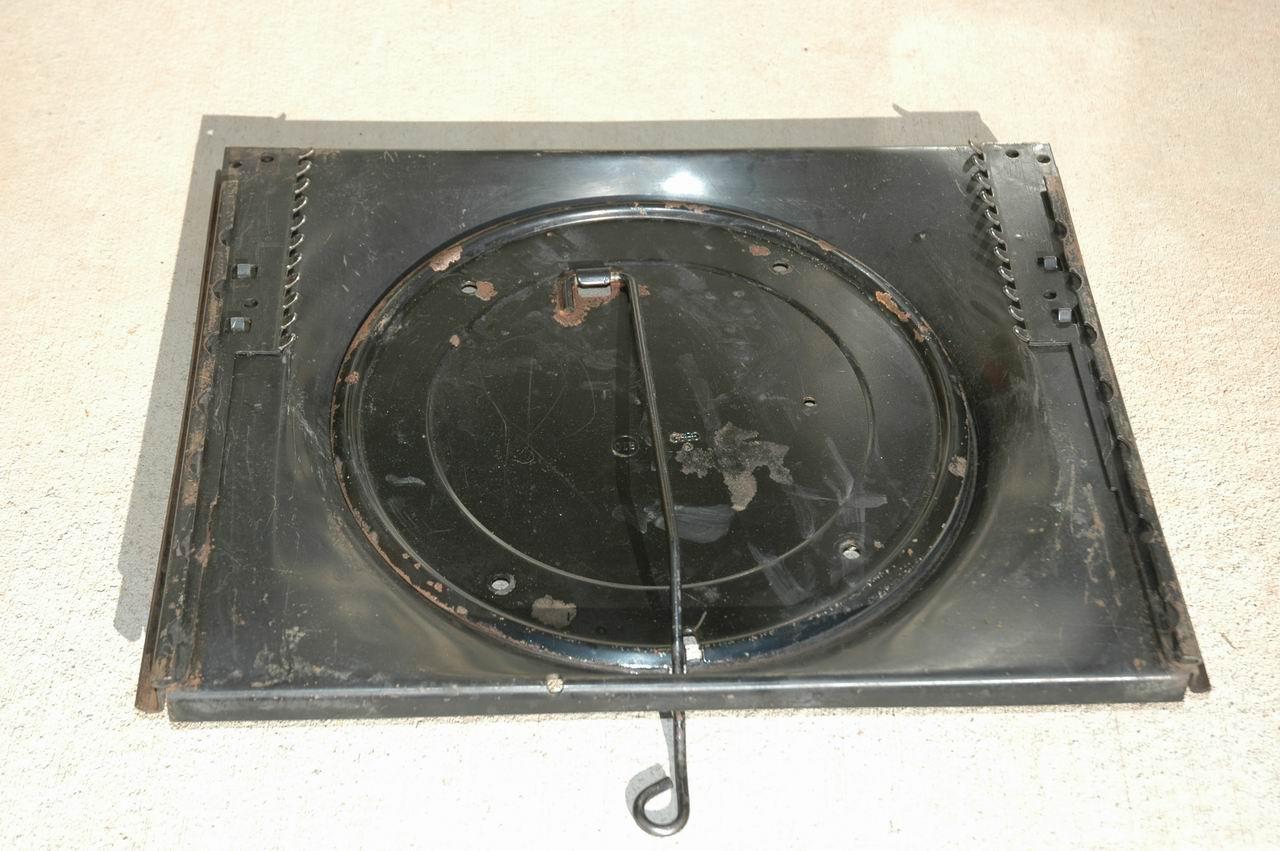

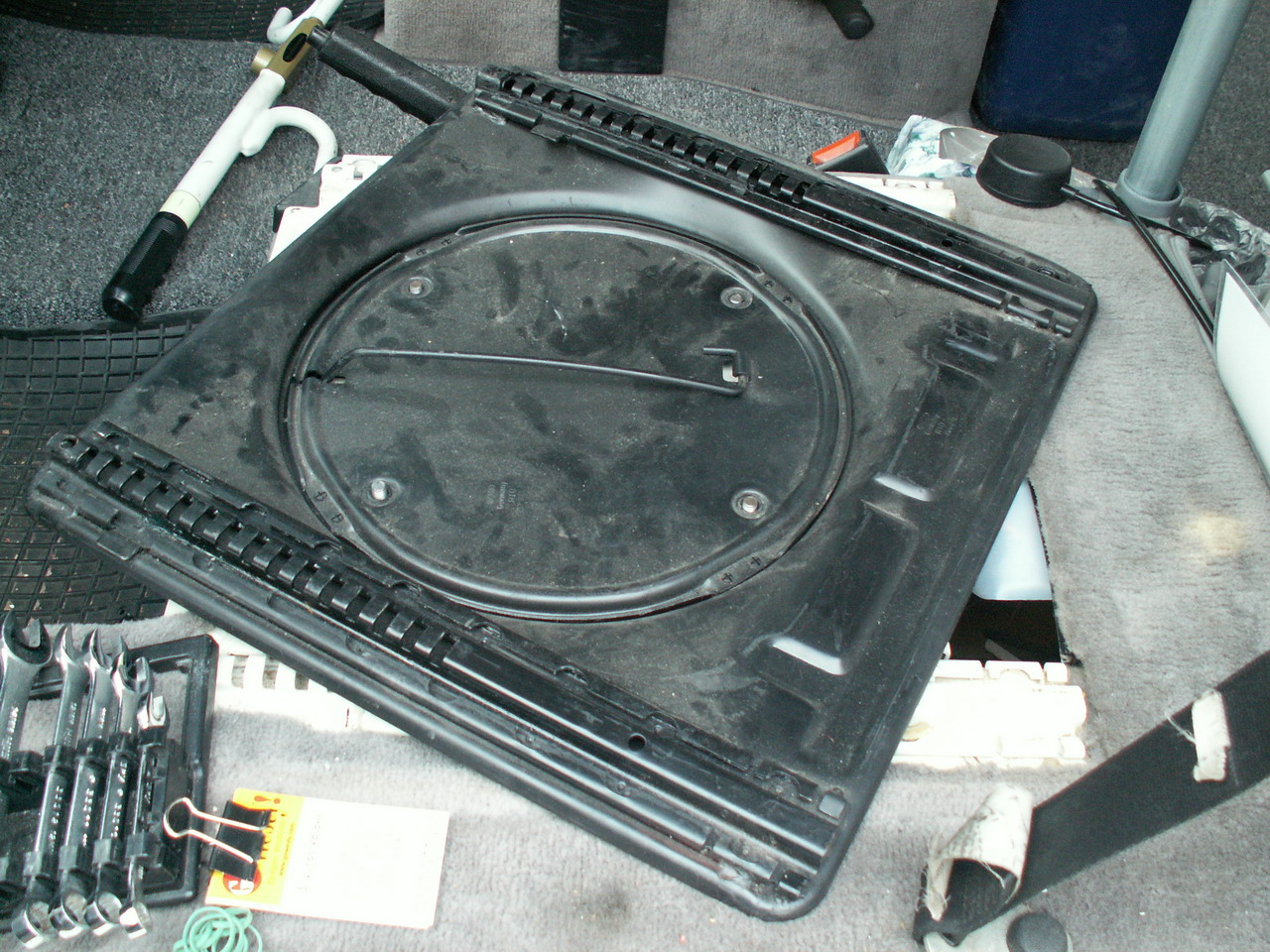

E76 only swivel seat bracket
L76- 85 swivel seat bracket
GUIDE RAILS AND RUNNERS (If you have a 1976 this paragraph is a must read)
The seat Guide Rails attached to the seats. Ride on the seat Runners attached to the body.
I will refer to the assembly as Seat Tracks.
The Seat Tracks along with the Seat Release Mechanism changed Mid 76 or beginning 77. There is conflicting information concerning this change. Research was inconclusive related to this change.
For the purposes of this article, I will refer to the change in Seat Tracks as Early 76 (E76) and Late 76 (L76).
Members have stated the change took place mid 76.
Members have stated the change took place beginning 77.
Quote Mayor Ratwell:
(“The seat rails change mid-year in 1976 with VIN 2162 078 000 that allow you to use later model Vanagon seats.”)
This would mean that the first 78,000 1976 Busses received the Early Rails, and subsequent Buses received the Late Rails.
A member posted in this thread: [url= http://www.thesamba.com/vw/forum/viewtopic.php?p=7453420#7453420]1976 OWNERS, We need your help![/url] that he has a build Date of 07/76 V/N 2362 162 178 with Early seats.
Stated in, VW Transporter and Microbus Specification Guide 1967-1979:
(“08.76, 2172 000 001 Rails of drivers seat changed; change to handle that releases mechanism to allow seat to slide") this is the beginning of the 77 production year.
Thanks to Jerseylooker: http://www.jerseylooker.com/FicheDump/LateBaywindow/089-00-8-042.jpg
Note: #5 & #6 Guide Rail changed chassis 2172 000 001. This would be the first 77 that rolled off the assembly line.
Pictured in, Sewfine Products 74-76 Seating Guide. Is the Late seat runners on the driver’s side with the Fixed seat mounting on the passenger side.
So which Seat Tracks do you have?

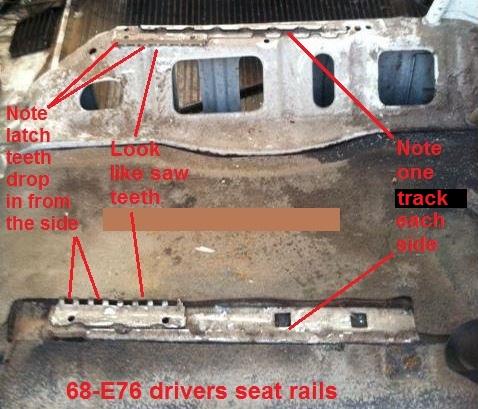

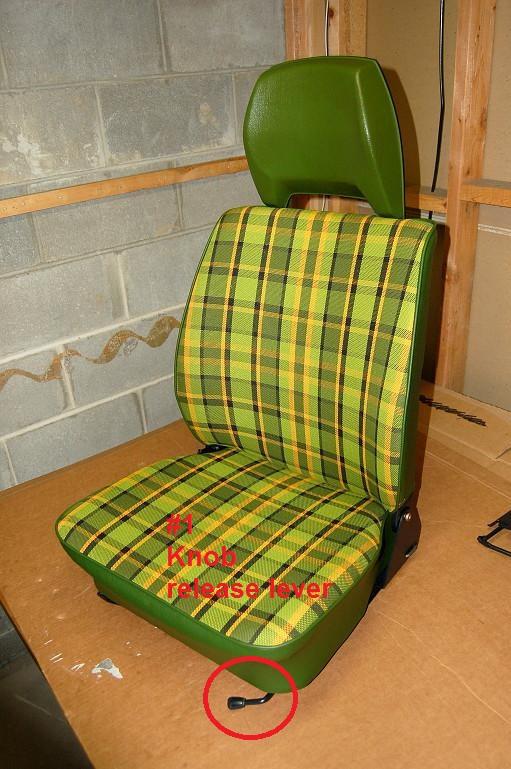

If you have these Seat Runners the 68-E76. You need a seat with #1 Slide Release Lever as depicted.

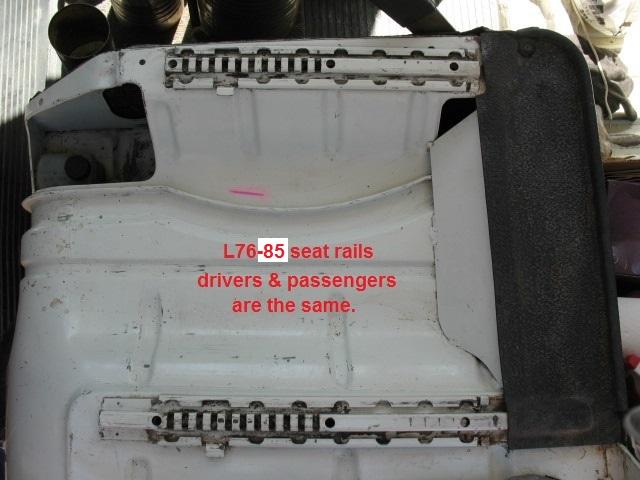

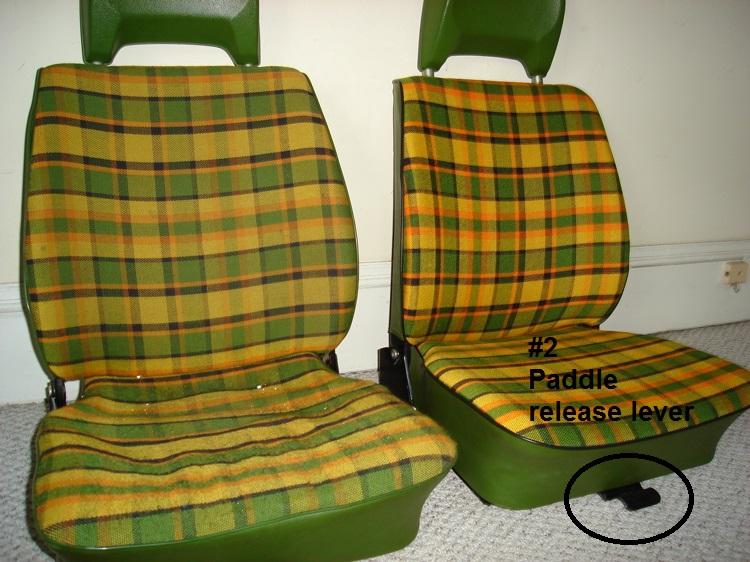

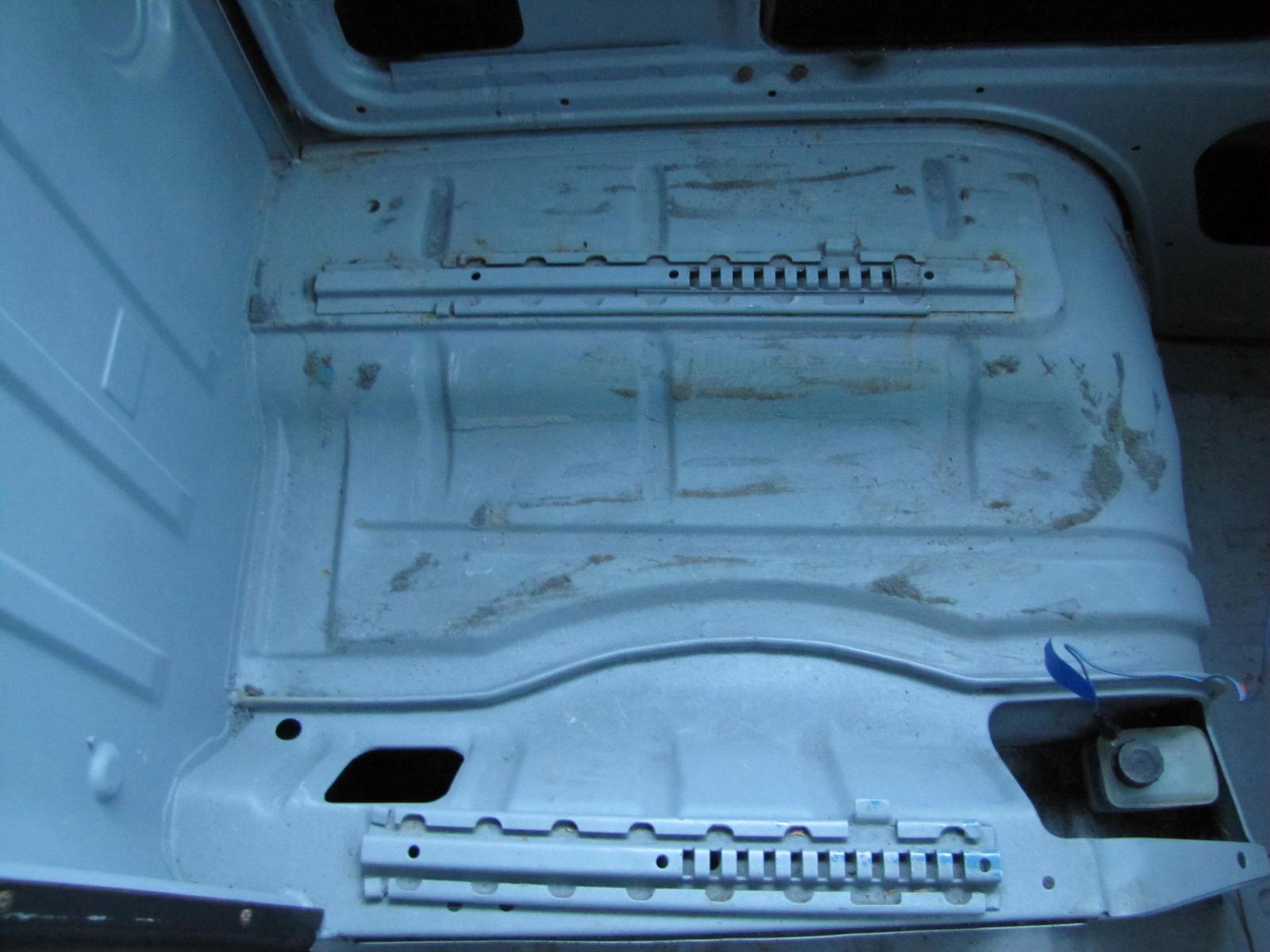

If you have these Seat Runners L76-85. You need a seat with #2 Slide Release Paddle as depicted.
Note: the inner rails are shorter than the outer rails.

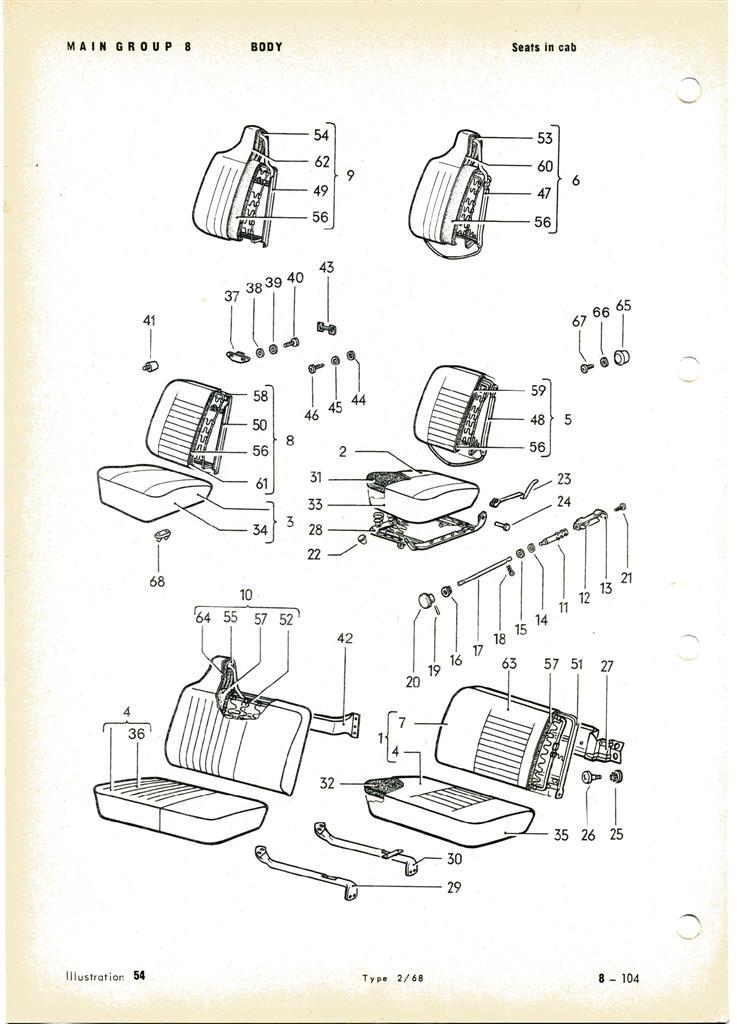

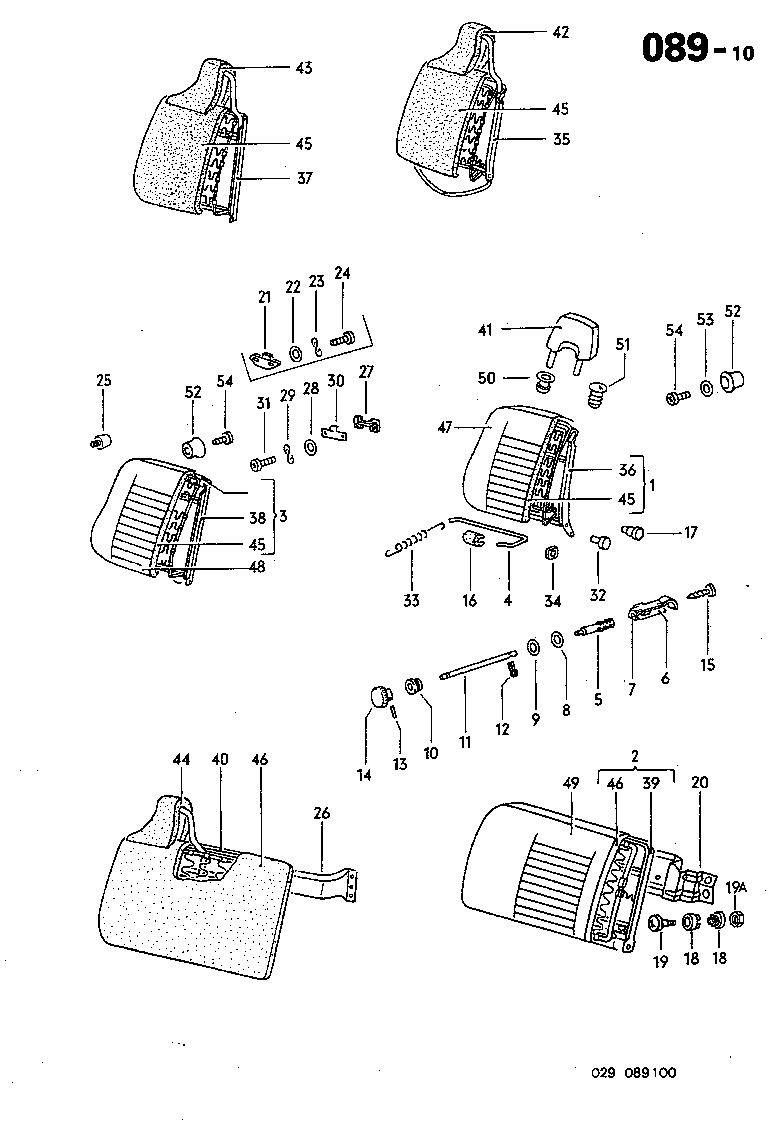

DIAGRAMS(thanks to jersylooker)
Last edited by Tcash on Sun Jun 24, 2018 6:42 pm; edited 10 times in total |
|
| Back to top |
|
 |
MrBreeze
Samba Hitman
Joined: October 06, 2002
Posts: 5449
Location: Lawn Guyland, Noo Yawk
|
| Posted: Fri Jan 16, 2015 10:35 am Post subject: |
|
|
Wow. Awesome work!
_________________
-=Rob
WTB: Bay Shore or Queensboro VW Frames
HBB 1984-2009
RW 1943-2011 |
|
| Back to top |
|
|
coolerthanelvis
Samba Member
Joined: June 30, 2003
Posts: 924
Location: San Diego, CA
|
| Posted: Fri Jan 16, 2015 11:34 am Post subject: Re: Front Bucket Seats ID |
|
|
Awesome post! I notice that you have the late seat rails broken out as L76-85.
| Tcash wrote: |
If you have these Seat Runners L76-85. You need a seat with #2 Slide Release Paddle as depicted.
|
I was wondering if the early seats have the same dimensions as the late split driver's seats. They look very similar with the same style of release knob. So would the earlier seats be applicable to maybe '64 to L76?
| Tcash wrote: |
If you have these Seat Runners the 68-E76. You need a seat with #1 Slide Release Lever as depicted.
|
_________________
Shawn
SV2s member #420
'68 Westy
"Do or do not, there is no try."
-Silent Bob |
|
| Back to top |
|
|
eche_bus
Samba Member
Joined: October 07, 2007
Posts: 1318
|
| Posted: Fri Jan 16, 2015 3:18 pm Post subject: |
|
|
| TCash - mucho kudos for the detailed research! This should help a lot of prospective bus and seat buyers! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Fri Jan 16, 2015 8:33 pm Post subject: |
|
|
| coolerthanelvis wrote: |
| I was wondering if the early seats have the same dimensions as the late split driver's seats. They look very similar with the same style of release knob. So would the earlier seats be applicable to maybe '64 to E76? |
edit in red.
You know I don't know. The Split people should know though.
| eche_bus wrote: |
| TCash - mucho kudos for the detailed research! This should help a lot of prospective bus and seat buyers! |
Right back at you eche, for the pictures and the build thread!
Tcash |
|
| Back to top |
|
|
tomkiwi
Samba Member
Joined: August 11, 2014
Posts: 56
Location: NW
|
| Posted: Sat Jan 17, 2015 2:22 am Post subject: |
|
|
| Are you looking for the upholstery attachment for the 77-79? My 77 Westy has a groove that the fabric is wedged into for the bottom, and metal tangs for the seat back. The tangs are integrated into the frame on the bottom rear of the seat back. |
|
| Back to top |
|
|
madmike
Samba Member
Joined: July 11, 2005
Posts: 5250
Location: Atlanta,Michigan
|
| Posted: Sat Jan 17, 2015 6:13 am Post subject: |
|
|
Thanks,new front Covers are on my list
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works" |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Fri Jan 23, 2015 9:22 am Post subject: |
|
|
| tomkiwi wrote: |
| Are you looking for the upholstery attachment for the 77-79? My 77 Westy has a groove that the fabric is wedged into for the bottom, and metal tangs for the seat back. The tangs are integrated into the frame on the bottom rear of the seat back. |

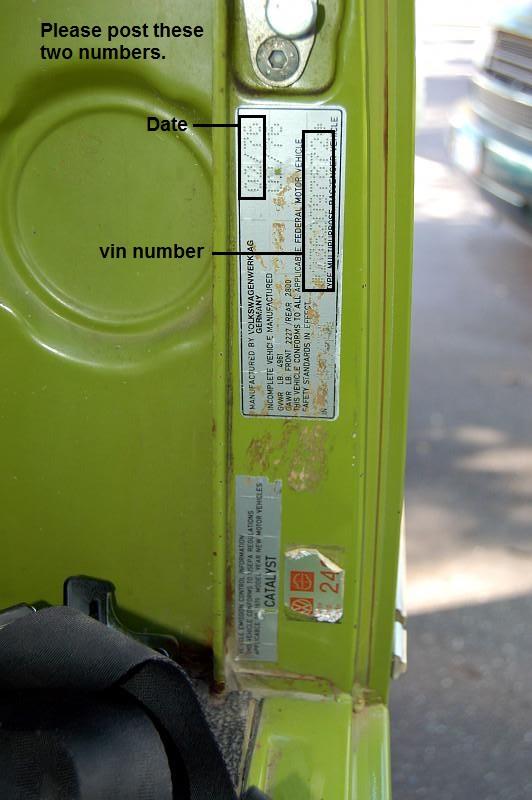

What is your build date.
Thank You
Tcash |
|
| Back to top |
|
|
djkilmer
Samba Member
Joined: November 02, 2003
Posts: 15
Location: In the Engine compartment
|
| Posted: Mon Jan 26, 2015 2:42 pm Post subject: Front bucket seats out of a 79? Riviera. |
|
|
Hi! I'm trying to order new foam and vinyl for my front seats which were pulled from a 79? Riviera. They are installed now in my 71 bay. I'm curious if these are a stock VW seat, I've not seen this pattern on any other seats and I wanted to make sure I ordered the correct parts. I see they have the same paddle release but the vinyl seemed different.
|
|
| Back to top |
|
|
tomkiwi
Samba Member
Joined: August 11, 2014
Posts: 56
Location: NW
|
| Posted: Mon Jan 26, 2015 6:41 pm Post subject: |
|
|
| Tcash wrote: |
What is your build date.
Thank You
Tcash |
Sorry, I wasn't watching the thread. 06/77. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Mon Jan 26, 2015 9:37 pm Post subject: Re: Front bucket seats out of a 79? Riviera. |
|
|
| djkilmer wrote: |
| Hi! I'm trying to order new foam and vinyl for my front seats which were pulled from a 79? Riviera. They are installed now in my 71 bay. I'm curious if these are a stock VW seat, I've not seen this pattern on any other seats and I wanted to make sure I ordered the correct parts. I see they have the same paddle release but the vinyl seemed different. |
Could you provide some pix of the seat tracks, backs and bottoms of both seats.
Do both seats have seat tracks or is the passenger seat fixed in position.
Good Day
Tcash |
|
| Back to top |
|
|
djkilmer
Samba Member
Joined: November 02, 2003
Posts: 15
Location: In the Engine compartment
|
| Posted: Tue Jan 27, 2015 4:19 pm Post subject: |
|
|

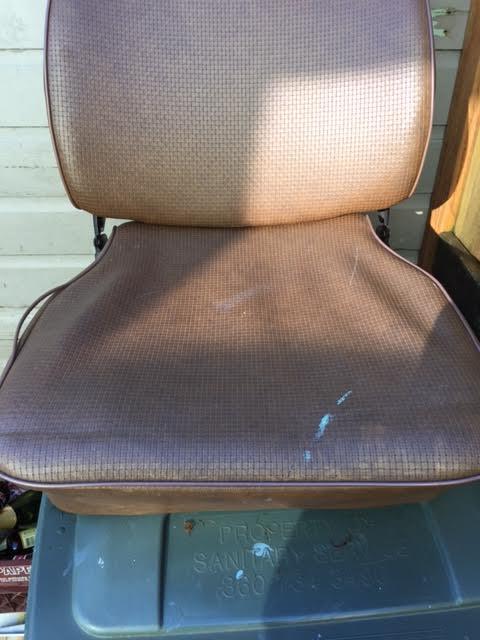

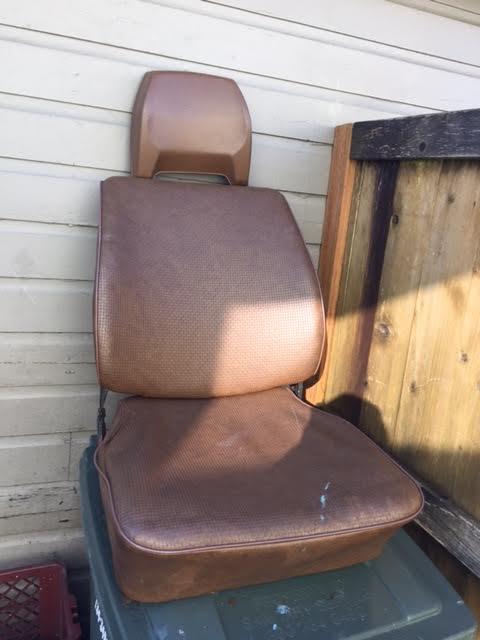

Seat tracks on drivers seat, fixed points on passenger. I installed the tracks on my 71 from the donor bus.
|
|
| Back to top |
|
|
jtauxe
Samba Member
Joined: September 30, 2004
Posts: 5739
Location: Los Alamos, New Mexico
|
| Posted: Tue Jan 27, 2015 4:52 pm Post subject: |
|
|
Looks like stock upholstery to me. I have the same Canyon Brown in my '79 Transporter.
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed May 13, 2015 6:06 am Post subject: 72 OE seat pleats |
|
|
72 deluxe or station wagon pleats, commercials had vertical ones.
Tcash
Last edited by Tcash on Wed May 13, 2015 8:01 am; edited 1 time in total |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 49868
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed May 13, 2015 7:08 am Post subject: Re: 72 OE seat pleats |
|
|
| Tcash wrote: |
| 72 OE seat pleats |
That would be 72 deluxe or stationwagon pleats, commercials had vertical ones.
_________________
Rust NEVER sleeps and stock never goes out of style.
Wanted, OG paint 1971 Niagara blue decklid.
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed May 13, 2015 8:02 am Post subject: Re: 72 OE seat pleats |
|
|
| busdaddy wrote: |
| Tcash wrote: |
| 72 OE seat pleats |
That would be 72 deluxe or stationwagon pleats, commercials had vertical ones. |
edited
Thank you busdaddy
Tcash |
|
| Back to top |
|
|
christine72
Samba Member
Joined: August 31, 2014
Posts: 84
Location: Portland, Oregon
|
| Posted: Wed Oct 21, 2015 8:38 pm Post subject: |
|
|
Thank you TCash - this is wonderful. I'm trying to figure out the right covers.
I've got the 73-74 frames with headrest. Trouble is online places offer:
74-76 BusDepot, Jbugs, mamotorworks.com,
74-79 mamotorworks.com
75-76 Wolfsburg West
Does anyone know where I can get the right covers? Don't need headrest - they are in good shape.
Basketweave, beige.
_________________
'74 Bay - ASI camper body w/'72 Bay - undercarriage and a '76 2000cc rebuilt engine
Past VWs
1967 Fastback (my first car); 1971 Square back; Several Jettas '88 -'97
The one I regret not buying:
72 Karmann Ghia, with autostick. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed Oct 21, 2015 10:09 pm Post subject: |
|
|
| christine72 wrote: |
Thank you TCash - this is wonderful. I'm trying to figure out the right covers.
I've got the 73-74 frames with headrest. Trouble is online places offer:
74-76 BusDepot, Jbugs, mamotorworks.com,
74-79 mamotorworks.com
75-76 Wolfsburg West
Does anyone know where I can get the right covers? Don't need headrest - they are in good shape.
Basketweave, beige. |
You need the 68-74 covers. You will have to cut the holes for the headrest.
So seat covers should be listed as follows.
68-72
73-74 With holes for headrest. Can use 68-72 but have to cut holes for headrest.
Good Luck
Tcash |
|
| Back to top |
|
|
christine72
Samba Member
Joined: August 31, 2014
Posts: 84
Location: Portland, Oregon
|
| Posted: Thu Oct 22, 2015 9:49 am Post subject: |
|
|
| Tcash wrote: |
You need the 68-74 covers. You will have to cut the holes for the headrest.
So seat covers should be listed as follows.
68-72
73-74 With holes for headrest. Can use 68-72 but have to cut holes for headrest.
Good Luck
Tcash |
Thank you, thank you, thank you. I was about to drop nearly $200 on the wrong covers...phew.
_________________
'74 Bay - ASI camper body w/'72 Bay - undercarriage and a '76 2000cc rebuilt engine
Past VWs
1967 Fastback (my first car); 1971 Square back; Several Jettas '88 -'97
The one I regret not buying:
72 Karmann Ghia, with autostick. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Tue Oct 27, 2015 4:50 pm Post subject: Headrest bracket pic |
|
|

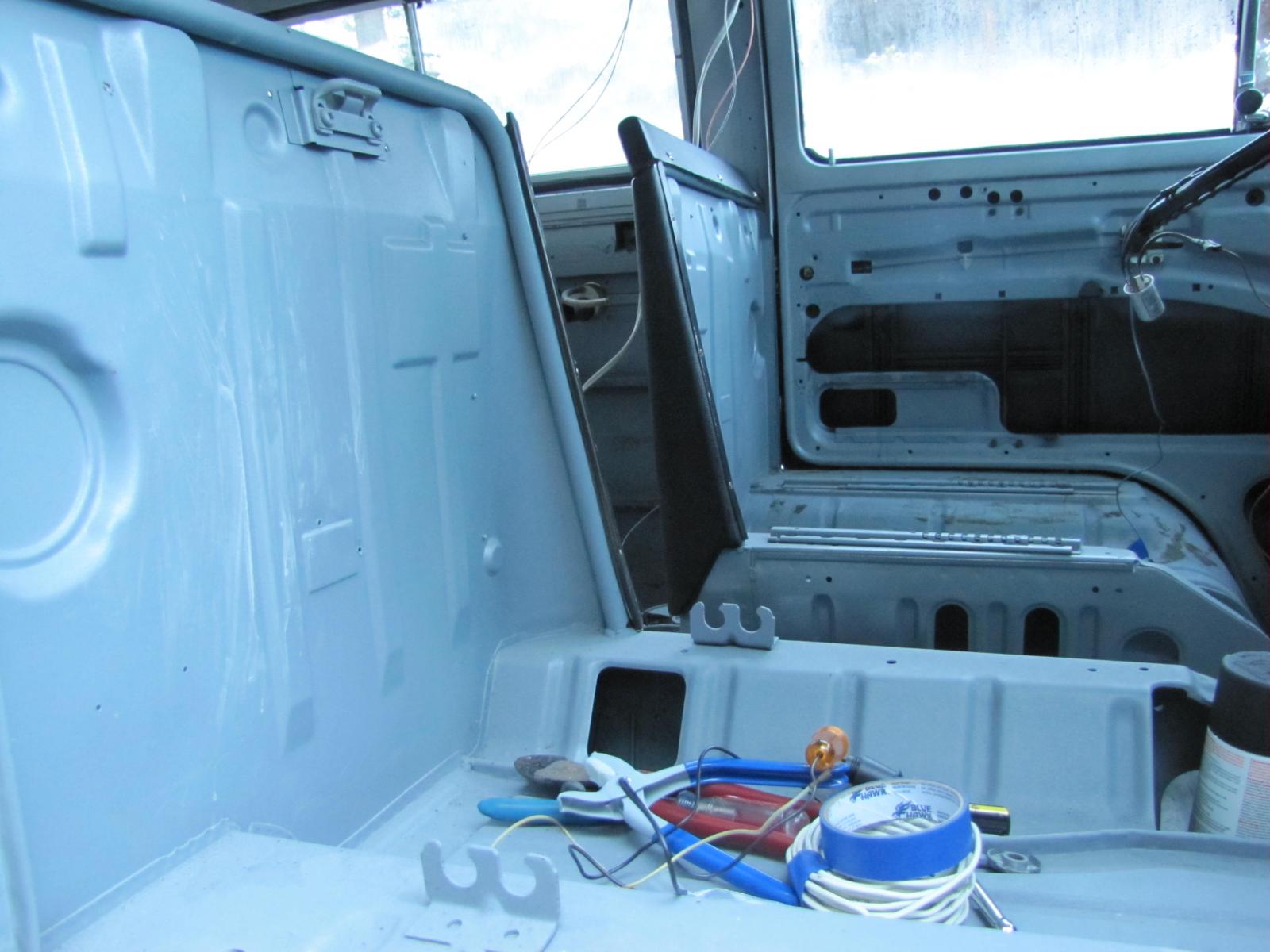

Headrest bracket pic.
|
|
| Back to top |
|
|
|
