 Posted: Thu Jan 18, 2024 10:32 am Post subject: 1974 Westy Engine Bay Wiring |
 |
|

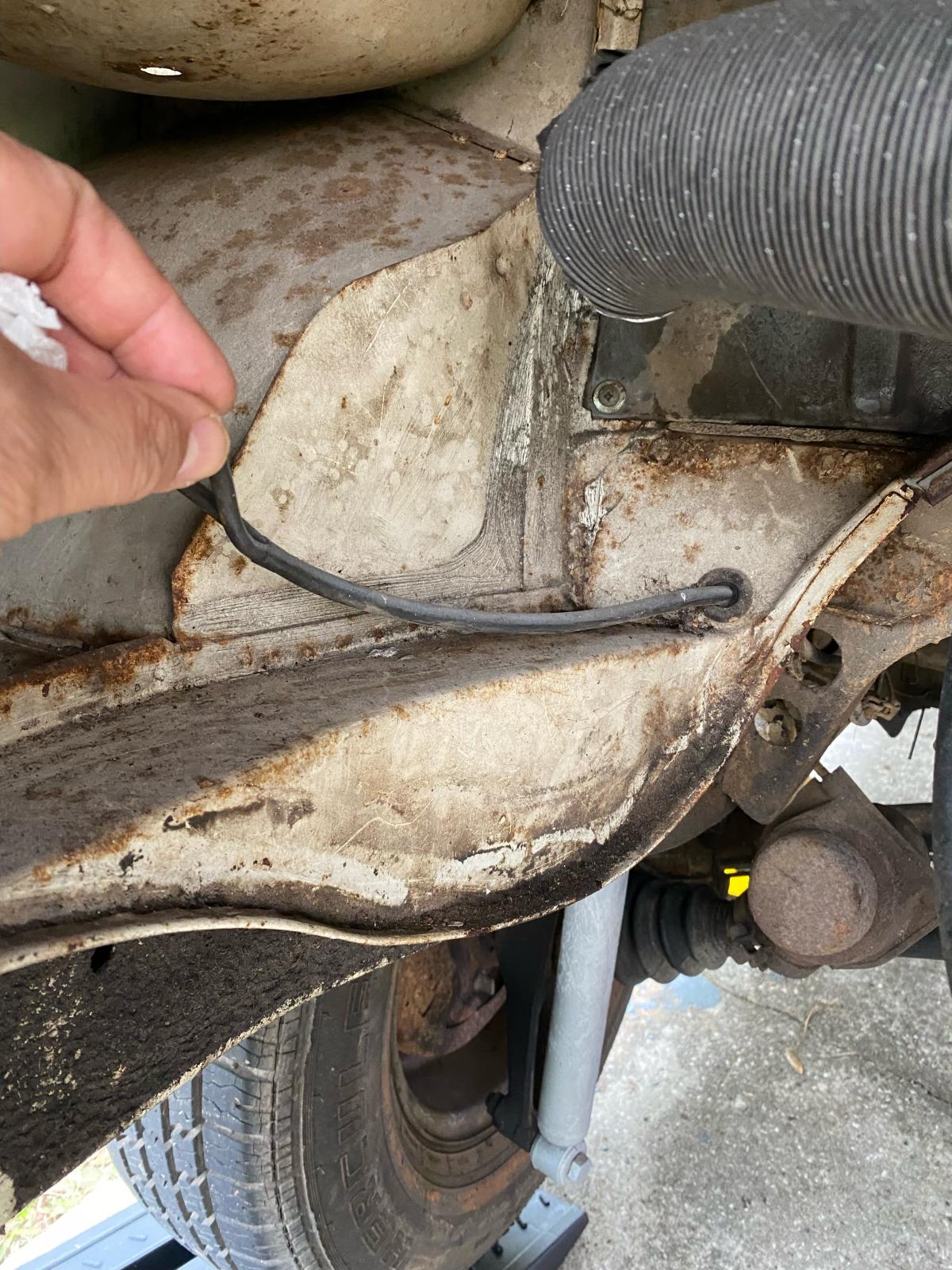

Ugh! I am pretty sure I bit off more than I can chew. After taking the engine out I am having some trouble figuring out what these wires are. The green and white striped one is from the passenger side of the bay coming through the grommet and on the driver side there were 2 wires that were cut coming from the grommet. I took pics prior to removing but these wires were not attached at all and I want to make sure they go where they need to when I put the engine back in. Thanks in advance for the help.
 |
|
| Back to top |
|
 |
bsairhead
Samba Member
Joined: October 08, 2008
Posts: 4473
Location: viroqua wi.
|
| Posted: Thu Jan 18, 2024 11:07 am Post subject: Re: 1974 Westy Engine Bay Wiring |
|
|
| I think they are diagnostic leads. |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52744
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Jan 18, 2024 11:28 am Post subject: Re: 1974 Westy Engine Bay Wiring |
|
|
Better get your terminology right for future questions like this, that's white/green, green/white would mean a green wire with a white stripe or dots.
White/green is indeed a diagnostic port wire, tape it up out of the way. The black wires on the left side are to and from the back up light switch on the nose of the transmission.
