 Posted: Mon Feb 02, 2015 3:29 pm Post subject: Early Bay gas tank washer question |
 |
|
I am changing out the finger screen and fiber washer on my '71 Riviera fuel tank with a Wolfsburg West kit... Question is what order does the nut, nipple, finger screen and washer go in??? The old parts didn't have a washer.

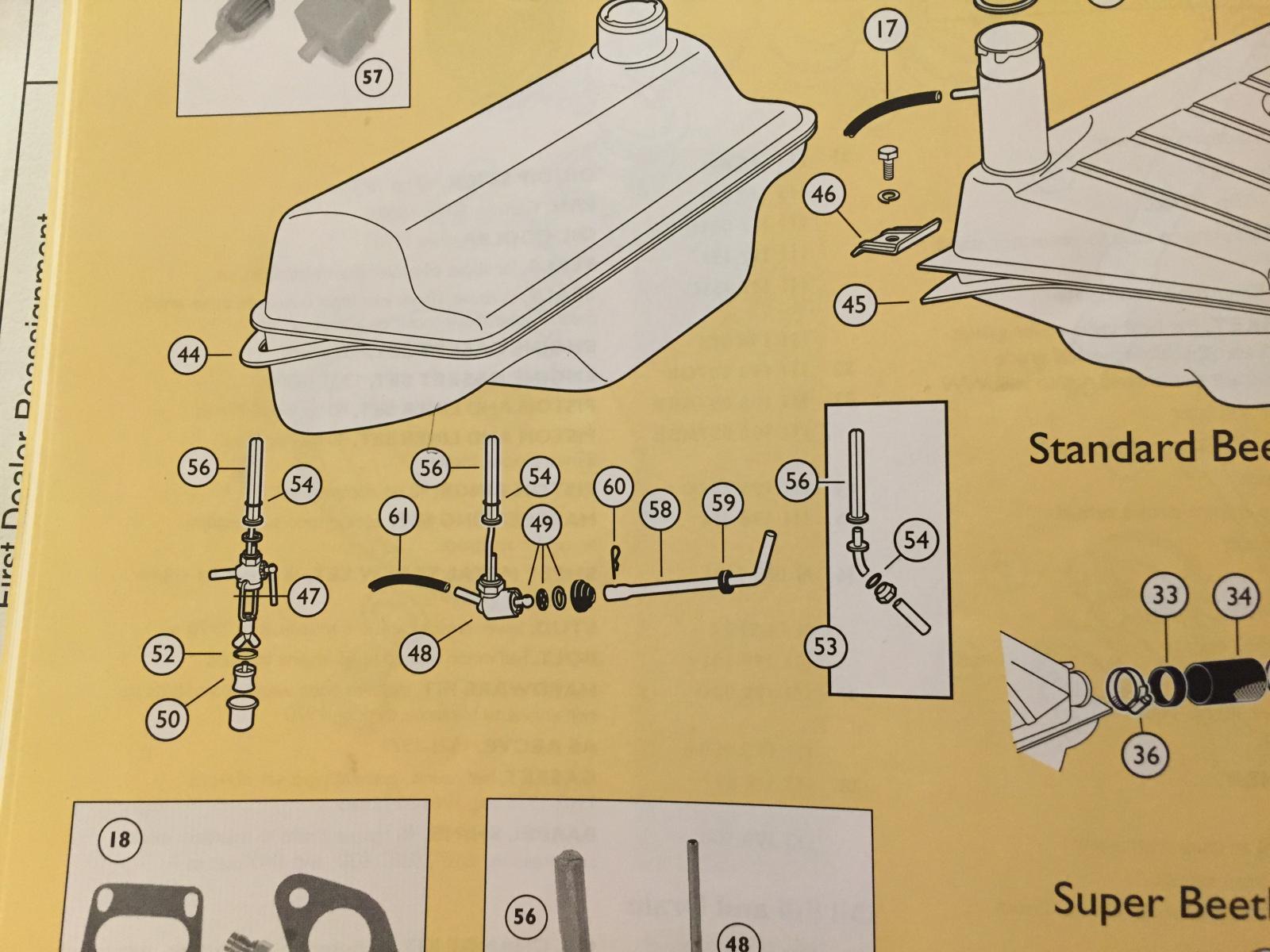

The WW catalog diagram shows the washer for the beetle tank in two different locations, and doesn't illustrate it at all for a bus.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
 |
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3346
Location: Memphis
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52883
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Mon Feb 02, 2015 4:36 pm Post subject: |
|
|
If the screen flange is aluminum it doesn't usually require a washer between it and the tank, if it's harder metal that won't squish to seal you'll need some sort of soft washer or O ring. The fiber or steel washer goes between the screen and the nut to act as a bearing surface.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17871
Location: sticksville, ct.
|
| Posted: Mon Feb 02, 2015 4:38 pm Post subject: |
|
|
x2
I have always removed them to find the sock has a aluminum ring/washer built into the sock itself
_________________
| gprudenciop wrote: |
my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese....... |
| Jake Raby wrote: |
| Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public. |
| Brian wrote: |
| Also the fact that people are agreeing with Skills, it's a turn of events for samba history |
|
|
| Back to top |
|
|
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3346
Location: Memphis
|
| Posted: Mon Feb 02, 2015 5:21 pm Post subject: |
|
|
That's what I was thinking.. The screen sealing ring looks like an aluminum crush-type material. I ordered two washers in case I dorked one up on install.. But I was surprised to see they are a fiber washer. I hate fuel leaks and I'm really anal about em.. Esp on this application
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3346
Location: Memphis
|
| Posted: Mon Feb 02, 2015 8:35 pm Post subject: |
|
|
Interesting, CIP1 calls for two washers, where the other diagrams call for either only one, or two different types.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Mon Feb 02, 2015 10:02 pm Post subject: |
|
|
#20 and #22 are two different gaskets. #22 has a smaller ID.
#22 does not appear to be available, at least I could not find it.
I would suspect that what you are going to receive in the kit is #20.
#20 has a type I part number and is still a available.
Good Luck
Tcash |
|
