How do I remove Super dash round vent tubes???

scr2000 · Samba Member Joined: July 06, 2010 Posts: 23

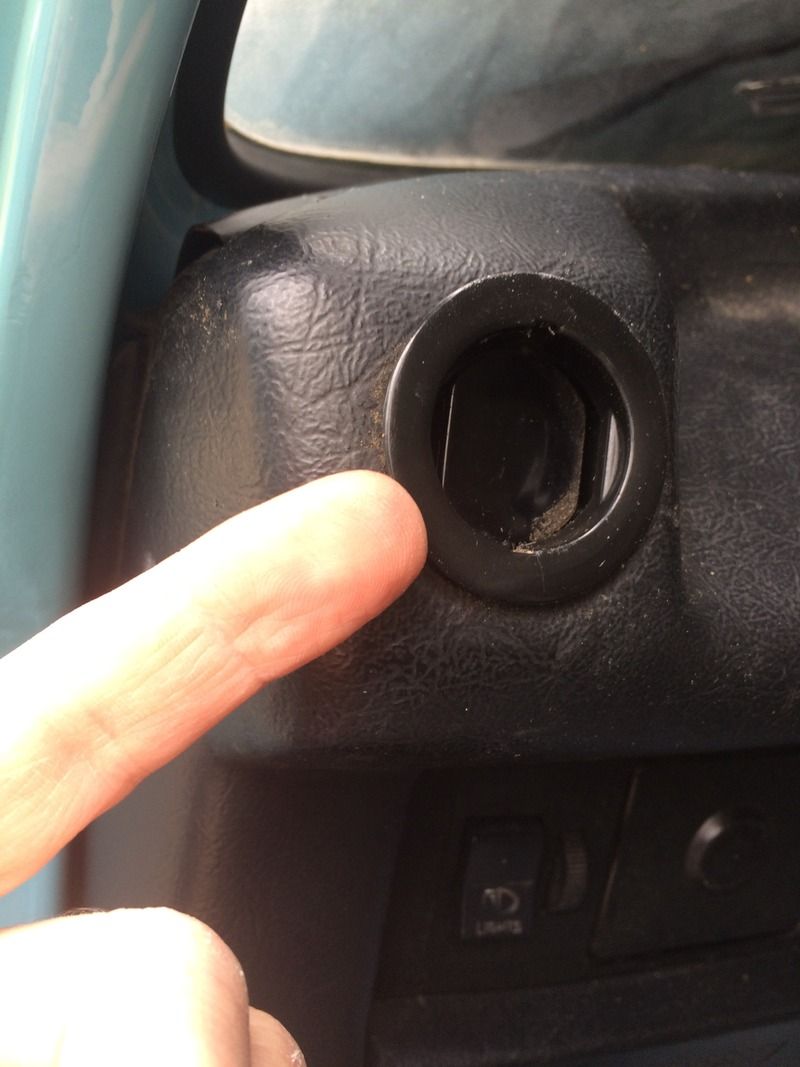

I bought a dashskin cover for my cracked dash, but I can't seem to get the round vent tubes on either side out. I know there are some retaining tabs, but can't seem to see them. IS there a trick to this? I don't want to damage them if possible. This new dashskin really needs to go in first then the tubes installed after. Thanks!

Image may have been reduced in size. Click image to view fullscreen.

Joel · Posted: Wed Mar 11, 2015 11:19 pm Post subject:

It's a dash out job unfortunately which is why those dash caps have a recess to sit over the top of the vents.

They have two locking tabs on the back side that need squeezing in to release the vents.
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle

scr2000 · Samba Member Joined: July 06, 2010 Posts: 23

Is there a decent write up on removing the dash?

jhvw1976 · Posted: Thu Mar 12, 2015 6:54 am Post subject:

Here's a link for you:
http://www.superbeetlesonly.com/forum/index.php?showtopic=6982
_________________
1976 standard stock FI beetle daily driver
