1973 Mexican Safari Tail Lights
Forum Index -> Thing/Type 181 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
SandroCanovas
Samba Member


Joined: October 14, 2006
Posts: 61
Location: Portland Oregon
SandroCanovas is offline

PostPosted: Tue Apr 07, 2015 8:56 am    Post subject: 1973 Mexican Safari Tail Lights Reply with quote

Looking for a set of rear tail lights.

Does anyone has a pair for sale?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oasis
Samba Member


Joined: December 12, 2002
Posts: 2087

oasis is offline

PostPosted: Tue Apr 07, 2015 9:53 am    Post subject: Reply with quote

Kinda sorta belongs in the classifieds as a WTB.

From an info point of view, how does one change/adapt/alter the wiring of original tail lights to one that only has one bulb in the red area (three overall) instead of two (four)?
_________________
Now: 1990 Single Cab Transporter / 2014 Tiguan R-Line 4motion / 2013 Tiguan S / 2002 Golf GLS TDI
Past: 2003 New Beetle Turbo S / 1974 Thing Acapulco / 2009 Eos Komfort / 1997 Jetta GT / 2002 Cabrio GLX / 2002 Passat GLS / 1971 Super Beetle / 1993 EuroVan MV Westfalia / 1981 Pickup LX / 1985 Vanagon / 1986 Jetta GLI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Shoyrtt
Samba Member


Joined: August 21, 2010
Posts: 882
Location: Redlands, CA
Shoyrtt is offline

PostPosted: Tue Apr 07, 2015 10:45 am    Post subject: Reply with quote

Like this?
Image may have been reduced in size. Click image to view fullscreen.


More info here: http://www.thesamba.com/vw/forum/viewtopic.php?t=622230
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oasis
Samba Member


Joined: December 12, 2002
Posts: 2087

oasis is offline

PostPosted: Tue Apr 07, 2015 12:09 pm    Post subject: Reply with quote

No.

Some elephant's feet are one amber, two red, and one clear (reverse). The reflector is to the one side, and the elephant's feet are right- and left-side specific.

Others (as well as some "flat" elephant's feet aftermarket replacements) are one amber, one red, and one clear. These elephant's feet have a horizontal strip that is a reflector and they fit on the left side and right side interchangeably.

I was wondering how one deals with the wiring difference should they swap from one kind to the other kind.
_________________
Now: 1990 Single Cab Transporter / 2014 Tiguan R-Line 4motion / 2013 Tiguan S / 2002 Golf GLS TDI
Past: 2003 New Beetle Turbo S / 1974 Thing Acapulco / 2009 Eos Komfort / 1997 Jetta GT / 2002 Cabrio GLX / 2002 Passat GLS / 1971 Super Beetle / 1993 EuroVan MV Westfalia / 1981 Pickup LX / 1985 Vanagon / 1986 Jetta GLI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Shoyrtt
Samba Member


Joined: August 21, 2010
Posts: 882
Location: Redlands, CA
Shoyrtt is offline

PostPosted: Tue Apr 07, 2015 1:17 pm    Post subject: Reply with quote

Oasis: I was responding to the original post. Are we talking about "Mexican" spec 73 or a USA spec car with "elephant feet" tail lights?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ron Domeck
Samba Member


Joined: August 05, 2007
Posts: 1459
Location: louisville Ky
Ron Domeck is offline

PostPosted: Tue Apr 07, 2015 3:28 pm    Post subject: Reply with quote

Hot rod and motorcycle aftermarket makes a Diode that has two wires in and one out. We put a pair of LED bus lights in the green car we built a year ago and installed these. Don't remember were I got them from but found them later on Ebay. Also used another setup called rapid fire from Shinney Hinney with my 32 ford LED's that put 2 into 1 and flashed the brake lights 3 times then stayed on.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jjrannauro
Samba Member


Joined: June 30, 2011
Posts: 217
Location: MEXICO
jjrannauro is offline

PostPosted: Tue Apr 07, 2015 4:39 pm    Post subject: Reply with quote

Here:

https://www.facebook.com/JJ.Gonzalez.Mexico/media_...amp;type=3

http://www.thingparts.com/hella-universal-tail-light-oem-mexico/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gene Kisner
Samba Member


Joined: September 02, 2012
Posts: 63
Location: Fairmont, West Virginia
Gene Kisner is offline

PostPosted: Tue Apr 07, 2015 6:11 pm    Post subject: Reply with quote

Diode kits for "two in/one out" are available wherever you can purchase motor home parts. This is a standard method of wiring tail lights on tow vehicles.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Yarkle Premium Member
Samba Member


Joined: August 03, 2009
Posts: 1176
Location: the Hills of Western Maine
Yarkle is offline

PostPosted: Tue Apr 07, 2015 6:16 pm    Post subject: Reply with quote

Oasis: the mexican elephants feet and (IIRC) most aftermaket replacements have one bulb that is fed from two wires-ATM i cannot remember which was which, but I think its the brake/marker light--the reds one. instead of having two bulbs with its own connector, its one bulb that has two connectors going to it..more like tabs the wires plug into.

you have to swap the entire assembly though..you cant just put the new 3 bulb lens on the old 4 bulb mounting, but you use all four of the stock wires...

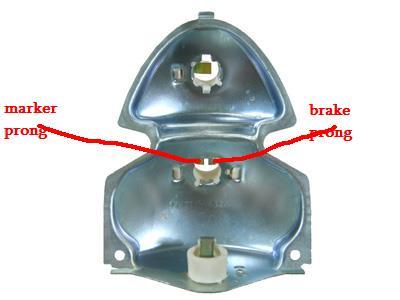

this isnt the exact bulb holder, but it shows the general idea

Image may have been reduced in size. Click image to view fullscreen.

_________________
1973 VW Bus [o____o] "the Thing" thread:
http://www.thesamba.com/vw/forum/viewtopic.php?p=8272498#8272498 1.7 914? engine with weber progressive clone (soon to be 72 dual carb setup)
1969 VW Bus deluxe 221 -belongs to the boy
"Weld Busler" Bus rebuild thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=630499 1600SP
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oasis
Samba Member


Joined: December 12, 2002
Posts: 2087

oasis is offline

PostPosted: Wed Apr 08, 2015 7:58 am    Post subject: Reply with quote

Dancing Applause Cool

Thanks!
