Superbeetle fuel tank breather setup question...

Greatballsoffire57

Image may have been reduced in size. Click image to view fullscreen.

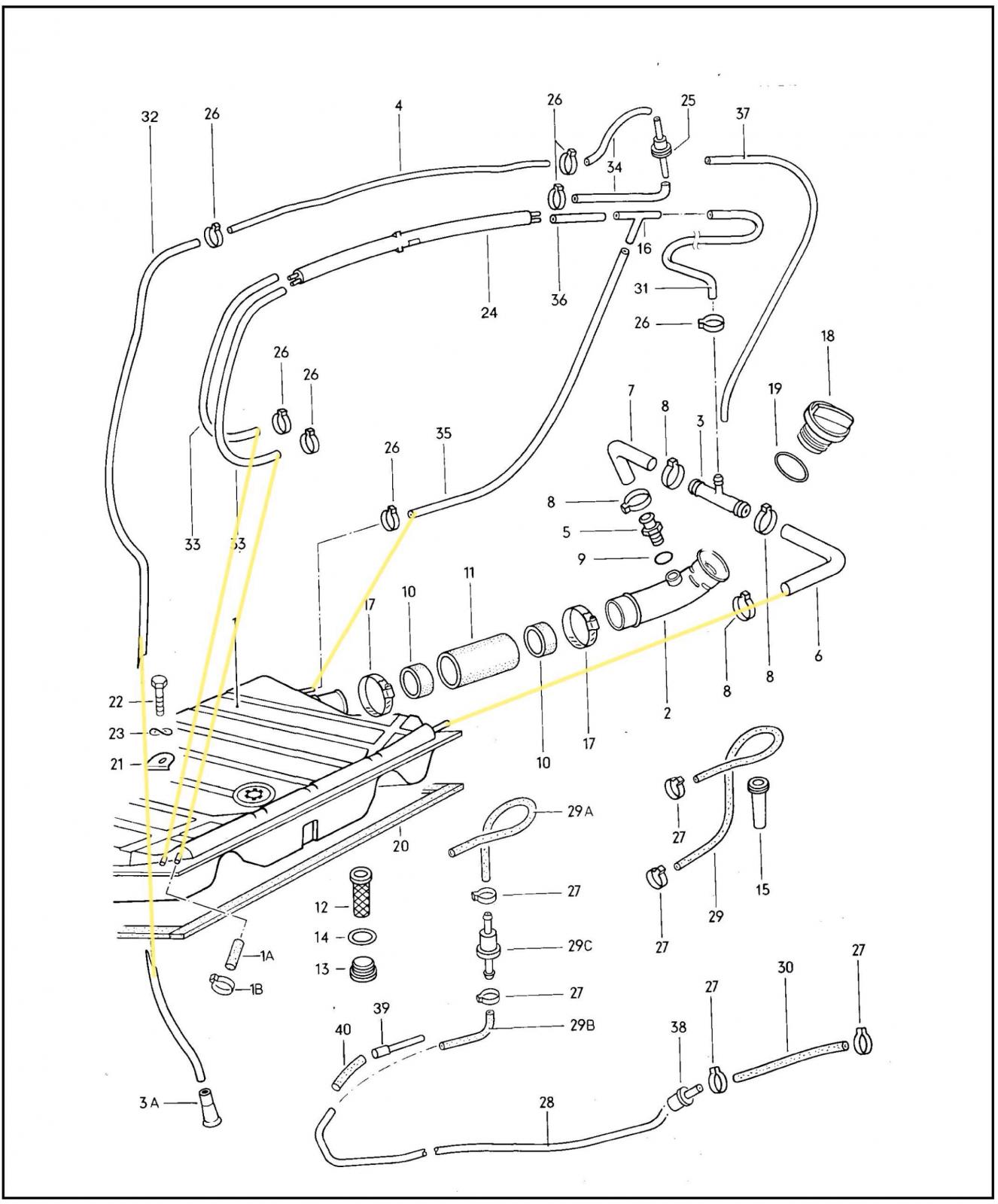

What is part number 25 in this diagram of the VW fuel evaporation set up? (Near top right hand corner)
What does this do or what purpose does it serve?

green1303 · Posted: Wed Jun 03, 2015 7:32 pm Post subject:

It's a gravity valve, 111201751A or N0245281. My 1973 Super never had one, and I wonder if it was only used on Mexican Beetles.
_________________
1973 green Super Beetle

wrocek · Posted: Wed Jun 03, 2015 8:32 pm Post subject:

http://www.partsbase.org/vw/vw-1200-1300-1302-1303-1200-us-1979-2510-fuel-tank-fuel-filler-neck/
number 25... gravity valve; also use:; N 024 528 1; "J.."
_________________
159 2001 678, FI convertible.
AJ 133584*
Made Monday, September 18th, 1978 -> 381-9460
