PostPosted: Fri Oct 18, 2024 11:56 am    Post subject: Need help identifying something Reply with quote

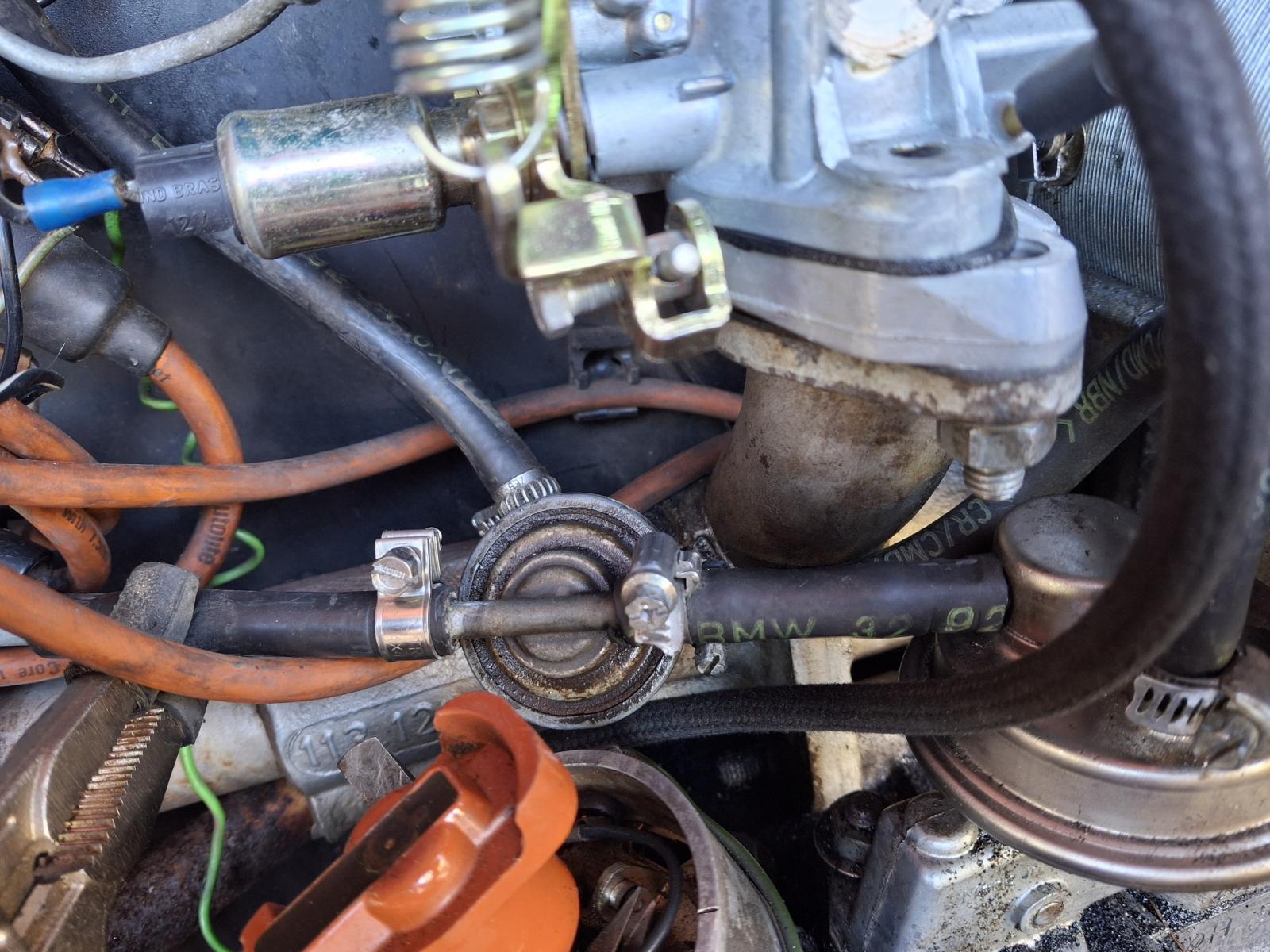

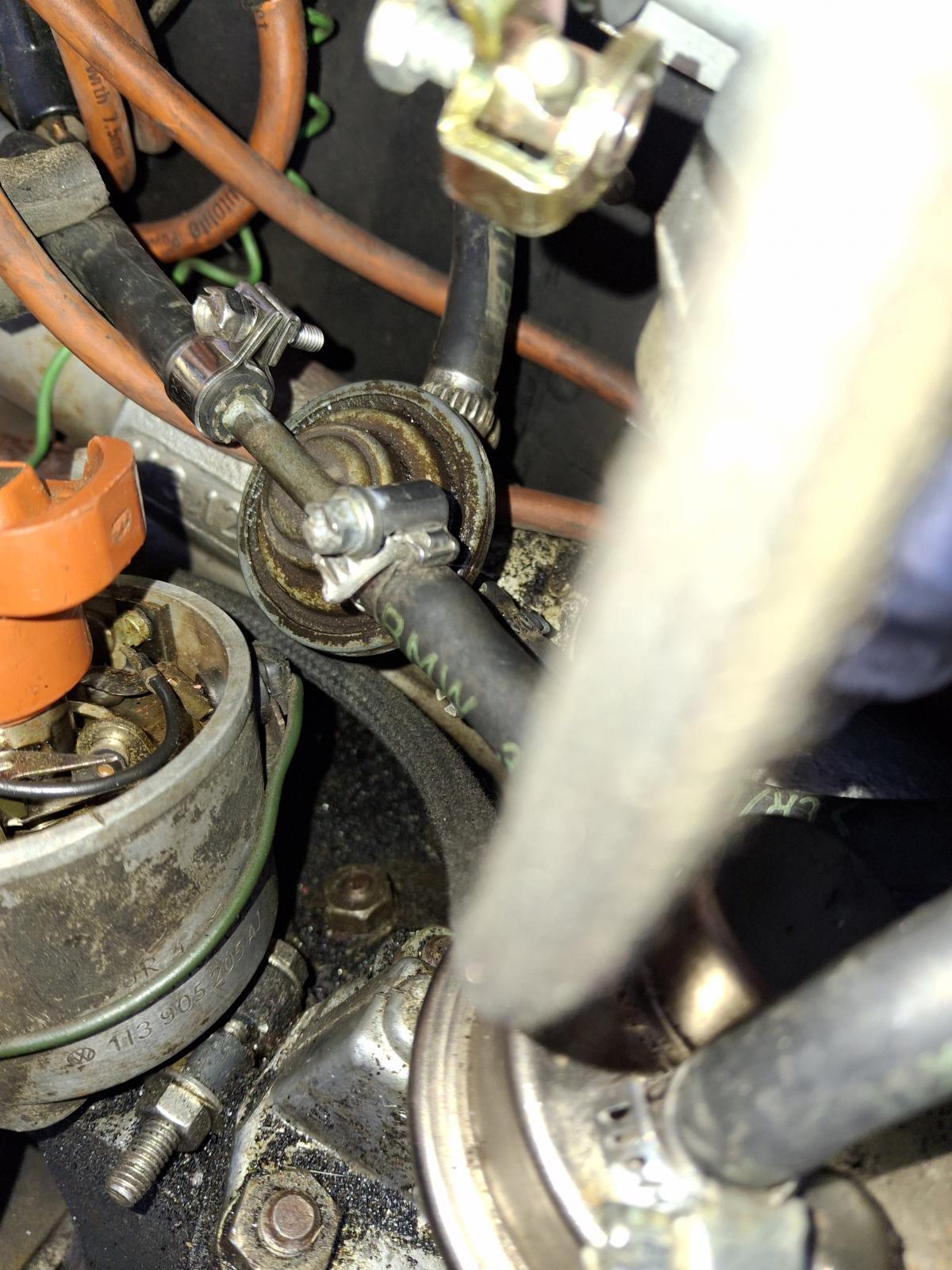

This thing sits both between the fuel line coming into the engine compartment and the fuel pump, and between the fuel pump and the carburetor. The horizontal lines are input to the fuel pump. I took the distributor cap off to make the photo easier, but it sits right behind the distributor.

My first thought was a fuel filter, but then why are lines connected both to and from the pump?

I am trying to figure out why my engine fires/starts when the starter motor is running but dies as soon as I let the key go back to running position. I've search many of the threads on this subject here, tho I have many more to go, but thought I would try to eliminate this piece as something blocking adequate fuel. If it is a fuel filter I figured I could pull it. I tried that, but the problem persisted, so I put it back in, but decided I should know what it is regardless.

The car is a 71 Super Beetle, but the engine is a rebuilt 1500 from 1968 as best I can tell from the number.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kpf
Samba Member


Joined: March 01, 2017
Posts: 1058
Location: California, US
kpf is offline

PostPosted: Fri Oct 18, 2024 1:40 pm    Post subject: Re: Need help identifying something Reply with quote

That is a pressure valve (maybe not the right name for it...). It's job is to prevent fuel from flowing into the carburetor due to gravity alone, such as might happen if, for example, you park the car facing up hill. Most people do not use one.

Your symptom sounds like it may be related to the ignition switch. You may not have power to the ignition in the "run" position; only in the "start" position. Verify with a volt meter.
_________________
1971 Super Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cusser
Samba Member


Joined: October 02, 2006
Posts: 32978
Location: Hot Arizona
Cusser is offline

PostPosted: Fri Oct 18, 2024 2:01 pm    Post subject: Re: Need help identifying something Reply with quote

markpayton wrote:
I am trying to figure out why my engine fires/starts when the starter motor is running but dies as soon as I let the key go back to running position.

Agree, also seems to be a bad electrical contact issue in the electrical part of the ignition switch.

By the way, I have replaced the electrical part of the ignition switch on both my 1970 and 1971 VWs, both over 30 years ago.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markpayton
Samba Member


Joined: January 15, 2023
Posts: 8
Location: NH, USA
markpayton is offline

PostPosted: Sat Oct 19, 2024 5:45 pm    Post subject: Re: Need help identifying something Reply with quote

Thanks, guys. I came to that same conclusion today as I was working on things. I was able to keep the car running by holding the key slightly toward the starting position, but before the starter engages. As soon as I let it return to its preferred spot, it died.

I'm working on taking the ignition switch out but haven't been able to locate a video showing the process or even a decent set of instructions so far. I've got the steering wheel off and the key cylinder out so far. I ran out of time today, so I hope to get back at it tomorrow afternoon.

Thanks, too, for the identification of the part. If it isn't necessary, I may take it out since that is a lot fewer possible places for gas to leak in the engine compartment.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 25862
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Sat Oct 19, 2024 7:42 pm    Post subject: Re: Need help identifying something Reply with quote

kpf wrote:
That is a pressure valve (maybe not the right name for it...). It's job is to prevent fuel from flowing into the carburetor due to gravity alone, such as might happen if, for example, you park the car facing up hill. Most people do not use one.


https://www.thesamba.com/vw/forum/viewtopic.php?p=9276617&highlight=#9276617
