This thread is dedicated to information on 25hp and 36hp fuel pumps.
Please post in this thread if you have an corrections or additional information or photos or any questions.

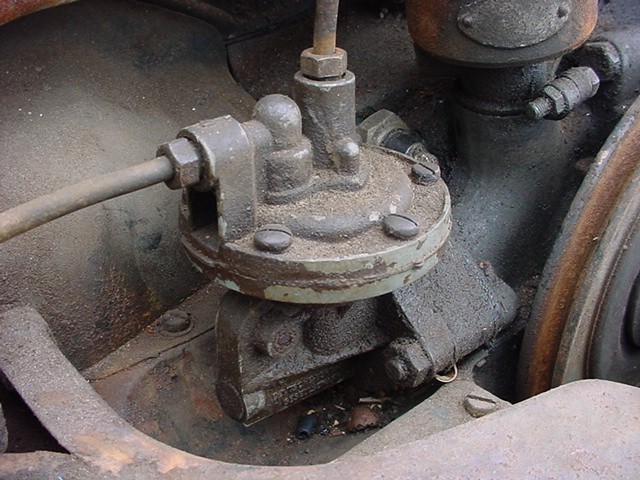

Split Beetle

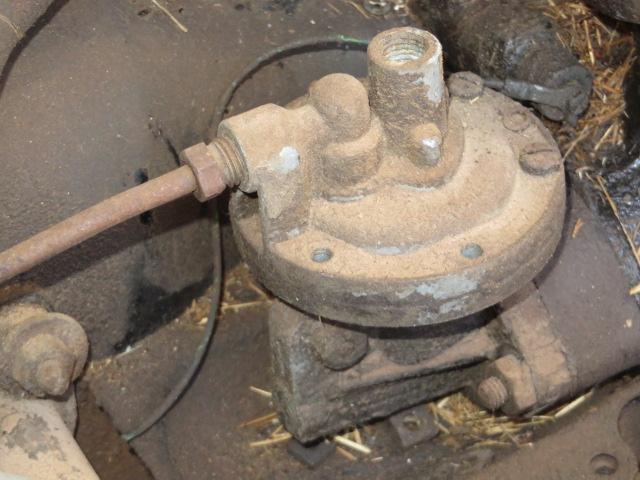

8mm flat top
Zwitter
6mm flat top
Used from:

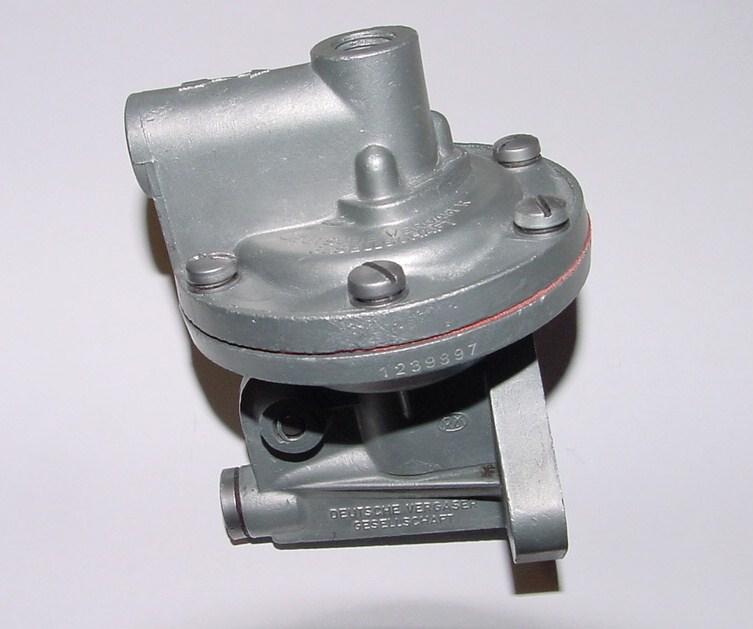

Bug: 1 Oct. 52 / Chassis # 1-0397023
Bus: 2 Jan. 53 / Chassis # 20-041712
Oval Window - 1958

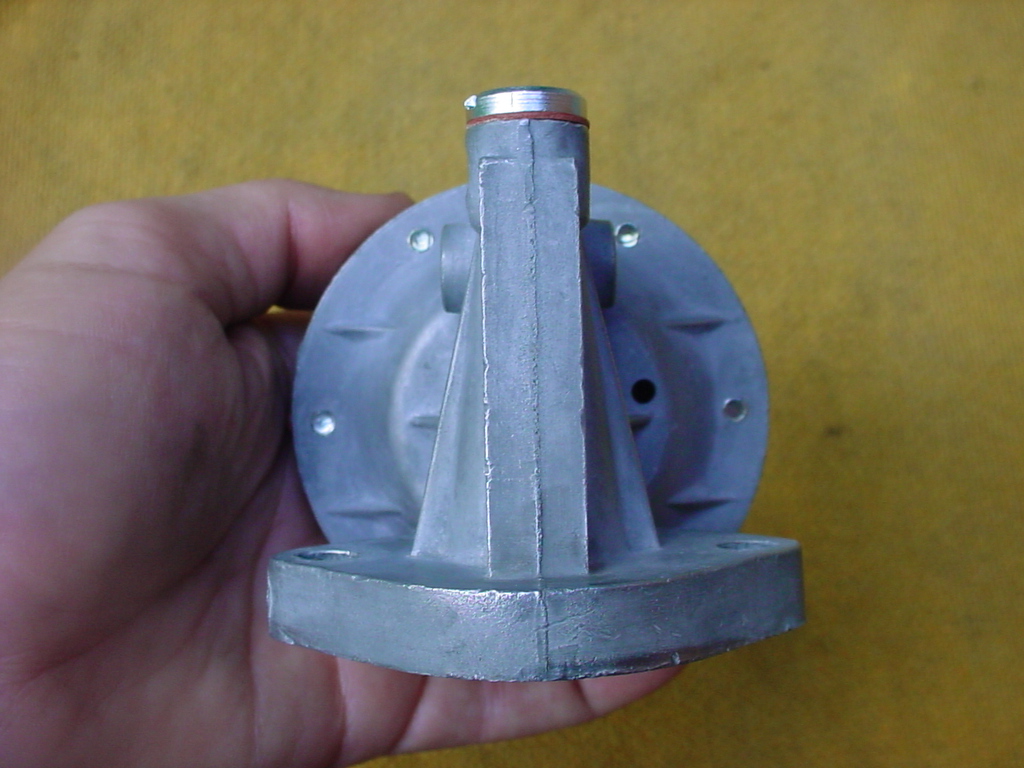

54-55 6mm wavy top with screw in bottom 1/2
"55 only" 6mm wavy top with no screw in bottom 1/2
Exact Introduction date unknown, mid-1955 at some point
It has been be narrowed down to between May and October, 1955. More info needed
This is original Bus engine # 20-1251855 (December, 1955)

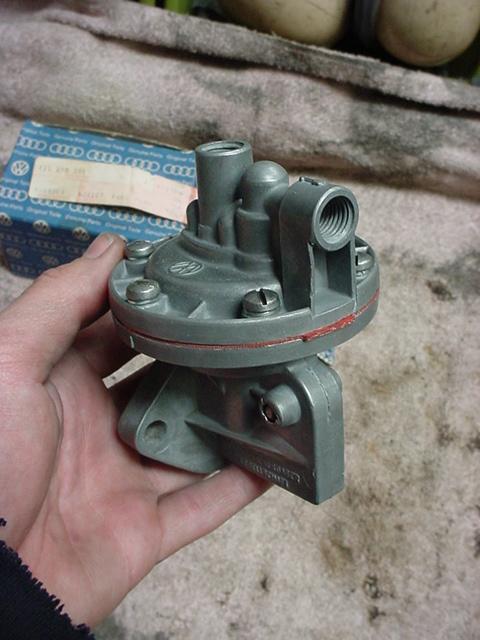

56-58 6mm pump with ribbed top
Used from 15 Feb. 56
58 only(?) - Similar pump to above but with longer outlet:
Information from Progressive Refinements:

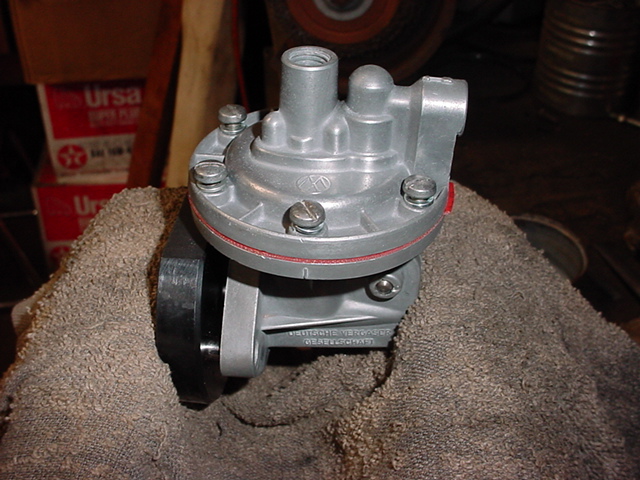

59-60

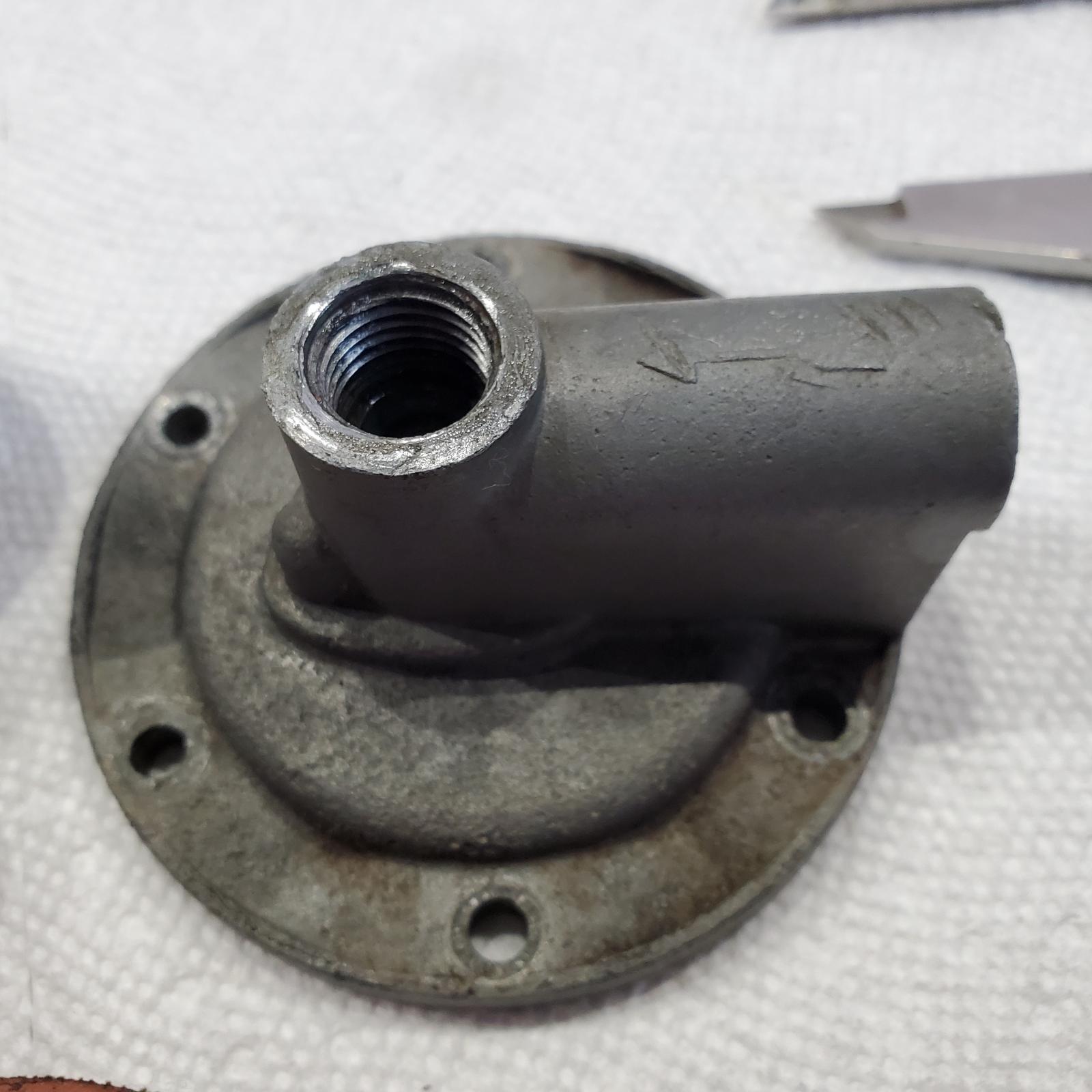

58-60 with filter in top
When was the filter added?
Progressive Refinements states:
8 Dec. 58
Chassis# 417 115 (Note: Bus VIN #)
Engine # 2 680 764
Fuel Pump - Now: synthetic filter

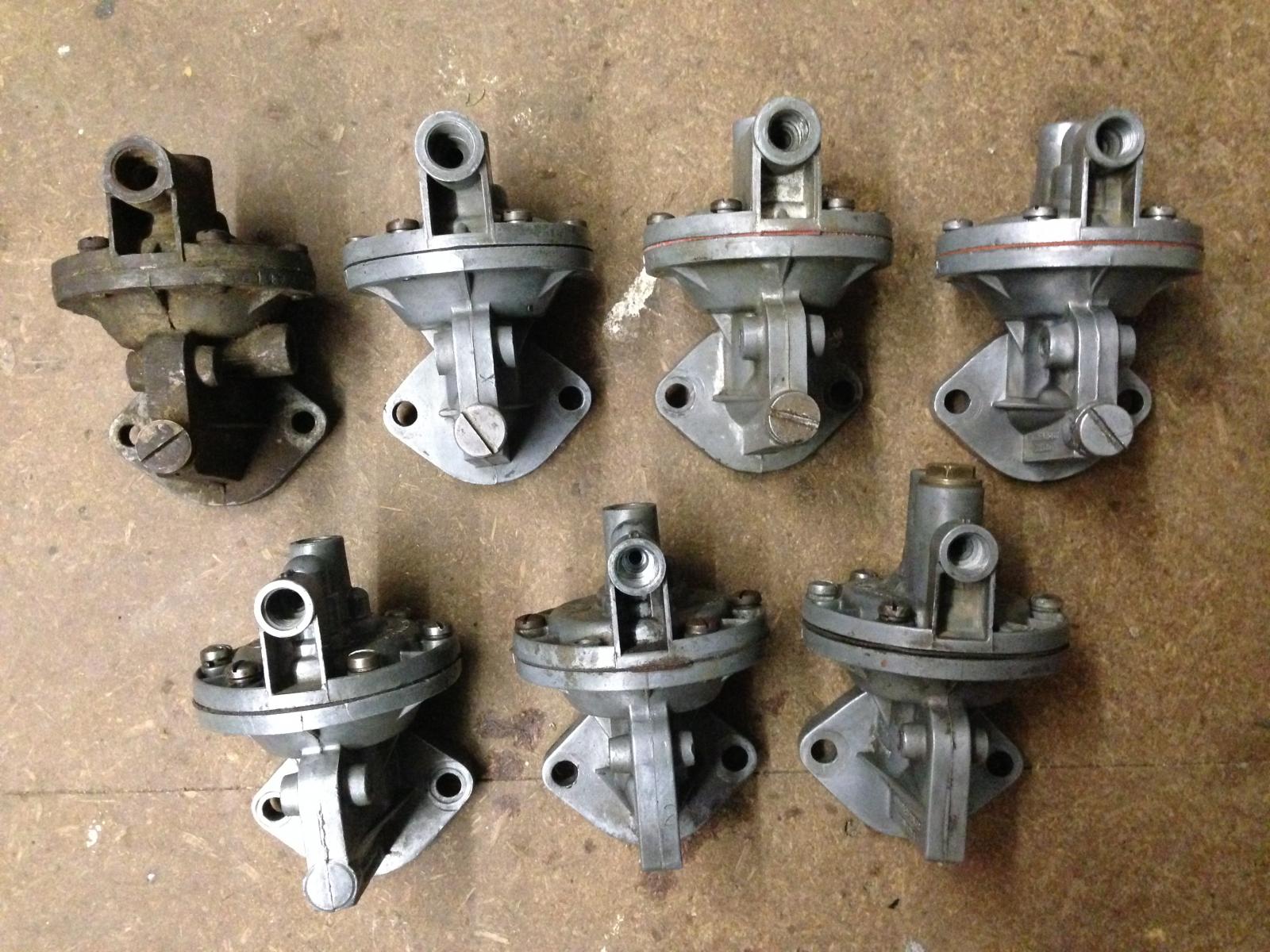

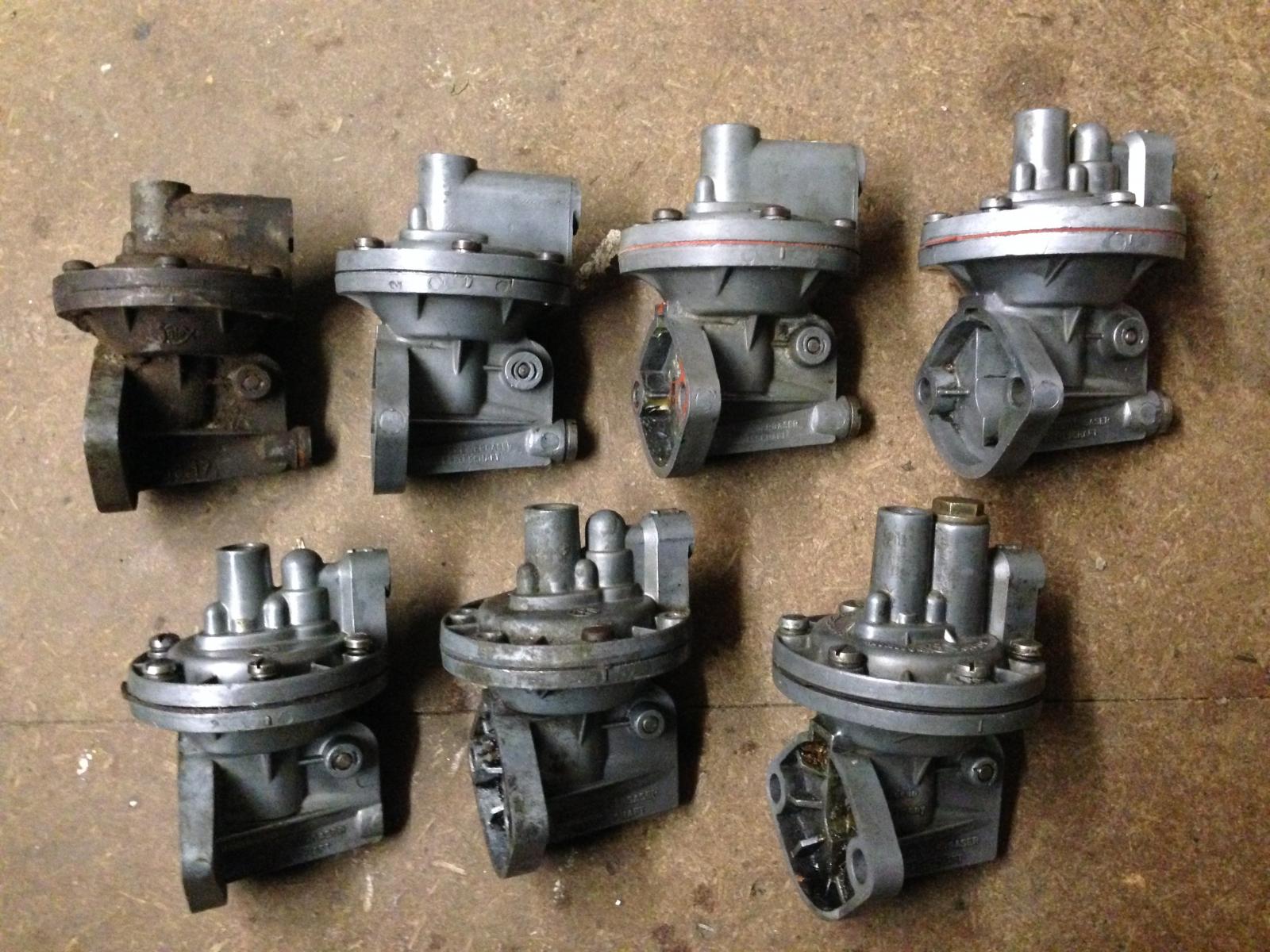

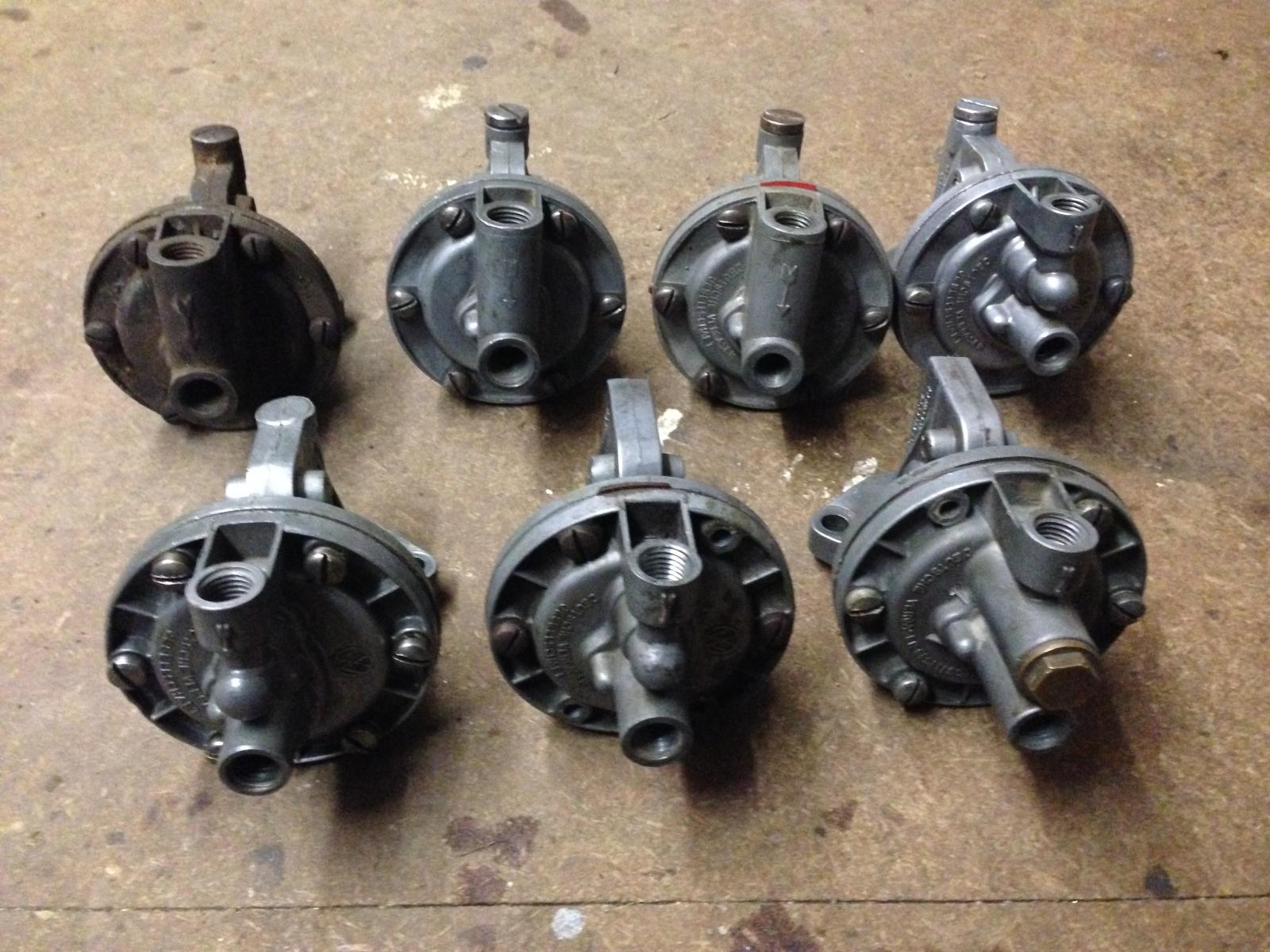

Reference photos of most (all?) of the fuel pump versions:
Thanks to hazetguy for many of these photos. _________________ How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Last edited by EverettB on Tue Aug 20, 2024 10:43 am; edited 8 times in total |
|
Back to top |
|
 |
BulliBill Samba Member

Joined: July 09, 2004 Posts: 4699 Location: St Charles, MO
|
Posted: Sat Jun 27, 2015 9:12 am Post subject: |
|
|
Thanks for posting that up for us Everett! Fantastic, nice photos too (Thanks to John for some of those photos).
I was digging thru my extra 25- and 36bhp fuel pumps and I think I have at least one of almost every one you showed. I noticed the serial numbers stamped into the halves, and I figured that they would ascend in number as they got newer and according to your new pump page they seem to do that (with only one exception in my pump collection). In terms of a data point in time, I can only suggest one serial number and the production date of the Beetle it came on. My all original June 22nd, 1955 production Deluxe Sunroof Beetle with fairly unmolested motor came with fuel pump serial #1475466. Also several of my German late '59 and onward 36bhp fuel pumps with the "bolt/filter" top had serial #s and several had none at all? Go figure...
It might be interesting for others who can pretty much confirm an "original" pump still with its' original motor/VW vehicle to post the info here.
Thanks again for creating the breakdown of 25- and 36bhp fuel pumps and their modifications over time!
Bill Bowman
p.s. I wonder if that '58-only pump with the taller output casting necessitated an shorter fuel line from the pump to the carb inlet, although I imagine that they just bent the soft line to accommodate the taller pump... _________________ I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
Back to top |
|
 |
EverettB  Administrator

Joined: April 11, 2000 Posts: 70937 Location: Phoenix 602
|
Posted: Sat Jun 27, 2015 9:23 am Post subject: |
|
|
Yes, a lot of the photos above are from Hazetguy.
He is usually one of my go-to people for finding good reference photos.
The "58-only" thing is a guess - corrections and more information welcome.
Yes, the serial numbers are sequential from what I have seen.
I agree it would be interested to have some sort of reference point for the serial numbers, if people have known original pumps.
Regarding your mismatch:
Many pumps have had the bottom half replaced due to wear.
For instance, I have several 54-55 wavy top fuel pumps that have later bottom halves.
The bottom half is the part with the serial number so this could cause confusion if you are trying to use the serial number as some sort of production date reference.
This is probably the case with the one exception you found in your collection. _________________ How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
Back to top |
|
 |
Srecko Samba Member
Joined: August 03, 2009 Posts: 161 Location: Adelaide - South Australia
|
Posted: Mon Jun 29, 2015 3:20 am Post subject: |
|
|
very educational...thankyou |
|
Back to top |
|
 |
janerick3 Samba Member

Joined: June 04, 2006 Posts: 1892 Location: Colorado
|
Posted: Fri Jul 03, 2015 12:07 pm Post subject: |
|
|
BulliBill wrote: |
...It might be interesting for others who can pretty much confirm an "original" pump still with its' original motor/VW vehicle to post the info here... |
December 1954: 1303153 (wavy top w/drain screw).
I also have one of those pumps with the out-of-sequence serial numbers. It's the 1956-58 ribbed top style w/serial #578618. The stamp set used is larger and the number's located just to the left of the inlet port (not the usual location). I see no evidence of an old serial number in the usual location on the flange. _________________ Thanks,
Jan K.
Last edited by janerick3 on Fri Jul 03, 2015 10:19 pm; edited 1 time in total |
|
Back to top |
|
 |
My57Oval Samba Member

Joined: March 10, 2005 Posts: 624
|
Posted: Fri Jul 03, 2015 5:10 pm Post subject: |
|
|
I love this thread. It should be a sticky.  |
|
Back to top |
|
 |
BulliBill Samba Member

Joined: July 09, 2004 Posts: 4699 Location: St Charles, MO
|
Posted: Sat Jul 04, 2015 6:12 am Post subject: |
|
|
If by "sticky" you mean putting the thread in the Oval Beetle FAQ section, it is the top topic under "fuel system" in the Oval FAQ. Maybe I don't know what a "sticky" is?
This is a very informative thread!
Bill _________________ I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
Back to top |
|
 |
jerry montano Samba Member

Joined: April 25, 2012 Posts: 98 Location: Chino, CA
|
Posted: Thu Jul 23, 2015 2:33 pm Post subject: |
|
|
It's interesting that the diagram for the "56-58 6mm pump with ribbed top
Used from 15 Feb. 56" shows the screw on the bottom half. I thought the screw was discontinued by then (it's missing from the 55 only pics above it). Was it reintroduced for a short period? I ask because I have an 11/55 (1956) beetle that has the later top with the filter, but the bottom has the large screw. Is this an early bottom with a later top? _________________ 69' Westy
73’ Adventure Wagen Hightop
81’ Westy |
|
Back to top |
|
 |
EverettB  Administrator

Joined: April 11, 2000 Posts: 70937 Location: Phoenix 602
|
|
Back to top |
|
 |
ryan hollingshead Samba Member

Joined: February 20, 2006 Posts: 18
|
Posted: Sun Feb 21, 2016 7:42 pm Post subject: Re: 25hp / 36hp fuel pumps |
|
|
so im reading this trying to see what style is correct for my car, must have went through it a few times before i notice the pic of the "58" only pump is a picture taken by me in my shop ! im sitting here reading it and the pump is right here next to me ! not sure what yr it is actually but the serial # is 3189654 |
|
Back to top |
|
 |
My57Oval Samba Member

Joined: March 10, 2005 Posts: 624
|
Posted: Mon Feb 22, 2016 11:41 am Post subject: Re: 25hp / 36hp fuel pumps |
|
|
That's funny! Sue for copyright infringement and buy 1 of every pump. |
|
Back to top |
|
 |
jeffros 58 Samba Member

Joined: January 01, 2009 Posts: 352 Location: jackson mi
|
Posted: Sun Feb 28, 2016 4:50 pm Post subject: Re: 25hp / 36hp fuel pumps |
|
|
So im building a new motor for my 58 . I should be looking for the long outlet fuel pump or the one with the shorter outlet ? |
|
Back to top |
|
 |
2Dokas Samba Member
Joined: October 09, 2004 Posts: 757 Location: Santa Cruz, CA
|
Posted: Mon Feb 29, 2016 6:06 pm Post subject: Re: 25hp / 36hp fuel pumps |
|
|
Great thread, thanks

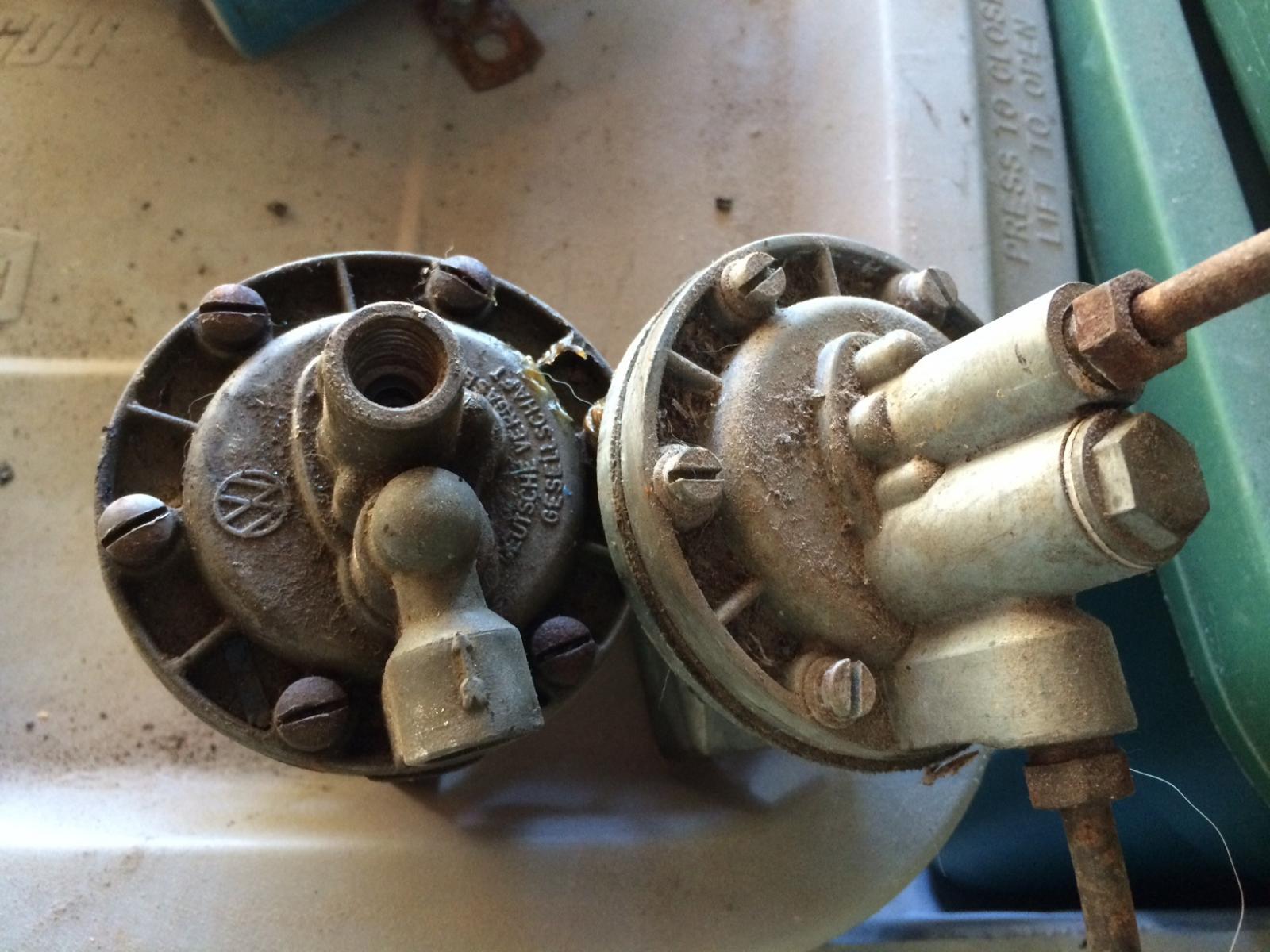

here are the two fuel pumps that came with my 56 vert
any idea what year the one on the right is from?
also, assuming there are rebuild kits for the left one?
_________________ 87 Doka 2WD Ej22,
56 Convertible |
|
Back to top |
|
 |
EverettB  Administrator

Joined: April 11, 2000 Posts: 70937 Location: Phoenix 602
|
|
Back to top |
|
 |
56samba Samba Member
Joined: June 25, 2015 Posts: 265 Location: Germany
|
Posted: Thu Dec 07, 2017 8:09 am Post subject: Re: 25hp / 36hp fuel pumps |
|
|
Hi guys,
I thought it's time to be a bit picky and showing other minor differnces that I discovered on my fuel pumps.
1. KDF and 8mm 25hp fuel pump tops ARE NOT identical and the screw in the lower part too.
2. there are different early lower parts, at least two different versions. One has the sign "Deutsche Vergaser Gesellschaft" and the other one "SOLEX". I thought this could be the differnce between 25hp and 54/55 only, but I have engines as references to refute that. These engines still have the correct fuel pumps since the day of leaving the factory, I'm 100% sure.
Guess the most interesting differnce I noticed are the tops between 54/ early 55 and late 55-58.
They all have the "wavy" top, but if you once saw the differnce, you won't forget
The shape of the areas between the screw holes is completely different. If you compare the tops with a 25hp pump and 58-60 filter fuel pump, we can conclude:
54/55 with the screw in the bottom should have the top that looks simliar to 25hp, it has the wavy top, but the shape between the holes is identical to 25hp, there are no "dividing fins". From 55 (base with casted screw support, but no screw anymore) the wavy top appears to have the same shape as the latest 36hp fuel pump versions.
Hope my pictures illsutrate that. The pumps I'm reffering to never received another top.
Regards,
Jan
PS: if someone has a HUF fuel pump, I'm in need of one...
|
|
Back to top |
|
 |
EverettB  Administrator

Joined: April 11, 2000 Posts: 70937 Location: Phoenix 602
|
|
Back to top |
|
 |
56samba Samba Member
Joined: June 25, 2015 Posts: 265 Location: Germany
|
Posted: Thu Dec 07, 2017 9:38 am Post subject: Re: 25hp / 36hp fuel pumps |
|
|
Hi Everett,
you made me thinking again about the late 55 fuel pump. I could have sworn that the top is correct, but I guess you're right after checking some pics.
But I guess we can conclude that all the 55 pumps had a different top compared to 56 and later?
...got to learn a lot with my 19 years  |
|
Back to top |
|
 |
EverettB  Administrator

Joined: April 11, 2000 Posts: 70937 Location: Phoenix 602
|
|
Back to top |
|
 |
Second Air Force Samba Member

Joined: April 10, 2017 Posts: 269 Location: Midwest
|
Posted: Sat Dec 09, 2017 7:37 am Post subject: Re: 25hp / 36hp fuel pumps |
|
|
Here is the pump of our October '55 production car. Engine serial 1-1195854.
_________________ 1956 Standard Sedan |
|
Back to top |
|
 |
mk-Zero Samba Member

Joined: July 20, 2005 Posts: 350 Location: Orange, CA
|
Posted: Mon Oct 03, 2022 10:50 am Post subject: Re: 25hp / 36hp fuel pumps |
|
|
Great info/thread.
I have a flat top 8mm pump for my 52 split that unfortunately has a cracked base. Can I use a later base with my 8mm flat top until I can find the proper base? Thanks!
_________________ Vintage Classic Specialist, Orange, CA
www.VCSresto.com
[email protected]
1952 VW Standard beetle
1955 VW Type 1, 231 hp daily driver
1956 VW Karmann Convertible Okrasa |
|
Back to top |
|
 |
|
