Early Bay Ignition Re-key

Estacaco · Posted: Thu Jul 23, 2015 9:07 pm Post subject: Early Bay Ignition Re-key

Is there any info out there about re-keying an ignition for an early bay? Found info on re-keying a late bay ignition but they are too different beasts.
Thanks!

Tcash · Posted: Thu Jul 23, 2015 9:32 pm Post subject:

http://www.thesamba.com/vw/forum/viewtopic.php?p=7486671#7486671

Good Luck
Tcash

Estacaco · Posted: Thu Jul 23, 2015 9:45 pm Post subject:

Thanks Tcash but I'm referring to actually manually changing/arranging the wafers in the cylinder.
Like this but for early bays instead of late.

http://s169.photobucket.com/user/rtbckatcha/slideshow/ign%20switch/?albumview=slideshow

borninabus · Posted: Thu Jul 23, 2015 9:59 pm Post subject:

it would be easier, IMO to work the other direction.
rekey the doors to match the ignition.
_________________
88 Van WBX, A/T - 13 JSW TDI 6M/T - 2012 Touareg TDI Sport

Tcash · Posted: Thu Jul 23, 2015 10:01 pm Post subject:

Should be in here.

Rekeying a lock - Tutorial

Tcash

Estacaco · Posted: Thu Jul 23, 2015 10:05 pm Post subject:

I've looked through that thread. lists said link to late bay ignition and covers all sorts of doors and hatches but not early bay ignition.

Estacaco · Posted: Thu Jul 23, 2015 10:18 pm Post subject: Rekeying ignition lock

Here's how it's done.

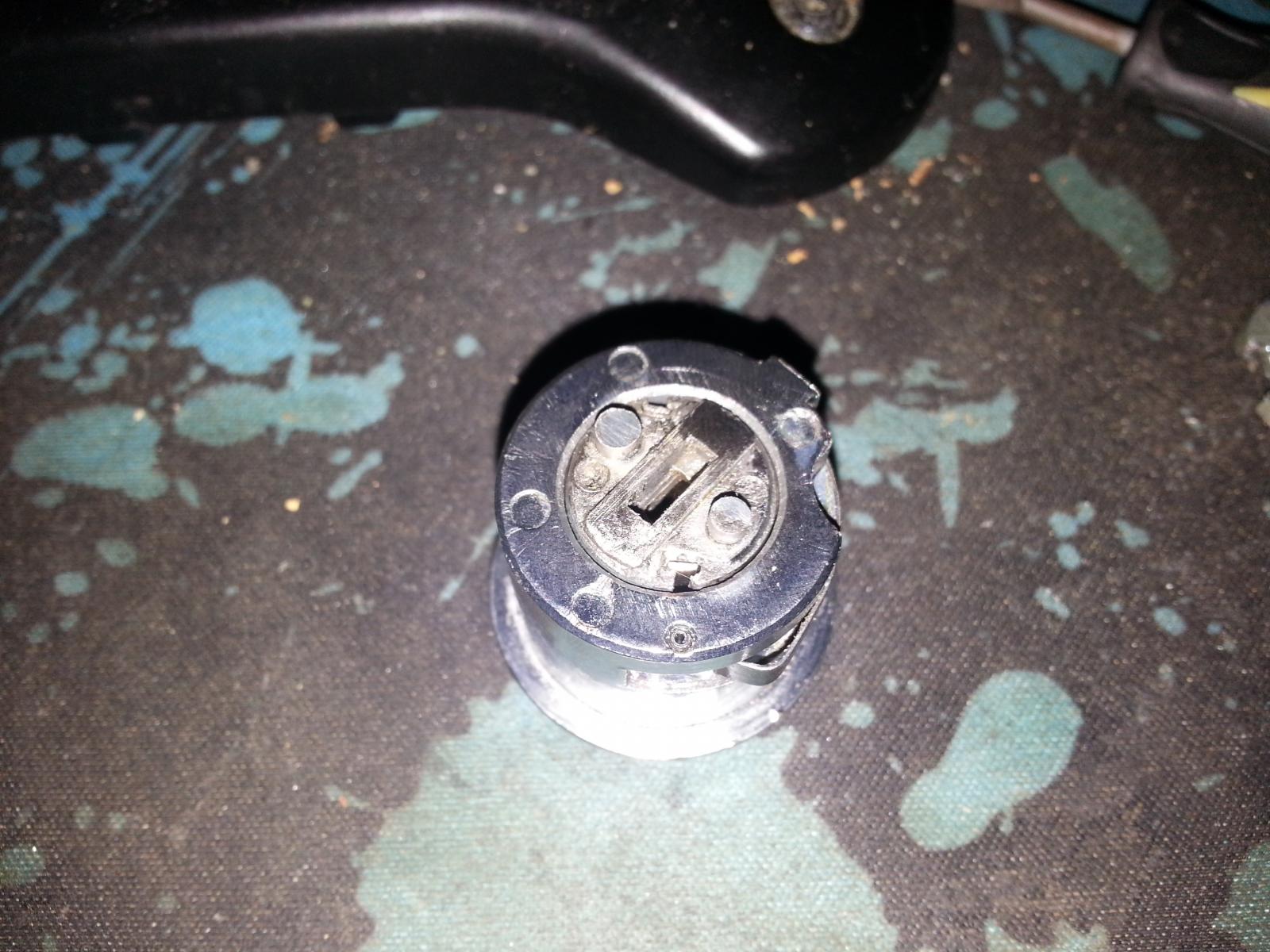

File down the two bronze pins. they've been mushroomed to keep the ignition/cylinder together. May also need to pry a bit with a screwdriver.

Image may have been reduced in size. Click image to view fullscreen.

Removed.

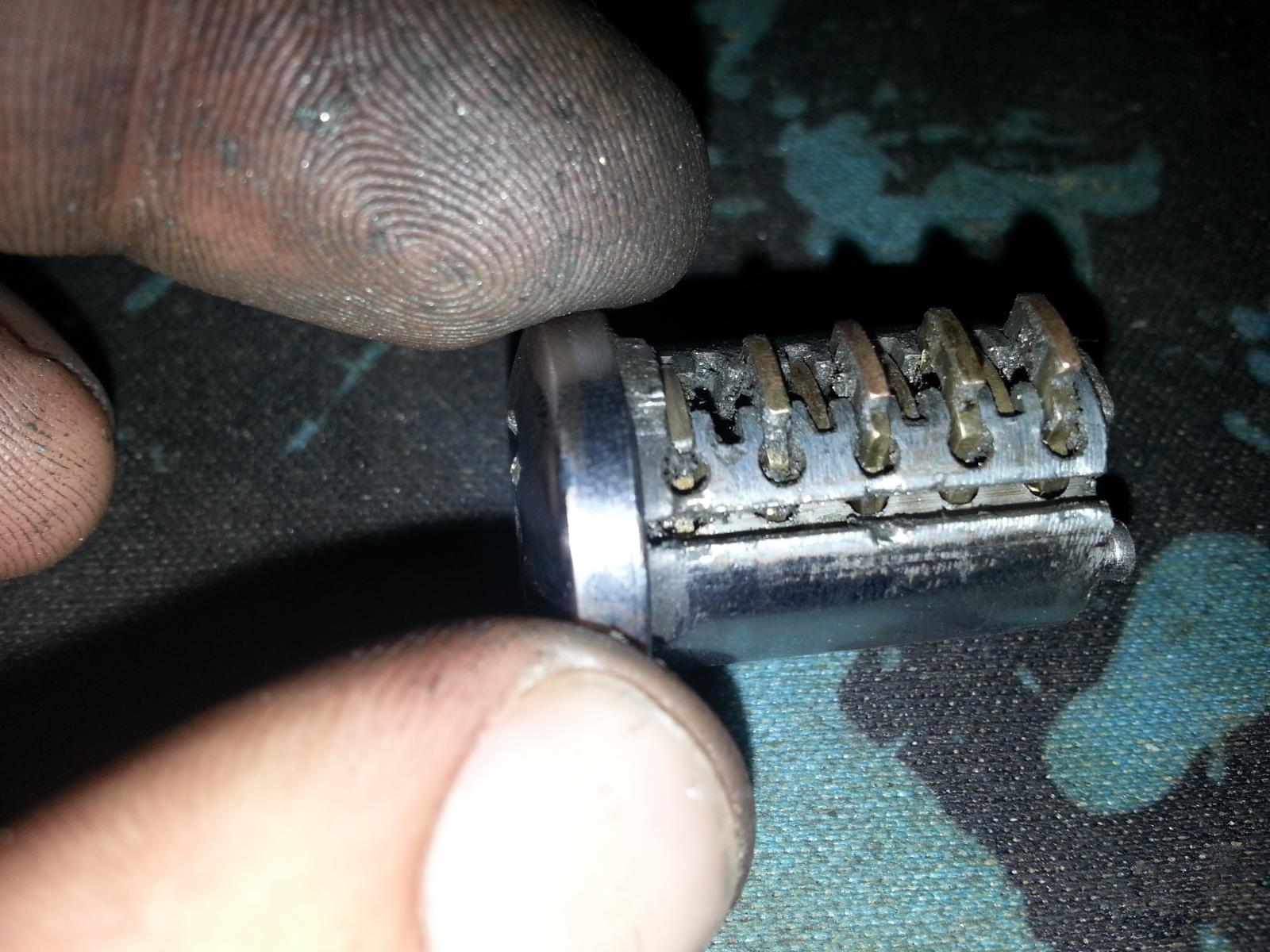

Remove these shims. They keep the wafers from popping out. It's also been peened in. I filled the inner edges of the groove then tapped the under side of each wafer with a small flat head and hammer. Then pushed them backwards with the same flat head.

Once the shims have been removed you can change the wafers.

Reinstall reverse of diss-assembly. Pound the end back on put a dab of JB weld over each bronze pin.

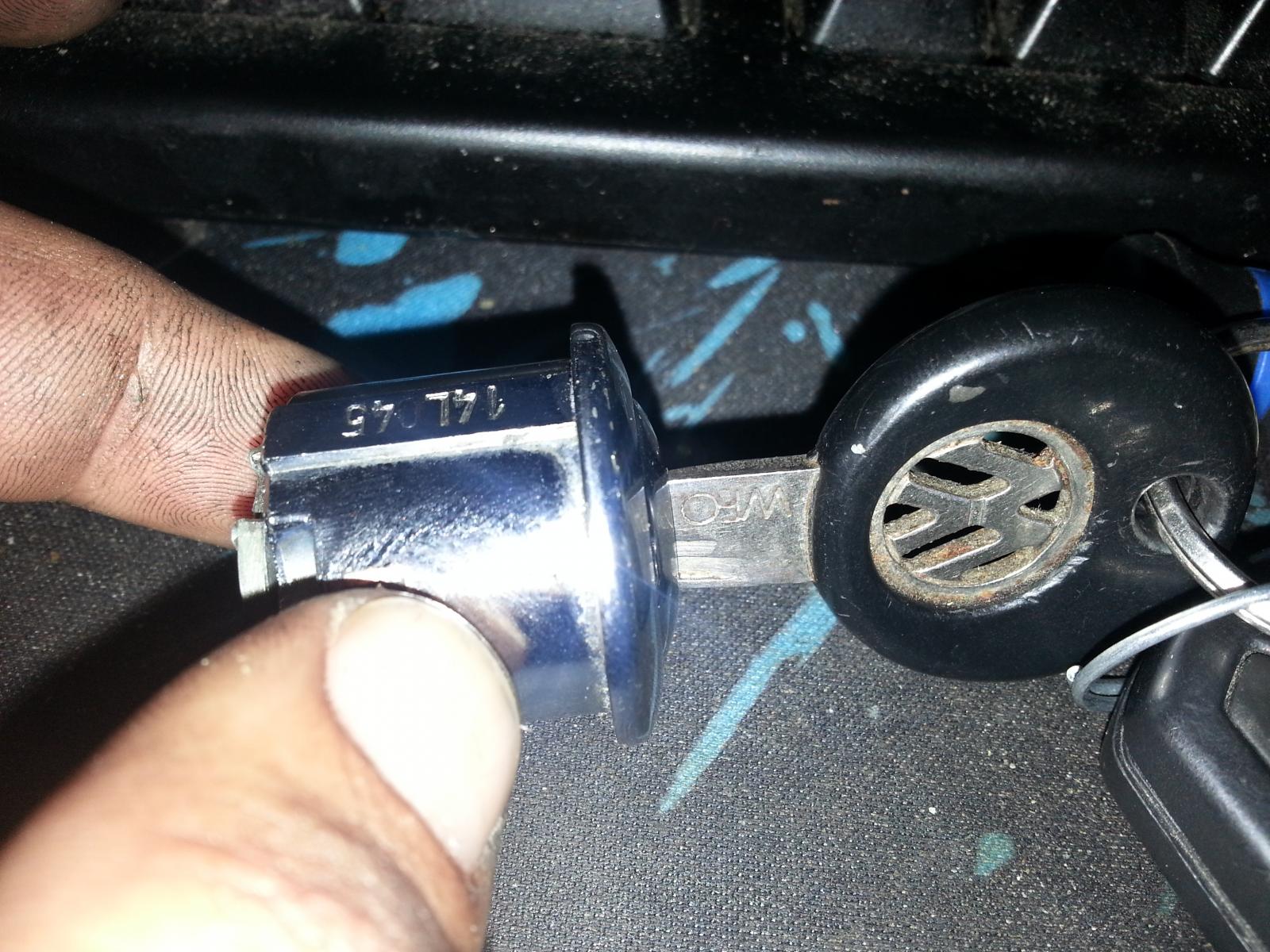

Now my MK2 Golf and T2 Bus share the same key.

airschooled · Posted: Thu Jul 23, 2015 11:47 pm Post subject:

Estacaco, what year is your bus? I don't remember an early (68-70) L-code ignition tumbler working like that. Did you change key profiles? I'm really confused how you got that done in an hour, because now isn't your whole bus multiple keys anyway?
_________________
One-on-one tech help for your vintage Volkswagen:

www.airschooled.com

https://www.patreon.com/airschooled

Estacaco · Posted: Fri Jul 24, 2015 12:03 am Post subject:

My bus is a 69. I lost the key, I will be rekeying the other locks to match. I did not change key profiles. It appears that they used the same key wafers in 85-92 golf's and jetta's.

Brian · Posted: Fri Jul 24, 2015 12:20 am Post subject:

Robbie, if you want to see it for yourself then do mine Very Happy

_________________
Wash your hands

'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper

Only losers litter

Tcash · Posted: Fri Jul 24, 2015 11:24 am Post subject:

Estacaco · Posted: Fri Jul 24, 2015 2:17 pm Post subject:

Haha thanks. I aspire to be as useful was you Tcash!
