PostPosted: Mon Aug 10, 2015 9:54 am    Post subject: Spare tire storage container DIY Reply with quote

I saw this posted here a while ago on the samba, it was a pretty cool idea and I really liked using the space available and getting smelly parts out of the van.

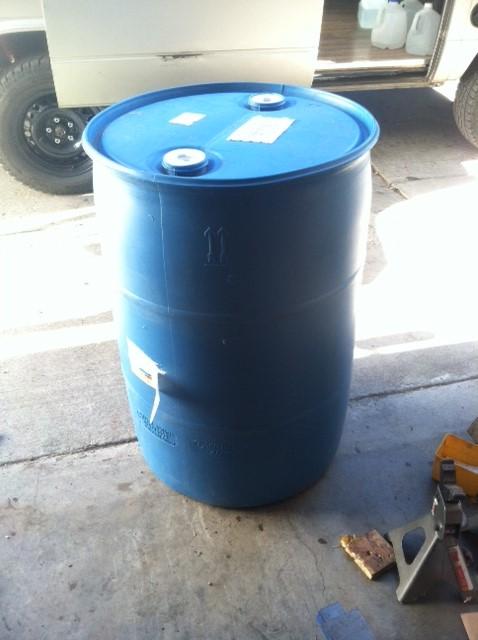

So, first step was buying the barrel. I found one on craigslist for $20. That seemed about average .
Image may have been reduced in size. Click image to view fullscreen.


The next was figuring out how tall to cut it. This part got a little tricky

The spare tire measures about 8"
Image may have been reduced in size. Click image to view fullscreen.


BUT

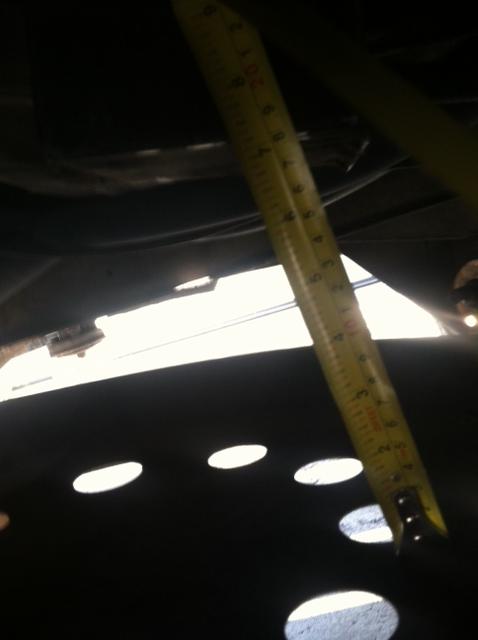

The clam shell is not flat bottomed. Its middle protrudes higher than normal. The barrel is a little bit small diameter than the tire and will sit on the protruding section and not into the recessed.

Image may have been reduced in size. Click image to view fullscreen.

(I know the image sucks, but trying to hold a tape measure lying on your side with a cell phone to take a pic is really difficult.

The distance was actually only about 7" and you have to account for the lid height.

Image may have been reduced in size. Click image to view fullscreen.


So I went and cut at 6 3/4" I used tape to mark the line for cutting. I used a jigsaw with a wood cutting blade and just simply rolled the barrel as I pushed the saw. Worked like a charm.

Image may have been reduced in size. Click image to view fullscreen.

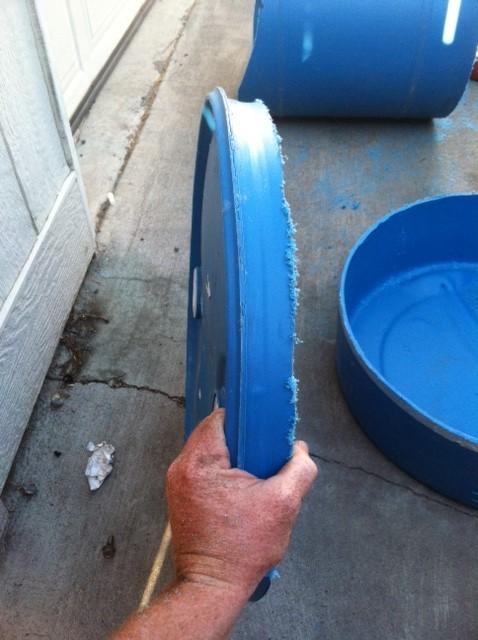

For the top, its not nearly as critical. Cut the bottom first because the top has thicker plastic around its support so it wont bend and flex as you cut away from it. The bottom section gets very wobbly as your cutting.

Image may have been reduced in size. Click image to view fullscreen.


I cant recall the exact length of the top, mostly because I cut right up to the bottom of the inside of the lid, if that makes sense. Its about 1" in thickness all around and you cant cut much deeper than that.

To seal it, I went and picked up some clear vinyl tubing from the hardware store, 7' worth. It was about $1.57 for all of it. I cut it down the middle and stretched it over the lip of the bottom shell. The idea was to keep it nice and water tight. Add some glue or sealant to the inside of the tubing and press it down.

Boy does it ever. I have to stand on the lid now to get it to seat down. I can hear air escaping as I force it down. Getting the lid off takes a little bit of prying to break the air seal. Just what I wanted Cool

A $4.99 ratchet strap from Harbor freight to hold it all down and VIOLA. Spare tire storage container!
Image may have been reduced in size. Click image to view fullscreen.


It can hold a good amount of stuff too!

Image may have been reduced in size. Click image to view fullscreen.


I carry spare CVs and axles, fuel pumps, greases, oils, spare fuel and coolant hoses. The works.

This total job took about 30 mins, not too shabby for an after work project.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
the joker
Samba Member


Joined: October 12, 2006
Posts: 1287

the joker is offline

PostPosted: Mon Aug 10, 2015 12:46 pm    Post subject: Reply with quote

where's your spare now? Question I need mine Confused
wonder if you could make smaller one to fit in the spare tire Idea Question
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Mon Aug 10, 2015 1:39 pm    Post subject: Reply with quote

the joker wrote:
where's your spare now? Question I need mine Confused
wonder if you could make smaller one to fit in the spare tire Idea Question


I have 16" tires so they wouldnt fit regardless, I have my spare on a RMW swing out.

I mean you could make something to fit inside your spare, but it might only be big enough to carry your spark plugs, not alot of room in the spare tire recess. Crying or Very sad
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
herramiento
Samba Member


Joined: October 26, 2014
Posts: 29
Location: Vancouver BC
herramiento is offline

PostPosted: Mon Aug 10, 2015 3:54 pm    Post subject: Reply with quote

An acquaintance met some guy on a beach once who put together vanagons in Germany. In addition to a bunch of little tips, this guy said that the spare tire is actually a key part of the forward collision zone. Second hand news, I know.

That said, that's a pretty nifty tool box you put together. Maybe it would perform the same function as the spare in a crash?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
the joker
Samba Member


Joined: October 12, 2006
Posts: 1287

the joker is offline

PostPosted: Mon Aug 10, 2015 5:30 pm    Post subject: Reply with quote

that crossed my mind also Idea

there's a reason the engineers put it there rubber/air/ stee riml/ gas tank Shocked

like in all the bugs bays karmans squarebacks etc. tool kit washer bottle spare tire

I'm still kicking around mounting long tubes under the body
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Mon Aug 10, 2015 6:42 pm    Post subject: Reply with quote

Have you noticed a rise in the coolant temp? I understand they designed the wheels and spare carrier plate with holes to let the hot air escape quicker from the backside of the radiator.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Mon Aug 10, 2015 7:02 pm    Post subject: Reply with quote

They used that same rim since the aircooled 1968 model. The rims weren't designed for the vanagon or even a watercooled vehicle.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Mon Aug 10, 2015 7:10 pm    Post subject: Reply with quote

And the holes in the plate?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Mon Aug 10, 2015 7:11 pm    Post subject: Reply with quote

1971 model Bay was the first with 14" 5 x 112 rim
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Mon Aug 10, 2015 7:30 pm    Post subject: Reply with quote

VW sez '67 but I know that can't be right. http://shop.volkswagen-classic-parts.de/vwcp/bus-lt/t-2/chassis/rims/steel-rim-211601027h.html Point being that they weren't designed for vanagons or airflow of the radiator. Probably more likely cooling for brakes as most cars have that style rim for their steel wheels.

Why is there holes in the plate? Airflow, place for rain water to drain out from, leaky radiator hose or leaky radiator drains? I didn't design it so speculate away. Eh?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Mon Aug 10, 2015 8:32 pm    Post subject: Reply with quote

Im not totally sure that I believe the tire as being part of the crumple zone protection. People have been pulling the spares out and making their own skid plates for as long as the vans have been produced. Havent heard about an increased injury/mortality rate because of that.

No change in engine temps because of it, "airflow" through the spare tire and then clam shell has to be absolutely minimal if not non existent.

If it actually does lower air temps, and allow the engine to run cooler. I havent noticed. If you do this and notice your engine temps rise, then you probably have something else going on if that restriction of airflow makes your engine run noticeably warmer.

In the end though, this is a cheap mod to store parts, do it or dont do it, doesnt affect me Cool
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
tim_ha
Samba Member


Joined: November 20, 2012
Posts: 192
Location: Estes Park, CO
tim_ha is offline

PostPosted: Tue Aug 11, 2015 8:17 am    Post subject: Reply with quote

Nice work. Perhaps my white version was the one you saw a while back. One of my favorite mods for sure. I was able to cary all of my spares for my drive down the Panamerican Highway.

Image may have been reduced in size. Click image to view fullscreen.


I like your method of getting it to seal. I put some weather stripping around the inside of the bottom section that seals pretty well with the lid, but your tubing idea might be better. One minor problem I had was that some of my spares (CVs, wheel bearings) rattled around enough to wear through their packaging and gather a bit of rust from all of the ocean air I was in. Make sure to pad and double package parts that you don't want to rust.
_________________
1986 Syncro Sunroof EJ22
www.subagonsouth.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Tue Aug 11, 2015 8:23 am    Post subject: Reply with quote

tim_ha wrote:
Nice work. Perhaps my white version was the one you saw a while back. One of my favorite mods for sure. I was able to cary all of my spares for my drive down the Panamerican Highway.

Image may have been reduced in size. Click image to view fullscreen.


I like your method of getting it to seal. I put some weather stripping around the inside of the bottom section that seals pretty well with the lid, but your tubing idea might be better. One minor problem I had was that some of my spares (CVs, wheel bearings) rattled around enough to wear through their packaging and gather a bit of rust from all of the ocean air I was in. Make sure to pad and double package parts that you don't want to rust.


Yup! Thats the one! Super cleaver idea! I really liked it! Thanks for the tips on parts rattling in there. Ill keep an eye on it Smile
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Abelabelabel
Samba Member


Joined: November 17, 2014
Posts: 336
Location: Santa Ana, CA
Abelabelabel is offline

PostPosted: Tue Aug 11, 2015 10:58 am    Post subject: Reply with quote

Loving this mod.
_________________
1991 Vanagon GL / Carat Interior / Auto - White "Daily"
1990 Vanagon Carat / manual / Cherry Red "Bella Rouge"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MsTaboo
Samba Member


Joined: June 02, 2006
Posts: 4062
Location: East Kootenay, British Columbia
MsTaboo is offline

PostPosted: Tue Aug 11, 2015 12:17 pm    Post subject: Reply with quote

newfisher wrote:
And the holes in the plate?


Not all spare tire/front pans have holes. This is one of the reinforced pans that came on 16" Vans with the factory spare tire mount on the rear.

Image may have been reduced in size. Click image to view fullscreen.


And this is one that swings down to accept a spare. These came on vans with the rough road package.

Image may have been reduced in size. Click image to view fullscreen.


So I don't think they used the holes in the clam shell as anything other than weight reduction. After all, those things are fairly flimsy.

To the OP, nice job!
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec

The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
Help the fight against Truth Decay.
Defend democracy, support Ukraine.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Tue Aug 11, 2015 4:12 pm    Post subject: Reply with quote

MsTaboo wrote:

To the OP, nice job!


thanks!
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
JED THE SPREAD
Samba Member


Joined: July 14, 2009
Posts: 626
Location: South London UK
JED THE SPREAD is offline

PostPosted: Sun Aug 23, 2015 4:21 am    Post subject: Reply with quote

thasty07 wrote:
Im not totally sure that I believe the tire as being part of the crumple zone protection. People have been pulling the spares out and making their own skid plates for as long as the vans have been produced. Havent heard about an increased injury/mortality rate because of that.



Hardly any of the European spec Syncros have the clam shell fitted and never had a wheel under the front from the factory so I'm with you.

Jed
_________________
Visit CAMPERVANCULTURE.COM real camping and video uploads
Subscribe to Campervan Culture by Email
Follow us on Facebook, Campervanculture.com
Back to top
View user's profile Send private message Classifieds Feedback
thasty07
Samba Member


Joined: May 16, 2014
Posts: 310
Location: Bend, OR
thasty07 is offline

PostPosted: Mon Jan 25, 2016 11:12 am    Post subject: Re: Spare tire storage container DIY Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Well the storage bin has been paying dividends lately. On our way home over the Santiam Pass, traveling with my sister, we passed by the rest stop and within a mile it felt like we were driving over a speed bump constantly. I pulled over and got out to take a look. Shook the passenger wheel and it was loose loose loose.

Welp... Crap

Sister thought, "great, tow truck ride, this is going to take forever..."

Nope!

Turned around and drove a gentle mile back to rest stop and put on a new wheel bearing kit in the parking lot. People thought we were the Clampetts but I dont care, sure didnt have to ride in a tow truck Very Happy

Image may have been reduced in size. Click image to view fullscreen.


Carrying all these parts and tools has really made traveling less stressful when something goes wrong.

Best $27 mod I have done for the van yet.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
MsTaboo
Samba Member


Joined: June 02, 2006
Posts: 4062
Location: East Kootenay, British Columbia
MsTaboo is offline

PostPosted: Mon Jan 25, 2016 11:26 am    Post subject: Re: Spare tire storage container DIY Reply with quote

Applause Applause Applause
_________________
Currently:
'90 Syncro Westy 3 knob w/Zetec

The information age has morphed into the age of disinformation and willful ignorance. Agnotology!
Help the fight against Truth Decay.
Defend democracy, support Ukraine.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Californio
Samba Member


Joined: May 17, 2007
Posts: 1271

Californio is offline

PostPosted: Mon Jan 25, 2016 11:44 am    Post subject: Re: Spare tire storage container DIY Reply with quote

Caulking gun? Something I don't usually carry...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
