| Author |
Message |
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
 Posted: Mon Feb 02, 2015 1:11 am Post subject: Carburetor Choice |
 |
|
Hi Guys
I have a 1600SP VW engine that I am rebuilding,I currently have a 31 Pict 3 but its time is just about up.My engine is purely stock and will remain that way.However I am looking for better performance and better mileage than my current carb setup.In light of this,I finally decided to switch to the dual carb setup.
There are two setups which interest me from CB Performance:
They are Dual Weber 34mm ICT Kit - Single Port Type-1 & 2 to '71 and Solex Carbs - Dual 34mm with Electric Chokes (single port).
http://www.cbperformance.com/ProductDetails.asp?ProductCode=3284
and
http://www.cbperformance.com/ProductDetails.asp?ProductCode=6427
Please advise me which between the two is ideal for me with the following in mind:
Easier Installation and maintenance(have to import most parts to my country)
Better mileage,
More Horsepower
Better cold starts
Durability
Build quality
Price vs Performance
If you had to pick one for me which would would it be and why?I thank you in advance for your support. |
|
| Back to top |
|
 |
Aynthm
Samba Member
Joined: July 07, 2010
Posts: 1315
Location: Beaverton, Oregon
|
| Posted: Mon Feb 02, 2015 7:04 pm Post subject: |
|
|

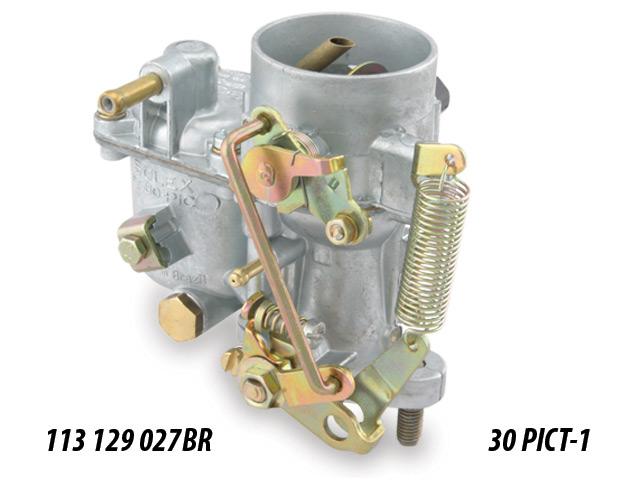

Go with a 30 PICT 1.
Not my photo, sorry. This is.
Last edited by Aynthm on Tue Feb 03, 2015 1:43 am; edited 1 time in total |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26264
Location: Olympia Wash Rinse & Repeat
|
| Posted: Mon Feb 02, 2015 7:30 pm Post subject: |
|
|
| Aynthm wrote: |
Go with a 30 PICT 1.
|
That is a 30-PIC carb in the image.
Agreed a 30-PICT-1 would be better if used in a post-1960 VW.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Mon Feb 02, 2015 11:12 pm Post subject: |
|
|
hey guys ...thanks for the replies but i was comparing the dual carbs in the links provided.Thus are you saying the 30 pict is a better carb compared to both the dual carbs mentioned?
any insight will really be helpful |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: June 02, 2011
Posts: 1593
Location: Louisville, ky
|
| Posted: Mon Feb 02, 2015 11:15 pm Post subject: Re: Carburetor Choice |
|
|
| monkslayer wrote: |
| My engine is purely stock and will remain that way. |
This sentence along with pictures of dual webers is confusing us. Dual webers is hardly stock. |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Mon Feb 02, 2015 11:40 pm Post subject: |
|
|
hehehe..agreed.I want the internals to remain stock,however i want a bit more umphh without hurting mileage of course..
I have read one way to do this is to go the dual carbs..that is my reason for asking. |
|
| Back to top |
|
|
txoval
Samba Member
Joined: January 23, 2004
Posts: 3887
Location: The Woodlands, TX
|
| Posted: Tue Feb 03, 2015 7:23 am Post subject: |
|
|
What is your #1 priority?
Mileage, Cold Start, or Maintenance (syncing of carbs/adjustment)
Mileage and Maintenance I would go with the Weber kit. I prefer that linkage setup
Cold start is easy - Solex setup |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Tue Feb 03, 2015 7:58 am Post subject: |
|
|
My number one set is Mileage,Maintenance and performance.I don't live in sub zero temp,it gets to about 13-16 degrees centigrade at the lowest,thus not sure if cold starts will be a problem.
With my previous carb,couldn't get it to start when cold without the choke(probably worn out carb) |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26264
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Feb 03, 2015 8:15 am Post subject: |
|
|
If you get below about 20 C, you can have icing problems due to moisture in the air. Especially if you get fog or even just dew on the ground.
With dual carbs, you are going to have more maintenance.
With more performance you are more likely to have less MPG, unless you can restrain yourself.
All carbs need a choke for trouble free start up with cooler mornings.
If the throttle shaft bore in the carb is worn so the shaft is loose, then the carb is worn, but that can be bushed back to proper fit.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Tue Feb 03, 2015 9:26 am Post subject: |
|
|
| Thank you very much...At least I have information to help me decide. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26264
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Feb 03, 2015 11:34 am Post subject: |
|
|
Glad to help.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 24398
Location: NYC/Upstate/ROW
|
| Posted: Tue Feb 03, 2015 11:45 am Post subject: |
|
|
Did a gig in Kenya in the 1980s, destroying documents for the government.
Cold starting in Nairobi ?? Lol!!!!!!
_________________
πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ πΊπΈ π π π |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Tue Feb 03, 2015 1:08 pm Post subject: |
|
|
A lot changes...and the weather can get quite unpredictable at times!and considering i leave the house at about 5 a.m...chilly temps and cold starts do happen!
|
|
| Back to top |
|
|
CHUBB805
Samba Member
Joined: February 08, 2013
Posts: 25
Location: CA
|
| Posted: Tue Feb 03, 2015 4:58 pm Post subject: |
|
|
| You may want to check out a set of Kadrons from kaddieshack.com |
|
| Back to top |
|
|
spanky324
Samba Member
Joined: September 28, 2006
Posts: 1070
Location: Greeley Pa
|
| Posted: Tue Feb 03, 2015 5:13 pm Post subject: |
|
|
| CHUBB805 wrote: |
| You may want to check out a set of Kadrons from kaddieshack.com |
x2 |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Tue Feb 03, 2015 11:37 pm Post subject: |
|
|
| My engine is a 1600sp.Don't think the kaddies will work for me without having to change the heads...or will they? |
|
| Back to top |
|
|
67jason
Samba Member
Joined: August 28, 2005
Posts: 4741
Location: behind my back feet - Pittsburg CA
|
| Posted: Wed Feb 04, 2015 12:44 am Post subject: |
|
|
| spanky324 wrote: |
| CHUBB805 wrote: |
| You may want to check out a set of Kadrons from kaddieshack.com |
x2 |
x3 on kads.
a couple of things though, i'd recommend using heavy duty vavle springs on any dual carb set up. I'd also recomend a standard 1 3/8th in. header and queit pack muffler or hide-away muffler (or similar type of stock sized header muffler combo). I'd also use CSP linkage. if you are not willing to at least upgrade your exhaust then forget the dual carb idea all together.
also, i dont understand the "dual carbs require more maintenance" comments made earlier in this thread. good carbs with GOOD linkage are set it and forget it items. once its tuned it should stay that way unless you have to remove the linkage or carbs for any reason. the carbs themselves will have to be serviced about as often as stock - meaning if they are clean and good and tight, and no air leaks they virtually never have to be serviced beyond periodically checking air mixture once or twice a year- just like stock.
_________________
67 bug x3
67 ghia
64 bug |
|
| Back to top |
|
|
monkslayer
Samba Member
Joined: March 29, 2011
Posts: 60
Location: Nairobi
|
| Posted: Wed Feb 04, 2015 8:25 am Post subject: |
|
|
| It is like you read my mind.Exactly what i wanted to do.Will have the exhaust redone..however have been looking around for good heavy duty springs..Any feedback on the empi HD springs sold by Cip1? |
|
| Back to top |
|
|
Russbus
Samba Member
Joined: April 14, 2015
Posts: 69
Location: Marysville, CA
|
| Posted: Sat Aug 15, 2015 5:35 am Post subject: 30-PIC Carb |
|
|
| Eric&Barb wrote: |
| Aynthm wrote: |
Go with a 30 PICT 1.
|
That is a 30-PIC carb in the image.
Agreed a 30-PICT-1 would be better if used in a post-1960 VW. |
I use a 30-PICT-1 in my stock 1600 SP - runs great. As a back-up I have a near-new 30-PIC just like the one in the photo (mislabeled 30-PICT-1). But it does run like crap - barely idles... I've read recently that it's for 36 or 40 hp engines and I read here that it's not so good for post-1960. But since I have it... what if anything can be done to modify it for better results?? |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26264
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sat Aug 15, 2015 7:08 am Post subject: |
|
|
Clean the carb out and jet it for your size of engine. The 30-PIC is more for 1300 and later engines. The reason it is so great for pre-1961 VWs is it has the manual choke which those early VWs had as a standard item.
A 28 PIC or PICT would be better for 36 or 40 HP engine, and a lot easier to find.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
|
