 Posted: Tue Sep 01, 2015 10:37 pm Post subject: Mounting LED light strips as 3rd brakelight |
 |
|
I have two 19" flexible led lightstrips - I plan to attach them to a 20" long L shaped piece of plastic molding and install the molding into the engine lid so that they can be seen through the vents as a 3rd tail and brake light.
I've seen photos of nice examples, but I can't quite figure out how people have attached the assembly up into the early style integral rain tray. Anyone here with experience and/or ideas?
_________________
portland, or
69 cypress green ghia coupe
82 vanagon TD
86 quantum syncro |
|
| Back to top |
|
 |
kiwighia68
Samba Member
Joined: October 20, 2013
Posts: 2934
Location: Auckland, New Zealand
|
| Posted: Tue Sep 01, 2015 11:11 pm Post subject: Re: Mounting LED light strips as 3rd brakelight |
|
|
| mfitzsimor wrote: |
I have two 19" flexible led lightstrips - I plan to attach them to a 20" long L shaped piece of plastic molding and install the molding into the engine lid so that they can be seen through the vents as a 3rd tail and brake light.
I've seen photos of nice examples, but I can't quite figure out how people have attached the assembly up into the early style integral rain tray. Anyone here with experience and/or ideas? |

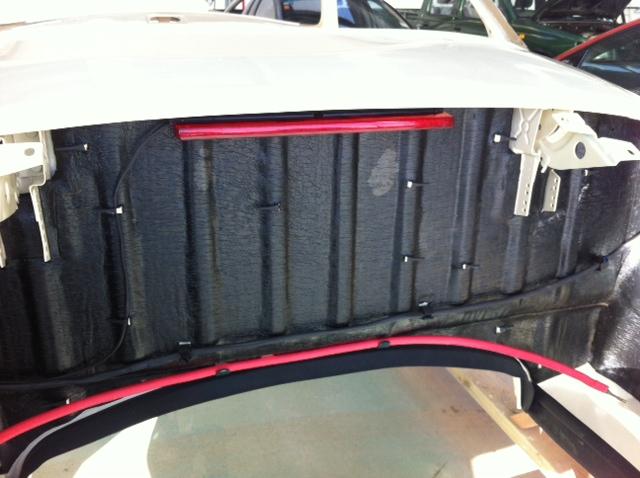

I mounted my high stop light against the firewall and not in the engine lid, like this:
I got the idea from Nicholas, also known as Sputnick.
_________________
Festina lente - hasten slowly
1968 Ghia named Emiko
Resto completed Dec 2015 |
|
| Back to top |
|
|
catahoula lou
Samba Member
Joined: August 30, 2008
Posts: 599
Location: south of Silver Springs, NV
|
| Posted: Wed Sep 02, 2015 1:39 am Post subject: |
|
|
Try looking for a post about this article by C21Darrel. He did the type of installation that you're asking about and showed me in person at Prado a few months ago. Thought that I had bookmarked it...
Best,
Thom
_________________
1 great wife
2 Catahoula Leopard Dogs (Mahogany Star and Spartan) - RIP Lucy, Braveheart, & Dusty!
1 1959 mango green Ragtop Bug (the "Mango")
1 1958 pantina red Lowlight Ghia (the "Chili Pepper")
Still looking for:
(1) My Dad's 1955 356 (he raced it amateur-class at Riverside and other courses during 1950s),
(2) My parent's black 1955 hardtop bug (CA license plate FWC 201 or FWG 201), and
(3) My parent's agave green 1957 ragtop bug (CA license plate LFK 734). |
|
| Back to top |
|
|
DogGeorge
Samba Member
Joined: June 25, 2012
Posts: 17
Location: Central Virginia
|
| Posted: Wed Sep 02, 2015 4:57 am Post subject: |
|
|
I used the same flexible LED strips with adhesive backing, but I mounted them to a strip of aluminum bar stock and used two beam clamps to fix the bar between the hinge mounting points. I added the tie wraps as a safety measure in case the adhesive breaks down from the heat - I don't know what the fan would do with those LED strips if they came loose!
|
|
| Back to top |
|
|
mlhsquared
Samba Member
Joined: October 13, 2008
Posts: 1482
Location: Strasburg, VA
|
|
| Back to top |
|
|
mfitzsimor
Samba Member
Joined: May 09, 2004
Posts: 171
Location: Portland, OR
|
| Posted: Wed Sep 02, 2015 10:14 am Post subject: |
|
|
Thanks - I looked through the 6 page thread and only saw DanUK mount them somehow in an early deck lid with the integral metal rain tray. I couldn't tell from the photos how he did it, though. Everyone else seems to have a later deck lid with available mounting holes from the plastic rain tray.
I was worried that a firewall mounting location wouldn't get enough light out during the day, but I think I'll give it a try and wire both strips as a brake light.
Mark
_________________
portland, or
69 cypress green ghia coupe
82 vanagon TD
86 quantum syncro |
|
| Back to top |
|
|
carguy4
Samba Member
Joined: May 05, 2015
Posts: 67
Location: Tucson, AZ
|
|
| Back to top |
|
|
c21darrel
Samba Member
Joined: January 22, 2009
Posts: 8236
Location: San Dimas
|
|
| Back to top |
|
|
mfitzsimor
Samba Member
Joined: May 09, 2004
Posts: 171
Location: Portland, OR
|
| Posted: Wed Sep 02, 2015 8:21 pm Post subject: |
|
|
Thank you Darrell! I now understand how you just stuck the adhesive strip directly to the the front edge of the metal rain tray. I'm guessing I have to remove 45 years of dirt, oil, and oxidation before I give it a try but it looks good. I may put one strip on the fire wall as third tail light and the other in the tray as a brake light.
_________________
portland, or
69 cypress green ghia coupe
82 vanagon TD
86 quantum syncro |
|
| Back to top |
|
|
mlhsquared
Samba Member
Joined: October 13, 2008
Posts: 1482
Location: Strasburg, VA
|
| Posted: Thu Sep 03, 2015 7:41 am Post subject: |
|
|
| mfitzsimor wrote: |
Thanks - I looked through the 6 page thread and only saw DanUK mount them somehow in an early deck lid with the integral metal rain tray. I couldn't tell from the photos how he did it, though. Everyone else seems to have a later deck lid with available mounting holes from the plastic rain tray.
I was worried that a firewall mounting location wouldn't get enough light out during the day, but I think I'll give it a try and wire both strips as a brake light.
Mark |
Not to offend or to start an argument, but the point is to ask your questions in that same thread so that, for future reference, we don't have sixty odd threads to look through for information. One thread, one single point of reference. It's so much easier to look things up that way. There are those here who will basically pound this into your brain, but I think a kinder approach works better. So again, no offense, just trying to be helpful.. I'm kind of surprised that the Mods didn't catch this. They usually do. Peace!
_________________
Mike
'67 Ghia Coupe |
|
| Back to top |
|
|
John Moxon
Samba Moderator
Joined: March 07, 2004
Posts: 14197
Location: Southampton U.K.
|
| Posted: Thu Sep 03, 2015 8:13 am Post subject: |
|
|
| mlhsquared wrote: |
Not to offend or to start an argument, but the point is to ask your questions in that same thread so that, for future reference, we don't have sixty odd threads to look through for information. One thread, one single point of reference. It's so much easier to look things up that way. There are those here who will basically pound this into your brain, but I think a kinder approach works better. So again, no offense, just trying to be helpful.. I'm kind of surprised that the Mods didn't catch this. They usually do. Peace! |
Well yes I do usually redirect if the subject has been well covered in a previous thread but in this case by the time I saw it at breakfast time there were already a couple of informative replies that would have quite possibly have drawn the topic to an early conclusion. The advice is as always search first...if you find a topic that has info relevant and is reasonably up to date add your questions to the existing topic...if the question hasn't been asked before it will add value to the existing topic.
_________________
John.
Judson Supercharger Information on The Samba
My 1958 Shorrock Supercharged Karmann Ghia
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
briggsy
Samba Member
Joined: January 11, 2013
Posts: 30
Location: Ontario, CANADA
|
| Posted: Wed Nov 18, 2015 12:52 pm Post subject: Re: Mounting LED light strips as 3rd brakelight |
|
|

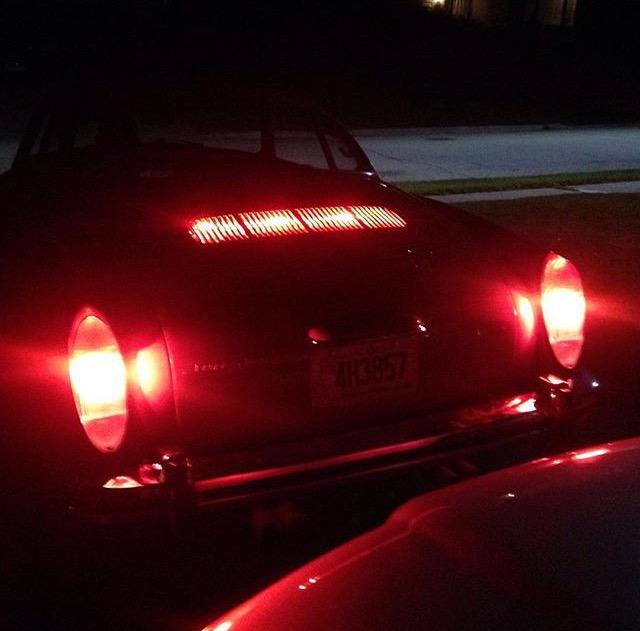

kind of looks like a fire
|
|
| Back to top |
|
|
kiwighia68
Samba Member
Joined: October 20, 2013
Posts: 2934
Location: Auckland, New Zealand
|
| Posted: Wed Nov 18, 2015 12:55 pm Post subject: Re: Mounting LED light strips as 3rd brakelight |
|
|
| briggsy wrote: |
kind of looks like a fire
|
And still the guy behind you stopped just inches away, eh?
The brighter the better, everyone tells me.
_________________
Festina lente - hasten slowly
1968 Ghia named Emiko
Resto completed Dec 2015 |
|
| Back to top |
|
|
briggsy
Samba Member
Joined: January 11, 2013
Posts: 30
Location: Ontario, CANADA
|
| Posted: Wed Nov 18, 2015 1:07 pm Post subject: Re: Mounting LED light strips as 3rd brakelight |
|
|
lmao it's parked kiwighia68
and was the Eh! a poke at me being Canadian lol
Last edited by briggsy on Wed Nov 18, 2015 1:32 pm; edited 1 time in total |
|
