 Posted: Mon Mar 07, 2016 7:55 pm Post subject: Brake spring tool |
 |
|
Does someone know the size of the brake spring tool for a 69? I would like to pick one up so I don't have to keep using a pair of pliers. The ones I've found have one side 5/8 - 11/16 on one side and 11/16 - 7/8 on the other. Do I need metric sizes for this?
_________________
John
There is no distinctly American criminal class - except Congress.
Mark Twain
69 bug - "The Grey Ghost" |
|
| Back to top |
|
 |
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17644
Location: Left coast, Canada
|
| Posted: Mon Mar 07, 2016 8:25 pm Post subject: Re: Brake spring tool |
|
|
I use a 17mm socket on an extension. It's always in my tool box and I don't need to hunt for a special tool.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
johneliot
Samba Member
Joined: August 29, 2005
Posts: 2195
Location: Chico, CA
|
| Posted: Mon Mar 07, 2016 9:18 pm Post subject: Re: Brake spring tool |
|
|
Bruce,
The 12 points inside the socket are enough to turn the disk so the little pin will line up?
_________________
John
There is no distinctly American criminal class - except Congress.
Mark Twain
69 bug - "The Grey Ghost" |
|
| Back to top |
|
|
PatsGhia
Samba Member
Joined: December 20, 2015
Posts: 21
Location: Los Angeles, CA
|
| Posted: Tue Mar 08, 2016 12:03 am Post subject: Re: Brake spring tool |
|
|

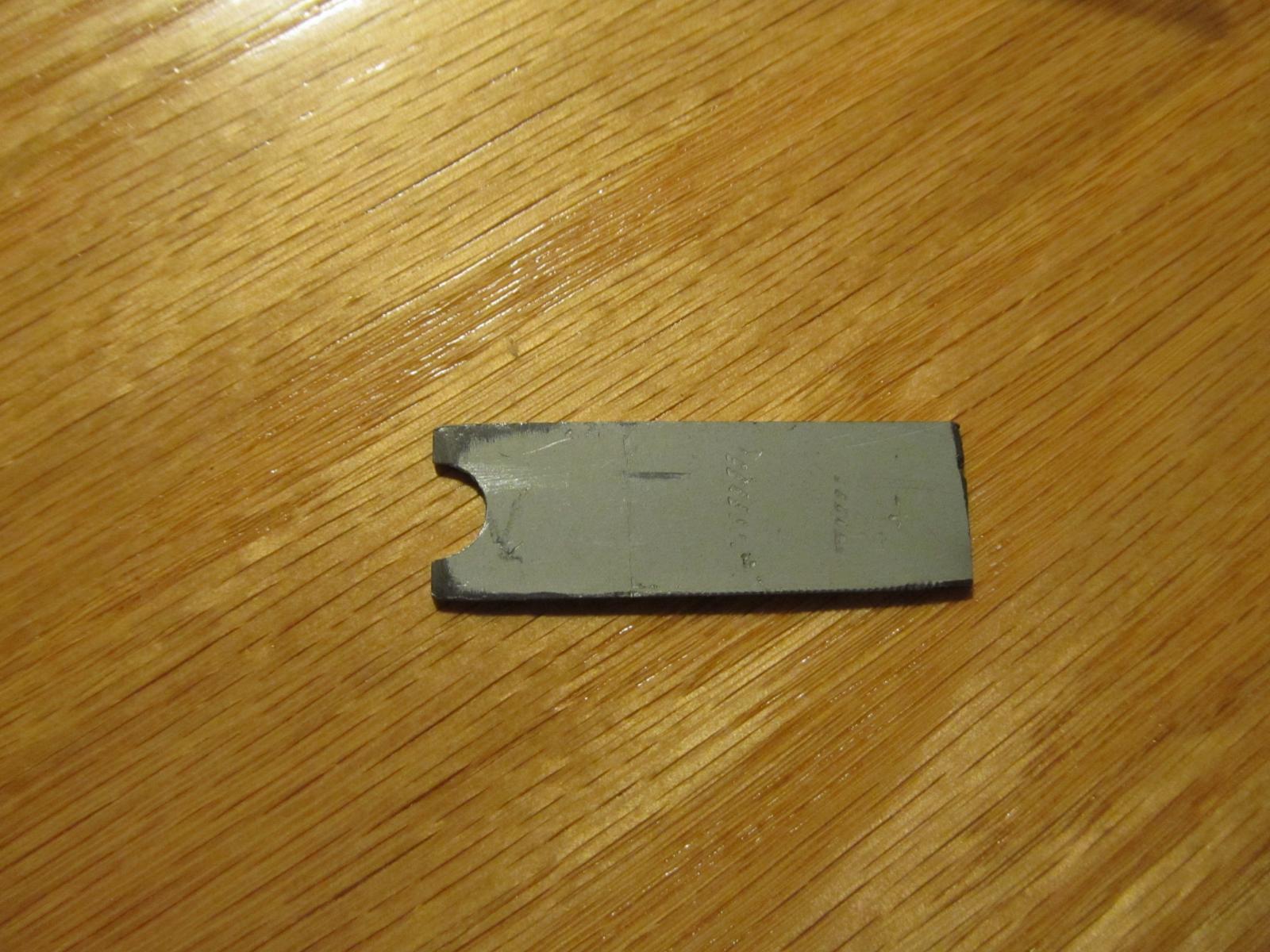

Whipped this up a number of years ago from some scrap steel. Works great - can see the pin to line it up. I use it with a pair of vice grips normally. Total width is around 9/16", cutout is around 1/4" wide by 1/8" deep.
|
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33394
Location: Hot Arizona
|
| Posted: Tue Mar 08, 2016 9:35 am Post subject: Re: Brake spring tool |
|
|
I've used one like this for over 4 decades now
Most auto parts stores should have something similar for under $15.
I think the smaller of what you asked about would work for the shoe retaining springs/cups.
For the traditional type brake springs, I've always just grabbed on the straight part with genuine Vise-Grip pliers.
