 Posted: Fri Mar 04, 2016 3:38 pm Post subject: Accelerator Valve Looks Damaged Solex H30/31 PICT |
 |
|
Rebuilding the carb on my 68, has a 73 engine. The carb is a Solex H30/31 PICT.

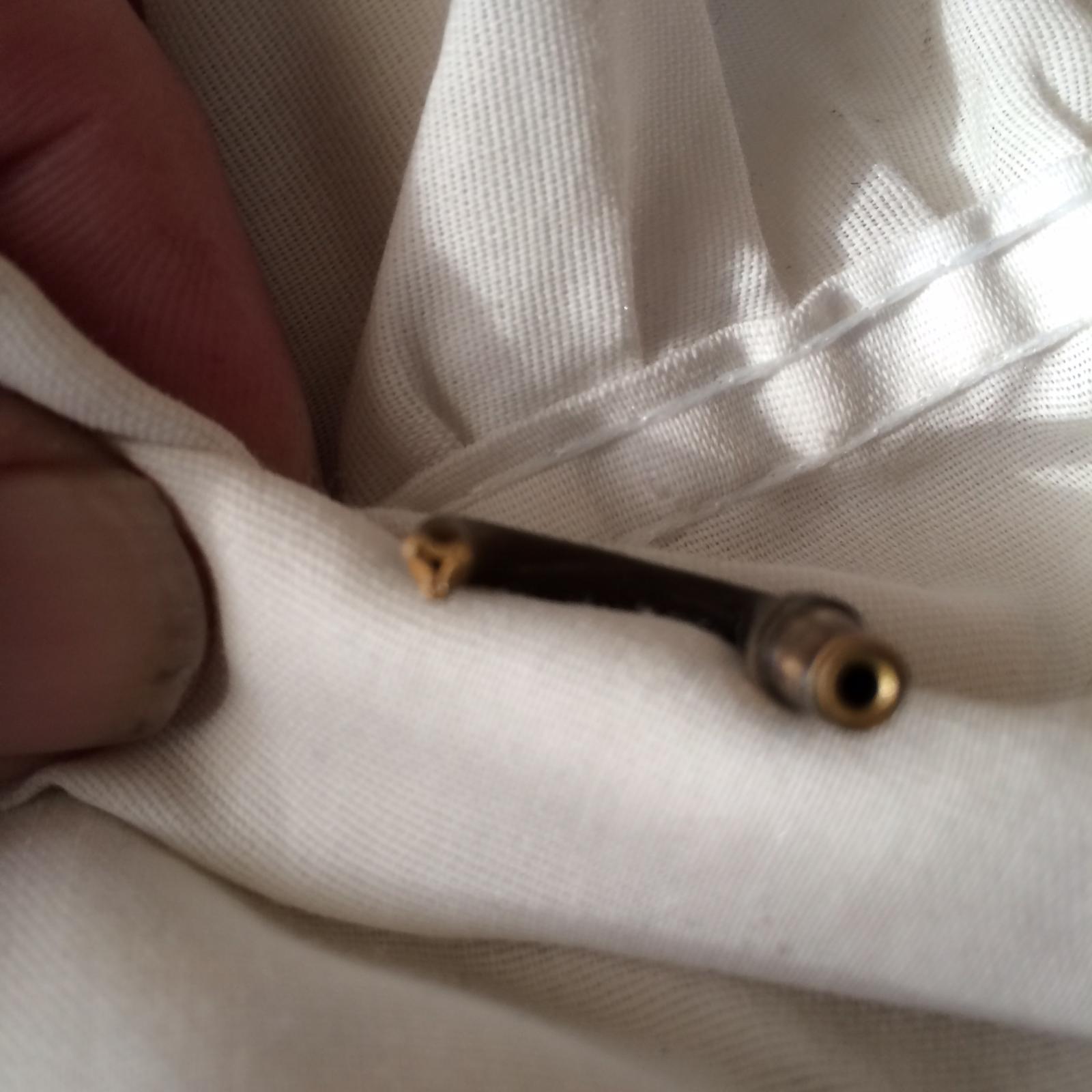

The accelerator valve (that's what ivevheard it called) is crimped in on the end. From the pics and videos I've seen this end looks open.
1. Am I right that this is messed up?
2. Why would anyone restrict the fuel flow like this?
3. Best place to buy one, haven't found it sold individually on some of the normal sites.
Thanks for any help or info.
|
|
| Back to top |
|
 |
60ragtop
Bonneville Belt Bitch
Joined: March 13, 2006
Posts: 7801
Location: Big Wonderful WYO 82401
|
| Posted: Fri Mar 04, 2016 3:41 pm Post subject: Re: Accelerator Valve Looks Damaged Solex H30/31 PICT |
|
|
that is just how that style is made. as long as it is not plugged, it'll work fine.
_________________
Rick
Certified Mechanic by the State of Michigan in 1977
ASA certified in 1987
Certified Hunter Wheel Alignment Master Technician 1986
| tasb wrote: |
I've restored a large number too, but I don't toot my horn quite as loud.
|
| sb001 wrote: |
maybe he just snapped cause his car sucked  |
|
|
| Back to top |
|
|
FishWeed
Samba Member
Joined: February 03, 2016
Posts: 25
Location: Northern Ohio
|
| Posted: Fri Mar 04, 2016 3:57 pm Post subject: Re: Accelerator Valve Looks Damaged Solex H30/31 PICT |
|
|
That's good news thanks. I was 50/50 on if it was messed up or not because of the way it is crimped (3 points). I just couldn't figure out why someone would crimp it and why they would do it that way.
Thanks for the good news, I have parts soaking right now and will get it back together tomorrow or Sunday. |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16752
Location: North Florida, USA
|
| Posted: Mon Mar 07, 2016 10:10 pm Post subject: Re: Accelerator Valve Looks Damaged Solex H30/31 PICT |
|
|
| FishWeed wrote: |
| I just couldn't figure out why someone would crimp it and why they would do it that way. |
The accelerator pump doesn't need to squirt a large volume of fuel but it needs to quickly get into the intake. Also, if it can be atomized as it does so it helps. The crimp is meant to narrow the stream (similar to when you place you thumb over the end of a garden hose) and focus it into the throttle opening to get it into the airflow.
Some carbs in very good shape will spray the fuel into a fine mist as you step on the pedal. You cannot even see the stream... just a fog of fuel.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
