Painted Hub Cap Centers
Page: 1, 2, 3, 4  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
oldngray
Samba Member


Joined: February 12, 2002
Posts: 61

oldngray is offline

PostPosted: Fri Mar 05, 2004 1:32 pm    Post subject: Painted Hub Cap Centers Reply with quote

I've seen lots of buses at shows that have the VW logo in the center painted .......... anybody know how this is done?


Date information from VW dealer book Progressive Refinements:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
vwfye
Samba Member


Joined: April 15, 2000
Posts: 7723

vwfye is offline

PostPosted: Fri Mar 05, 2004 1:36 pm    Post subject: Reply with quote

ummmm. with paint? Laughing seriously though... you can mask off the rest of the cap and then spray the logo, or some actually use paint with a brush and just take their time. either will work.
_________________
64 No'back Speedster "Pearl"
1980s Sand Dragster "The Plunger"
LME "Little Giant Killer 3"
1974 Ghia "PUK"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
SHSC
Samba Member


Joined: February 02, 2001
Posts: 1785
Location: Oklahoma City
SHSC is offline

PostPosted: Fri Mar 05, 2004 1:37 pm    Post subject: Reply with quote

I tape over the logo, the cut out the logo with an exacto knife.
_________________
DKB
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
spookymulder
Samba Proletariat


Joined: January 02, 2004
Posts: 3298
Location: I'm either at 95608, 97537 or 94708 only my CPA knows for sure
spookymulder is offline

PostPosted: Fri Mar 05, 2004 1:47 pm    Post subject: Reply with quote

The easiest way is to first scuff the chrome with some 80 grit paper. Then use a paste wax and wax the entire hubcap EXCEPT for the emblem to be painted. Spray the emblem with several light but even coats of spray paint. Let dry. Then take a clean rag and wipe the wax with overspray right off. You're done!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NorCalWeekender
Samba Member


Joined: April 13, 2000
Posts: 6536
Location: East Bay, CA
NorCalWeekender is offline

PostPosted: Fri Mar 05, 2004 4:12 pm    Post subject: Reply with quote

I've tried the brush and realised I suck with a brush. Tired the masking tape and wasn't very good at that either. Might try the wax next...would surf wax work allright?

-Taylor
_________________
9th Owner of a 1971 Tintop Westy

"Eventually, we sold to a guy for $500 who towed it away to live in it in his parents' driveway. We didn't think it would ever avoid the junk heap on that day." -The 3rd Owner, 1995
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
crofty
Judas of the North


Joined: August 09, 2000
Posts: 19761
Location: Land of Whine and Phonies
crofty is offline

PostPosted: Fri Mar 05, 2004 4:18 pm    Post subject: Reply with quote

NorCalRiviera wrote:
I've tried the brush and realised I suck with a brush. Tired the masking tape and wasn't very good at that either. Might try the wax next...would surf wax work allright?

-Taylor


Have you ever tried to remove surf wax? My friend uses gasoline! Maybe you could bring them to the art department at school?!
_________________
Your Vanagon sucks, Stop waving at me.

HamburgerBrad wrote:

I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
23isthenumber
Samba Member


Joined: February 11, 2004
Posts: 66
Location: california
23isthenumber is offline

PostPosted: Fri Mar 05, 2004 4:28 pm    Post subject: Reply with quote

NorCalRiviera wrote:
I've tried the brush and realised I suck with a brush. Tired the masking tape and wasn't very good at that either. Might try the wax next...would surf wax work allright?

-Taylor


ha surf wax! i love that. brushes work if your relaxed enough to hold a brush...... or you can get some finger nail paint and poor a little in the vw sign..... rotate the hub cap around so the paint flows around inside the sign. dont rotate it too much or it will run out of the vw (the groove). if you do just scrape it away with a razer blade. this is how they use to do it back in the day and the paint wont chip off and it leaves a nice smooth finish. DO IT OLD SCHOOL!
_________________
rock it old skool....
Back to top
View user's profile Send private message AIM Address Classifieds Feedback
Major Woody
Samba Enigma


Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
Major Woody is offline

PostPosted: Fri Mar 05, 2004 4:37 pm    Post subject: Reply with quote

Spraying and then touchup with a very fine artist's brush seems to be the preferred and most common method.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crofty
Judas of the North


Joined: August 09, 2000
Posts: 19761
Location: Land of Whine and Phonies
crofty is offline

PostPosted: Fri Mar 05, 2004 4:42 pm    Post subject: Reply with quote

Get the 3M blue tape too, it will make this job a lot easier.
_________________
Your Vanagon sucks, Stop waving at me.

HamburgerBrad wrote:

I slept on crofty's tent once. I passed out drunk from two bottles of Everett's brother's wine.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
twinwindows
Samba Pimp


Joined: December 08, 2000
Posts: 4086
Location: So.Cal. Highland Park GFK!
twinwindows is offline

PostPosted: Fri Mar 05, 2004 5:07 pm    Post subject: Reply with quote

I will let you in a little secret I learned restoring over "10 cars" .. Paint the logo on the hub cap then get a smooth rag dip it in a little paint remover and put in on a flat piece of wood or whatever as long as it`s flat then rub it on the logo , you should get the paint around the logo off without even touching the \/
\/\/ logo.
_________________
CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!

myzamboni wrote:
Yeah, everyone's now doing it GFK style . . . everythinig is covert until the finished product is revealed.
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
speed holes
Samba Member


Joined: March 04, 2004
Posts: 403
Location: Fat City, USA
speed holes is offline

PostPosted: Fri Mar 05, 2004 6:02 pm    Post subject: Reply with quote

I've done it with masking tape, not too hard, just a lot of work. Get some good masking tape, not the $1 a roll garbage walmart sells, go to an auto paint store, or at least a hardware store. Cover the logos completely with tape, press it down into the \X/ with your thumbnail or some other tool, just don't tear the tape. Press it hard enough and you'll have a perfect line to cut with an Xacto knife, use a NEW SHARP blade, in the crease, cut away. Change your blades often, and oh yeah, scuff up the chrome first and tape off everything you don't want overspray on, and also don't expect spray paint to last forever. Spray a few light coats, be patient, read the can, etc. etc. And if you screw up, you can dab a little thinner on a Q-tip and wipe away your mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
oldngray
Samba Member


Joined: February 12, 2002
Posts: 61

oldngray is offline

PostPosted: Fri Mar 05, 2004 6:15 pm    Post subject: Reply with quote

Wow ..... glad to see others have done this chore. I think I'll practice on some old caps first ......... I was really hoping somebody would have a template already made to do this job.
Back to top
View user's profile Send private message Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 70937
Location: Phoenix 602
EverettB is offline

PostPosted: Mon Nov 03, 2008 10:25 am    Post subject: Reply with quote

I just did some grey hubcaps and and have used the following method on chrome hubcaps in the past. Chrome caps are easier to clean-up afterward.

Supplies needed:
Hubcaps
Spray paint in appropriate color. I used Krylon Dover White below.
Lacquer Thinner. Can also use Paint thinner (weaker, may be more difficult) or Acetone (stronger, may damage painted cap finish but worked fine on chrome caps)
Small block of wood, I cut a strip from a 2x2 piece I had.
Clean rags cut into little squares to wrap around block of wood
Protective gloves

Steps:
1. Scuff up center emblem area, I used 220 grit sandpaper.
2. Wash caps with soap and water or a degreaser. Let dry.
3. Spray centers with spray paint. You can also tape off most of the cap to prevent overspray. I did not in this case. I let the paint dry for at least 1 hour in the shade or inside my garage before continuing. Exterior temperature was in the 80s so your dry time may vary.
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492883
Image may have been reduced in size. Click image to view fullscreen.

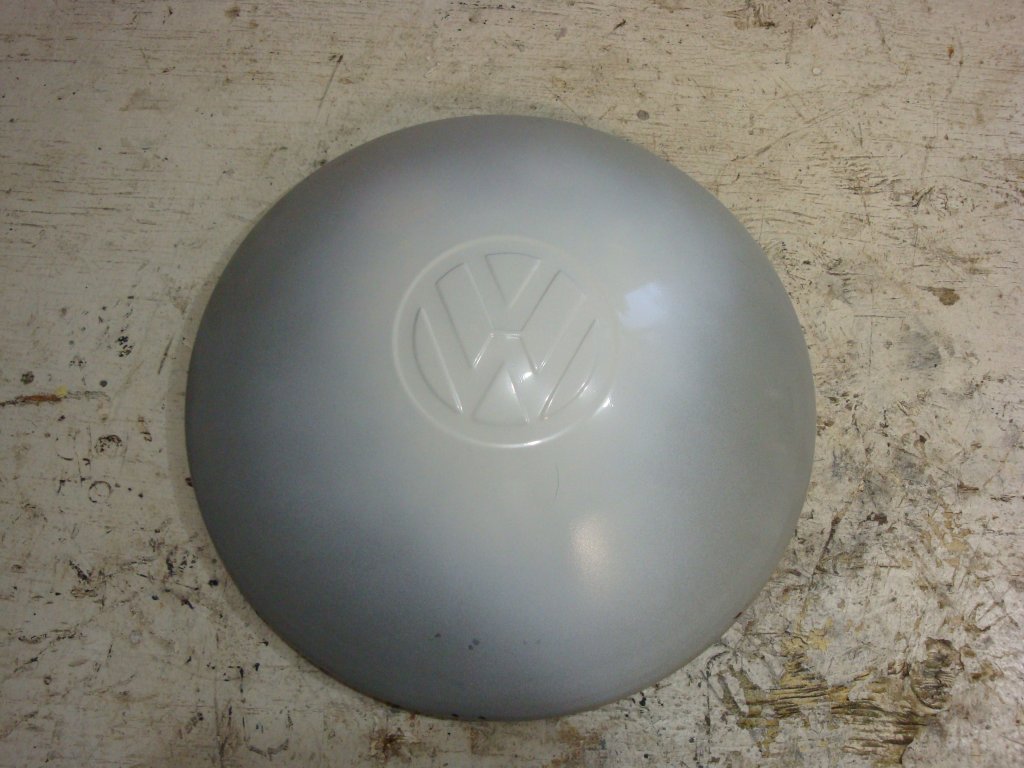

Close up of one cap:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492882
Image may have been reduced in size. Click image to view fullscreen.

4. Wrap block of wood in a single layer of fabric and lightly run it across the center emblem to remove paint. Sunken emblem area remains painted. This will take several passes. I believe I did 15-20 passes from various angles and rotating the emblem around. Rotate block of wood when rag gets loaded up with paint or switch to a fresh rag.
Overview:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492881
Image may have been reduced in size. Click image to view fullscreen.

Detail:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492880
Image may have been reduced in size. Click image to view fullscreen.

5. Wiper off remaining overspray with clean rag or paper towels:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492879
Image may have been reduced in size. Click image to view fullscreen.

6. Done:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=492878
Image may have been reduced in size. Click image to view fullscreen.


The caps above are reproduction hubcaps so the edges of the stamping were not as clean or deep as originals. This can require more care to get a clean edge.

If you have an old or extra cap, you may want to practice first.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
79SuperVert
Samba Member


Joined: May 31, 2002
Posts: 9758
Location: Elizabeth, NJ & La Isla Del Encanto
79SuperVert is offline

PostPosted: Mon Nov 03, 2008 10:56 am    Post subject: Reply with quote

What about these logo inserts for sale on The Samba?

http://www.thesamba.com/vw/classifieds/detail.php?id=583524

Image may have been reduced in size. Click image to view fullscreen.


Disclaimer: I am not related to, nor am I getting a commission from the seller.
_________________
Central Jersey VW Society

Wanted: Art Collins VW (Savannah, Georgia) items - license plate surrounds and other items. Also ivory "AM", "FM" and "SW" buttons for a US Blaupunkt Frankfurt.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VolksFire
Samba Member


Joined: July 24, 2006
Posts: 903
Location: NorCal
VolksFire is offline

PostPosted: Mon Nov 03, 2008 11:25 am    Post subject: Reply with quote

i have done many chrome caps, the way everett does it. easy. on gray caps however that i have attemped, its better to mask it off with tape if you painted it grey yourself (as opposed to a powder coated cap) because when you go to remove the white overspray, you will end up also removing the grey.

after finding this out, i purchased a set of the logo inserts mentioned above. they were slightly too small and were a pain it the butt to get in place and they all bunched up when you tried to push them on. i wasnt happy at all with the quality and the seller was kind enough to refund my money. i still have the terrible inserts on my panel bus' caps and surprisingly theyre still on there.
_________________
Jahnai Pearson - VW Restoration Technician
Current ownership:
60 Double Door Panel
63 Double Cab
63 Single Cab
67 SO42 Westfalia
73 Thing
76 Kombi
81 Dasher Wagon
82 Quantum Coupe
85 Quantum Syncro Wagon
96 Golf GL
98 Golf GL
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dstefun
Samba Member


Joined: February 20, 2002
Posts: 3338
Location: Sacratomato
dstefun is offline

PostPosted: Tue Nov 04, 2008 11:25 am    Post subject: Reply with quote

From WW years ago (same procedure as some others already posted except they take off most of the paint while it is still wet.)
Hubcap logo painting secret with pix
http://www.wolfsburgwest.com/wired/wired_11_00/wired_11_00.htm
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 70937
Location: Phoenix 602
EverettB is offline

PostPosted: Tue Nov 04, 2008 6:13 pm    Post subject: Reply with quote

Yes, I have done chrome hubcaps when they are still a bit wet.

On these grey ones, I let it dry for an hour. I also did 2-3 light coats a few minutes apart as the Krylon laid down better for me that way. If I remember right, I did one thick layer of black for my chrome caps but it wasn't Krylon paint.

I used very little lacquer thinner on the rag, just enough to dampen it. I hold the rag tight up to the can and tip the can against it. Then sort of spread the thinner out across the rag by dabbing it with another rag.

I did a bunch of testing on a 5th hubcap before I did my 4 for the truck. I ended up using the test hubcap in the end as it came out better than 2 of the others.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Tue Nov 04, 2008 7:08 pm    Post subject: Reply with quote

I like the "wipe off" method alot. Will be using that method soon on chrome caps.

FYI- If you do need to use masking tape for this project or another, there is a new green kind at Home Depot called "FROG" tape. Stuff works great for latex and oil-base with clean edges and no bleed-through. About $5 a roll, much better than either of the 2 kinds of 3M blue masking tape.
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dave kroesen
Samba Member


Joined: April 03, 2001
Posts: 41
Location: so cal
dave kroesen is offline

PostPosted: Tue Nov 04, 2008 10:45 pm    Post subject: Reply with quote

i have done many sets of chrome caps, and my method is a little different. clean the cap with some *wax and grease* remover, fog several coats of semi gloss black over the depressed logo, then....using a little piece of 000 steel wool under my fingertip, i methodically remove the unwanted paint. you get great control on the edges. when you are all done, take some mothers aluminum polish on your finger and rub it over the paint and voila! if you burn thru anywhere, or leave a little bit of an uneven edge...it just makes it look more random and legit like a real survivor cap. love those gray caps ev!
_________________
40-horses to freedom!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Tue Nov 04, 2008 11:00 pm    Post subject: Reply with quote

dave kroesen wrote:
when you are all done, take some mothers aluminum polish on your finger and rub it over the paint and voila!


dave, what does the mother's polish do?seems like it would really take the paint back off? Is it more for the distressed look? thanks
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
