74' Super Beetle wiring help!? (PICS)

[Mychalc90]

Hey guys, sorry for the long post. I'm fairly new to the site. Just recently painted my car and put the tail lights on and I have no brake lights or turn signals. My rear lights are plugged up right bc I labeled the plugs and also checked a diagram online.

When I got this car someone had put a second ignition in and had the flashers and master cylinder ran to fuse #9. The only way the flashers and brake lights would work is to run the wire on #9 fuse.

So today I took the dash out to get a close look at the wiring to see exactly what has been done to in in the past.

As you can see the wires ran to #9

A wire from the flasher lead not going to anything

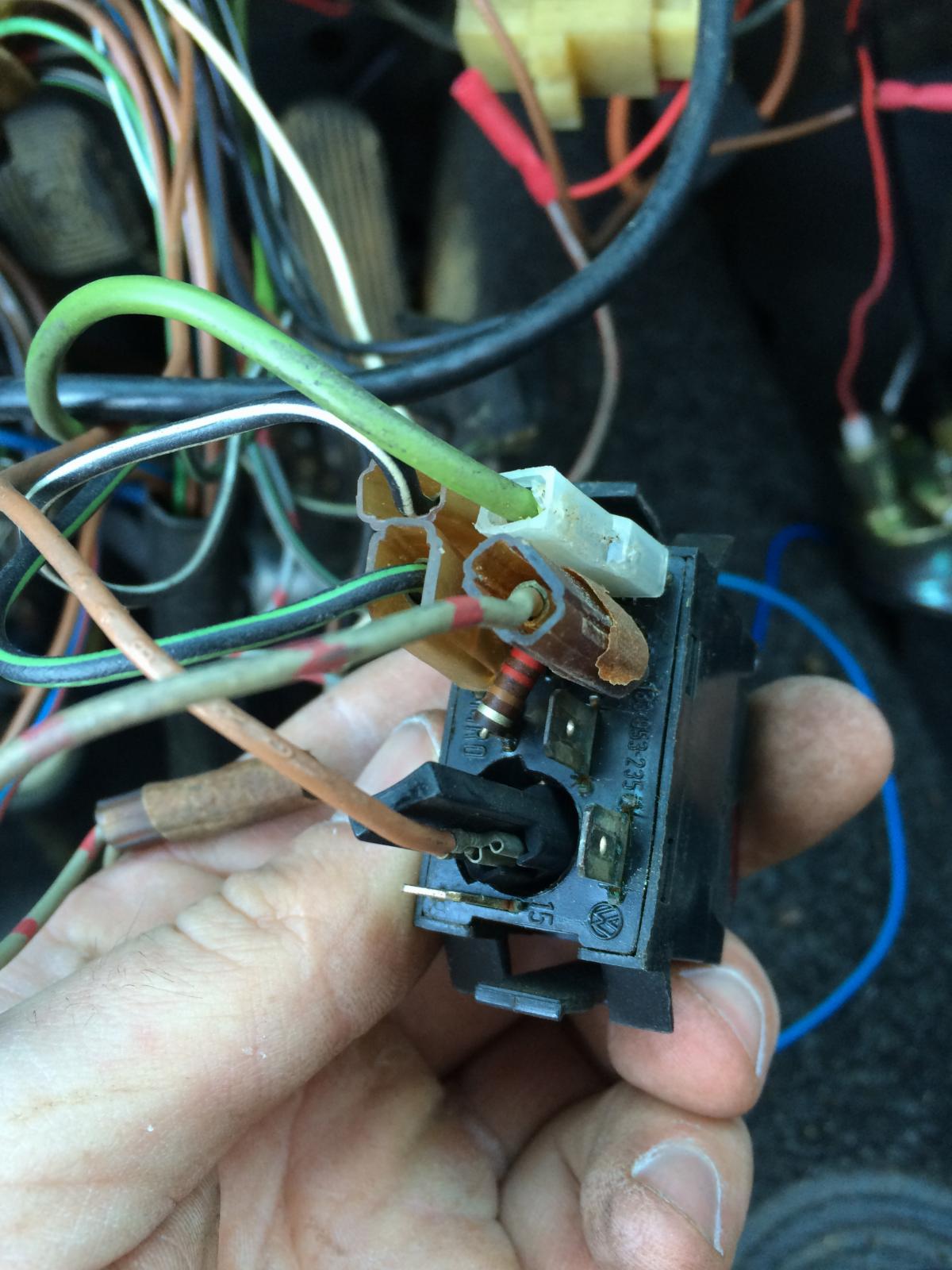

Hazard light switch

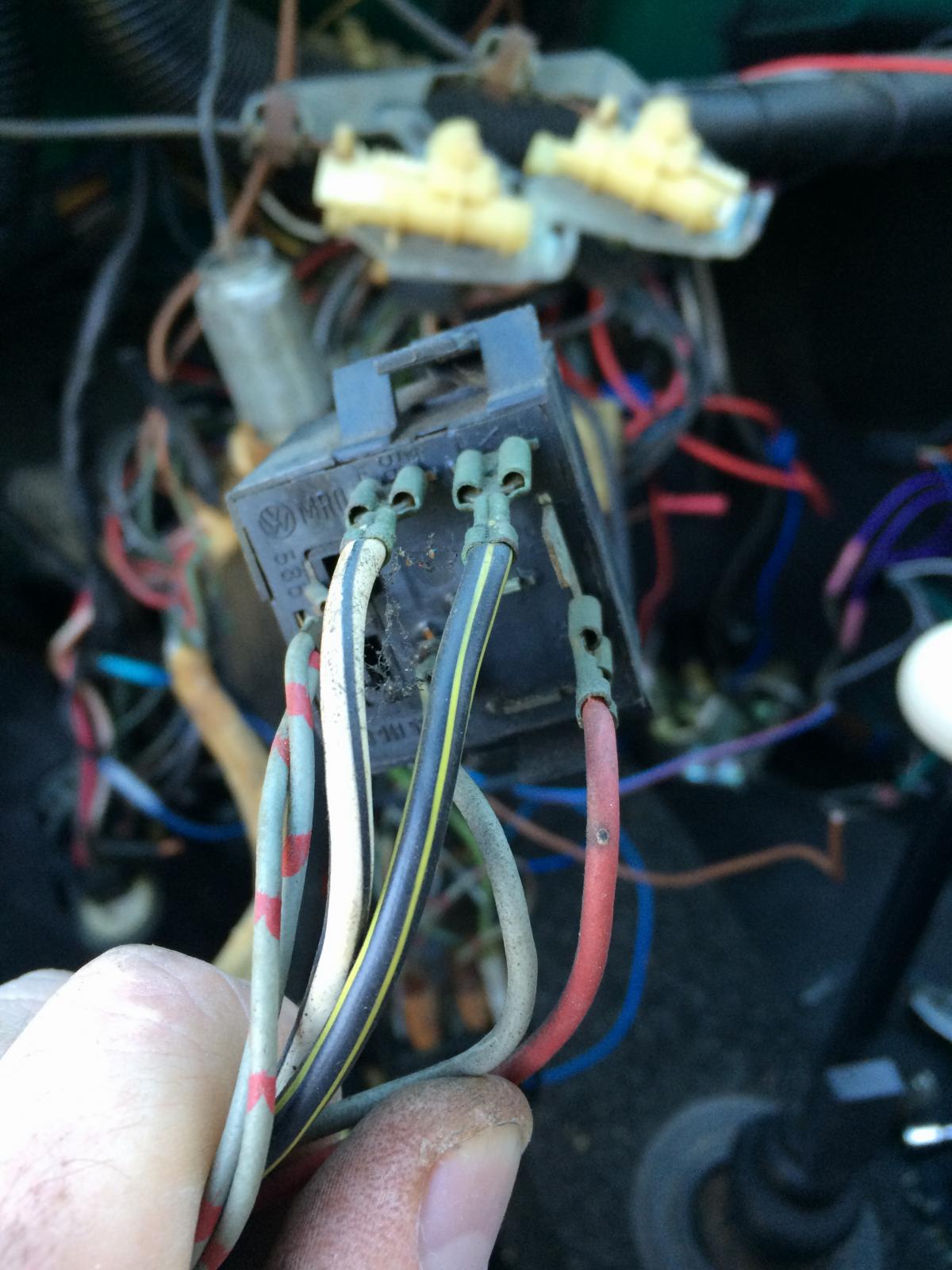

Light switch

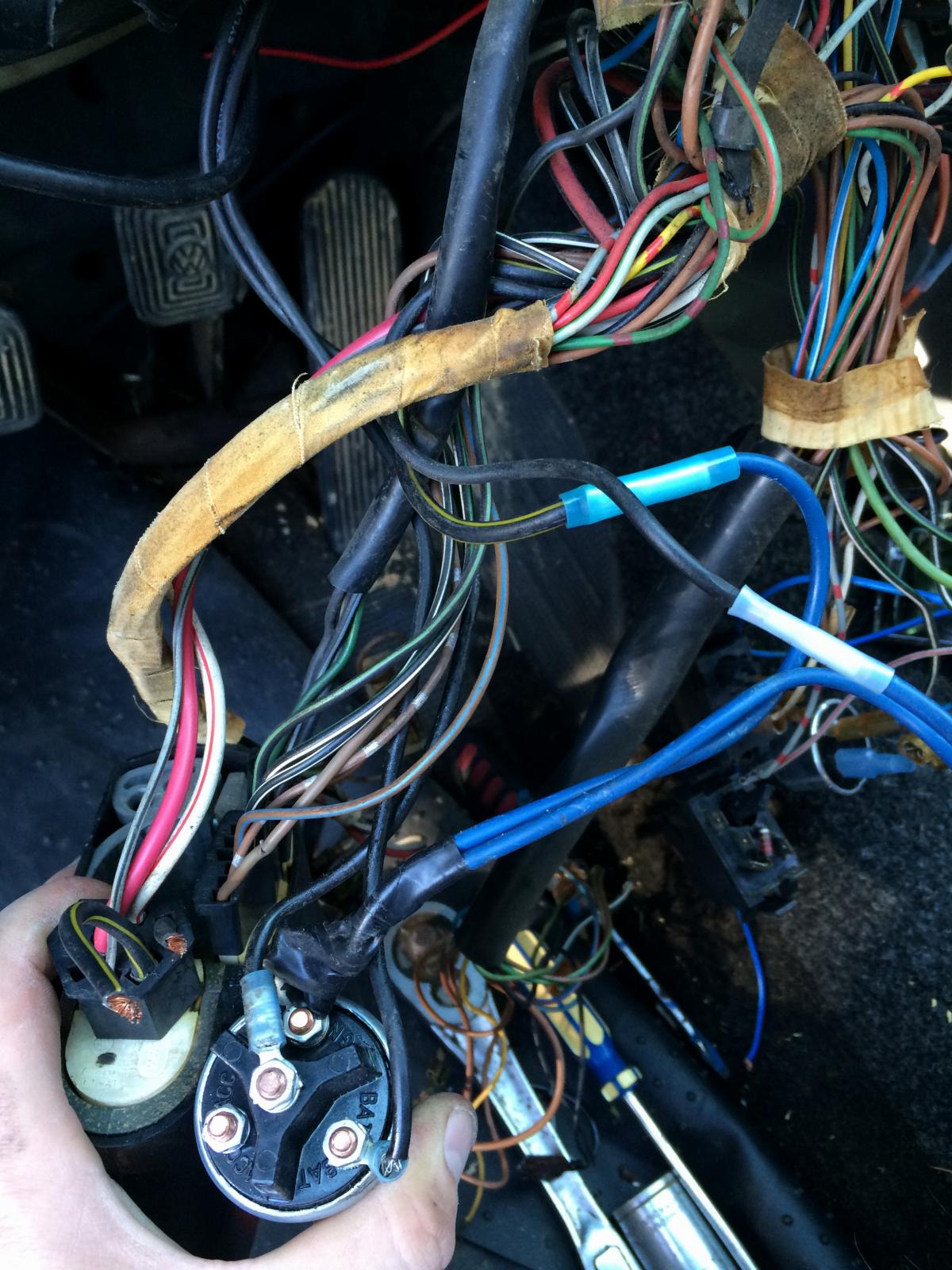

The second ignition

Cut wires on factory ignition. I hooked them up and tried the switch and the electric fuel pump cut on but it did not turn over. Is it a bad ignition? If so idk why they wouldn't have just replaced it.

This is how the wires were when I got the car. are the switches plugged up right? Rear parking lights work. I really hate having to plug in the turn signals but at least before paint they worked now I have no signals or brake lights not to mention the bulb holders don't hold the bulbs tight. Also passenger side rear parking lights are dim. Tried new bulbs and nothing. Any help will be greatly appreciated.

[Mychalc90]

BUMP

I recently installed disc brakes on the front and havent bled the lines yet that may be why the brake lights arent working.

Still cant figure out why the turn signals dont work.
Black/green wire goes to a 2 prong flasher lead with a blue wire not going to anything connected to the same prong as black/green
Second prong is a blue wire running to #9 fuse which had to be plugged in when needing turn signals when it worked before the paint job.
Any help would be great thanks again!

[DeathTrap]

There has to be a continuous electrical connection from the main car body, to the fender, and onto and within the light fixture itself.

Many times called bad grounds.

make sure the route from the negative side of the bulbs makes the trip through the new paint to metal.

[Cusser]

See http://www.thesamba.com/vw/archives/info/wiringt1.php

Too much to try to help in a post like this.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297

[Chochobeef]

I agree with Cusser on this one. You have a helluva fucockted wiring mess there. No way to really help unless there in person. You will need to trace each circuit. I would also look into getting some vw connectors such as follows:

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=111937079

and

http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=111937077

*make sure the battery is disconnected before doing any electrical work*

Get a soldering iron, heat shrink tubing and crimpers and do it right. Those little wire taps are sh*t.

Time to undo the PO mistakes which can be a pain. Most of the time electrical "fixes" were because they didn't want to find the real reason behind the problem.

Good luck
