Oil bath air cleaner question?
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
72lowslow
Samba Member


Joined: September 22, 2015
Posts: 138
Location: Delaware
72lowslow is offline

PostPosted: Sun Jun 05, 2016 6:00 pm    Post subject: Oil bath air cleaner question? Reply with quote

He to all
I'm trying to install a oil bath air cleaner on my 72 bus type 1 engine, the reason is because after put the engine on the bus and cruising couple times, I see oil splash on my battery and all the right side of the engine compartment the reason was the nipple where I put the oil! so I found a the oil bath cleaner, which I like install but, the problem is with the line that comes from the charcoal canister; where I can connect this hose?
Because the oil bath cleaner what I have only have one nipple, and I guess is for the oil breather, any suggestions thanks.
And what I'm supposed to do with the flap on the oil bath?

Balt
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
If you want to get into this hobby better you have a very strong strong wallet.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 32987
Location: NorCal
SGKent is offline

PostPosted: Sun Jun 05, 2016 6:06 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

do you have a 1971 upright style engine installed in that 1972? If so the photo from the 1971 owner's manual is below. The north American 1972 originally had dual air cleaners and dual carbs I believe.

Image may have been reduced in size. Click image to view fullscreen.

_________________
"There are no great men, there are only great challenges that ordinary men are forced by circumstances to meet." - Adm William F. Halsey Jr

I am not telling you what to, or what not to do. When a suggestion is offered, it is wishing you the best, & is based on my experiences as a mechanic, automotive machinist, & from racing in the era your bus came to life.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
72lowslow
Samba Member


Joined: September 22, 2015
Posts: 138
Location: Delaware
72lowslow is offline

PostPosted: Sun Jun 05, 2016 7:17 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

SGKent wrote:
do you have a 1971 upright style engine installed in that 1972? If so the photo from the 1971 owner's manual is below. The north American 1972 originally had dual air cleaners and dual carbs I believe.

Image may have been reduced in size. Click image to view fullscreen.



Thanks for the reply
My bus is a 72 with conversion to type 1 engine, single carburetor 34 pict - 3,
I have the charcoal canister hose connect to the chap aftermarket air filter.
and the thermostat to the flaps.
Balt
_________________
If you want to get into this hobby better you have a very strong strong wallet.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69
Samba Purist


Joined: June 10, 2004
Posts: 12898
Location: Arizona
wcfvw69 is offline

PostPosted: Sun Jun 05, 2016 8:39 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

That oil bath needs the bowden cable that hooks up from the passenger side flap to the lever on the preheat flap on the oil bath.
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
wcfvw69
Samba Purist


Joined: June 10, 2004
Posts: 12898
Location: Arizona
wcfvw69 is offline

PostPosted: Sun Jun 05, 2016 8:41 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


That style of oil bath was used from 68-70 on buses, bugs and Karmen Ghias.
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 3825
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Sun Jun 05, 2016 10:43 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

X-2 Bill

That is correct but, how many still have the flaps let alone the cable Question

Lets do hope that owners are reinstalling all the important LITTLE items
that were shit canned by independent wanna-be VW mechanics. Rolling Eyes

To the O.P., wire the flap weight open if it is still operable.
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
72lowslow
Samba Member


Joined: September 22, 2015
Posts: 138
Location: Delaware
72lowslow is offline

PostPosted: Mon Jun 06, 2016 9:38 am    Post subject: Re: Oil bath air cleaner question? Reply with quote

Thanks for the replys

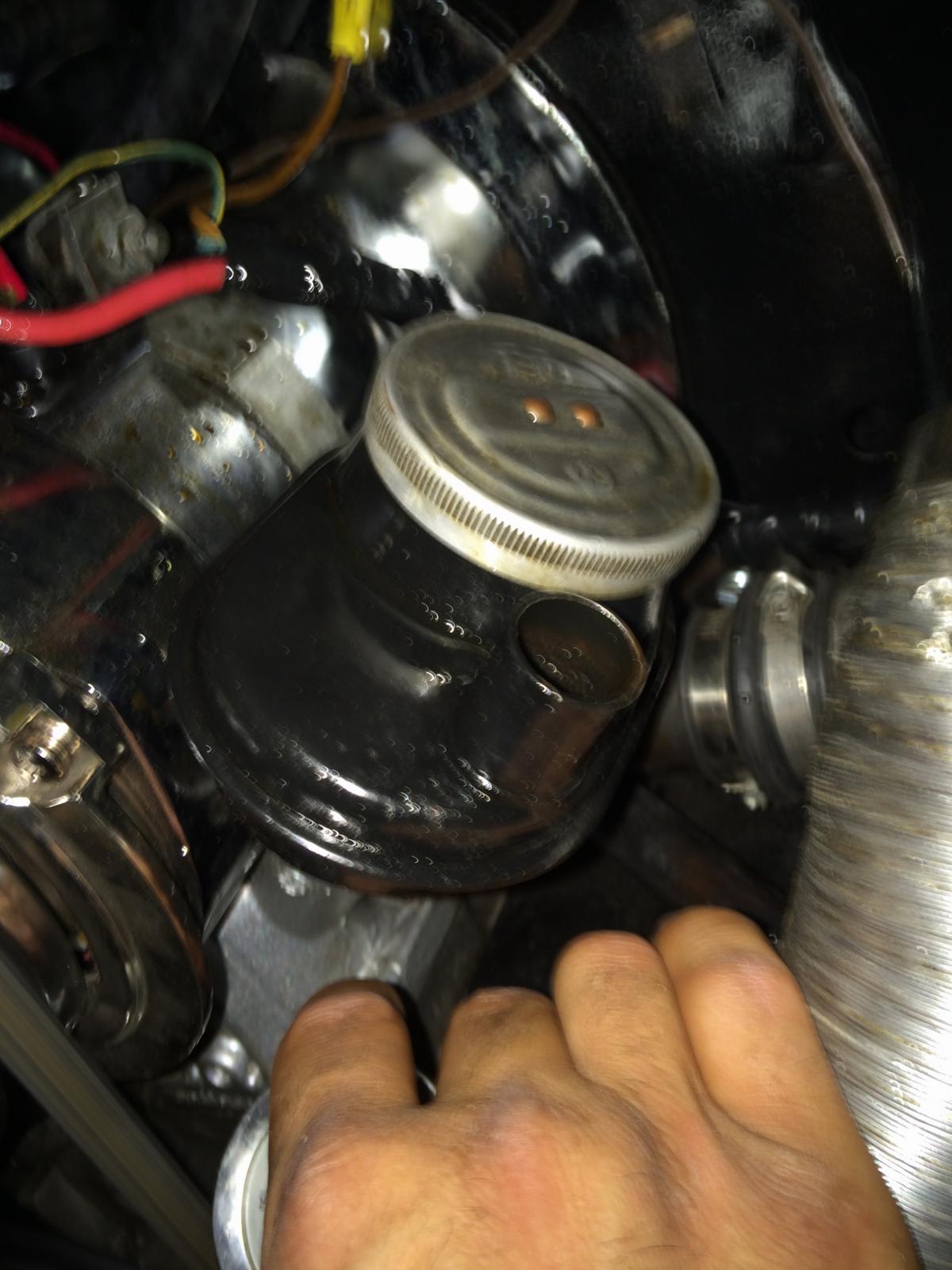

The main reason because I want to put the oil bath air cleaner, is this nipple on this picture, splash oil all over the engine compartment, any other way to address this problem! It would be helpful.
Thanks
Balt
Image may have been reduced in size. Click image to view fullscreen.

_________________
If you want to get into this hobby better you have a very strong strong wallet.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 32987
Location: NorCal
SGKent is offline

PostPosted: Mon Jun 06, 2016 9:48 am    Post subject: Re: Oil bath air cleaner question? Reply with quote

Excessive blowby is caused by worn rings, worn guides, or excessive timing advance - or any combination thereof. You can add the hose to the oil bath and it will direct it into the oilbath.
_________________
"There are no great men, there are only great challenges that ordinary men are forced by circumstances to meet." - Adm William F. Halsey Jr

I am not telling you what to, or what not to do. When a suggestion is offered, it is wishing you the best, & is based on my experiences as a mechanic, automotive machinist, & from racing in the era your bus came to life.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
wcfvw69
Samba Purist


Joined: June 10, 2004
Posts: 12898
Location: Arizona
wcfvw69 is offline

PostPosted: Mon Jun 06, 2016 10:02 am    Post subject: Re: Oil bath air cleaner question? Reply with quote

old DKP driver wrote:
X-2 Bill

That is correct but, how many still have the flaps let alone the cable Question


I know, right? I do think it's getting better. I think this site has helped reinforce the importance of running the thermostats and flaps.

old DKP driver wrote:

Lets do hope that owners are reinstalling all the important LITTLE items
that were shit canned by independent wanna-be VW mechanics. Rolling Eyes


Actually, you left out the word "arrogant" wanna-be mechanics. Laughing It amazes me how many of them thought they were smarter than the highly educated German engineers who put them on the engines. I also think the MAIN reason they were pulled off the cars was due to the mechanics being lazy. Some VW dealer mechanics from the early 70's that are on this site confessed to removing those parts because it made their jobs faster. How many owners would even know that there thermostats and flaps or bowden cables running to the oil bath were now missing after an engine overhaul?
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 3825
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Mon Jun 06, 2016 10:45 pm    Post subject: Re: Oil bath air cleaner question? Reply with quote

Yeah Bill, those" arrogant " fools spent too much time looking at 'how to hotrod
your VW' @ the drag strip. Laughing

I was fortunate to start my dealership training between 2 old timers from the
fatherland in 1971
This was the best way to teach a youngster and for me it really paid off for
the first 3 years there.

We did everything by the book every day. there were no short cuts by leaving
parts off and when i started at age 21 there we had the wonderful type-4
to look forward to also
I learned so much from those older guys and will always be thankful for
all i learned from them. VW Logo
