pic needed of assist strap location

[Russ]

Hi there,
I was wondering if anyone has or can take a pic of where the assist strap attaches, with no headliner in.
I know the general area but with the headliner in place and trying to feel where I need to poke through scares me a bit.

if I can see a pic I will have a better idea of where I'm feeling
thanks Russ
_________________
Cruiser pedals for sale (see my ad's)
55 hardtop finally finished
65 beetle done:)

[VOLKSWAGNUT]

Guessing a 65???


From a GALLERY search..

Pre mid 1967 model year location (approx to Nov 1966)

Mid (Nov 1966) 67 and newer.

_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

[glutamodo]

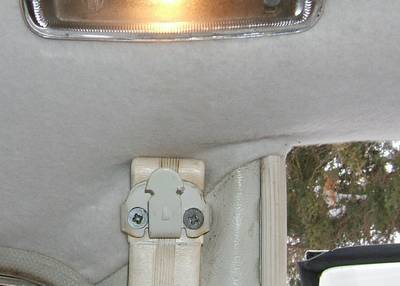

Here's my 62 in relation to the dome light:

_________________
Andy T.

"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!"

[rcooled]

My headliner's in place but I can give you a few measurements that might help.

The two screws that fasten the assist strap are located side by side, .85" apart. Measuring down from the edge of the interior light, I get 1.70". Measuring back from the seam between the headliner material and the plastic edging to the nearest screw, I get 1.10".
_________________
'63 Ragtop (current)
'65 Ghia coupe (totaled)
'67 Ghia convertible (current)
'69.5 Ghia convertible and
'62, '63, '65, '69 Bugs (all long gone)

[Russ]

you guys are awesome

lol I was totally looking far too high
the pics and measurements help immensely

I some how remember it being under the dome light and for the life of me couldn't find the tab

yes for the record it's for my 65:) last thing to do on it, then I'm calling it done
_________________
Cruiser pedals for sale (see my ad's)
55 hardtop finally finished
65 beetle done:)

[Russ]

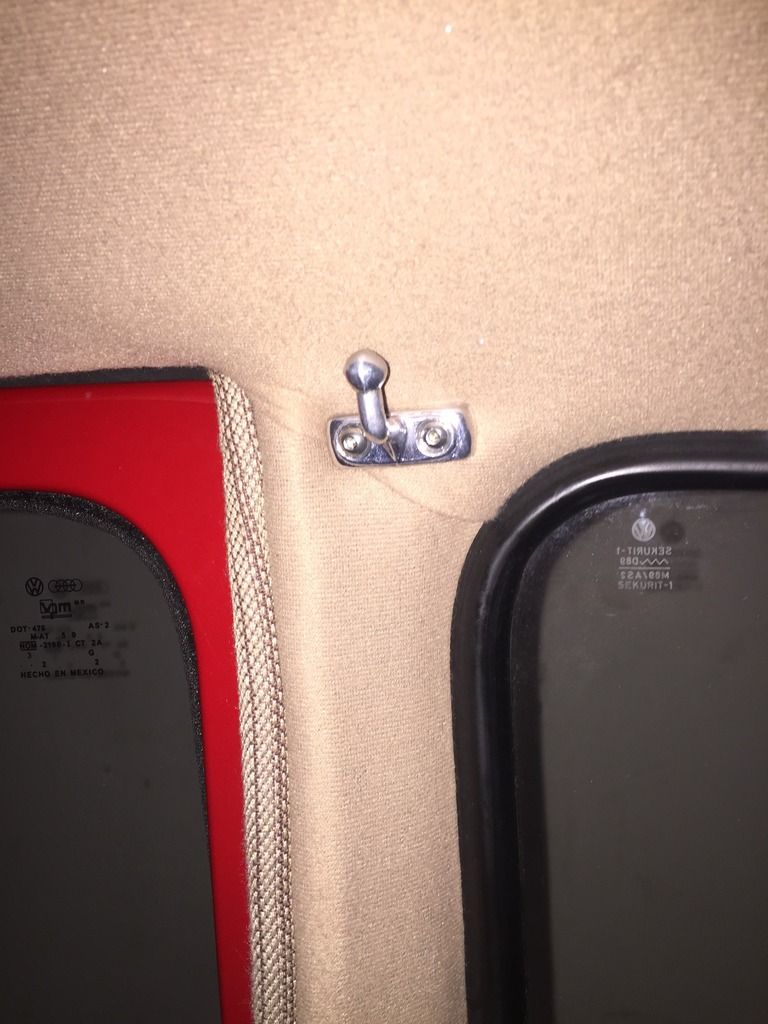

got the hooks in place (yes i know they are wrong for my car but they were left over from my oval build)
just got to make the straps and pop them in place

_________________
Cruiser pedals for sale (see my ad's)
55 hardtop finally finished
65 beetle done:)

[Dake]

I like the hook, can't wait to see it with the strap. I may do this if I can find the hooks looks awesome !

[nlorntson]

Once you have the general location, using a sewing needle to poke around looking for the mounting hole is pretty easy on the fabric.

[Russ]

[eriksonalex1307]

Any idea for the correct Screw Size ?? The correct Screw Length ??

Thank you

[mukluk]

[eriksonalex1307]

Thank you for the info

Erik

[slave1pilot]

[my59]

McMaster Carr?
_________________
my59: Well son, my grandfather died before I got to drive it, so does that answer your question?
our79: sunroof bus w/camper interior and 2.0 FI
Other:'12 Jetta, '77 Benz 300D, and a 74 MG Midget.

[glutamodo]

You can get 4 of them here:

https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=113857610A

Don't know how they came up with that part number. VW had it as an "N" series Standard Parts item, N 11 826 1 and N 14 256 1.
_________________
Andy T.

"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!"

[mukluk]

Good chance a hardware store would have them as well.
_________________
1960 Ragtop w/Semaphores "Inga"
